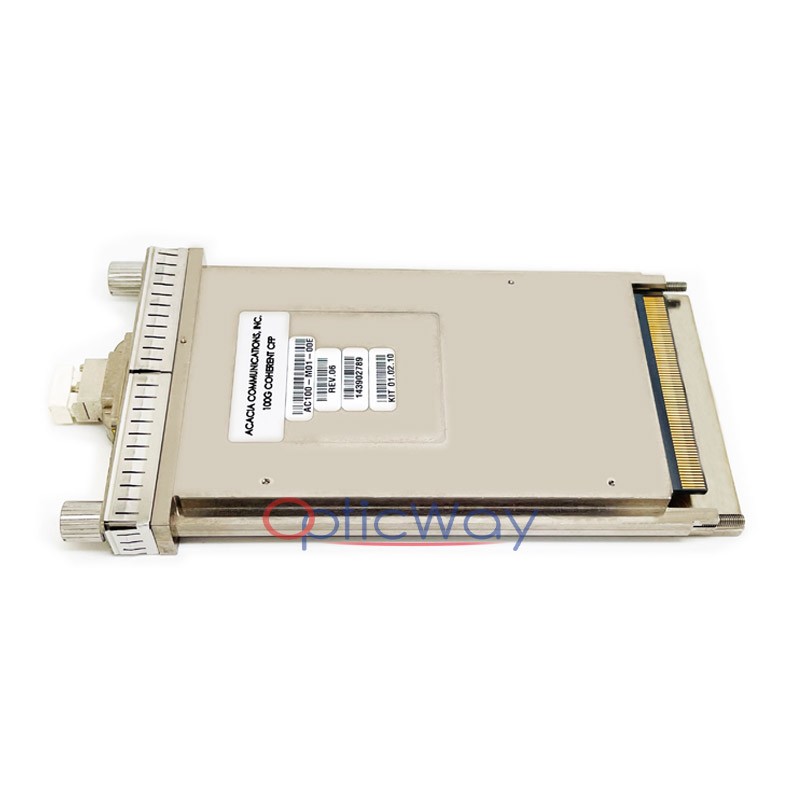

Acacia AC100-M01-00E 100G Coherent CFP Tunable DWDM Transceiver Full Front Label View

Acacia AC100-M01-00E 100G COHERENT CFP DWDM Tunable

US$2800.00
Acacia

Product Features

Condition : Used , fully functional and working perfectly,in stock
100G Coherent Transmission : Leverages DP-QPSK modulation for long-haul 100G transmission over DWDM networks.
Tunable C-band DWDM : Full C-band tunability enables flexible wavelength assignment and network optimization.
Hot-Pluggable CFP Form Factor : Supports hot-swap for easy integration and in-service maintenance.
DSP-Enhanced Performance : Built-in digital signal processing (DSP) compensates for chromatic dispersion and polarization mode dispersion.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Acacia AC100-M01-00E 100G COHERENT CFP DWDM Tunable

The Acacia AC100-M01-00E is a high-performance 100G coherent CFP optical transceiver designed for DWDM long-haul transmission. Featuring DP-QPSK modulation, C-band tunability, and built-in DSP, this module delivers reliable 100G connectivity over single-mode fiber. With a hot-pluggable CFP form factor and stable hardware/software versions (REV 06, KIT 01.02.10), it is an ideal solution for metro/regional telecom networks and medium-to-long-haul data center interconnections.

Model Number
AC100-M01-00E
Description
100G COHERENT CFP
Modulation Format
Coherent DP-QPSK
Form Factor
CFP (Centum Form Factor Pluggable)
Data Rate
100 Gbps (OTU4 / 103.1 Gbps aggregate)
Wavelength
Full C-Band Tunable
Operating Temperature
0°C ~ 70°C
Country of Origin
Canada
Safety & Compliance
Class 1 Laser Product (21CFR 1040.10), cULus
Diagnostics
Digital Diagnostic Monitoring (DDM)

Product Highlights

1.Genuine Acacia (Cisco) Innovation

  • Engineered by Acacia, the industry leader in coherent optical technology, ensuring carrier-grade reliability and low bit-error rates for core infrastructure.

2.Advanced CFP-DCO Architecture

  • Features integrated Digital Coherent Optics (DCO) with a built-in DSP, eliminating the need for complex external host-managed coherent processing.

3.Ultra-Long-Haul Transmission

  • Utilizing advanced PM-QPSK modulation, it supports exceptional long-reach transmission distances spanning hundreds to thousands of kilometers over standard SMF when coupled with line amplification.

4.Full C-Band Tunability

  • Supports full C-band wavelength tuning with ultra-narrow grid spacing, allowing network operators to seamlessly provision and optimize channels in dense DWDM environments.

5.Robust Link Budget & FEC

  • Equipped with highly industry-compliant Forward Error Correction (FEC) algorithms to withstand severe chromatic and polarization mode dispersion (CD/PMD) over aged or complex fiber links.

Typical Applications
  • 100G metro/regional DWDM transmission systems
  • Long-haul telecom backbone networks
  • Data center interconnection (DCI) over medium-to-long distances
  • Core router/switch 100G coherent interfaces
