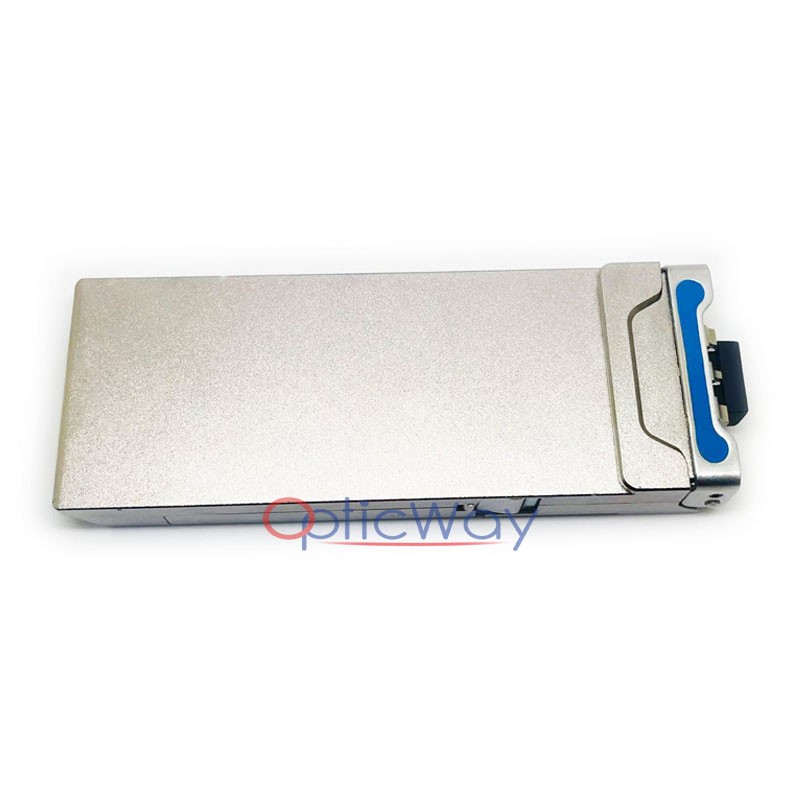

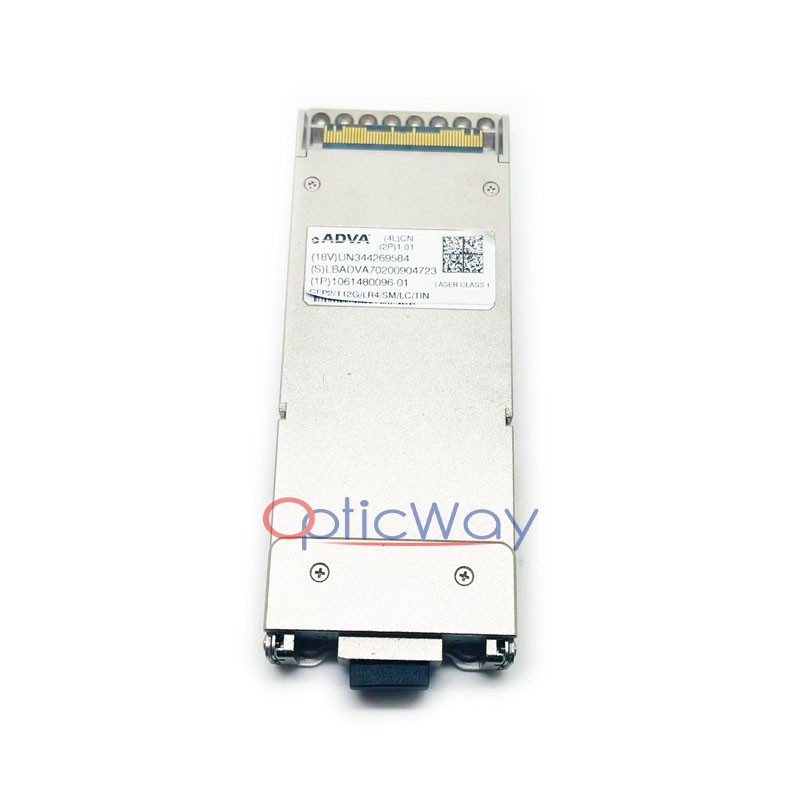

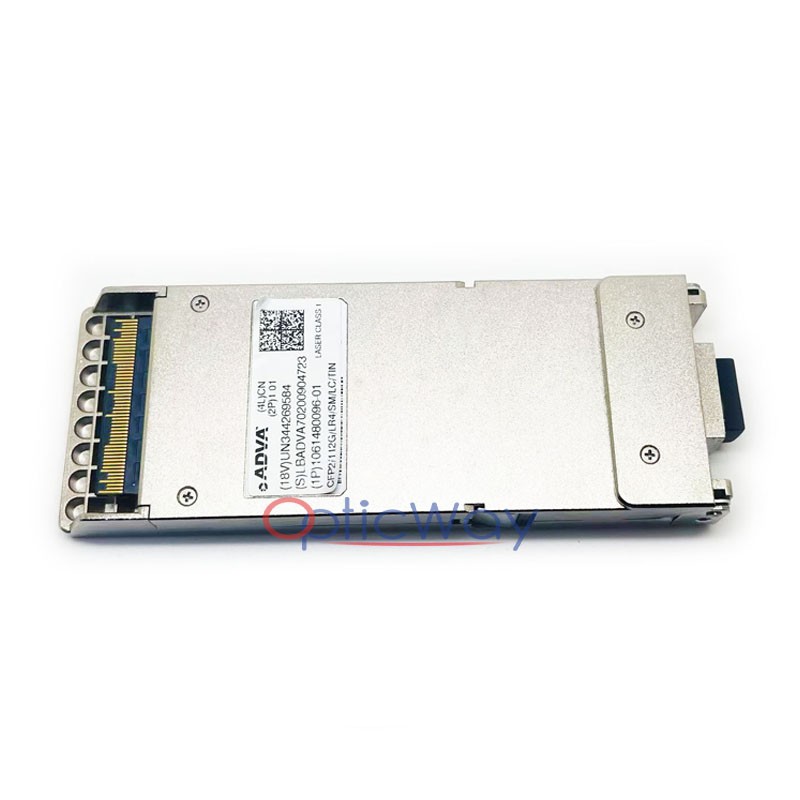

ADVA 1061480096-01 CFP2/112G/LR4/SM/LC 112G CFP2 Transceiver 10km SMF LC
The ADVA 1061480096-01 (CFP2/112G/LR4/SM/LC/TIN) is a high-density 100G/112G CFP2 optical transceiver designed for modern data centers and telecom networks. Featuring a compact CFP2 form factor, it delivers 10km reach over single-mode fiber at 1310nm LAN-WDM, fully compliant with 100GBASE-LR4 and OTU4 standards. With ultra-low power consumption (<12W) and hot-pluggable design, it enables 2x higher port density in the same rack space, making it the ideal solution for high-density data center interconnection, metro core networks, and 100G port expansion.
ADVA Part Number
1061480096-01
Model Number
CFP2/112G/LR4/SM/LC/TIN
Data Rate
112Gbps / 100Gbps (compatible with OTU4 / 100GBASE-LR4)
Standard
100GBASE-LR4, OTU4, IEEE 802.3ba, CFP2 MSA
Fiber Type
Single-Mode Fiber (SMF)
Transmission Distance
Up to 10 km
Wavelength
1310 nm LAN-WDM
Power Supply
3.3V single supply
Power Consumption
Typical< 12 W
Operating Temperature
0°C ~ 70°C
Safety Compliance
Class 1 Laser Product
Typical Applications
· High-Density Data Center Interconnection (DCI)
· Metro/Regional Core Networks
· 100G/112G Router/Switch Port Expansion
· Carrier Ethernet Backhaul
· Enterprise Campus Long-Haul Connectivity
Product Highlights
· High-Density CFP2 Form Factor: 50% smaller footprint than traditional CFP, enabling 2x port density in the same rack space for data centers.
· 100G/112G High-Speed Performance: Fully compliant with 100GBASE-LR4 and OTU4 standards, delivering 10km reach over single-mode fiber.
· Low Power Design: Optimized power consumption (<12W) reduces heat and operational costs for high-density deployments.
· Hot-Pluggable & Easy Maintenance: Supports hot-swap for in-service upgrades without network downtime.
· Telecom-Grade Reliability: ADVA-engineered for 24/7 operation in carrier networks and data centers.
