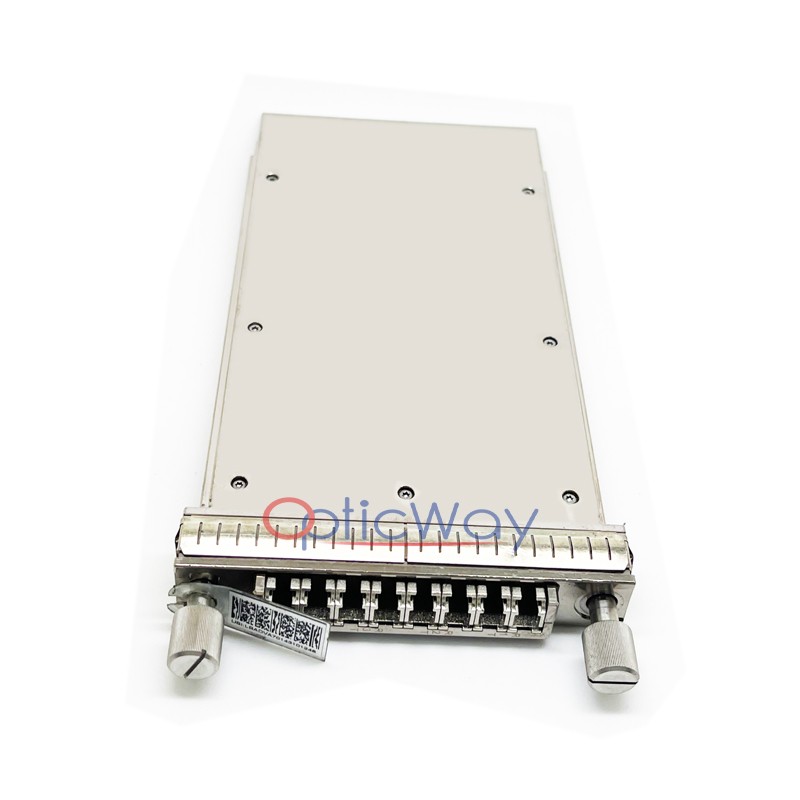

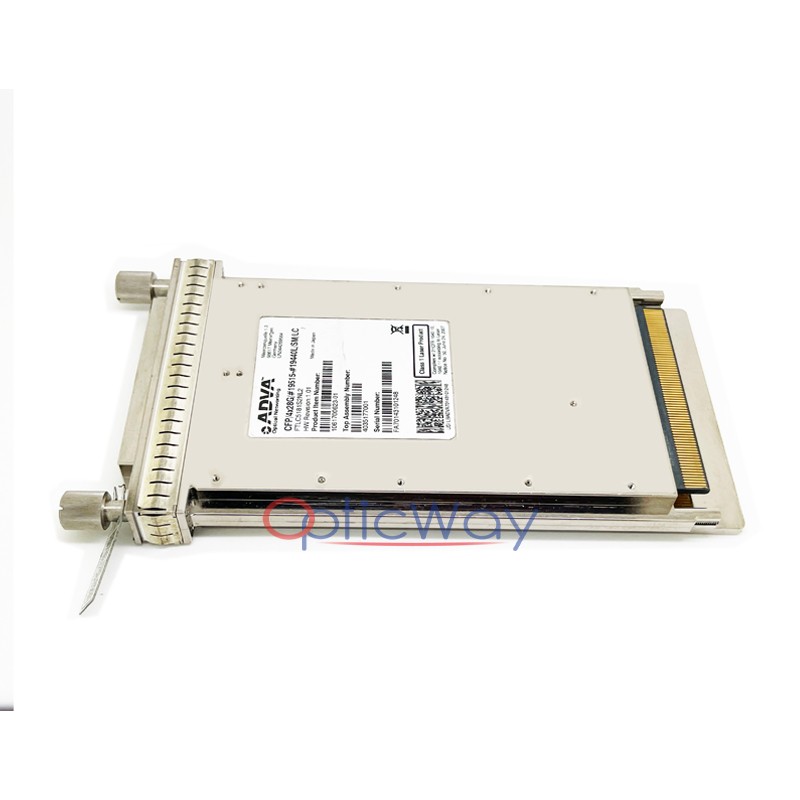

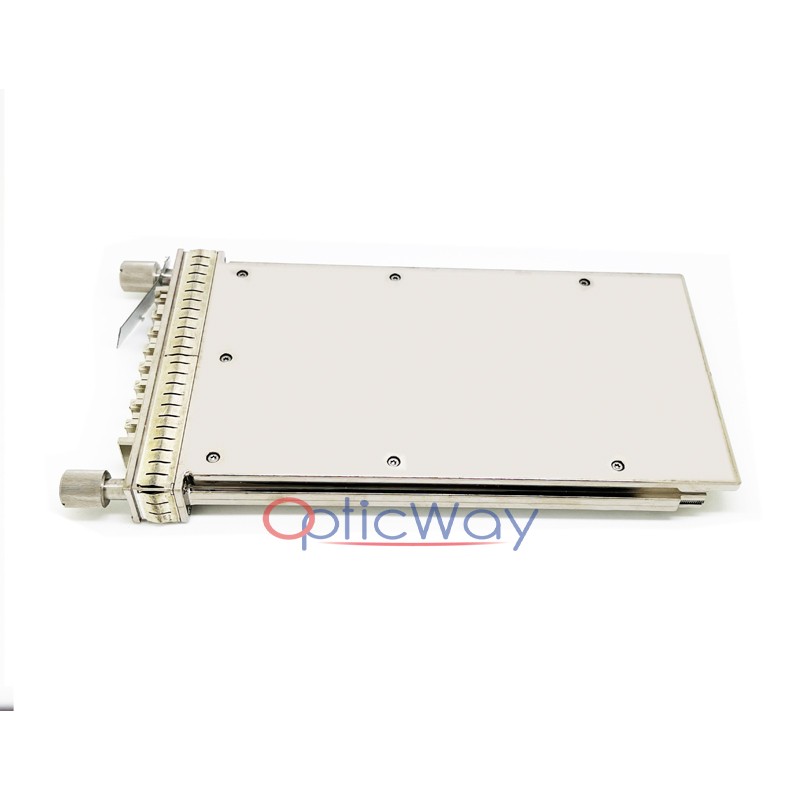

ADVA 1061700623-01 FTLC18152NL2 100G CFP Transceiver 4x28G 10km SMF LC
The ADVA 1061700623-01 (FTLC18152NL2) is a high-performance 100G CFP optical transceiver designed for long-reach 10km transmission over single-mode fiber. Featuring a 4×28Gbps parallel architecture compliant with 100GBASE-LR4 and OTU4 standards, this module delivers reliable, high-speed connectivity. It offers hot-pluggable convenience, low power consumption, and Class 1 laser safety. It is the ideal solution for data center interconnections, metro core networks, and high-density router port expansion
ADVA Part Number
1061700623-01
Finisar Mumber
FTLC18152NL2
Model Number
CFP/4x28G/#19515-#19440L/SM/LC
Form Factor
CFP (Centum Form Factor Pluggable)
Data Rate
100Gbps (4 × 28Gbps parallel channel)
Standard
100GBase-LR4 (IEEE 802.3ba)
Fiber Type
Single-Mode Fiber (SMF)
Transmission Distance
Up to 10 km
Wavelength
1310 nm LAN-WDM
Power Supply
3.3V single supply
Operating Temperature
0°C ~ 70°C
Typical Applications · Data Center Interconnection (DCI)
· Metro & Regional Core Networks
· High-Density Router/Switch Port Expansion
· Carrier Ethernet Backhaul
· Long-Haul Campus/Enterprise Connectivity
Product Highlights · 100G High-Speed Performance: Delivers 100Gbps bandwidth via 4 parallel 28Gbps channels, fully compliant with 100GBASE-LR4 standards.
· 10km Long-Reach Transmission: Utilizes 1310nm LAN-WDM technology for stable, long-distance connectivity over standard single-mode fiber (SMF).
· Finisar OEM Quality: Manufactured by Finisar (now Coherent) in Japan, ensuring superior reliability and performance for telecom-grade deployments.
· Hot-Pluggable CFP Design: Supports in-service replacement and maintenance without system downtime, ensuring high network availability.
· Low Power Consumption: Optimized power efficiency ( < 16W ) reduces heat dissipation and operational costs in high-density environments.
