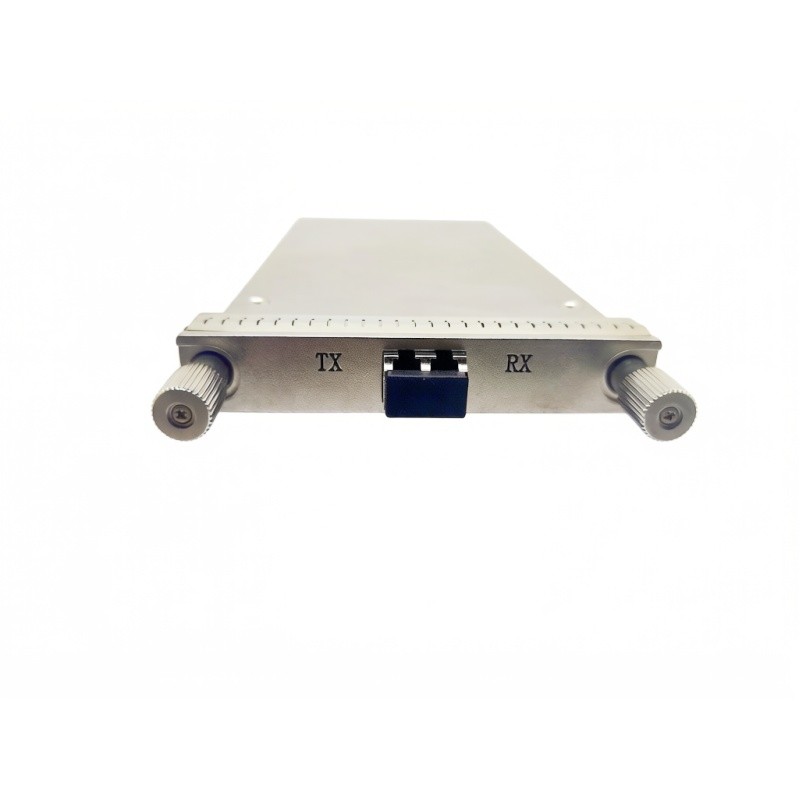

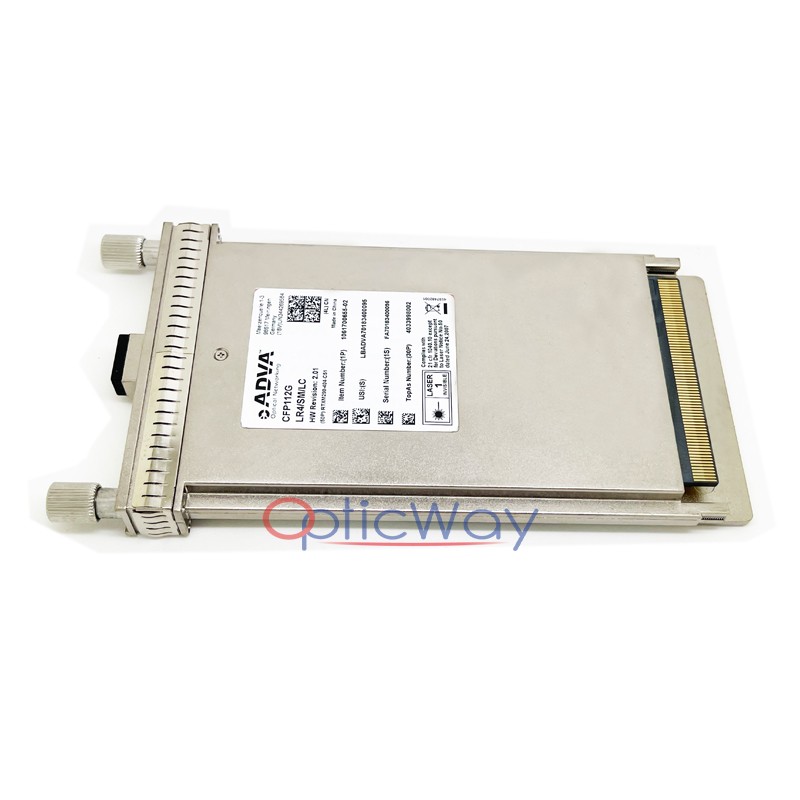

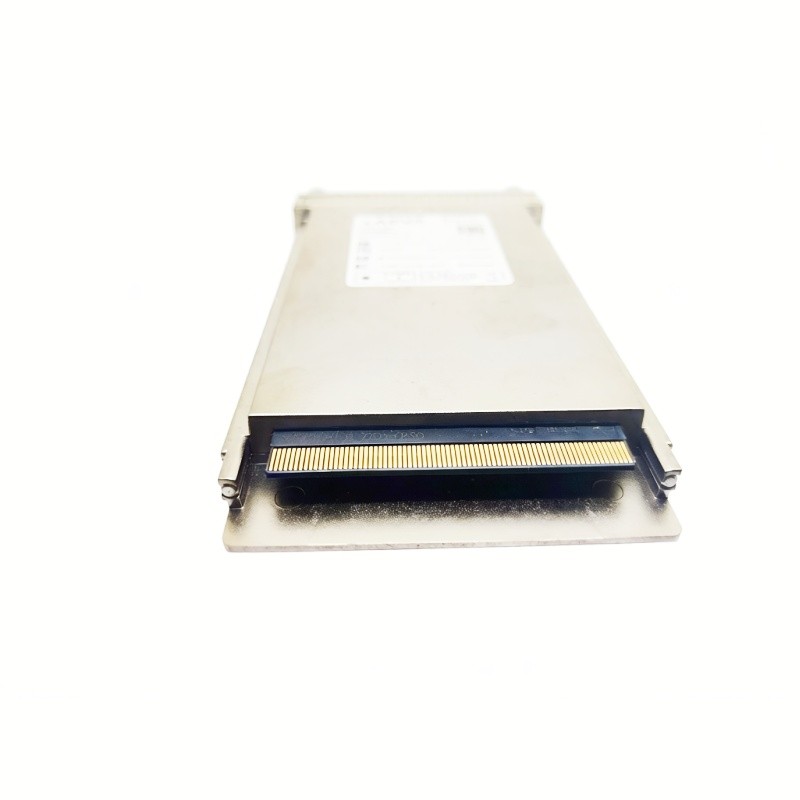

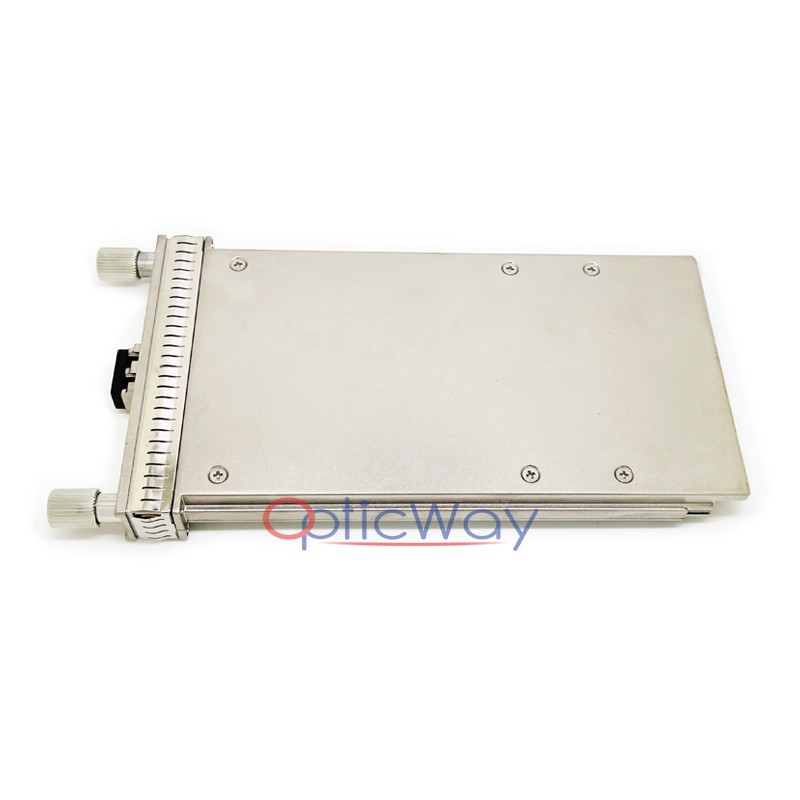

ADVA CFP112G LR4/SM/LC 100G/112G CFP Transceiver 1061700655-02 SMF 10km LC
The ADVA CFP112G LR4/SM/LC (1061700655-02) is a high-performance CFP transceiver designed for 100G/112G optical networking. Featuring hardware revision 2.01, this module supports up to 10 km transmission over single-mode fiber at 1310 nm LAN-WDM wavelengths, compliant with 100GBASE-LR4 and OTU4 standards. With a hot-pluggable CFP form factor and low power consumption, it is ideal for data center interconnections, metro core networks, and high-density router port expansion.
Model Number
CFP112G LR4/SM/LC
Form Factor
CFP (Centum Form Factor Pluggable)
Data Rate
112G/100G (compatible with OTU4/100GBASE)
Standard
100GBASE-LR4, OTU4
Fiber Type
Single-Mode Fiber (SMF)
Transmission Distance
Up to 10 km
Wavelength
1310 nm (LAN-WDM)
Power Supply
3.3V single supply
Operating Temperature
0°C ~ 70°C
Diagnostics
DDM/DOM (Digital Diagnostic Monitoring)
Safety & Compliance
Class 1 Laser Product (21CFR 1040.10)
Product Highlights
· 100G/112G High-Speed Transmission: Supports both 112G and 100G rates, compatible with OTU4 and 100GBASE-LR4 standards.
· 10km Long-Reach SMF: Delivers stable 10 km transmission over single-mode fiber at 1310 nm LAN-WDM wavelengths.
· Hot-Pluggable CFP Form Factor: Enables hot-swap for in-service maintenance and seamless integration.
· Upgraded Hardware (Rev 2.01): Improved reliability and performance over previous hardware revisions.
· Telecom-Grade Reliability: Designed for ADVA optical networking platforms, ensuring stable operation in demanding environments.
· Duplex LC Interface: Standard duplex LC connector for compatibility with existing fiber infrastructure.
