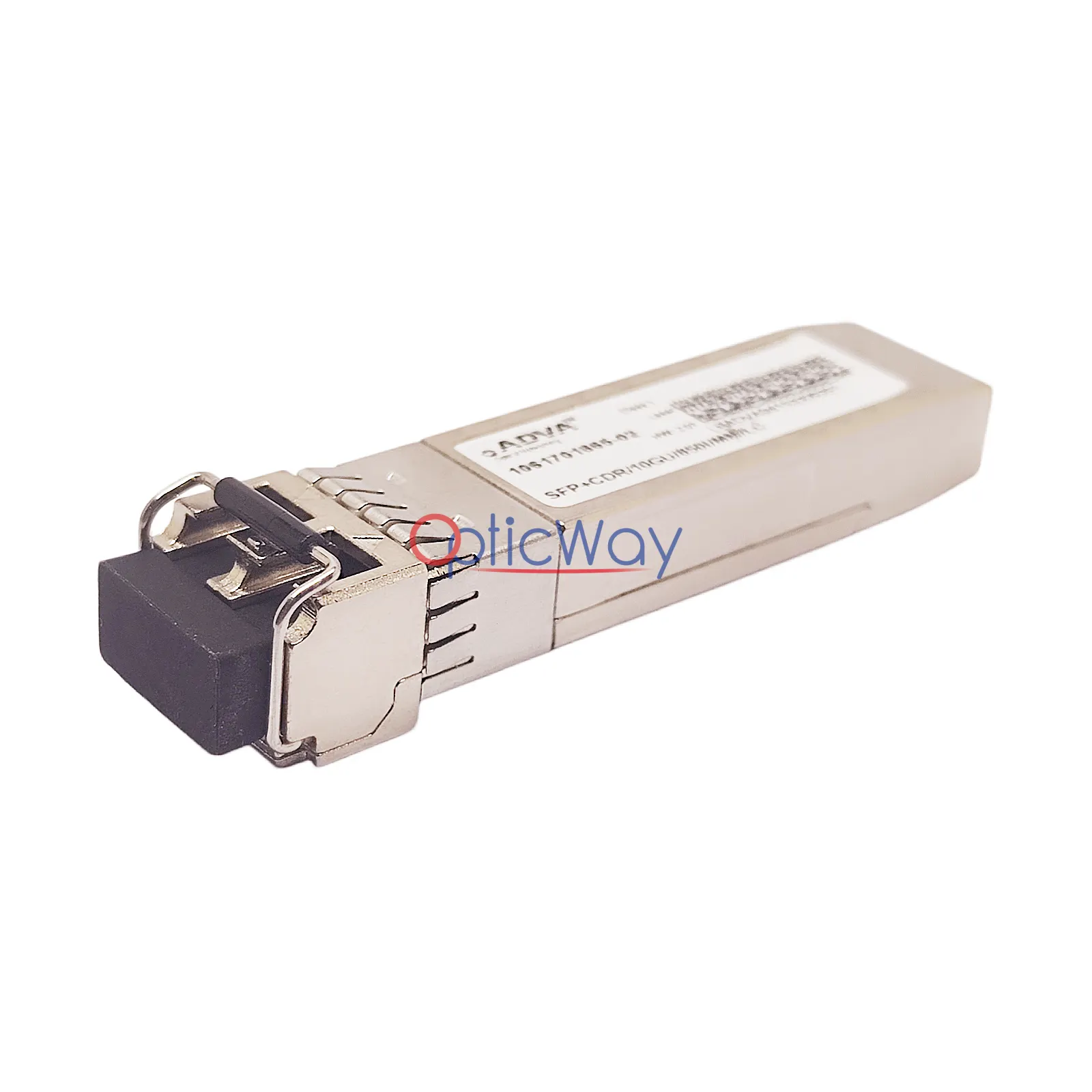

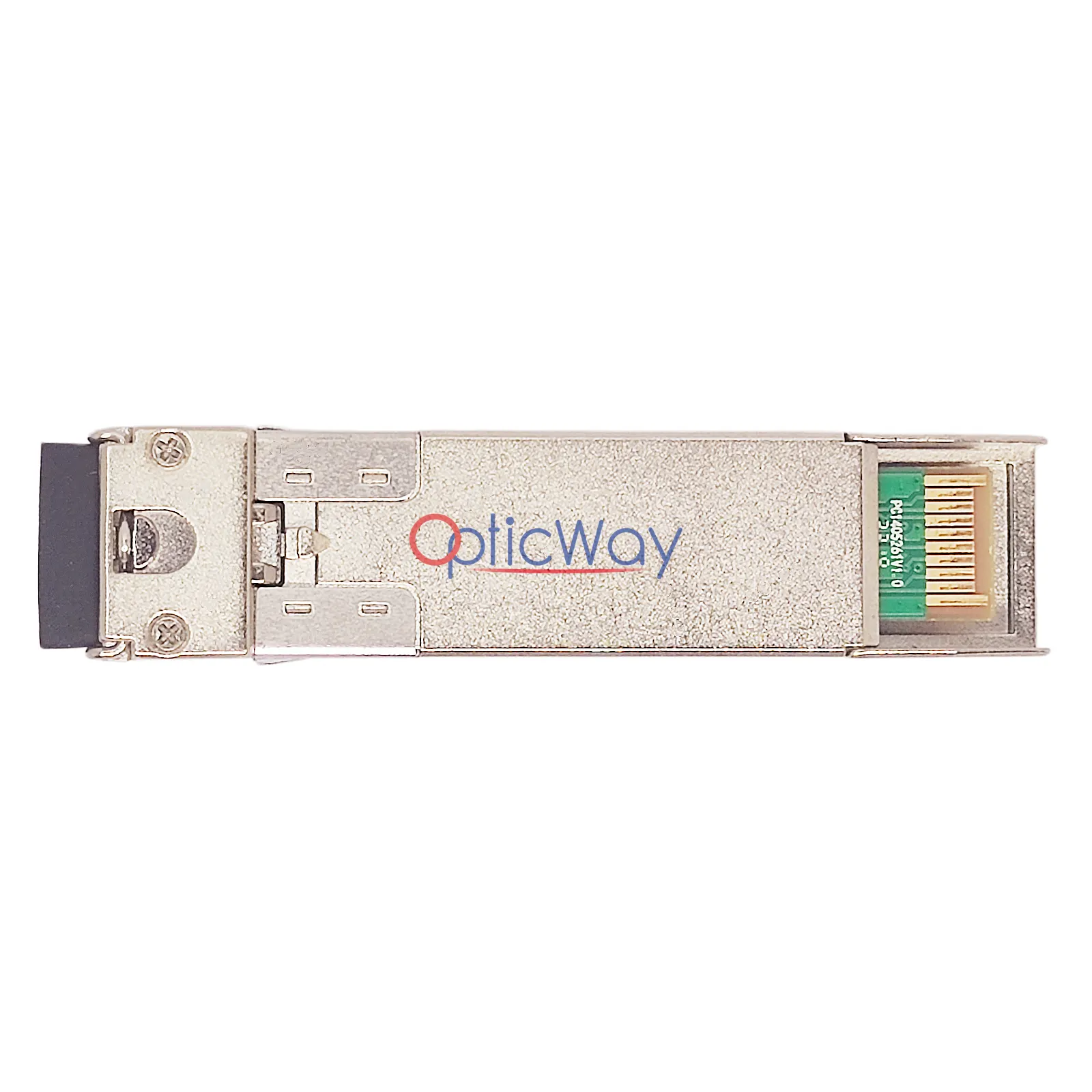

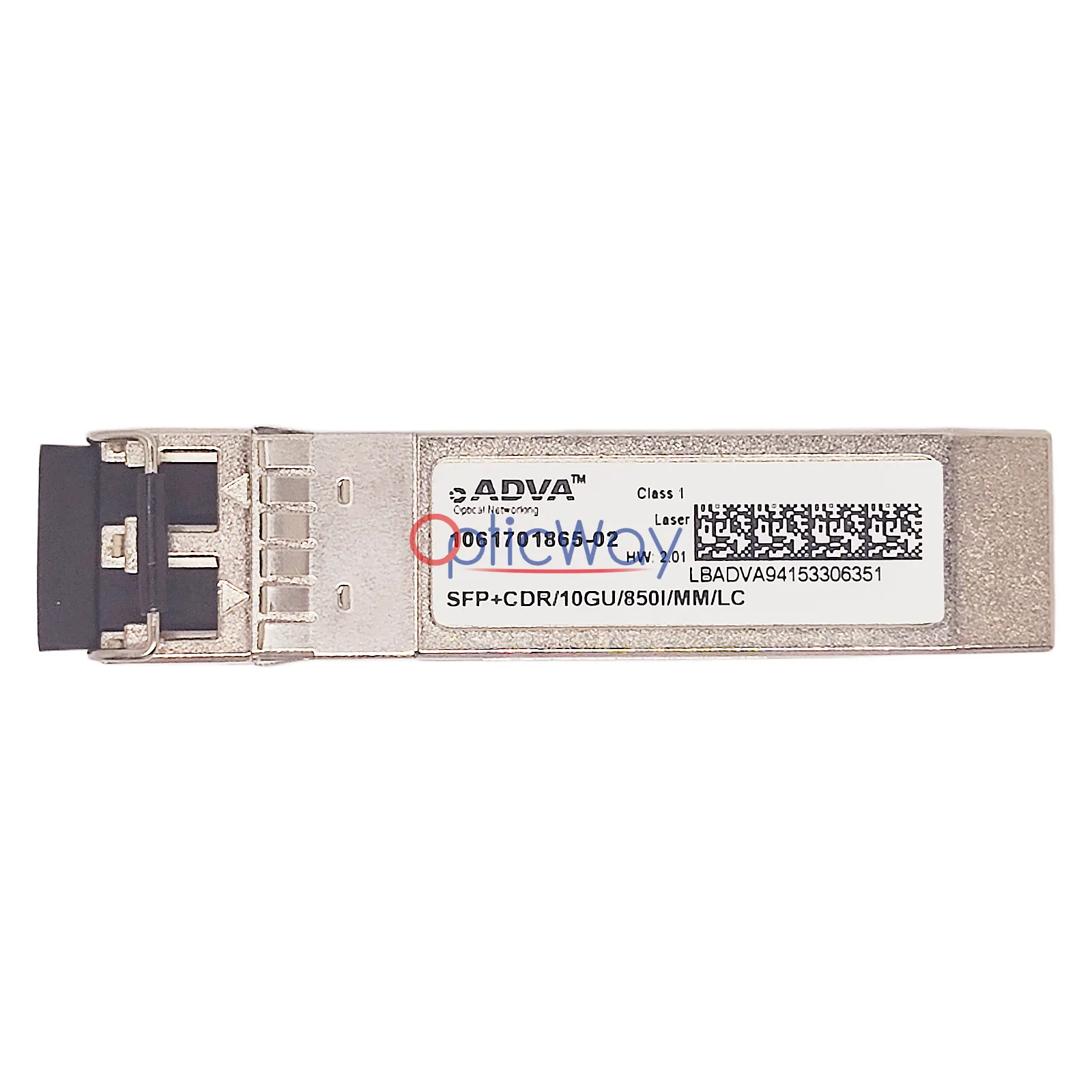

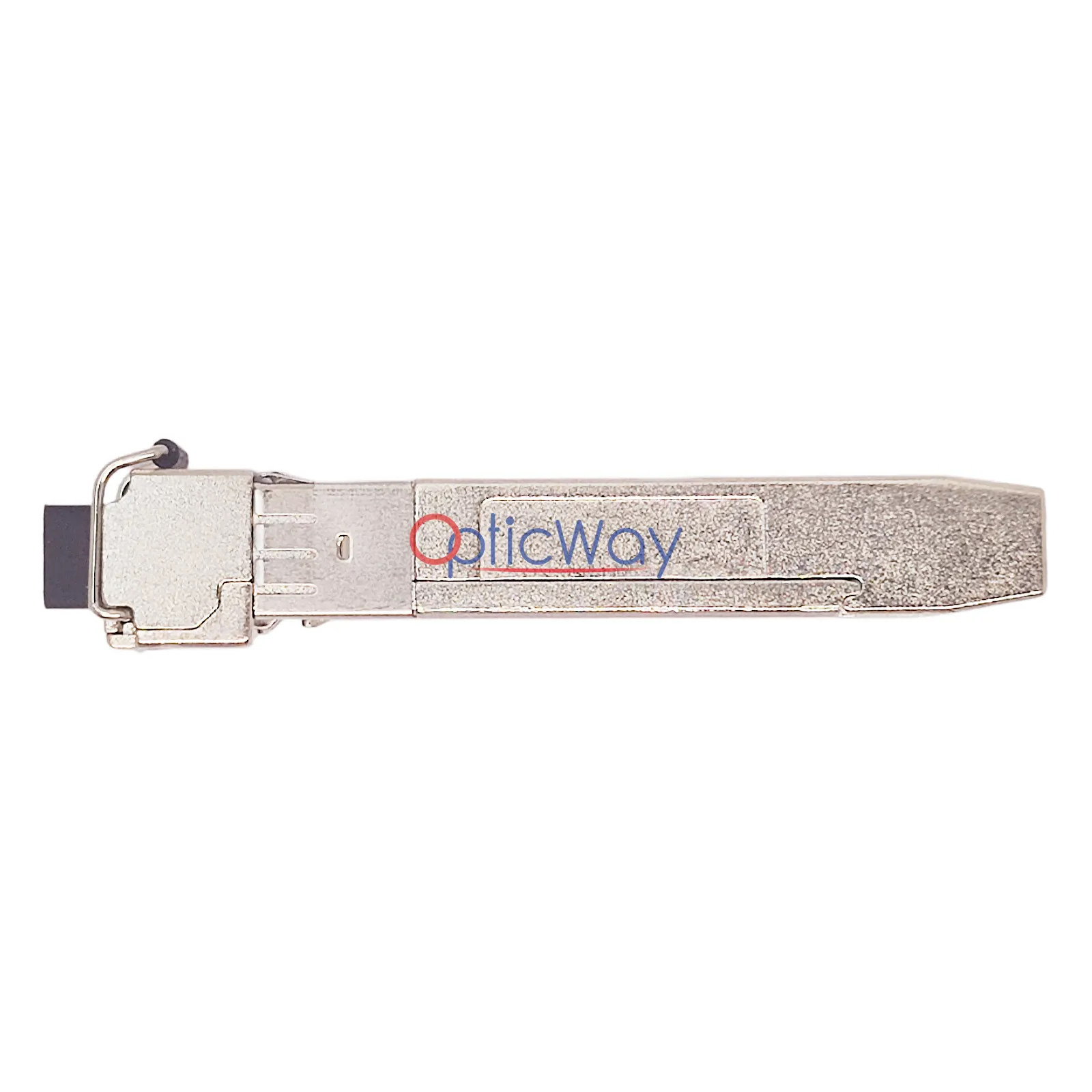

ADVA 1061701865-02 SFP+ 10GBASE-SR CDR/10GU/850I/MM/LC 850nm MMF with Clock Data Recovery
The ADVA 1061701865-02 is a high-performance 10GBASE-SR SFP+ optical transceiver featuring integrated Clock and Data Recovery (CDR), specifically optimized for ADVA optical transport platforms and high-end enterprise networks. Equipped with a dedicated dual-way CDR chip, it actively restores signal timing, suppresses jitter accumulation, and ensures exceptional signal integrity in backbone transmission and multi-rate switching environments. The module utilizes an 850 nm VCSEL laser to support 10Gbps data rates up to 300 meters over multi-mode fiber (MMF) via a standard LC duplex connector. Fully compliant with the SFP+ MSA and IEEE 802.3ae 10GBASE-SR standards, it integrates comprehensive DDM/DOM capabilities for intelligent, real-time network monitoring and proactive maintenance.
Nokia Part Number
1061701865-02
Product Model
SFP+ 10GBASE-SR CDR/10GU/850I/MM/LC
Transmission Distance
400 m (OM4),300 m (OM3), 100 m (OM2)
Standards
SFP+ MSA, 10GBASE-SR, Class 1 Laser
Technology
SR (850 nm VCSEL, Integrated CDR)
Operating Temperature
0°C ~ 70°C
Typical Applications - ADVA Optical Transport Network 10G Backbone Links with Strict Jitter Requirements
- Enterprise Campus Network 10G Ethernet Backbone Connections
- Data Center Top-of-Rack (ToR) Switch 10G Interfaces
- Multi-Rate Network Switching Scenarios with Signal Integrity Demands
- 10GBASE-SR Standard Compliant Network Upgrades
- ADVA Compatible Equipment SFP+ 10G Transceiver Upgrades
Product Highlights
1. ADVA Carrier-Grade Compatibility & High-Reliability Verification
- Seamless Integration: Deeply optimized at the EEPROM code level for ADVA platforms (such as the FSP 3000 series). It features 100% plug-and-play functionality, completely eliminating the risk of "unknown module" alarms or port lockout errors.
- Telecom-Standard Testing: Subjected to rigorous data center-grade reliability tests, including extreme thermal cycling and long-term, full-load aging. This ensures sustained stability in both campus networks and high-density rack environments.
2. Integrated Dual-Way CDR for Enhanced Signal Integrity
- Active Jitter Suppression: Features a built-in high-performance Clock and Data Recovery (CDR) chip that actively reshapes and retimes high-speed electrical and optical signals in both directions, effectively suppressing jitter accumulation caused by dispersion or system noise.
- Optimized Bit Error Rate (BER): Significantly improves the Signal-to-Noise Ratio (SNR). It maintains pristine signal integrity even in complex scenarios involving multi-rate switching, cascaded backbone links, or client-side access in WDM transport systems.
- Technical Note: CDR (Clock and Data Recovery) is a premium configuration in high-end transport networks. Compared to standard modules without CDR, it provides vastly superior noise immunity and error correction, serving as a core safeguard against packet loss in backbone networks.
3. High-Efficiency 10G SR Short-Reach Architecture
- Core Components: Compliant with the 10GBASE-SR standard, utilizing a premium 850 nm VCSEL laser paired with a high-sensitivity PIN receiver.
- Bandwidth Performance: Delivers robust 10Gbps transmission up to 300 meters over OM3 multi-mode fiber (MMF) and up to 400 meters over OM4 MMF. It perfectly covers short-reach, high-bandwidth interconnect needs across data center racks, floors, and campus buildings.
4. Intelligent O&M via Comprehensive DDM/DOM Monitoring
- Real-Time Telemetry: Integrated Digital Diagnostic Monitoring (DDM/DOM) allows network administrators to monitor critical parameters via management systems in real time, including Tx/Rx optical power, operating temperature, supply voltage, and laser bias current.
- Proactive Defense Mechanism: Supports customized threshold alerts to enable early fault prediction and precise troubleshooting. This shifts operations from reactive troubleshooting to proactive prevention, minimizing unplanned network downtime.
5. Optimized SFP+ Form Factor & Standardized Deployment
- Space Maximization: Utilizing the compact, hot-pluggable SFP+ form factor, it fits seamlessly into high-density ADVA switch and router slots, maximizing port density within limited rack spaces.
- Simplified Cabling: Equipped with a standard LC Duplex interface, it offers broad compatibility with standard multi-mode fiber patch cords, significantly reducing installation complexity and long-term maintenance costs.
