Specifications

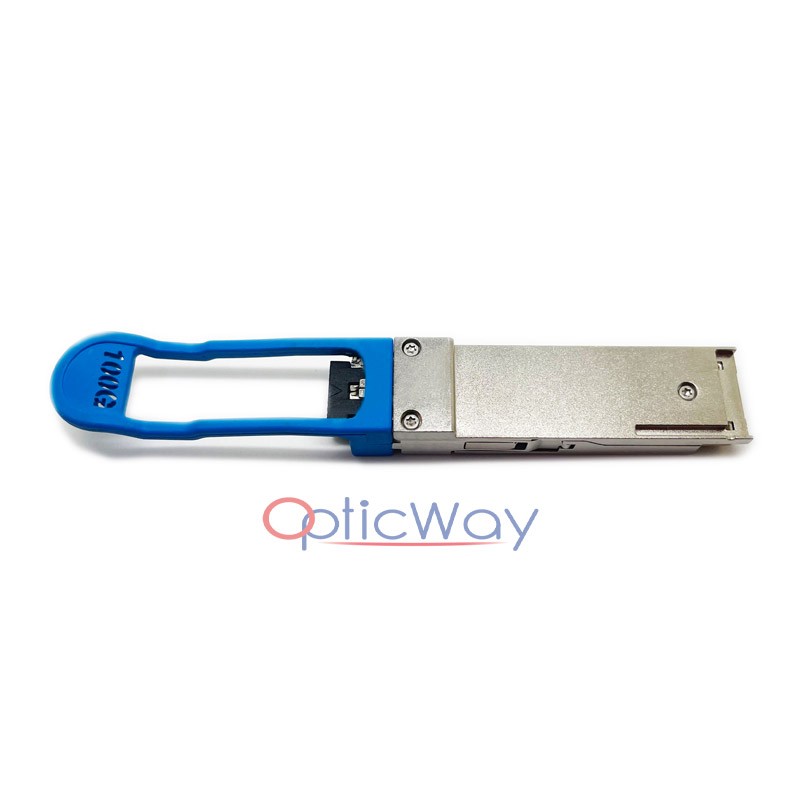

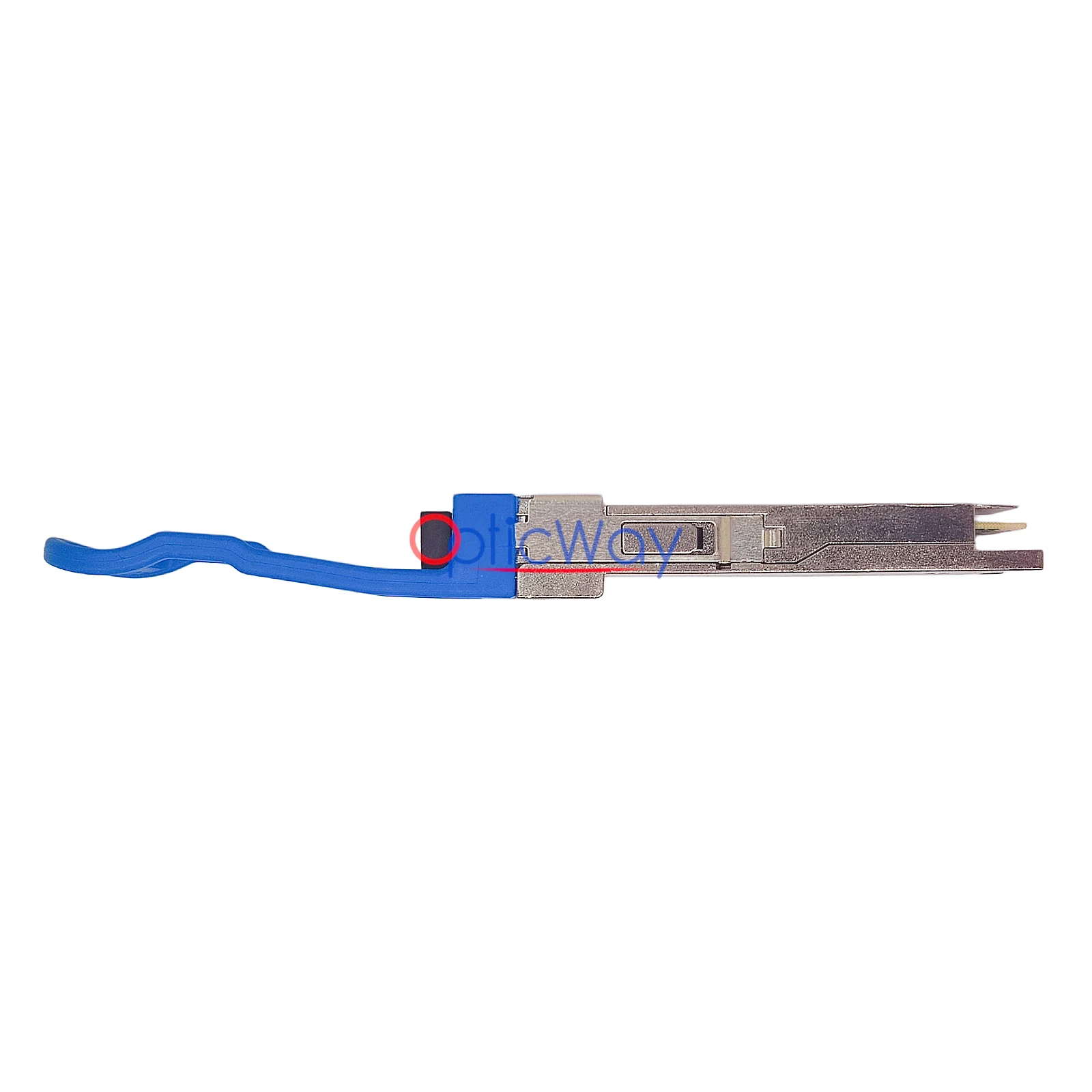

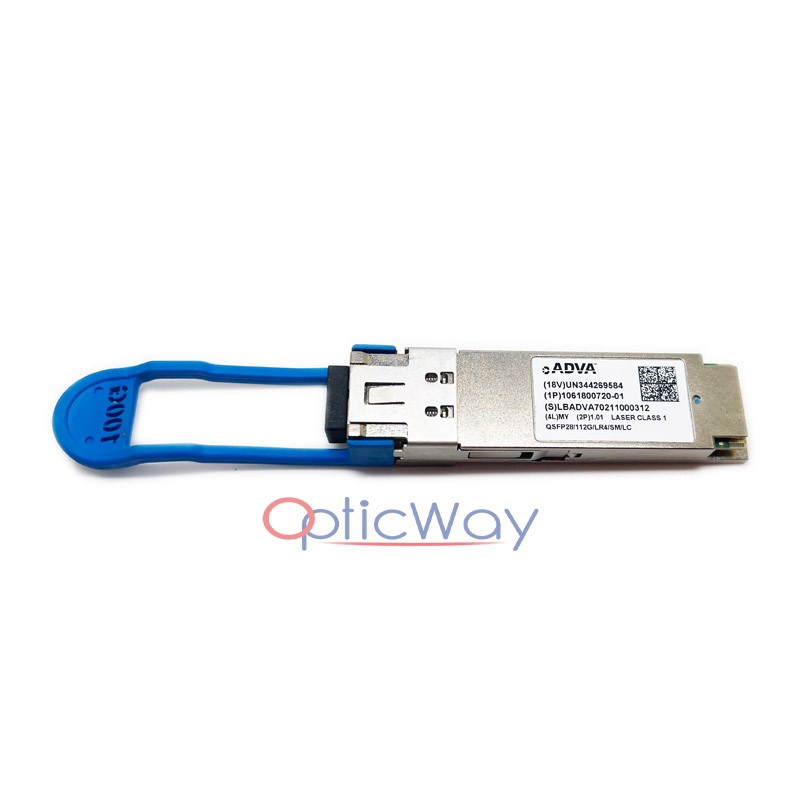

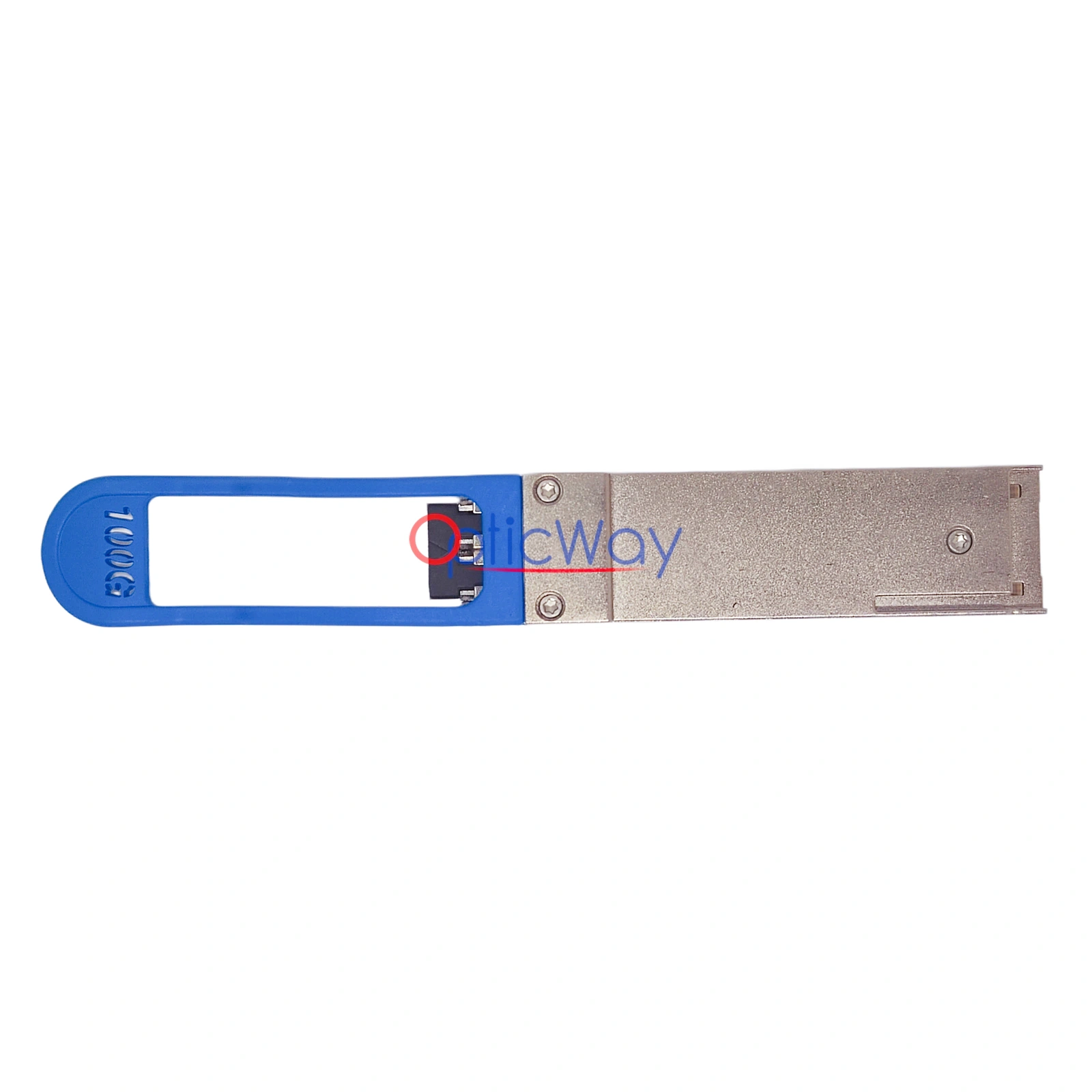

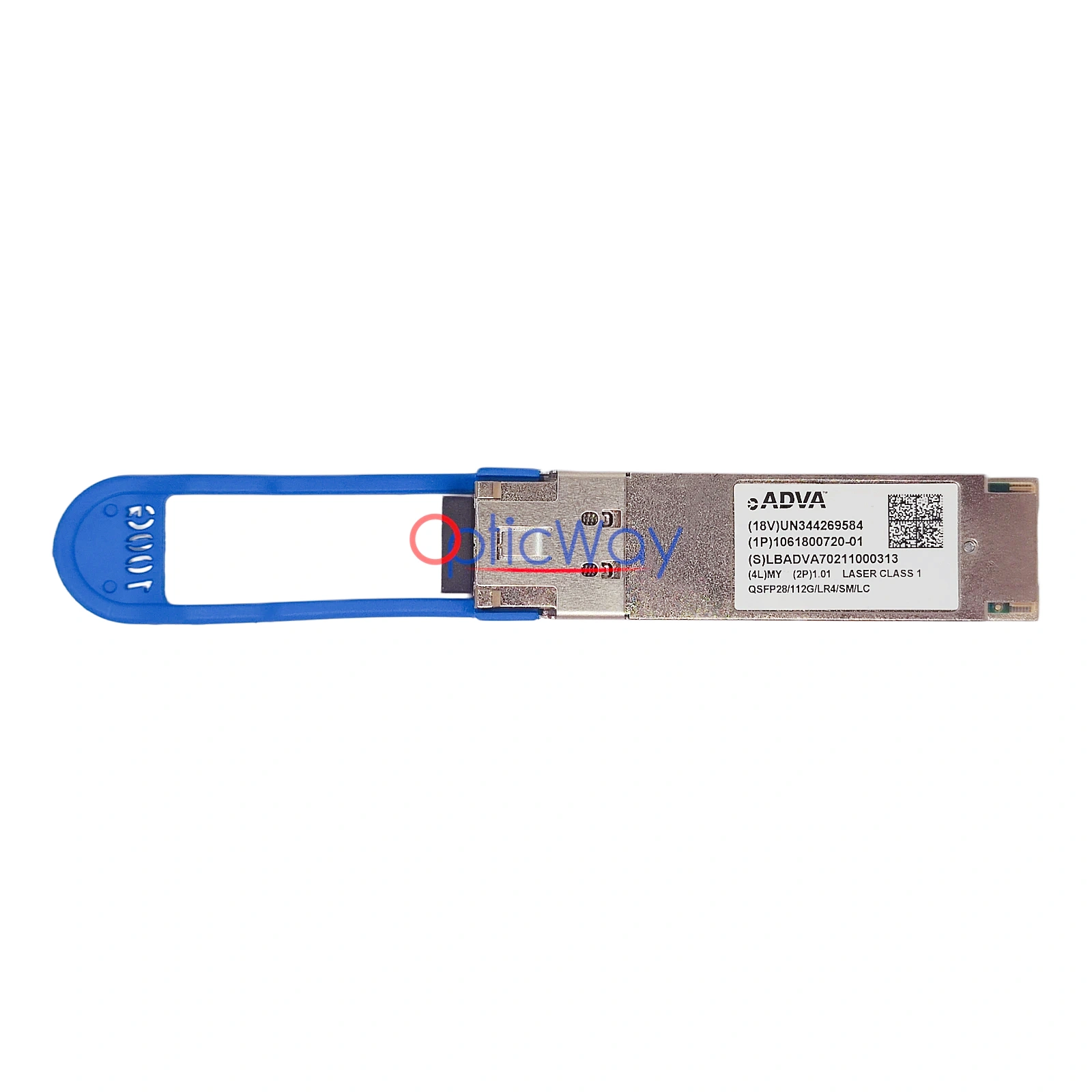

ADVA 1061800720-01 QSFP28 112G 4x28G LR4 10km SMF LC Optical Module
The ADVA 1061800720-01 is a high-performance 112GBASE-LR4 QSFP28 optical transceiver designed for ADVA and compatible data center and telecom networking platforms. It supports dual-rate 100GbE and 112G OTU4 applications, providing reliable up to 10 km transmission over single-mode fiber (SMF) via four-channel LAN-WDM in the 1310nm O-band with a duplex LC connector. Fully compliant with QSFP28 MSA and IEEE 100GBASE-LR4 standards, this module integrates DDM/DOM (Digital Diagnostics Monitoring) for real-time parameter telemetry and intelligent network operation and maintenance.

ADVA Part Number

1061800720-01

Band

ADVA

Model Number

QSFP28 112G 4x28G LR4

Form Factor

QSFP28

Technology

LR4 (4 LAN-WDM lanes, 13xx nm)

Transmission Distance

10km

Connector

Duplex LC

Fiber Type

SMF

Data Rate

112Gbps

Standards

QSFP28 MSA, 100GBASE-LR4, Class 1 Laser

Diagnostics

Full DDM/DOM (SFF-8472)

Hot Swappable

Support

Origin

China

Operating Temperature

0°C ~ 70°C

Typical Applications

ADVA Telecom Network 100G/112G Long-Reach Optical Links
Data Center Interconnect (DCI) 10km Single-Mode Fiber Connections
Enterprise and Service Provider Core Network 100G Ethernet Deployments
Metro Network 100G/112G Optical Transmission Links
ADVA Compatible Switch/Router QSFP28 100G/112G Transceiver Upgrades

Product Highlights

1.ADVA Certified for Reliable Telecom-Grade Performance

Officially certified by ADVA and subjected to rigorous testing for telecom-grade reliability. It operates stably in demanding core network environments, ensuring seamless integration with ADVA devices without compatibility errors.

2.112G LR4 Long-Reach Single-Mode Transmission

Built to the 100GBASE-LR4 standard, utilizing four-channel LAN-WDM technology in the 1310nm O-band. It delivers reliable 112Gbps (including dual-rate 100GbE/OTU4) transmission up to 10 km over single-mode fiber (SMF), making it perfectly suited for data center interconnects (DCI) and metro network links.

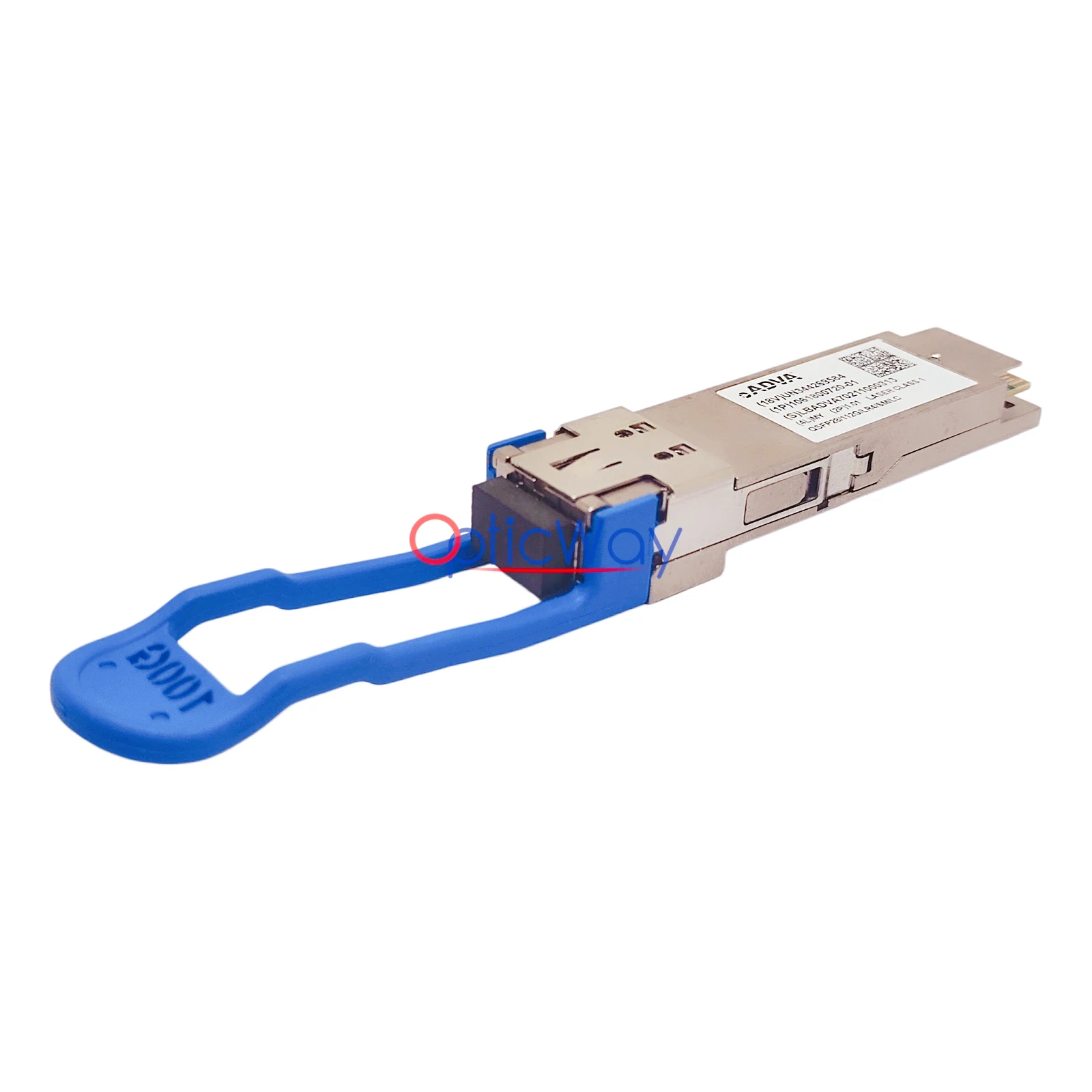

3.Standard LC Duplex Connector for Easy Deployment

Features a standard LC duplex interface, compatible with widely available single-mode fiber patch cords. This simplifies cable management and allows for quick, cost-effective deployment of long-reach optical links.

4.Industrial-Grade Resilience for Continuous Operation

Manufactured with high-quality optical components and subjected to strict environmental and aging tests. It offers excellent wide-temperature performance and long-term stability, meeting the stringent uptime requirements of telecom and enterprise data center networks.

5.Comprehensive DDM/DOM Monitoring for Intelligent O&M

Integrates full DDM/DOM digital diagnostic functions to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.

6.Optimized QSFP28 Form Factor for High-Density Devices

Utilizes the compact QSFP28 form factor, making it ideal for high-density switches and routers. It allows operators to scale high-speed 100G/112G ports efficiently without compromising rack space, supporting seamless network expansion.
