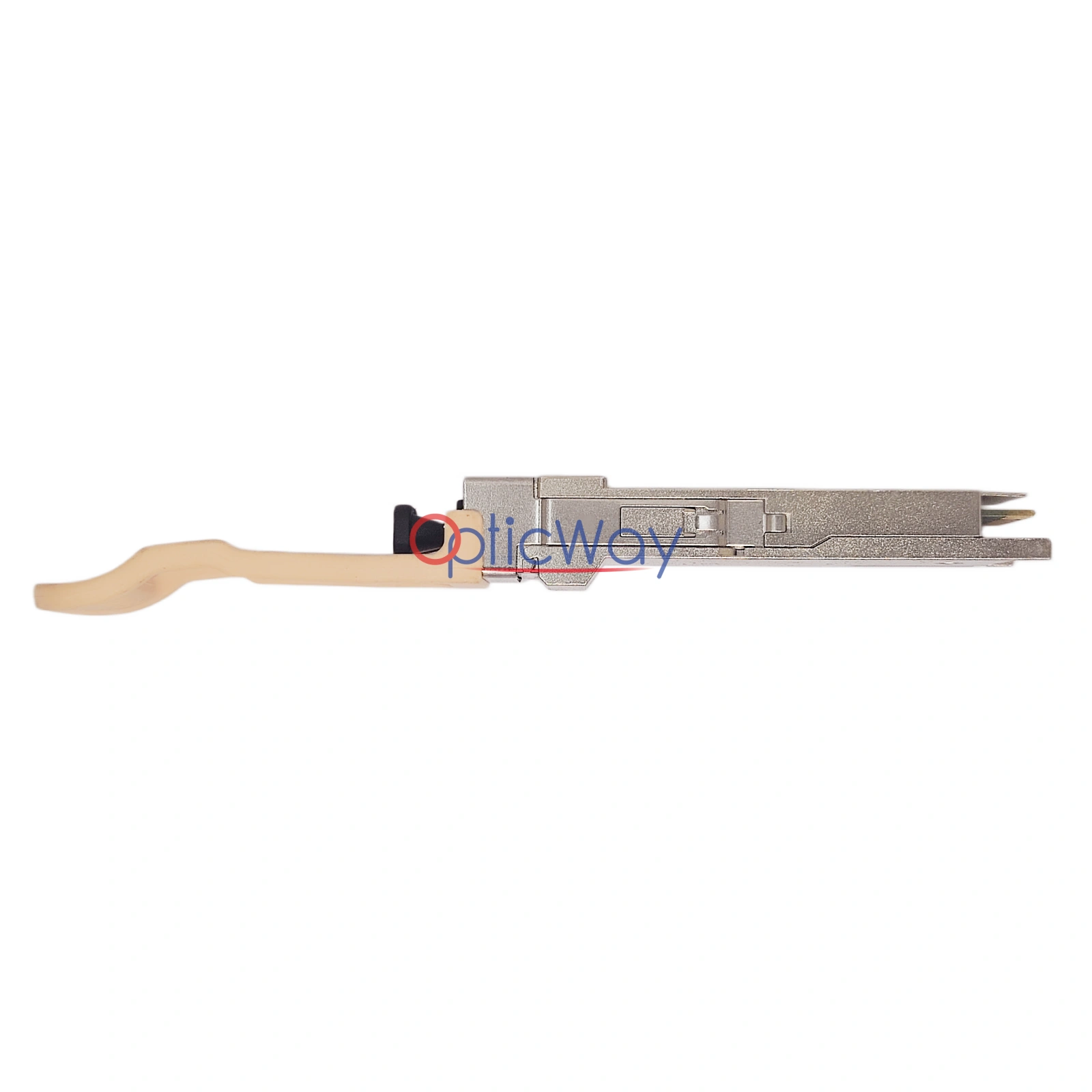

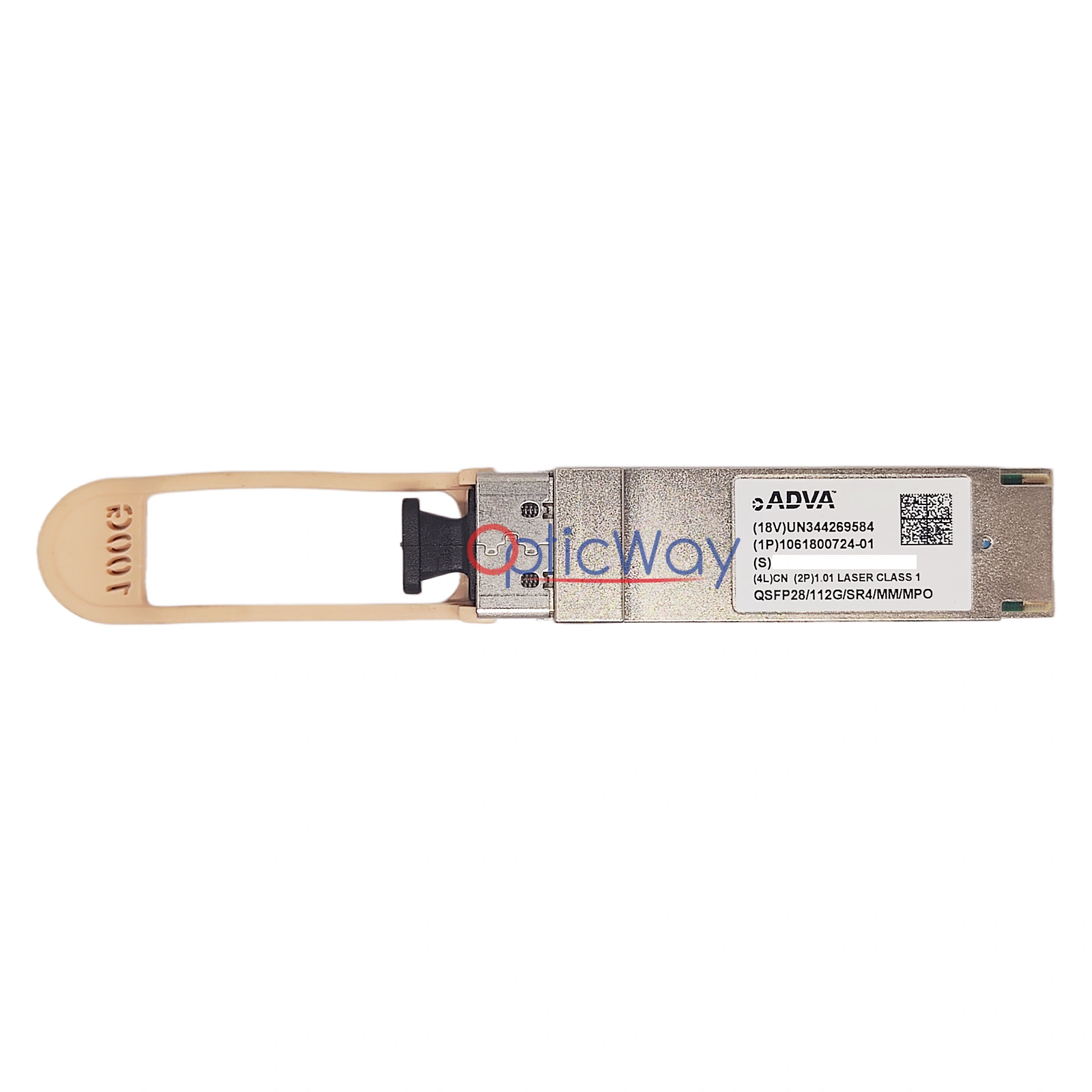

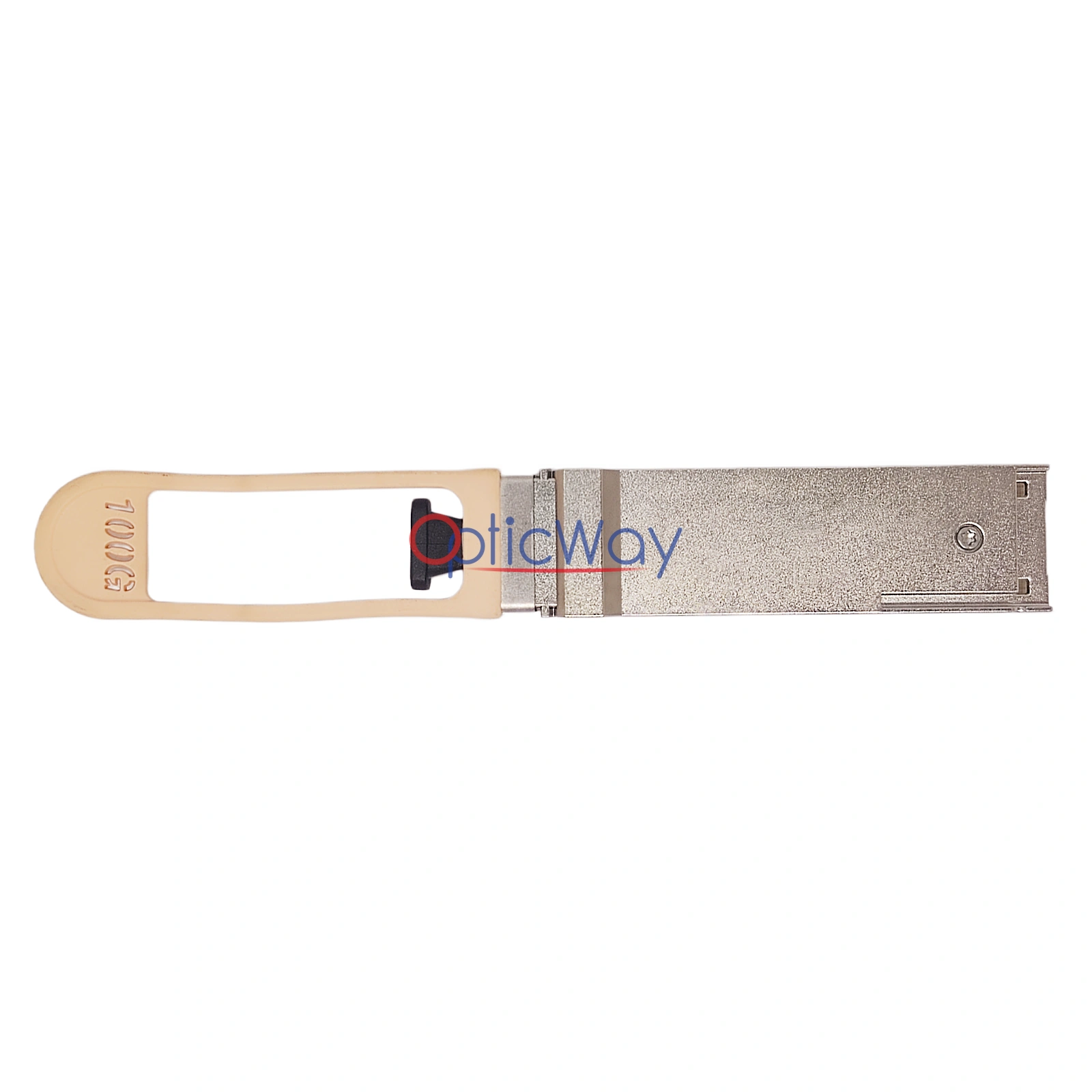

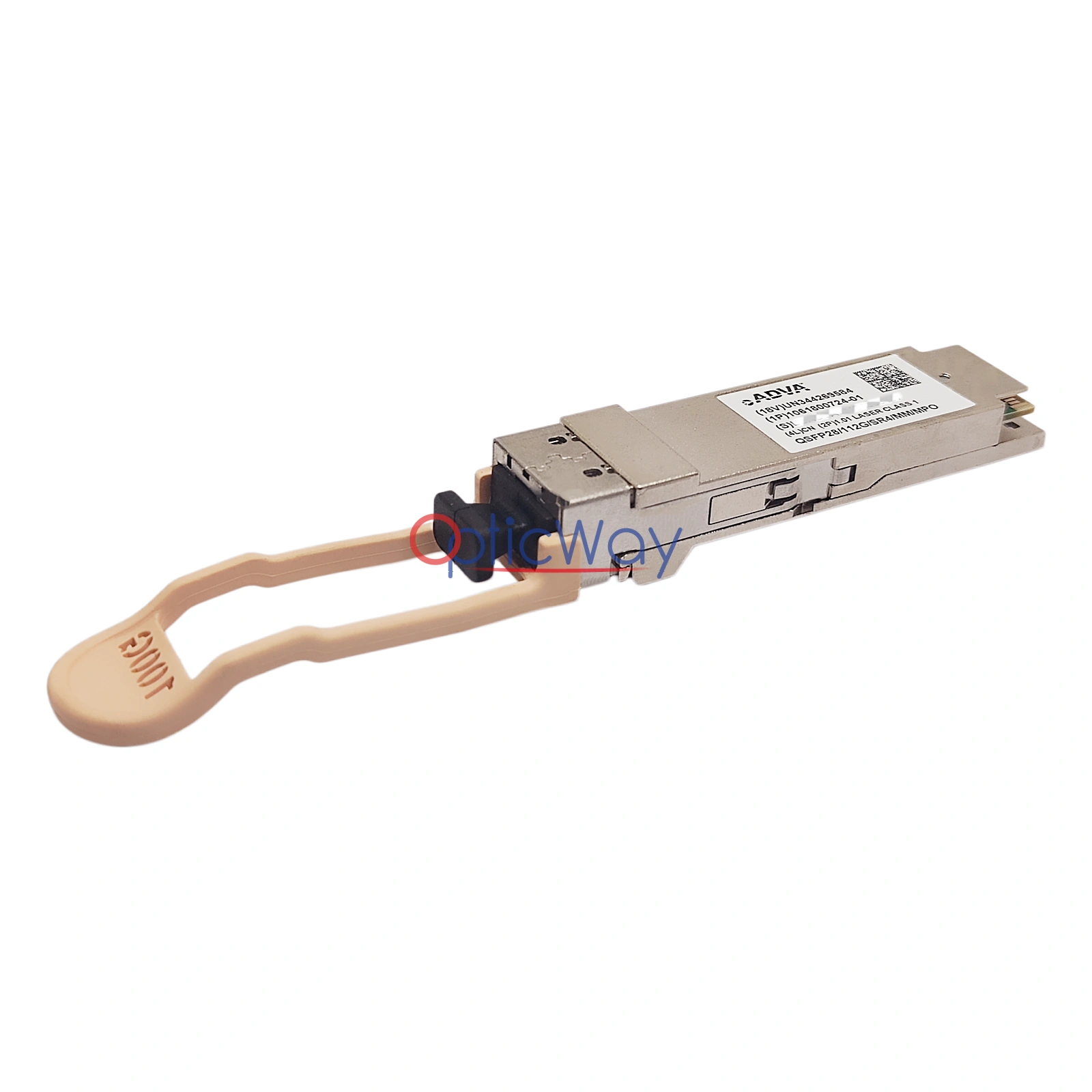

ADVA 1061800724-01 QSFP28 112G SR4 MMF MPO OTU4 Transceiver
ADVA QSFP28 112G SR4 (1061800724-01) is a high-performance 100G/112G dual rate QSFP28 optical module designed specifically for ADVA and compatible data center and enterprise network platforms. It supports a transmission rate of up to 112Gbps (including OTU4), and can transmit up to 100 meters on OM3/OM4 multimode fiber through 4 parallel 850 nm optical channels, using MPO-12 interface. This module complies with the QSFP28 MSA specification and is compatible with the 100GBASE-SR4 standard. It also has comprehensive DDM/DOM digital diagnostic monitoring functions, which facilitate intelligent network operation and maintenance。
ADVA Part Number
1061800724-01
Model Number
QSFP28 112G SR4
Technology
SR4 (4 parallel lanes, 850 nm)
Transmission Distance
100 m
Data Rate
112Gbps (100GBASE-SR4)
Diagnostics
Full DDM/DOM (SFF-8472)
Data RateStandards
112Gbps (100GBASE-SR4)QSFP28 MSA, 100GBASE-SR4
Operating Temperature
0°C ~ 70°C
Typical Applications - ADVA Data Center 100G/112G High-Density Leaf-Spine Links
- Enterprise Campus Network 100G Ethernet Backbone Connections
- Cloud Provider Hyperscale Infrastructure 100G ToR Switch Interfaces
- 100GBASE-SR4 Standard Compliant Network Upgrades
- ADVA Compatible Switch/Router QSFP28 100G/112G Transceiver Upgrades
Product Highlights
1.ADVA Certified for Reliable Data Center-Grade Performance
- Officially certified by ADVA and subjected to rigorous testing for data center reliability. It operates stably in high-density leaf-spine environments, ensuring seamless compatibility with ADVA devices without compatibility errors.
2.112G SR4 High-Density Multi-Mode Transmission
- Built to the 100GBASE-SR4 standard, utilizing four parallel 850 nm optical lanes. It delivers reliable 112Gbps transmission up to 100 meters over OM3 multi-mode fiber (150m on OM4), perfectly suited for short-reach data center interconnects.
3.MPO-12 Connector for High-Density Cabling
- Features a standard MPO-12 interface, optimized for high-density data center environments. It simplifies cable management, reduces the number of required fibers, and lowers overall infrastructure costs in leaf-spine architectures.
4.Industrial-Grade Reliability for Continuous Operation
- Manufactured with high-quality optical components and subjected to strict environmental and aging tests. It offers excellent wide-temperature performance and long-term stability, meeting the high reliability requirements of data center networks.
5.Comprehensive DDM/DOM Monitoring for Intelligent O&M
- Integrated complete DDM/DOM digital diagnostic function to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.
6.Optimized QSFP28 Form Factor for High-Density Switches
- Uses the compact QSFP28 form factor, making it ideal for high-density ADVA switches and routers. It allows you to add high-speed 100G/112G ports without occupying excessive rack space, supporting efficient network expansion.
