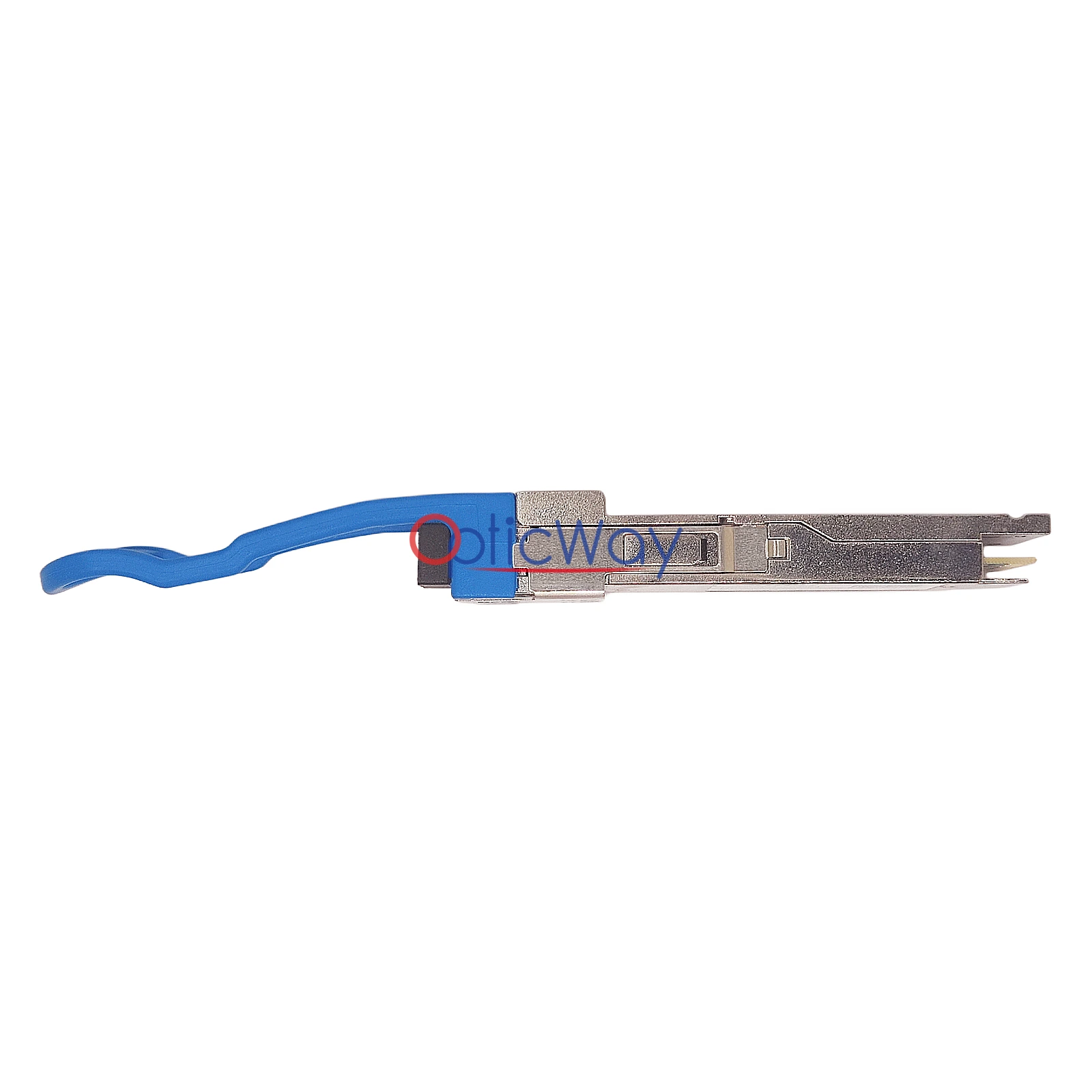

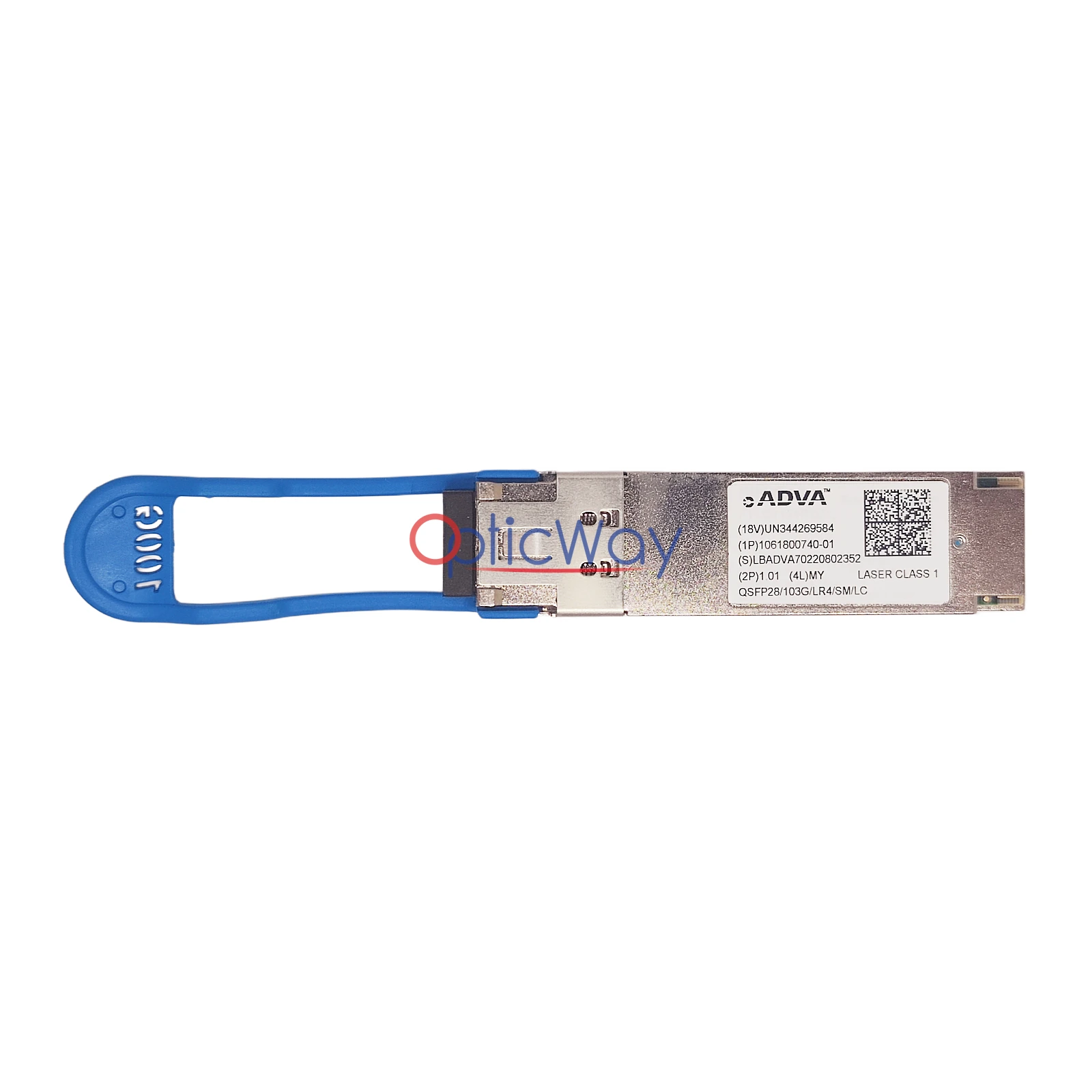

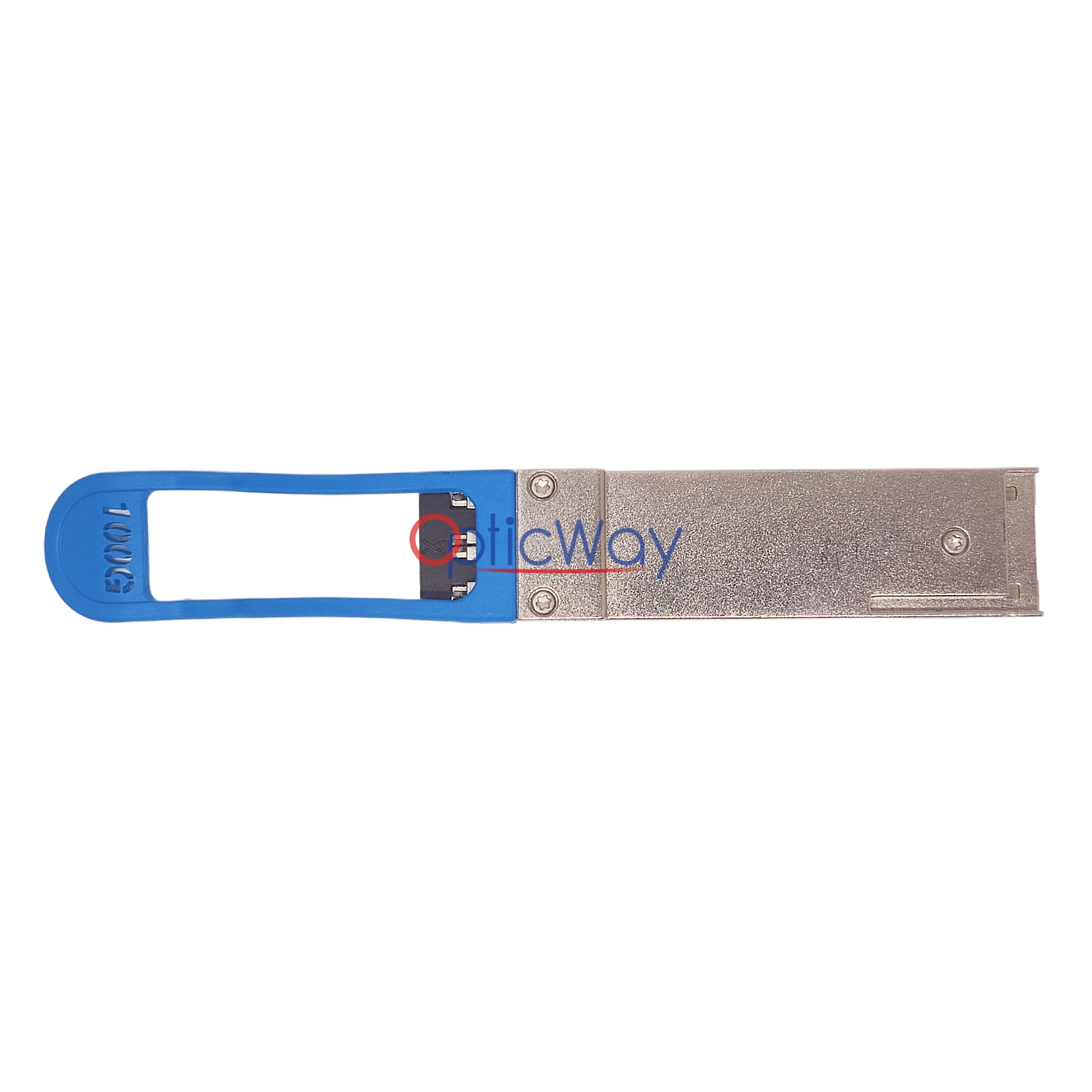

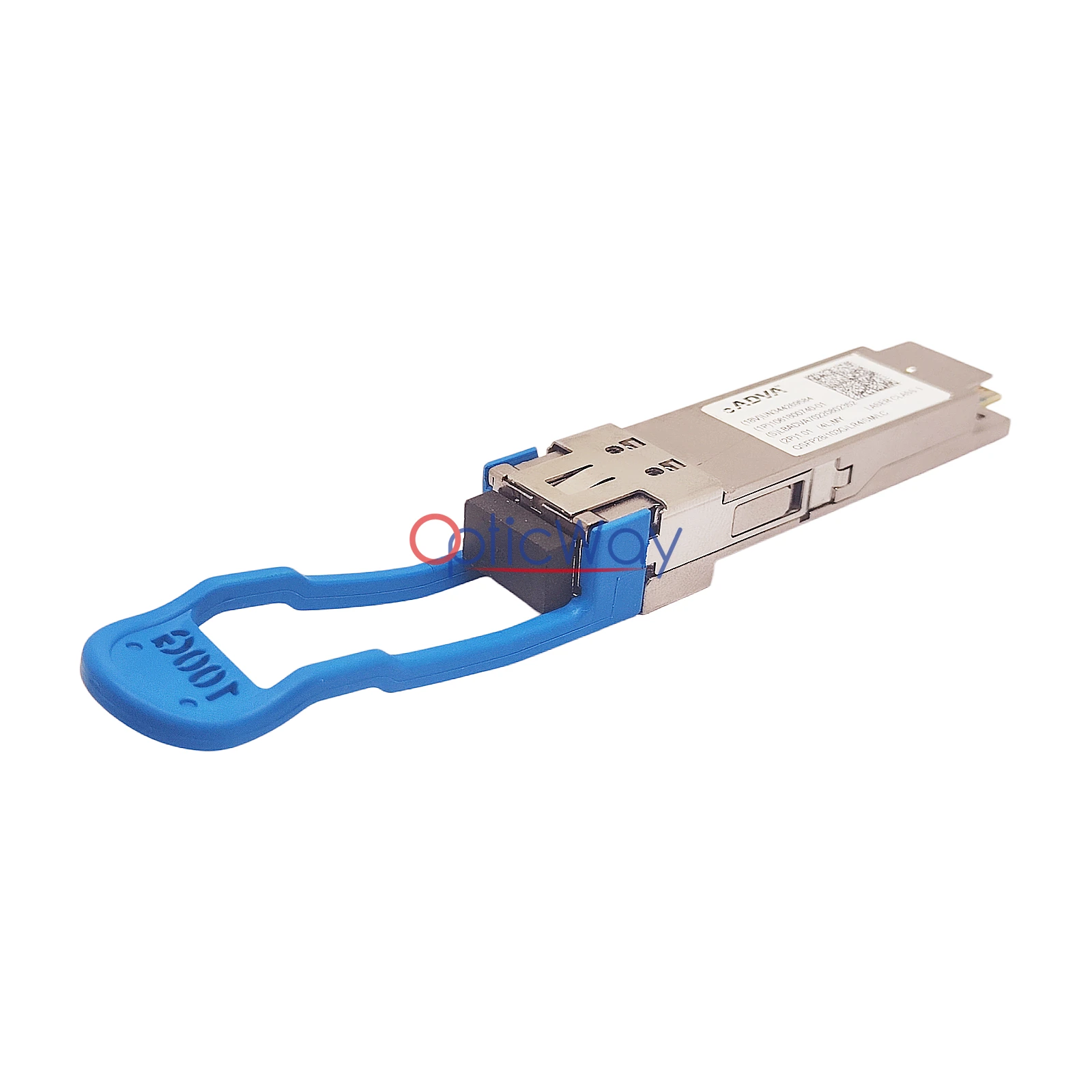

ADVA 1061800740-01 QSFP28 103G 4x28G LAN-WDM LR4 10km SMF LC Transceiver The ADVA 1061800740-01 is a high-performance 103G LR4 QSFP28 optical transceiver, factory-calibrated for ADVA optical transport and data center platforms. It supports 103Gbps transmission up to 10 km over single-mode fiber using four CWDM wavelengths in the 13xx nm range, with an LC duplex connector. Compliant with QSFP28 MSA and 100GBASE-LR4 standards, it features full DDM/DOM monitoring for intelligent operation and maintenance.
ADVA Part Number
1061800740-01
Model Number
QSFP28 103G 4x28G LR4
Technology
LR4 (4 CWDM lanes, 13xx nm)
Transmission Distance
10km
Wavelength
LAN-WDM (1295nm -1309nm)
Diagnostics
Full DDM/DOM (SFF-8472)
Operating Temperature
0°C ~ 70°C
Typical Applications
- ADVA Data Center 100G/103G Long-Reach Interconnect (DCI) Links
- Metro Network 100G/103G Optical Transmission Links
- Enterprise and Service Provider Core Network 100G Ethernet Deployments
- 100GBASE-LR4 Standard Compliant Network Upgrades
- ADVA Compatible Switch/Router QSFP28 100G/103G Transceiver Upgrades
Product Highlights
1.ADVA Certified for Telecom & Data Center-Grade Reliability
- Officially certified by ADVA and subjected to rigorous testing for telecom and data center reliability. It operates stably in demanding core and metro network environments, ensuring seamless compatibility with ADVA devices without compatibility errors.
2.103G LR4 Long-Reach Single-Mode Transmission
- Built to the 100GBASE-LR4 standard, utilizing four CWDM wavelengths in the 13xx nm range.103 Gbps (4 x 28 Gbps, some compatible models support up to 103 Gbps to 112 Gbps) It delivers reliable 103Gbps transmission up to 10 km over single-mode fiber, perfectly suited for data center interconnections and metro network links.
3.Standard LC Duplex Connector for Easy Deployment
- Features a standard LC duplex interface, compatible with widely available single-mode fiber patch cords. This simplifies cable management and allows for quick, cost-effective deployment of long-reach optical links.
4.Industrial-Grade Reliability for Continuous Operation
- Manufactured with high-quality optical components and subjected to strict environmental and aging tests. It offers excellent wide-temperature performance and long-term stability, meeting the high reliability requirements of telecom and data center networks.
5.Comprehensive DDM/DOM Monitoring for Intelligent O&M
- Integrated complete DDM/DOM digital diagnostic function to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.
6.Optimized QSFP28 Form Factor for High-Density Devices
- Uses the compact QSFP28 form factor, making it ideal for high-density ADVA switches and routers. It allows you to add high-speed 100G/103G ports without occupying excessive rack space, supporting efficient network expansion.
