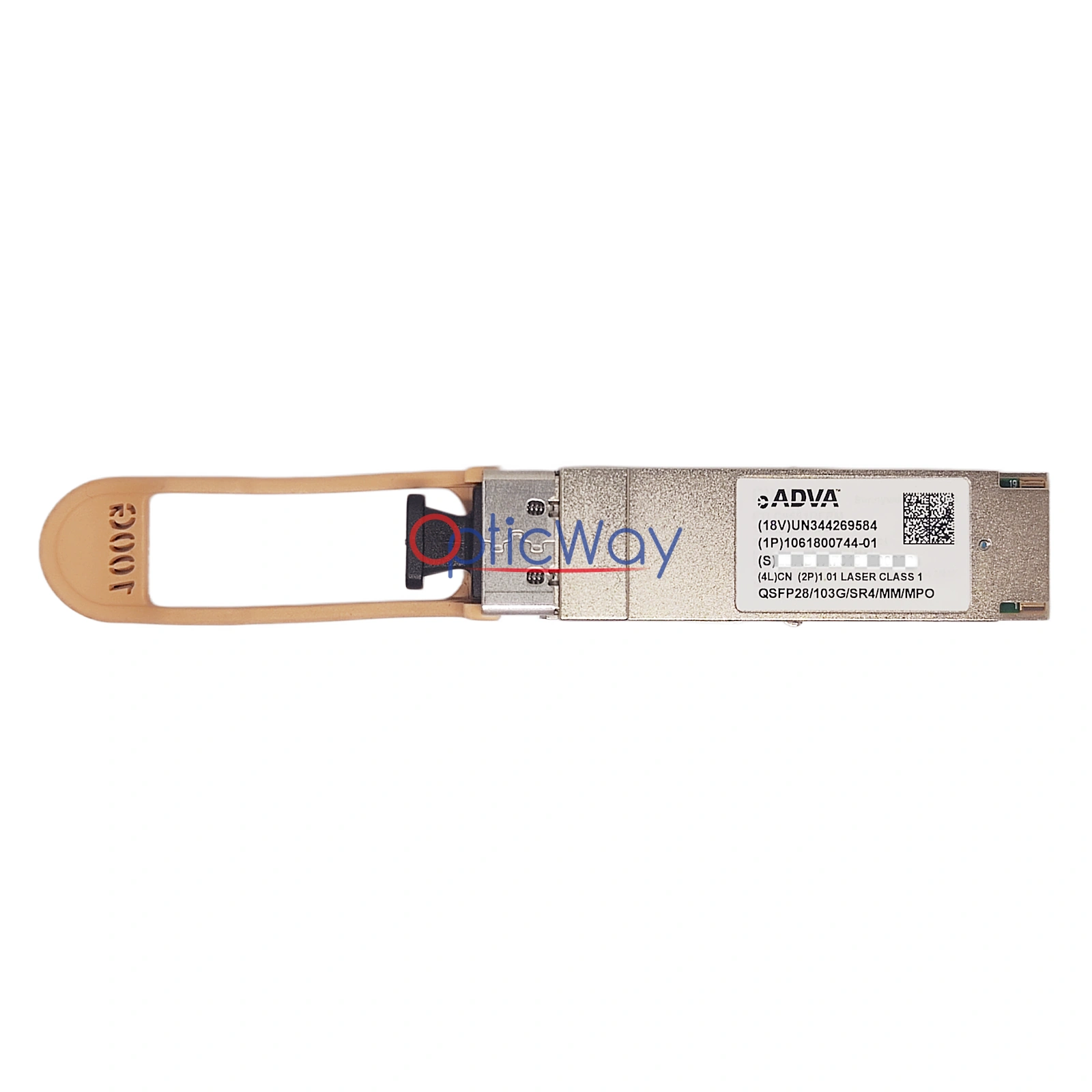

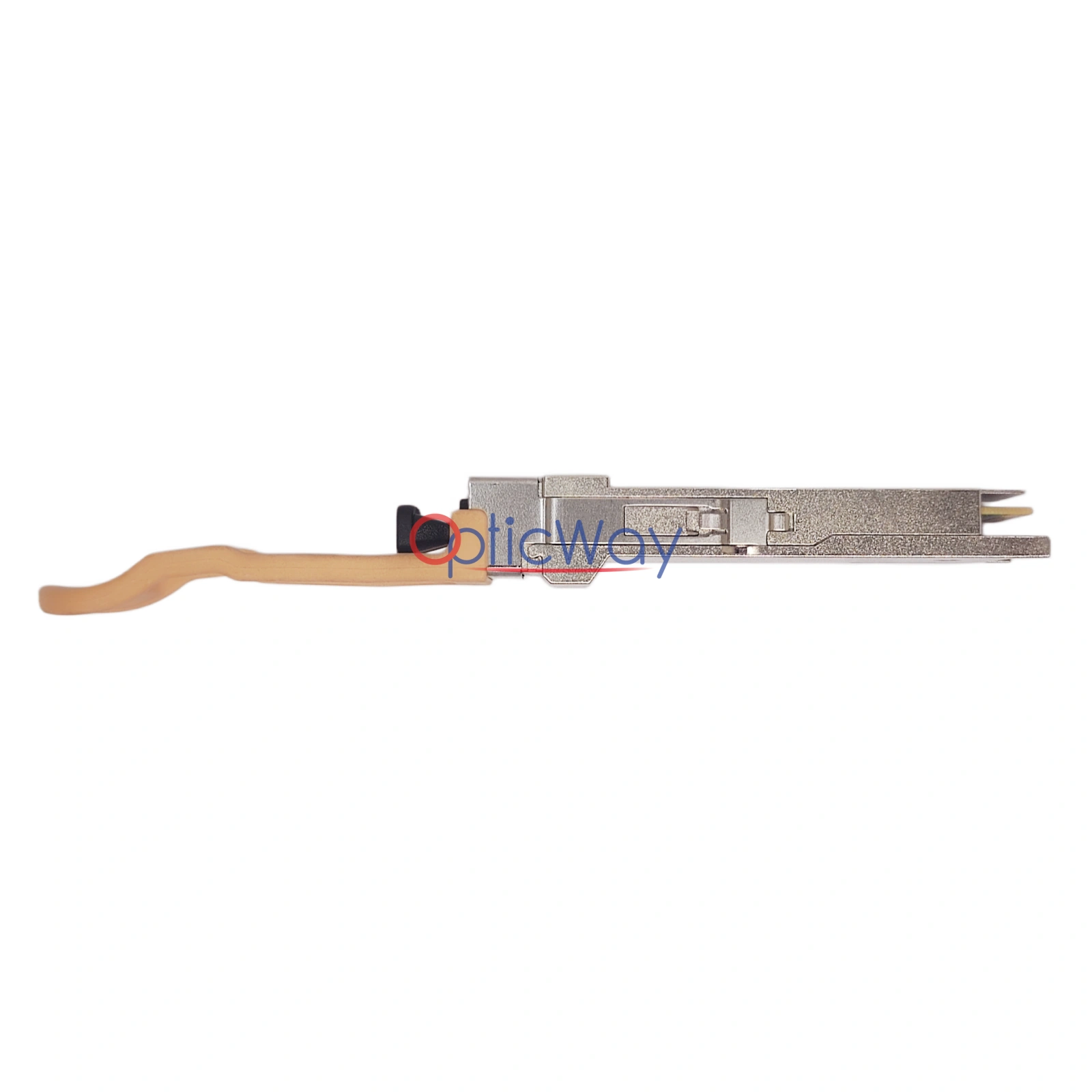

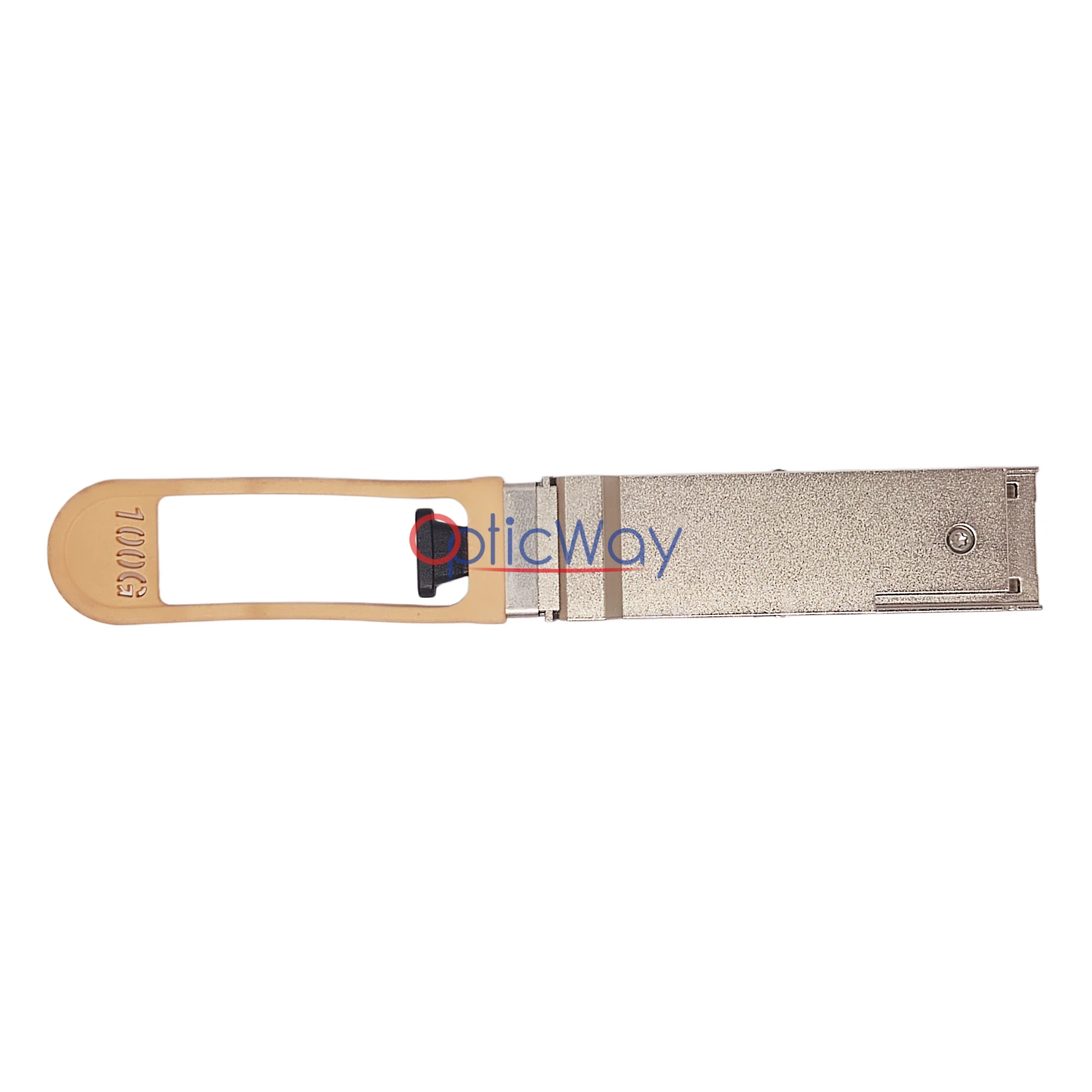

ADVA 1061800744-01 QSFP28 100G SR4 MMF MPO Transceiver

ADVA 1061800744-01 QSFP28 100G SR4 MMF MPO Transceiver

ADVA QSFP28 100G SR4 (1061800744-01) is a high-performance 100GBASE-SR4 QSFP28 optical module designed specifically for ADVA and compatible data centers and enterprise network platforms. It supports a line rate of 103.125 Gbps transmission and can reach a transmission distance of up to 100 meters on OM3/OM4 multimode fiber. It uses 4 parallel 850 nm optical channels and MPO-12 interface. This module fully complies with the QSFP28 MSA specification and the IEEE 802.3bm 100GBASE-SR4 standard, and has complete DDM/DOM digital diagnostic monitoring functions, which facilitate intelligent network operation and maintenance

ADVA Part Number

1061800744-01

Band

  ADVA

Model Number

QSFP28 112G SR4

Form Factor

  QSFP28

Technology

SR4 (4 parallel lanes, 850 nm)

Transmission Distance

100 m

Connector

MPO-12

Fiber Type

  MMF

Data Rate

112Gbps

Standards

QSFP28 MSA, 100GBASE-LR4, Class 1 Laser

Diagnostics

Full DDM/DOM (SFF-8472)

Data Rate

  103Gbps (100GBASE-SR4)

Origin

China

Operating Temperature

0°C ~ 70°C

• ADVA Data Center 100G/112G High-Density Leaf-Spine Links
• Enterprise Campus Network 100G Ethernet Backbone Connections
• Cloud Provider Hyperscale Infrastructure 100G ToR Switch Interfaces
• IEEE 802.3bm 100GBASE-SR4 Standard Compliant Network Upgrades
• ADVA Compatible Switch/Router QSFP28 100G Transceiver Upgrades

Product Highlights

• Officially certified by ADVA and subjected to rigorous testing for data center reliability. It operates stably in high-density leaf-spine environments, ensuring seamless compatibility with ADVA devices without compatibility errors.

• Built to the 100GBASE-SR4 standard, utilizing four parallel 850 nm optical lanes. It delivers reliable 103Gbps transmission up to 100 meters over OM3 multi-mode fiber (150m on OM4), perfectly suited for short-reach data center interconnects.

• Features a standard MPO-12 interface, optimized for high-density data center environments. It simplifies cable management, reduces the number of required fibers, and lowers overall infrastructure costs in leaf-spine architectures.

• Manufactured with high-quality optical components and subjected to strict environmental and aging tests. It offers excellent wide-temperature performance and long-term stability, meeting the high reliability requirements of data center networks.

• Integrated complete DDM/DOM digital diagnostic function to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.

• Uses the compact QSFP28 form factor, making it ideal for high-density ADVA switches and routers. It allows you to add high-speed 100G/103G ports without occupying excessive rack space, supporting efficient network expansion.
