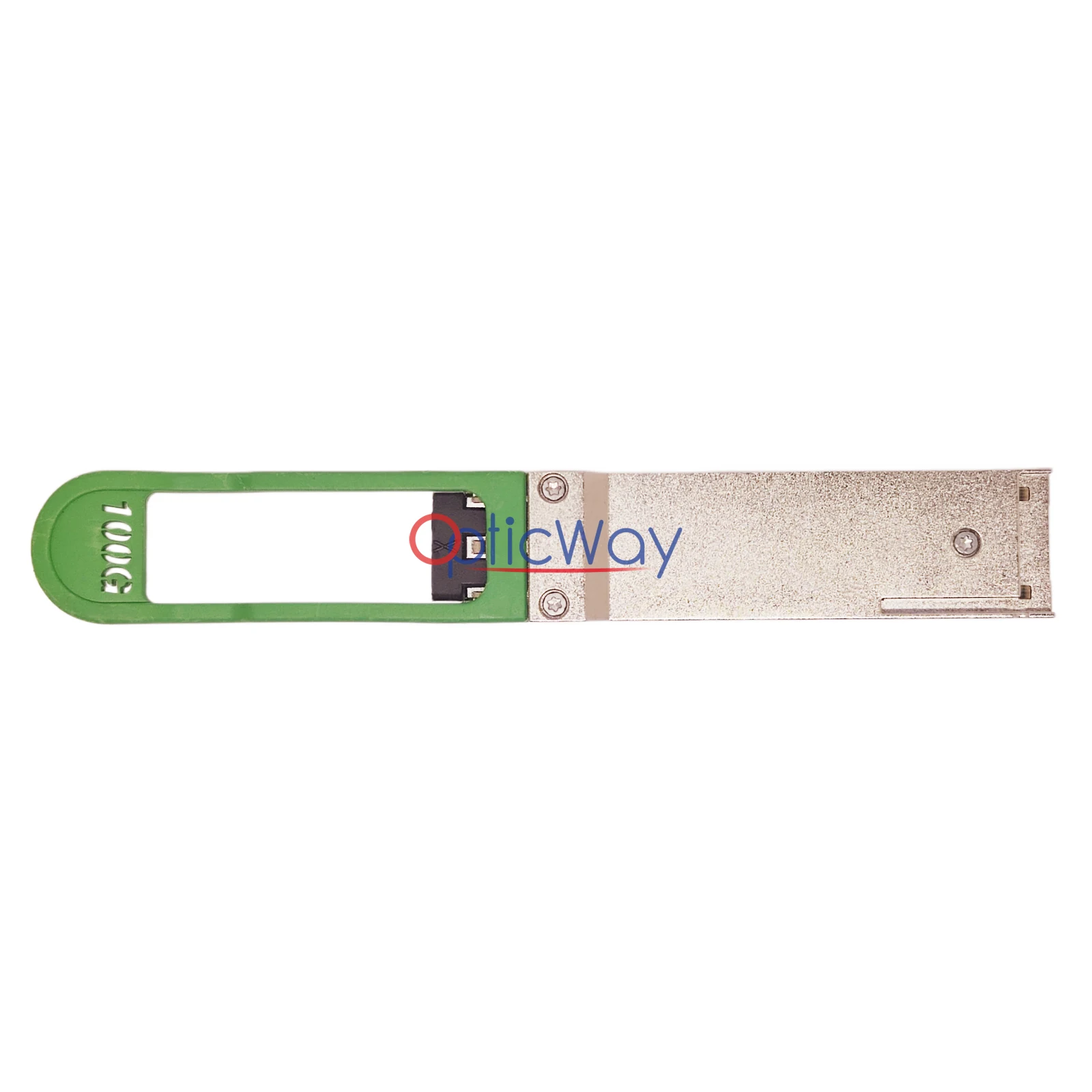

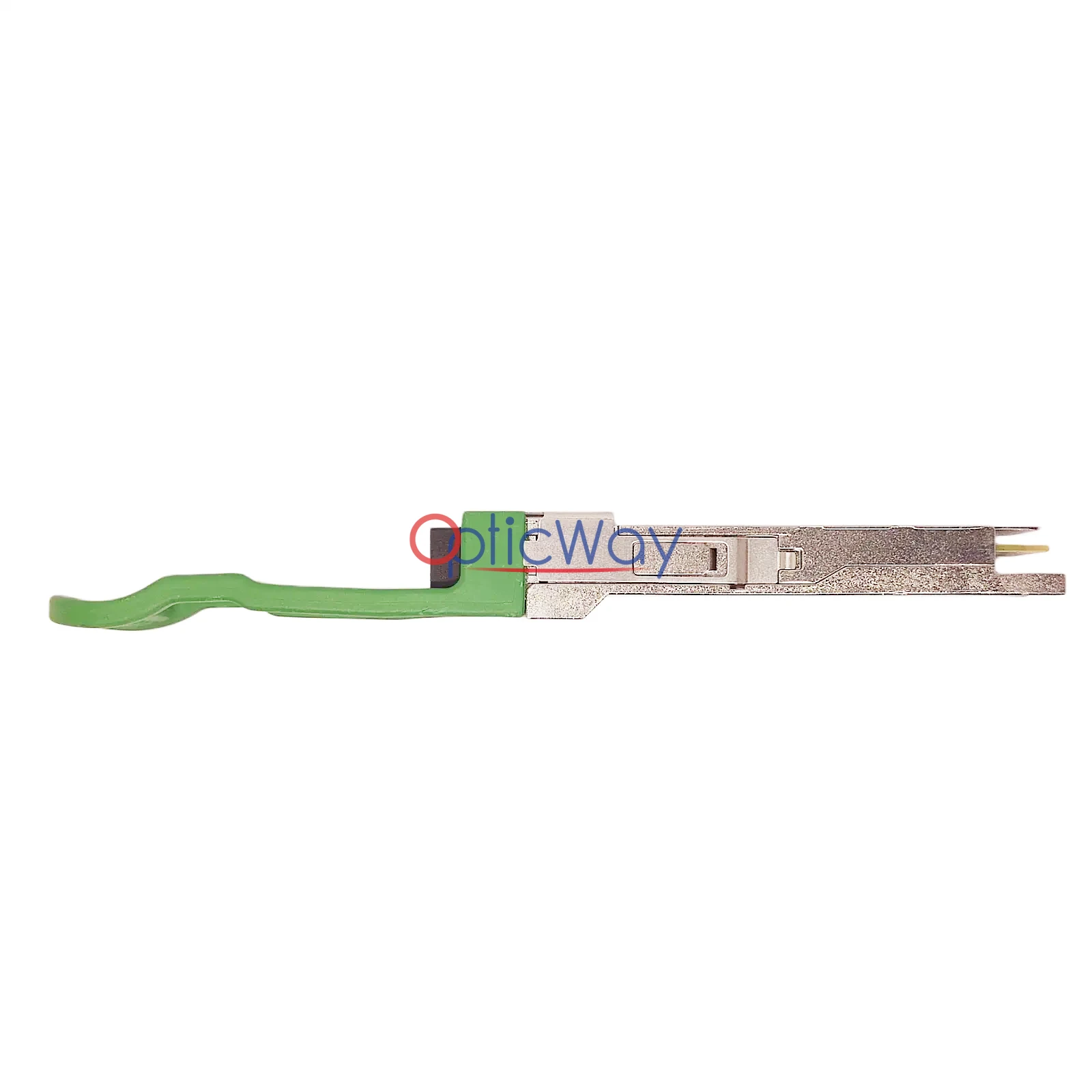

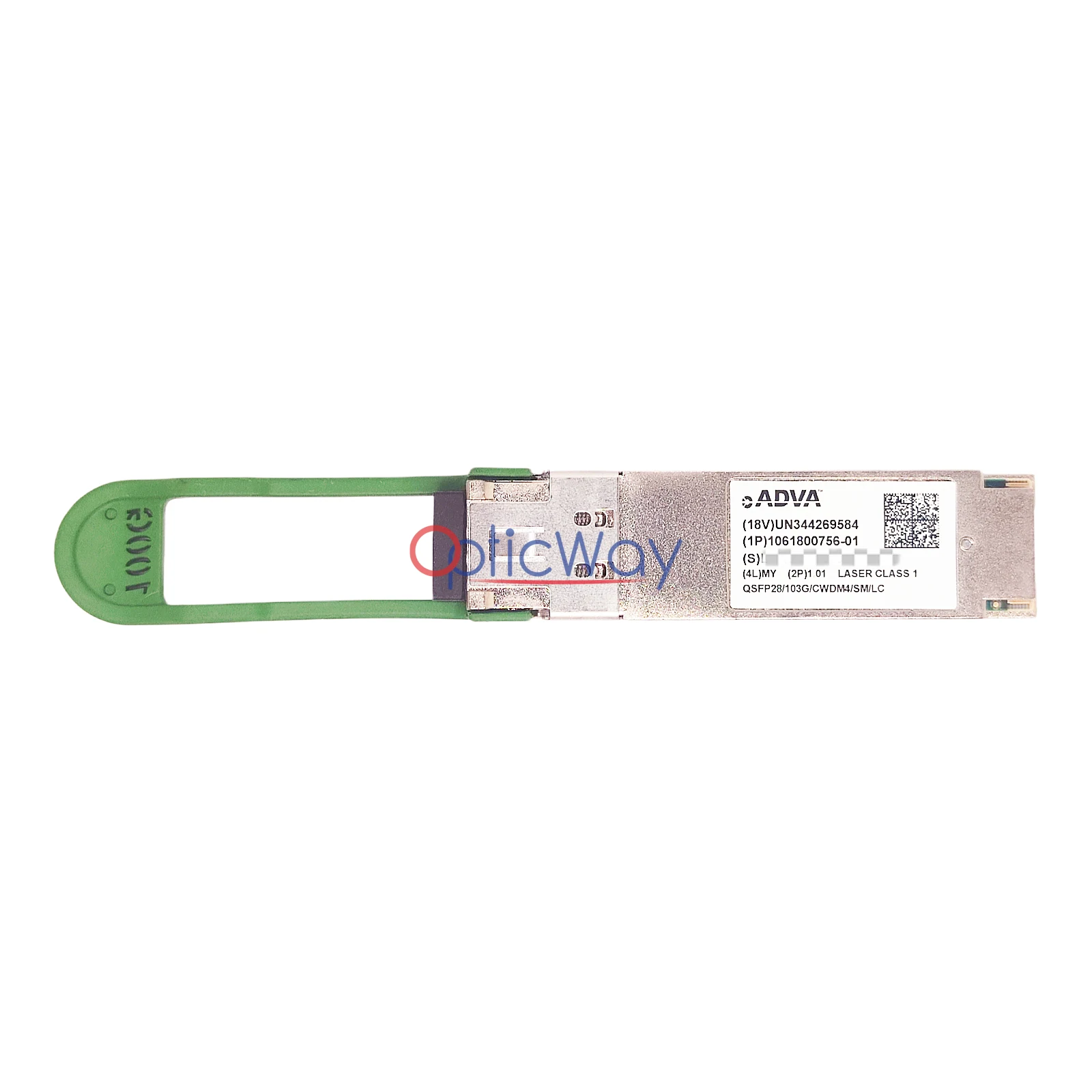

ADVA 1061800756-01 Compatible 103G QSFP28 CWDM4 2km 1310nm SMF Optical Transceiver Module The ADVA 1061800756-01 Compatible QSFP28 Optical Transceiver Module is a high-performance, cost-effective solution designed for 100G Ethernet links over single-mode fiber (SMF) up to a distance of 2 kilometers. Utilizing 4x28G parallel lanes on shared fibers, this module operates on the Coarse Wavelength Division Multiplexing (CWDM) grid centered around the 1310nm window (1271nm, 1291nm, 1311nm, and 1331nm).Engineered specifically to support 100GbE line rates (up to 103.1 Gbps) without mandatory host-side Forward Error Correction (FEC), it is highly optimized for short-to-mid-reach enterprise backbones, high-density leaf-spine data center architectures, and carrier-grade client-side optical transport networks.
ADVA Part Number
1061800756-01
Model Number
QSFP28 103G CWDM4
Technology
CWDM4 (4 lanes, 1270/1290/1310/1330 nm)
Transmission Distance
2km
Data Rate
103Gbps (100GBASE-CWDM4)
Standards
QSFP28 MSA, 100GBASE-CWDM4, Class 1 Laser
Diagnostics
Full DDM/DOM (SFF-8472)
Operating Temperature
0°C ~ 70°C
Typical Applications
- ADVA Metro Network 100G/103G CWDM4 Links
- Data Center Interconnect (DCI) 2km Single-Mode Fiber Connections
- Enterprise Campus Network 100G Ethernet Backbone Links
- Service Provider Access and Aggregation Network 100G Deployments
- ADVA Compatible Switch/Router QSFP28 100G/103G Transceiver Upgrades
Product Highlights
1.ADVA Certified for Telecom-Grade Reliability
- Officially certified by ADVA and subjected to rigorous testing for telecom-grade reliability. It operates stably in demanding metro and access network environments, ensuring seamless compatibility with ADVA devices without compatibility errors.
2.103G CWDM4 Short-Reach Single-Mode Transmission
- Built to the 100GBASE-CWDM4 standard, utilizing four CWDM wavelengths in the 1270-1330 nm range. It delivers reliable 103Gbps transmission up to 2 km over single-mode fiber, perfectly suited for metro aggregation and short-reach data center links.

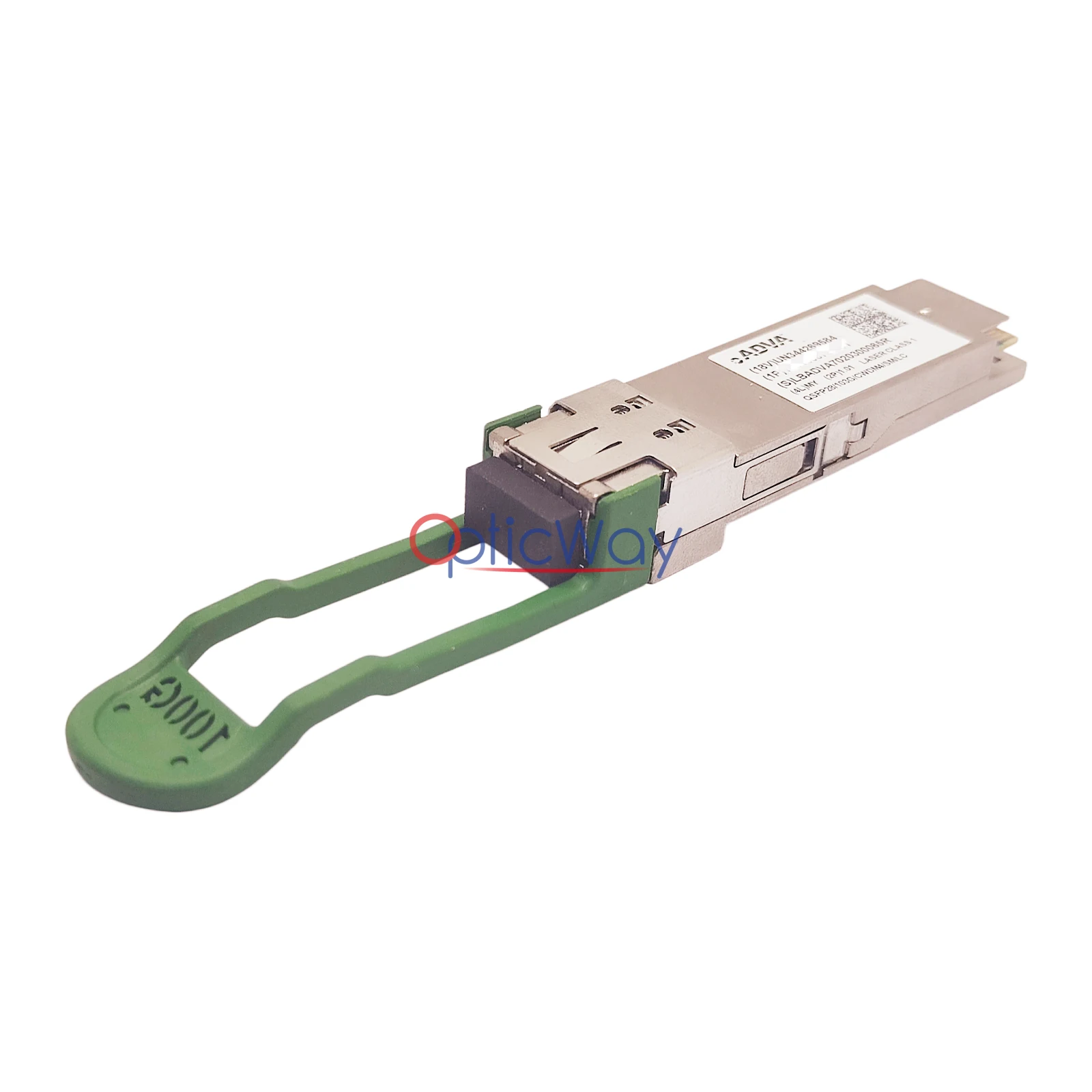

3.Standard LC Duplex Connector for Easy Deployment
- Features a standard LC duplex interface, compatible with widely available single-mode fiber patch cords. This simplifies cable management and allows for quick, cost-effective deployment of short-reach optical links.
4.Industrial-Grade Reliability for Continuous Operation
- Manufactured with high-quality optical components and subjected to strict environmental and aging tests. It offers excellent wide-temperature performance and long-term stability, meeting the high reliability requirements of telecom and data center networks.
5.Comprehensive DDM/DOM Monitoring for Intelligent O&M
- Integrated complete DDM/DOM digital diagnostic function to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.
6.Optimized QSFP28 Form Factor for High-Density Devices
- Uses the compact QSFP28 form factor, making it ideal for high-density ADVA switches and routers. It allows you to add high-speed 100G/103G ports without occupying excessive rack space, supporting efficient network expansion.
