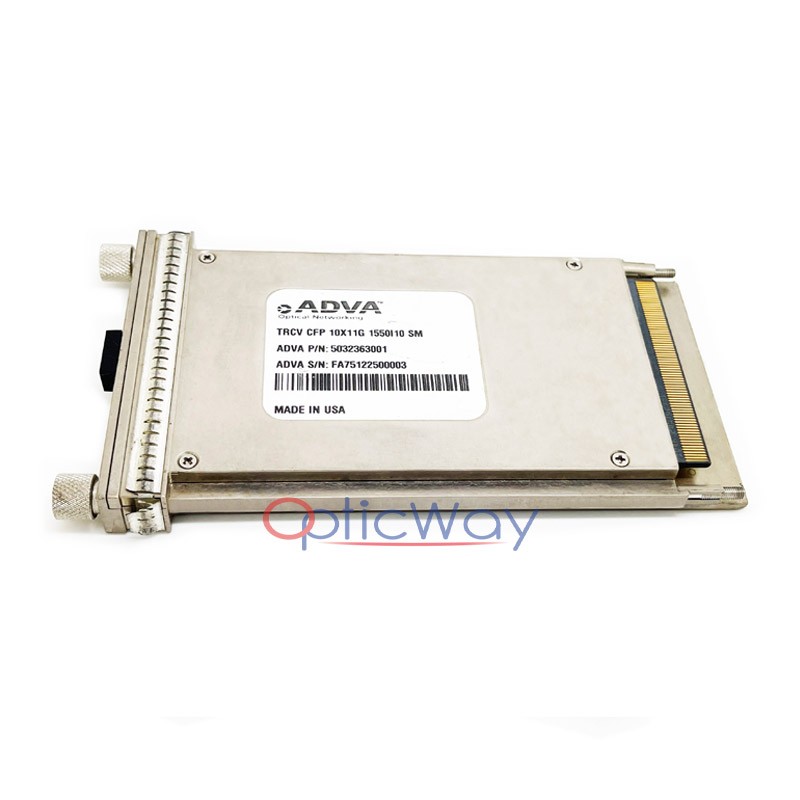

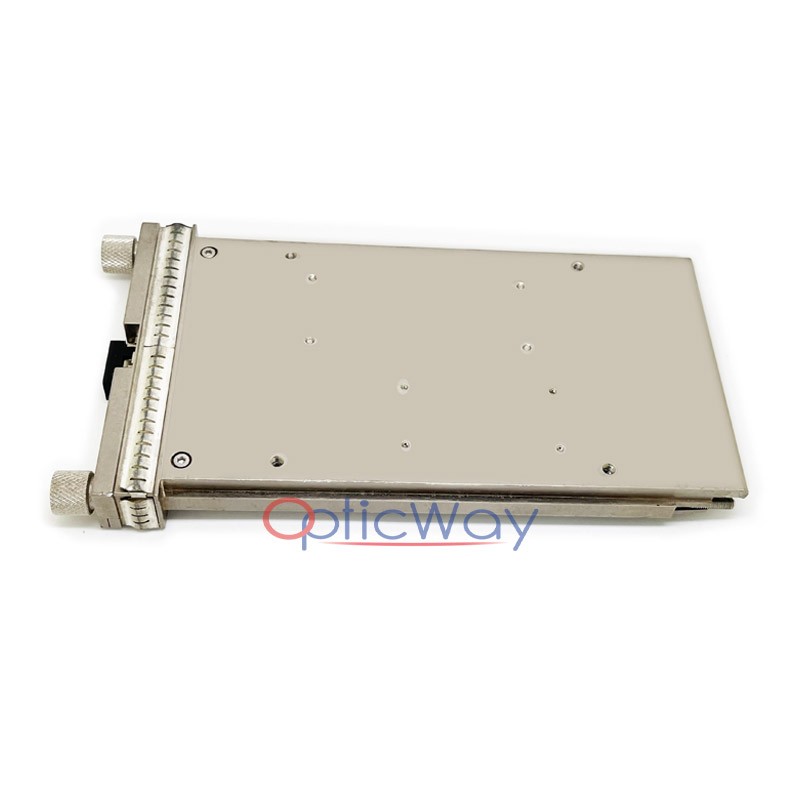

ADVA 5032363001 TRCV CFP 10X11G 1550I10 SM 100G CFP Transceiver 10km SMF LC
The ADVA 5032363001 (TRCV CFP 10X11G 1550I10 SM) is a high-performance 100G CFP optical transceiver designed for long-reach 10km transmission over single-mode fiber. Delivering 100Gbps aggregate bandwidth via 10×11Gbps lanes, this module is fully compliant with 100GBASE-LR4 and OTU4 standards. Manufactured in the USA with a hot-pluggable CFP form factor and low power consumption, it is ideal for data center interconnections, metro core networks, and high-density router port expansion.
Model Number
TRCV CFP 10X11G 1550I10 SM
Product Item Number
5032363001
Form Factor
CFP (Centum Form Factor Pluggable)
Data Rate
100Gbps (10×11Gbps parallel, compatible with 100GBASE-LR4 / OTU4)
Standard
100GBASE-LR4, IEEE 802.3ba, OTU4
Fiber Type
Single-Mode Fiber (SMF)
Transmission Distance
Up to 10 km
Power Supply
3.3V single supply
Operating Temperature
0°C ~ 70°C
Diagnostics
Digital Diagnostic Monitoring (DDM)
Safety & Compliance
Class 1 Laser Product, RoHS, CE
Key Features
· 100G High-Speed Parallel Transmission: Delivers 100Gbps aggregate bandwidth via 10×11Gbps lanes, fully compliant with 100GBASE-LR4 and OTU4 standards.
· 10km Long-Reach SMF: Supports stable 10km transmission over single-mode fiber at 1550nm wavelength.
· Hot-Pluggable CFP Form Factor: Enables in-service maintenance and seamless integration without network downtime.
· Telecom-Grade Reliability: Manufactured in the USA to ADVA's strict telecom standards, ensuring 24/7 stable operation.
· Low Power Design: Optimized for high-density data center and telecom deployments.
· Duplex LC Interface: Standard duplex LC connector for compatibility with existing fiber infrastructure.
Typical Applications
· Data Center Interconnection (DCI)
· Metro/Regional Core Networks
· High-Density Router/Switch Port Expansion
· Carrier Ethernet Backhaul
· Long-Haul Campus/Inter-Office Connectivity
