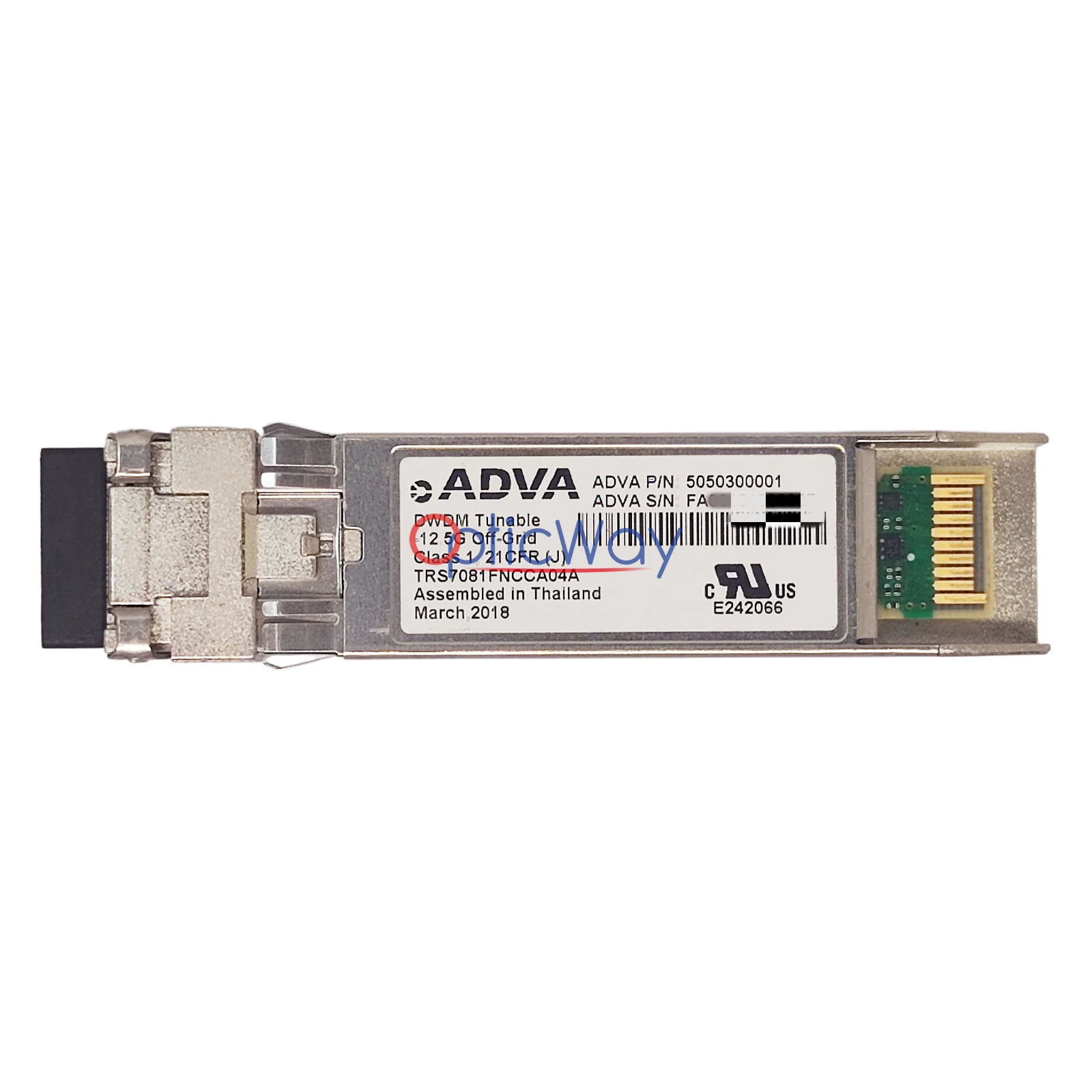

ADVA 5050300001 10G Tunable DWDM SFP+ Transceiver with Full Label and Gold Finger

ADVA 5050300001 10G Tunable DWDM SFP+ Transceiver 80km TRS7081FNCCA04A

$1250.00
ADVA

Product Features

10G DWDM Tunable Performance : Supports 10Gbps transmission up to 80 km over single-mode fiber with tunable DWDM wavelengths and off-grid capability, ideal for flexible long-haul and metro network deployments.
SFP+ Standard Form Factor : Industry-standard SFP+ pluggable footprint, optimized for ADVA optical transport and telecom equipment.
Tunable Wavelength Control : Features integrated wavelength tuning capability, supporting flexible DWDM channel configuration without module replacement.
Full Real-Time DDM/DOM Monitoring : Continuously monitors optical power, temperature, voltage, and laser bias current for proactive maintenance.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications
ADVA 5050300001 10G Tunable DWDM SFP+ Transceiver 80km TRS7081FNCCA04A
The ADVA 5050300001 (TRS7081FNCCA04A) is a high-performance 10G tunable DWDM SFP+ optical transceiver, designed for ADVA telecom and optical transport platforms. It supports 10Gbps transmission up to 80 km over single-mode fiber using tunable DWDM wavelengths with off-grid capability, offering flexible wavelength selection for long-haul and metro optical network deployments. The module is factory-calibrated for ADVA equipment and features full DDM/DOM monitoring for intelligent operation and maintenance.

ADVAPart Number
5050300001
Band
  ADVA
Product Model
TRS7081FNCCA04A
Form Factor
  SFP+
Data Rate
10Gbps
Transmission Distance
80km
Connector
Duplex LC
Fiber Type
  SMF
Technology
Tunable DWDM, Off-Grid
Standards
SFP+ MSA, Class 1 Laser, 21CFR(J)
Diagnostics
Full DDM/DOM (SFF-8472)
Hot Swappable
  Support
Origin
Thailand
Operating Temperature
0°C ~ 70°C

Typical Applications

Product Highlights

    1. ADVA Certified for Telecom-Grade DWDM Performance
  • Officially certified by ADVA and calibrated for optical transport networks, ensuring seamless compatibility with ADVA equipment. It meets strict telecom-grade reliability standards for continuous operation in core and metro networks.
    2.Tunable DWDM Wavelength Flexibility
  • This module supports tunable DWDM wavelengths with off-grid capability, allowing operators to adjust the optical channel frequency without replacing the transceiver. This greatly simplifies network planning, inventory management, and wavelength provisioning.
    3. High-Performance 10Gbps Long-Haul Transmission
  • Designed for 10Gbps transmission up to 80 km over single-mode fiber, it delivers stable, low-error performance for long-haul and metro DWDM links. Optimized laser and receiver components ensure reliable signal integrity even over extended distances.
    4.SFP+ Form Factor for Flexible Network Integration
  • The compact SFP+ form factor makes it easy to integrate into high-density ADVA platforms. It supports hot-swapping, allowing for quick and non-disruptive upgrades or replacements in live networks.
    5.Comprehensive DDM/DOM Monitoring for Proactive Maintenance
  • Integrated full DDM/DOM digital diagnostic functionality enables real-time monitoring of optical power, temperature, voltage, and laser status. This allows operators to detect and resolve potential issues before they cause service outages.
    6.Off-Grid Capability for Advanced Network Architectures
  • The off-grid feature enables deployment in non-standard DWDM channel plans, supporting custom network designs and advanced optical architectures. This flexibility is ideal for evolving telecom networks with unique wavelength requirements.
