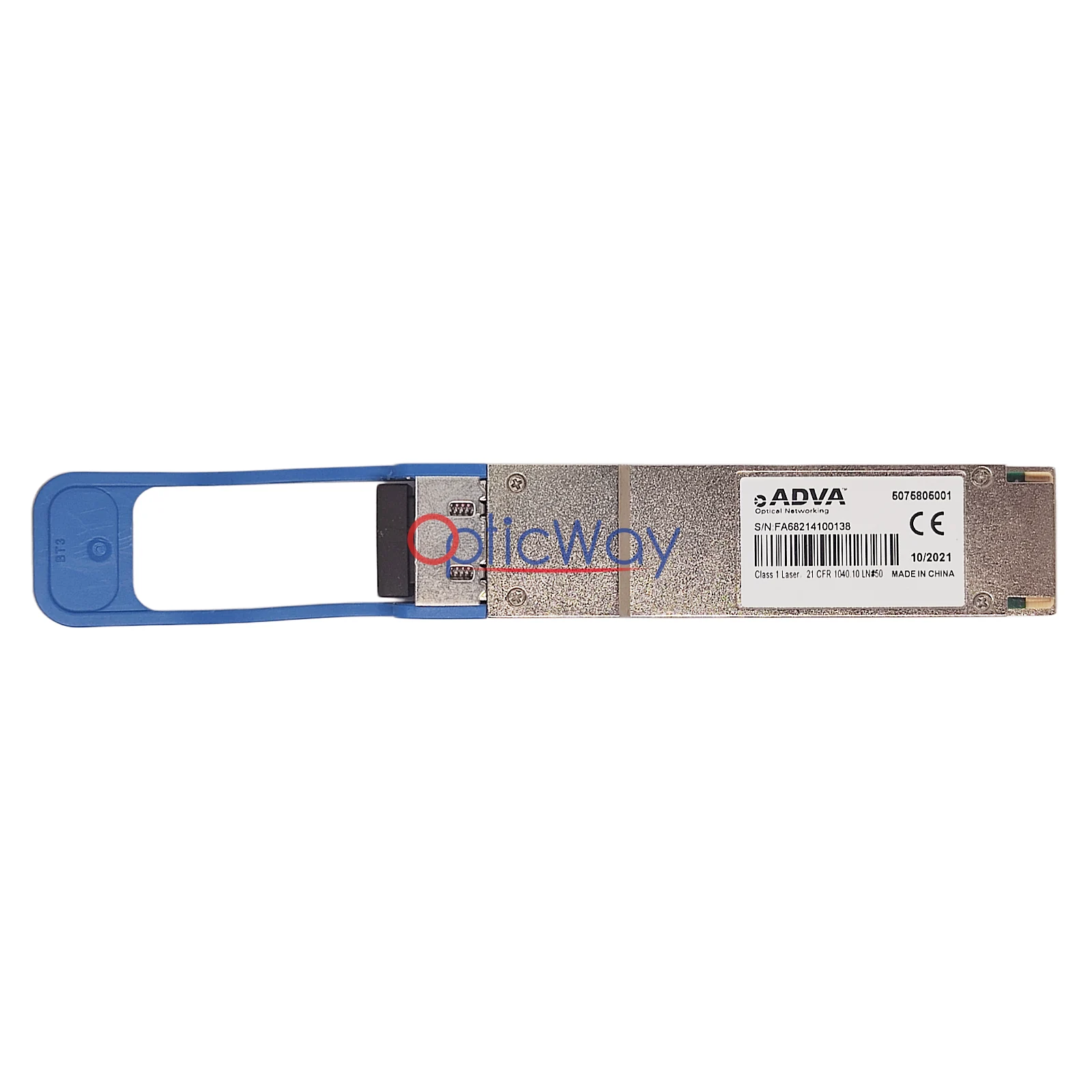

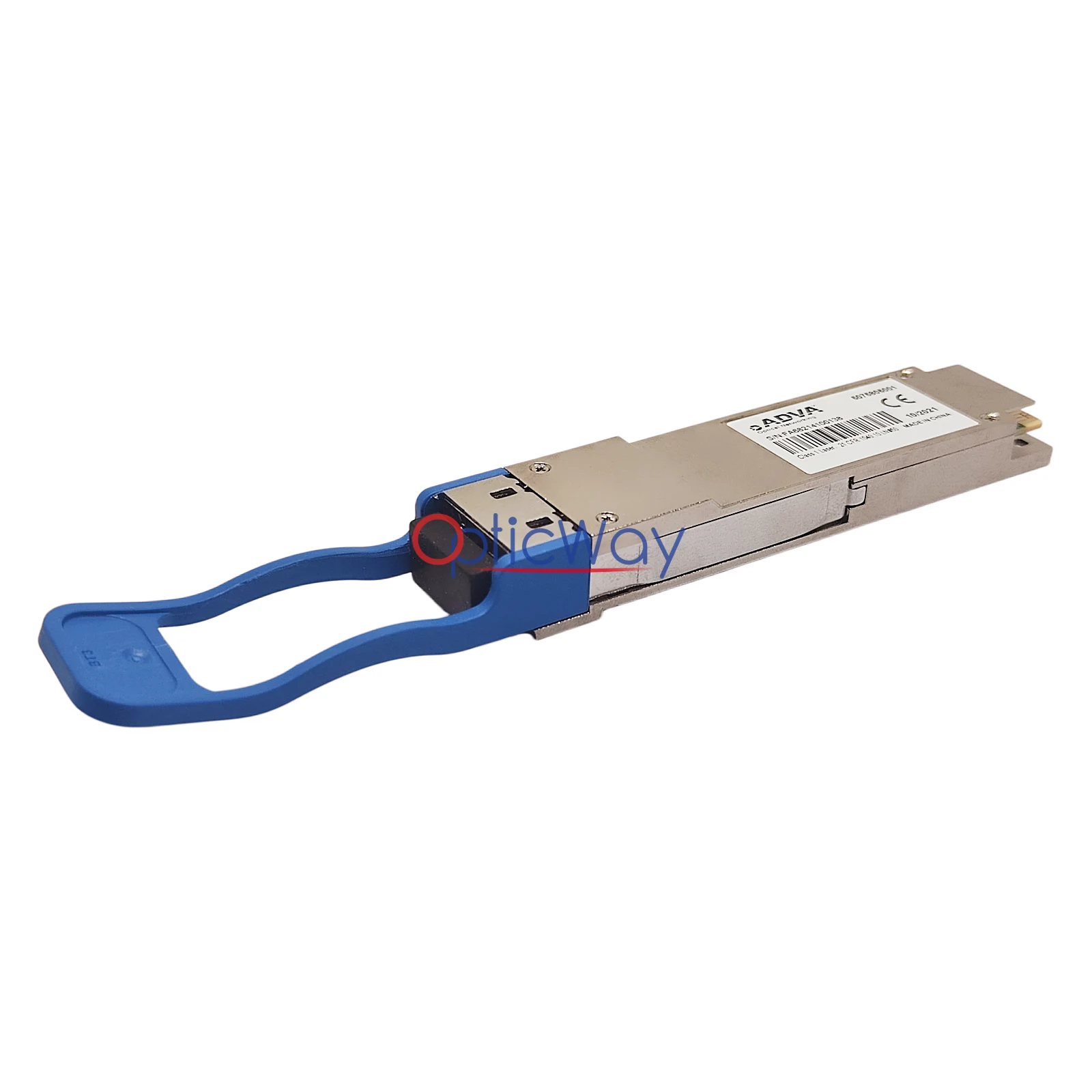

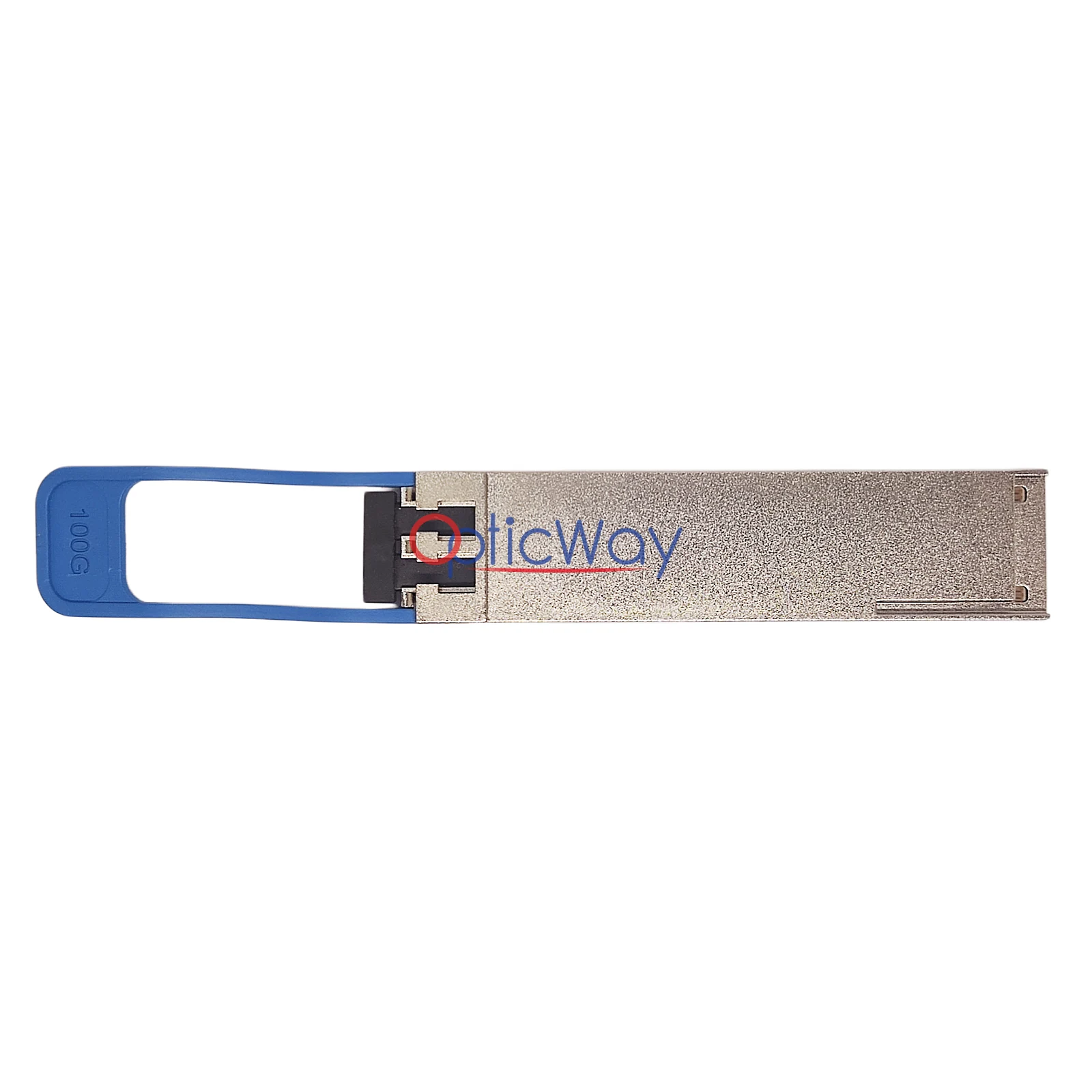

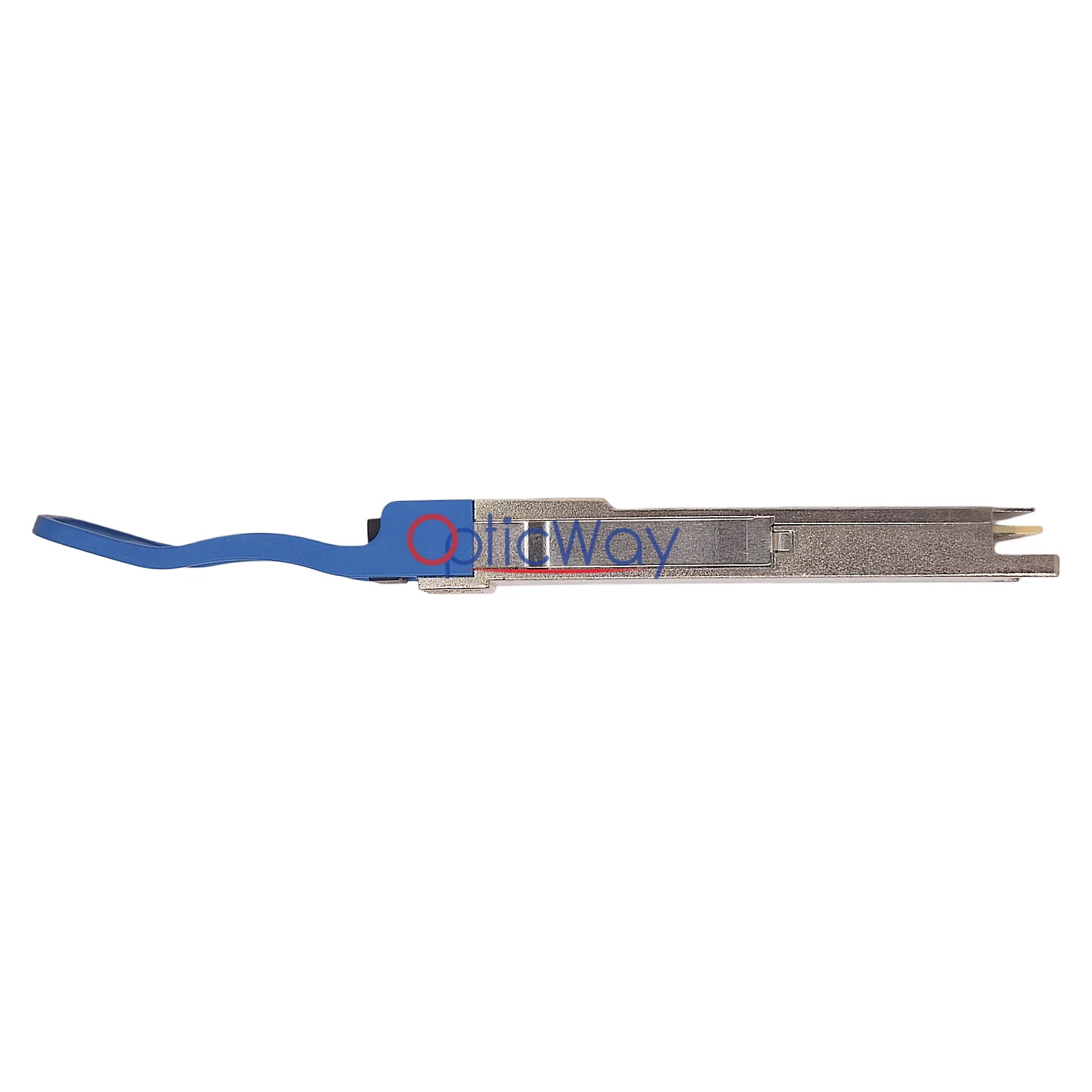

ADVA 5075805001 QSFP28 100G 4x25G LAN-WDM LR4 10km SMF LC Optical Transceiver
The ADVA 5075805001 is a high-performance 100GBASE-LR4 QSFP28 optical transceiver based on 4x25G LAN-WDM technology, factory-calibrated for ADVA optical transport and data center platforms. It supports 100Gbps transmission up to 10 km over single-mode fiber (SMF) using four LAN-WDM wavelengths in the 13xx nm range, with an LC duplex connector. Compliant with QSFP28 MSA and 100GBASE-LR4 standards, it features full DDM/DOM monitoring for intelligent operation and maintenance.

ADVA Part Number

5075805001

Band

ADVA

Model Number

QSFP28 100G 4x25G LR4

Form Factor

QSFP28

Technology

LR4, 4x25G LAN-WDM (13xx nm)

Transmission Distance

10km

Connector

Duplex LC

Fiber Type

SMF

Data Rate

100Gbps

Standards

QSFP28 MSA, 100GBASE-LR4, Class 1 Laser

Diagnostics

Full DDM/DOM (SFF-8472)

Hot Swappable

Support

Origin

China

Operating Temperature

0°C ~ 70°C

Typical Applications

ADVA Optical Transport Network 100G Long-Reach Links
Data Center Interconnect (DCI) 10km Single-Mode Fiber Connections
Metro Network 100G Optical Transmission Links
Service Provider Core Network 100G Ethernet Deployments
ADVA Compatible Switch/Router QSFP28 100G Transceiver Upgrades

Product Highlights

1.ADVA Certified for Telecom-Grade Reliability
Officially certified by ADVA and subjected to rigorous testing for telecom-grade reliability. It operates stably in demanding core and metro network environments, ensuring seamless compatibility with ADVA devices without compatibility errors.
2. 100G LR4 Long-Reach Single-Mode Transmission with 4x25G LAN-WDM
Built to the 100GBASE-LR4 standard, utilizing 4x25G LAN-WDM technology with four wavelengths in the 13xx nm range. It delivers reliable 100Gbps transmission up to 10 km over single-mode fiber, perfectly suited for data center interconnections and metro network links.
3. Standard LC Duplex Connector for Easy Deployment
Features a standard LC duplex interface, compatible with widely available single-mode fiber patch cords. This simplifies cable management and allows for quick, cost-effective deployment of long-reach optical links.
4.Industrial-Grade Standards for Continuous Operation
Manufactured with high-quality optical components and subjected to strict environmental and aging tests. It offers excellent thermal dissipation and long-term stability, meeting the high reliability requirements of telecom and data center networks.
5. Comprehensive DDM/DOM Monitoring for Intelligent O&M
Integrated complete DDM/DOM digital diagnostic function to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.
6. Optimized QSFP28 Form Factor for High-Density Devices
Uses the compact QSFP28 form factor, making it ideal for high-density ADVA switches and routers. It allows you to add high-speed 100G ports without occupying excessive rack space, supporting efficient network expansion.
