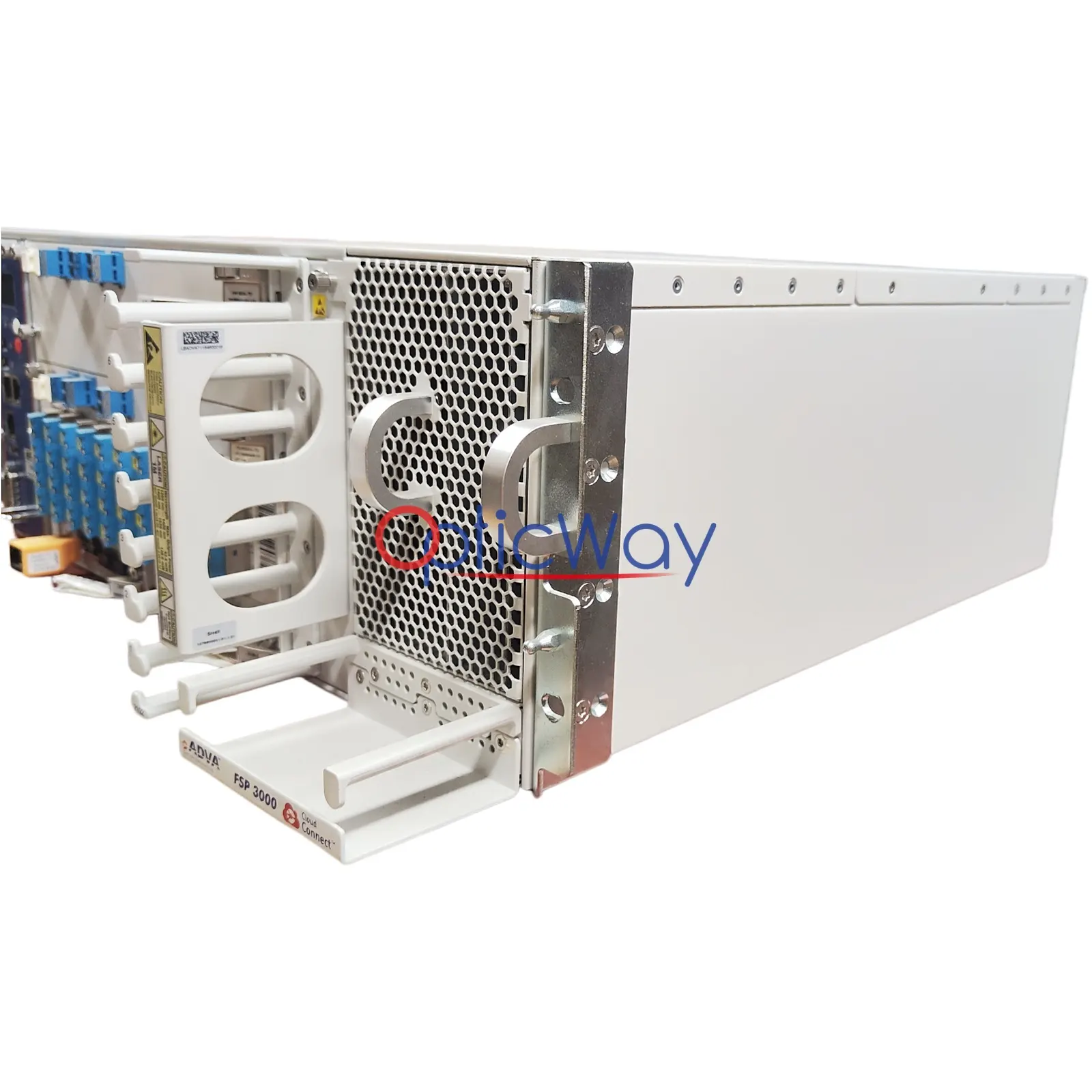

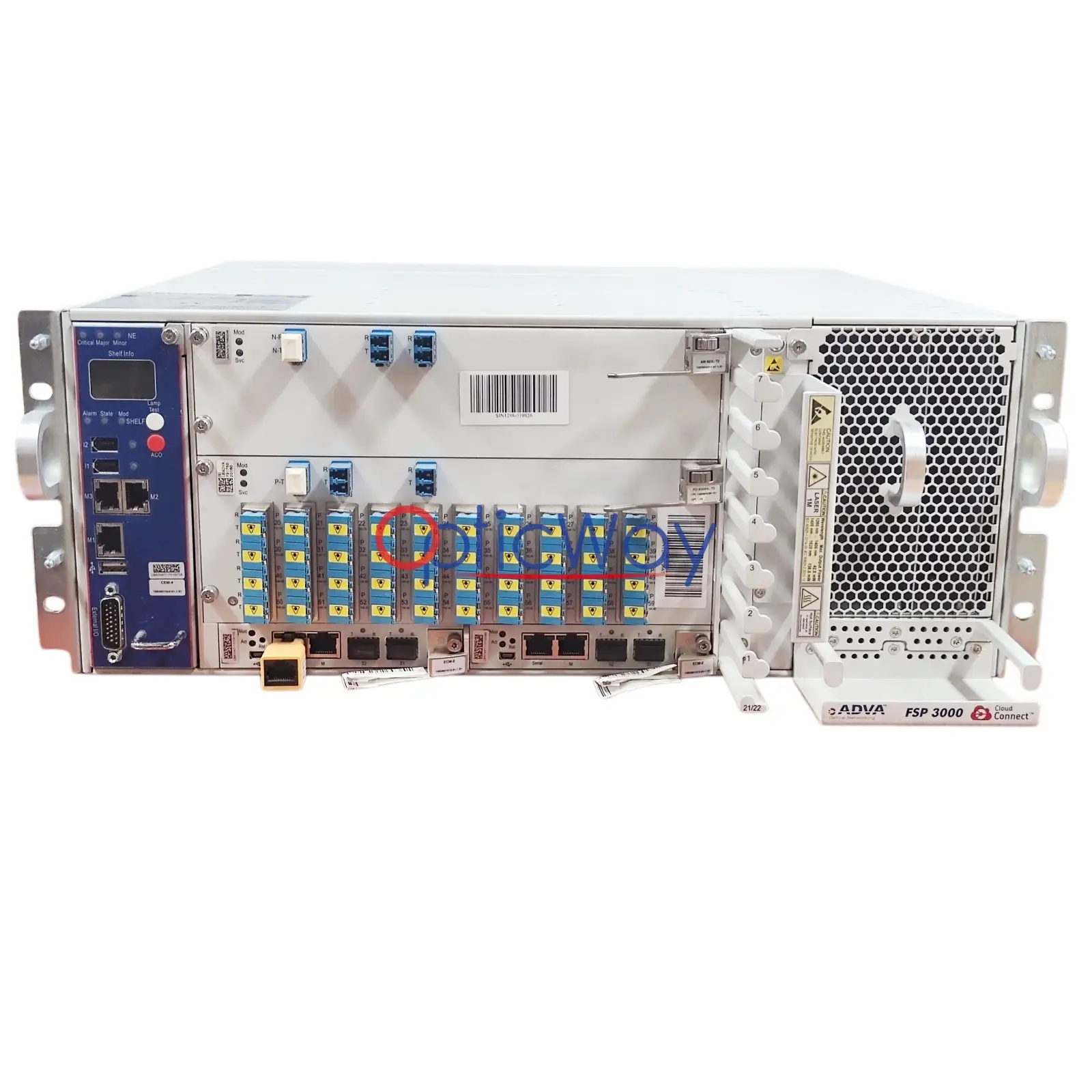

ADVA FSP 3000 C-4R Cloud Connect DWDM/OTN Optical Transport Platform within part units The ADVA FSP 3000 Cloud Connect is a high-density, modular WDM/OTN optical transport platform engineered specifically for hyperscale Data Center Interconnect (DCI), metropolitan rings, and telecom core networks. Breaking the footprint and power constraints of legacy transport hardware, it utilizes a compact, server-like horizontal-airflow chassis design.This premium bundle constitutes a carrier-grade high-availability node solution, pre-configured with two (2x)ECM-2 equipment control modules for 1+1 management plane protection. Integrating a 40-channel high-densitypassive DWDM Mux/Demux card and a high-gain active Erbium-Doped Fiber Amplifier (EDFA), this system delivers massive bandwidth scaling (from 10G/11G up to 400G+ per channel) with minimum energy per bit, fully ready for SDN-enabled open network automation.
System Package Configuration List
Component
| Model & Part Number(P/N)
| Qty | Key Functional Specifications
|
Common Equipment Module
| ECM-4
P/N: 1063801054-01
| 1 | High-spec CSM-4 central management unit (with digital LED status display, M1/M2/M3 remote management ports, and External environmental I/O), and a high-capacity vertical fiber management |
AC Power Supplies

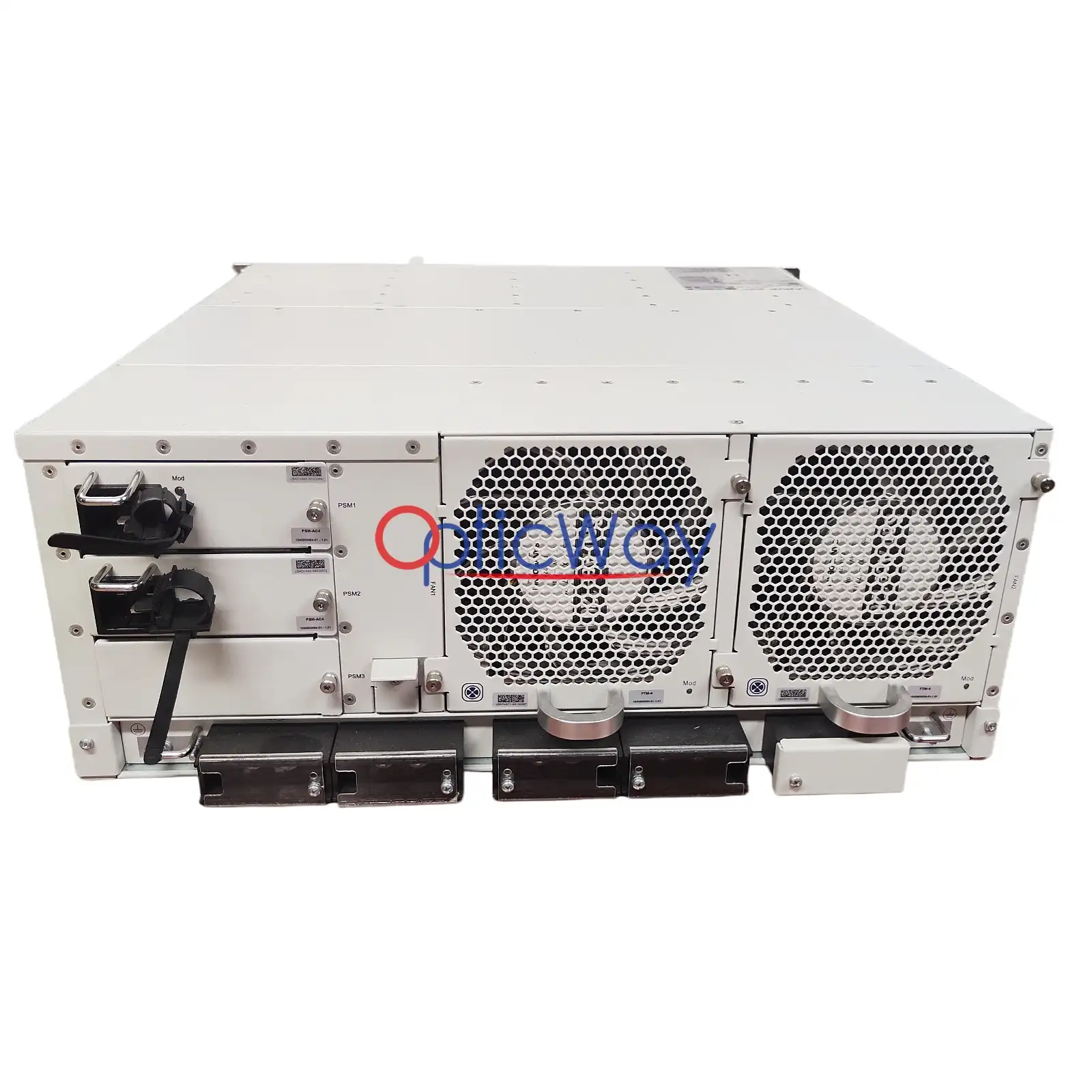

| PSM-AC | 2 | Pre-installed on the rear. Supports 1+1 carrier-grade power grid redundancy with built-in overvoltage/ overcurrent protection. Hot-swappable design ensures zero traffic disruption during a single power feed failure. |
| High-Airflow Fans | FAN1 & FAN2 | 2 | Pre-installed on the rear. Dual-matrix independent hot-swappable cooling fan units utilizing an efficient front-to-back horizontal airflow pattern. Automatically scales fan speeds based on card thermal states |

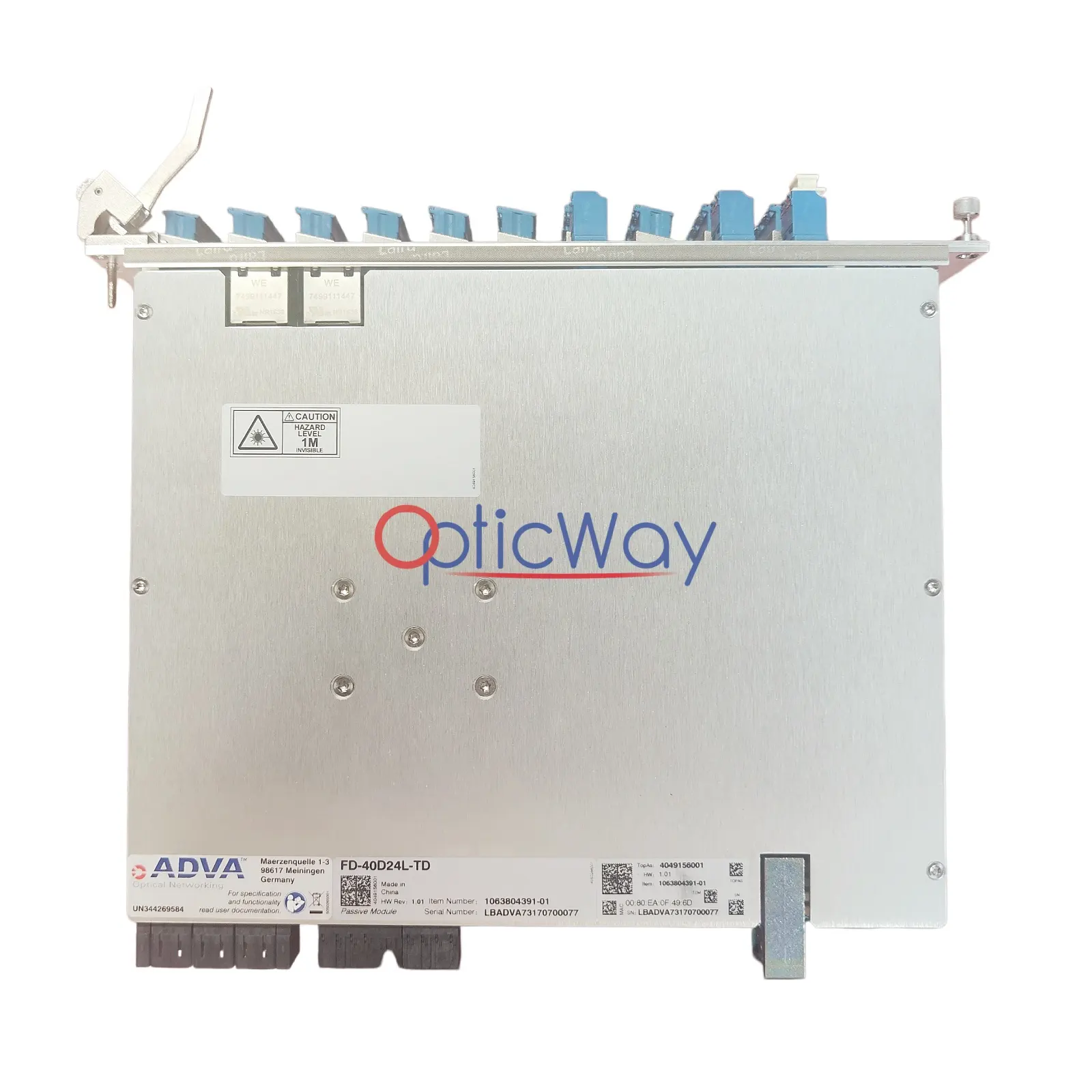

| 40CH DWDM Mux/ Demux | FD-40D24L-TD P/N: 1063804391-01 | 1 | High-density passive wave-division multiplexing module. Integrates multiplexing and demultiplexing for up to 40 C-band DWDM channels via high density duplex LC connectors on the front panel. Zero power consumption, high channel isolation, maximizing fiber span bandwidth. |

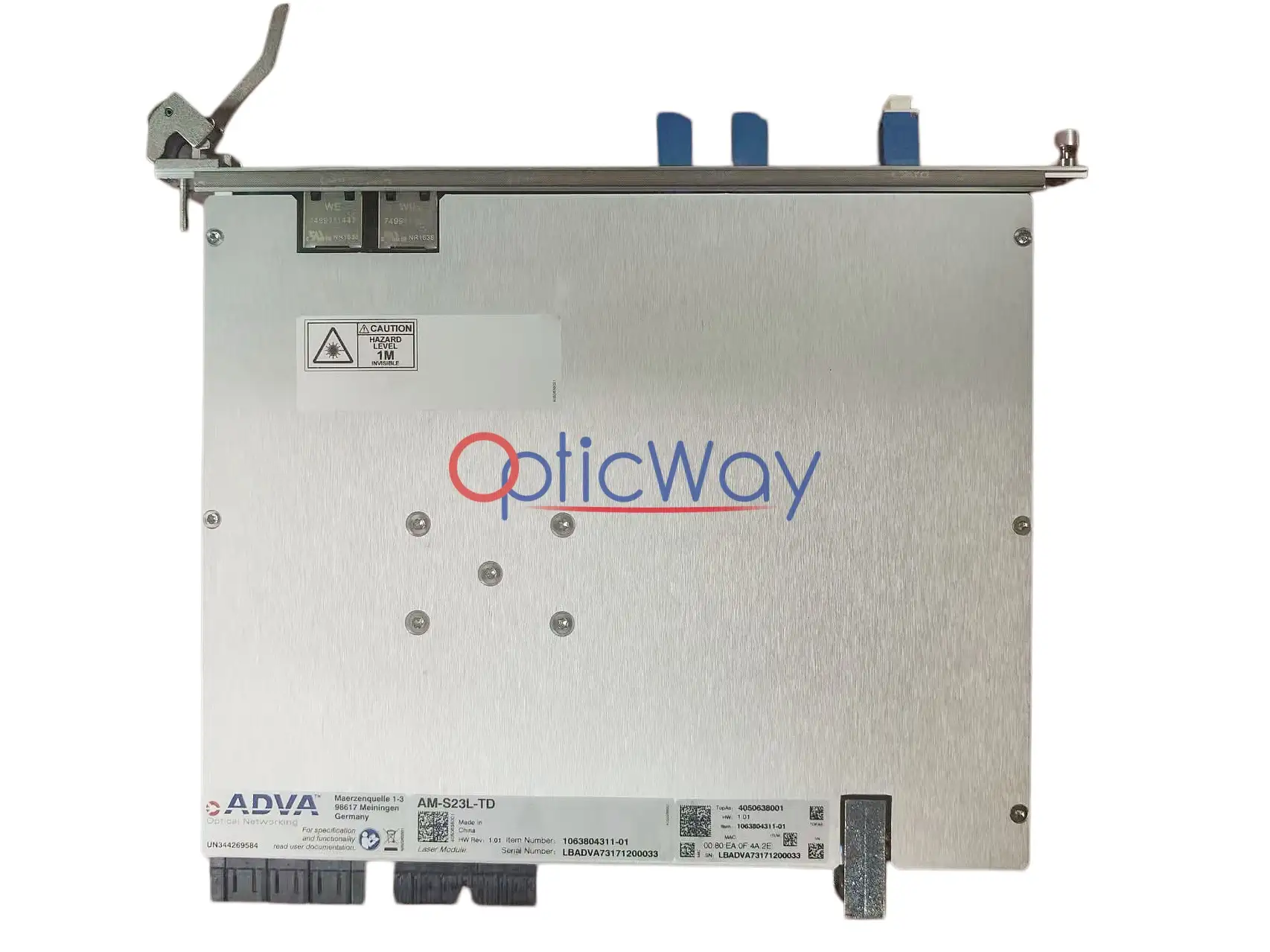

| Optical Amplifier (EDFA) | AM-S23L-TD P/N: 1063804311-01 | 1 | Core active optical layer module (Class 1M Laser Product). High-performance Erbium-Doped Fiber Amplifier (EDFA) designed to boost consolidated DWDM multi-wavelength signals directly in the optical layer. Compensates for fiber attenuation across long spans without O-E-O regeneration. |

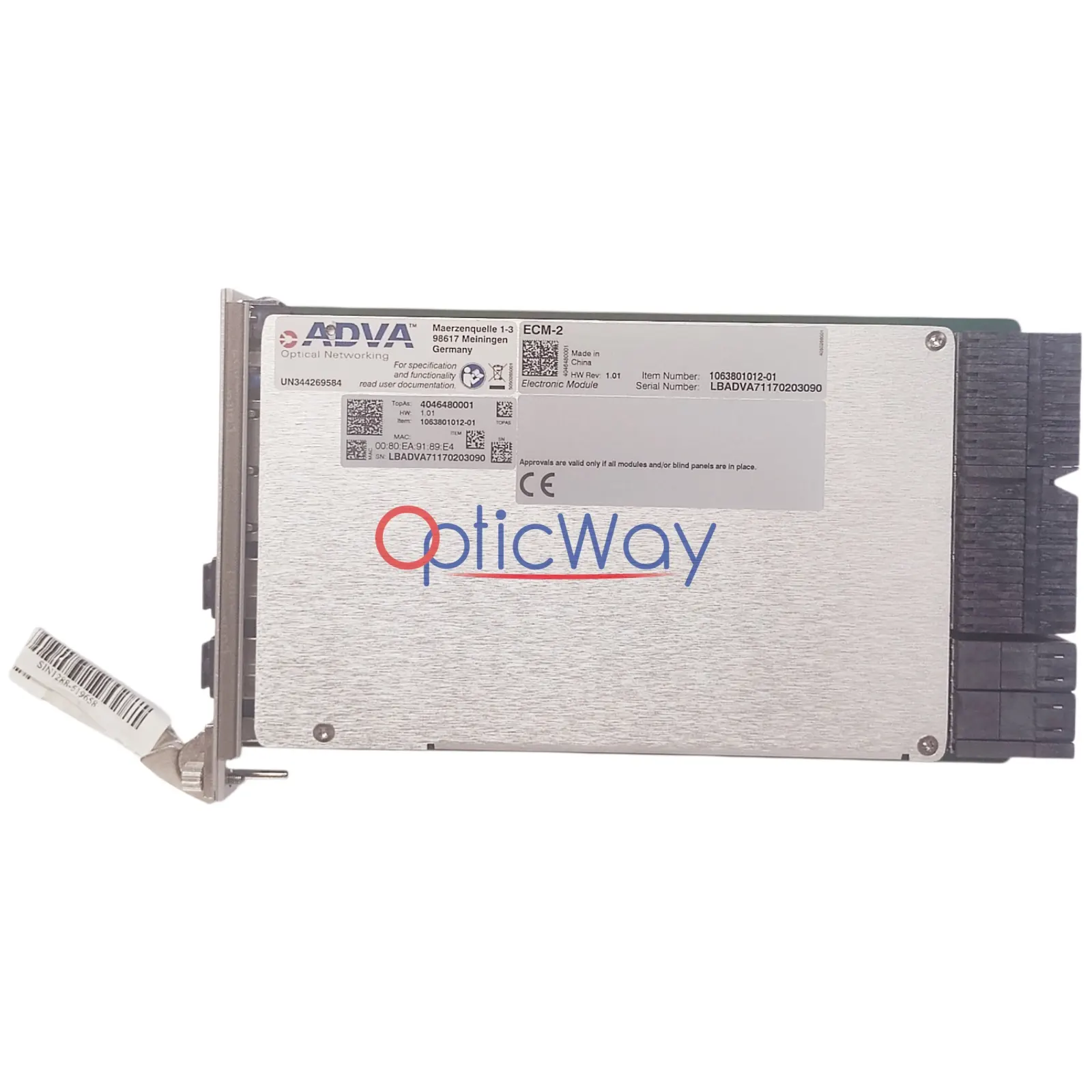

| Equipment Control Modules | ECM-2 P/N: 1063801012-01 | 2 | Core electronic control extension modules. Dual- card configuration establishes a robust 1+1 telecom-grade management plane redundancy. Handles intra-shelf line-card communication, multi- chassis cascading, and aggregates all real-time DDM/DOM telemetry data to the central network controller. |
Product Highlights
Dual ECM-2 Controller Redundancy
- This premium configuration features dual (2x) ECM-2 modules, delivering true 1+1 carrier-grade management plane redundancy. Supporting hot-swappable O&M and seamless active/standby failover, it guarantees continuous telemetry collection and shelf configuration during maintenance or hardware faults, with absolutely zero impact on live network traffic.
40CH DWDM & Direct EDFA Optical Amplification
- By combining the FD-40D24L-TD 40-Channel Mux/Demux and the AM-S23L-TD EDFA card, this system delivers high-density passive wavelength aggregation alongside intelligent, low-noise optical amplification. It eliminates costly O-E-O regeneration, significantly extending transport distances while unlocking the maximum throughput of your existing fiber assets
AM-S23L-TD Intelligent Optical Amplifier
- The ADVA AM-S23L-TD is a high-performance intelligent optical amplifier line card designed for the FSP 3000 Cloud Connect platform. Highly optimized for metro DWDM and direct-detect 100G PAM4 applications, it features a high-efficiency EDFA gain core under ADVA's signature SmartAmp™ family. With natively embedded Automatic Gain Provisioning, built-in gain flattening and spectral equalization, this module effectively compensates for fiber attenuation and optimizes transmission performance to ensure premium OSNR for PAM4 client trunks. Equipped with multiple high-density LC ports, it guarantees seamless interoperability and reliable, low-latency operation in carrier-grade networks.
CEM-4 Common Equipment Module
- The ADVA F8/CEM-4 is the essential infrastructure hub for the FSP 3000 Cloud Connect platform. This module consolidates centralized chassis monitoring, multi-port local management access, and external environmental alarm relays into a single slot. Featuring a front-panel diagnostic LCD screen and tripartite hardware alarm LEDs, it provides real-time, software-free status tracking. Built with enterprise-grade component selection, it supports safe hot-swappable maintenance to secure continuous carrier-grade operation.
FSP3000-Based 40-Channel DWDM Metro OLS Architecture By integrating the 40-channel FD-40D24L-TD DWDM Mux/Demux and the AM-S23L-TD SmartAmp module into the FSP 3000 C-4R 4RU chassis with dual ECM-2 control plane redundancy, you can build a complete Metro 100G PAM4 Open Optical Line System (OLS). This setup directly multiplexes and amplifies colored 100G PAM4 transceivers (e.g., QSFP28 ColorZ) sourced directly from data center switches/routers. It delivers an ultra-dense, cost-effective 4T capacity overlay for metro ranges up to 100km over standard OS2 fiber, eliminating the need for traditional, expensive standalone coherent transport gear.
