ADVA LTA8531-PE1-AD QSFP28 100G 4x25G-E SR4 100m 850nm MMF MPO Optical Transceiver
The ADVA LTA8531-PE1-AD is a high-performance 100GBASE-SR4 QSFP28 optical transceiver, designed for ADVA and compatible data center and enterprise network platforms. It supports 100Gbps transmission up to 70-100 meters over OM3/OM4 multi-mode fiber using four parallel 850 nm optical lanes, with an MPO-12 connector. Compliant with QSFP28 MSA and 100GBASE-SR4 standards, it features full DDM/DOM monitoring for intelligent operation and maintenance.

ADVA Part Number

LTA8531-PE1-AD

Band

ADVA

Model Number

QSFP28 100G SR4

Form Factor

QSFP28

Technology

SR4 (4 parallel lanes, 850 nm)

Transmission Distance

100 m

Connector

MPO

Fiber Type

MMF

Data Rate

100Gbps

Wavelength

850nm

Diagnostics

Full DDM/DOM (SFF-8472)

Standards

QSFP28 MSA, 100GBASE-SR4, Class 1 Laser

Origin

China

Operating Temperature

0°C ~ 70°C

Typical Applications

ADVA Data Center 100G High-Density Leaf-Spine Links
Enterprise Campus Network 100G Ethernet Backbone Connections
Cloud Provider Hyperscale Infrastructure 100G ToR Switch Interfaces
100GBASE-SR4 Standard Compliant Network Upgrades
ADVA Compatible Switch/Router QSFP28 100G Transceiver Upgrades

Product Highlights

1.ADVA Certified for Data Center-Grade Reliability
Officially certified by ADVA and subjected to rigorous testing for data center reliability. It operates stably in high-density leaf-spine environments, ensuring seamless compatibility with ADVA platforms without interoperability or compatibility errors.
2.100G SR4 Short-Reach Multi-Mode Transmission
Built to the 100GBASE-SR4 standard, utilizing four parallel 850 nm optical lanes (4x25Gbps). It delivers reliable 100Gbps transmission up to 70 meters over OM3 multi-mode fiber and up to 100 meters over OM4/OM5 MMF, perfectly suited for intra-datacenter links.

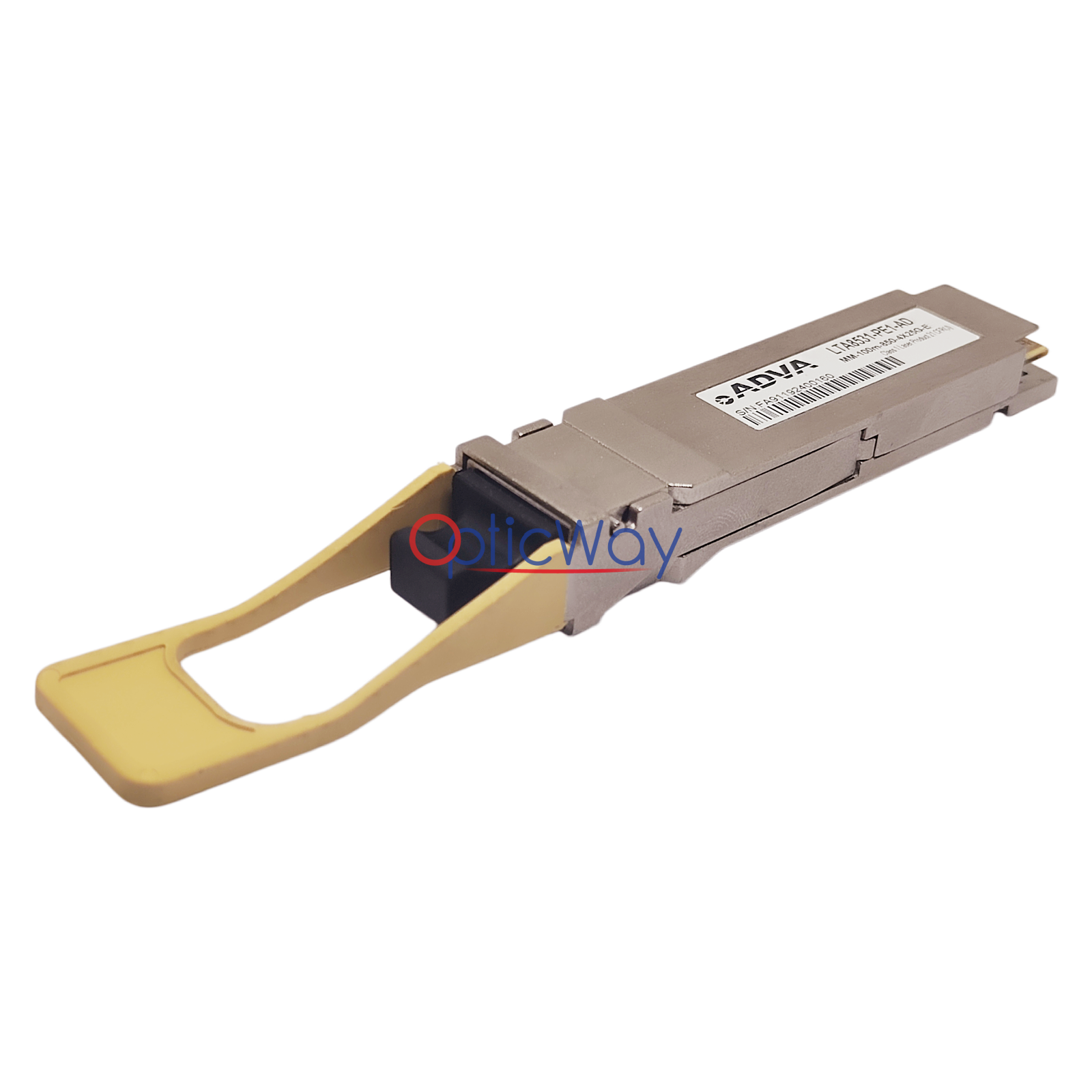

3.MPO-12 Connector for High-Density Parallel Cabling
Features a standard MPO-12 interface, optimized for structured cabling in modern data centers. By leveraging parallel optics over MPO/MTP patch cords, it simplifies fiber management, reduces cable congestion, and lowers overall infrastructure costs in leaf-spine architectures.
4.Carrier-Class Thermal Optimization for Continuous Operation
Manufactured with premium VCSEL laser arrays and optimized for low power consumption (typically <2.5W). It offers excellent heat dissipation and long-term stability, fully meeting the strict continuous-operation and energy-efficiency requirements of high-density equipment rooms.
5.Comprehensive DDM/DOM Monitoring for Intelligent O&M
Integrated complete DDM/DOM digital diagnostic functions to monitor aggregate and per-channel Tx/Rx optical power, module temperature, voltage, and laser bias current in real time. This enables early fault prediction and proactive maintenance to prevent unexpected network outages.
6.Optimized QSFP28 Form Factor for High-Density Core Switches
Utilizes the compact and hot-pluggable QSFP28 form factor, ideal for high-density ADVA switches, routers, and transport line cards. It enables flexible, high-speed 100G port provisioning without sacrificing valuable rack space, supporting scalable network expansion.
