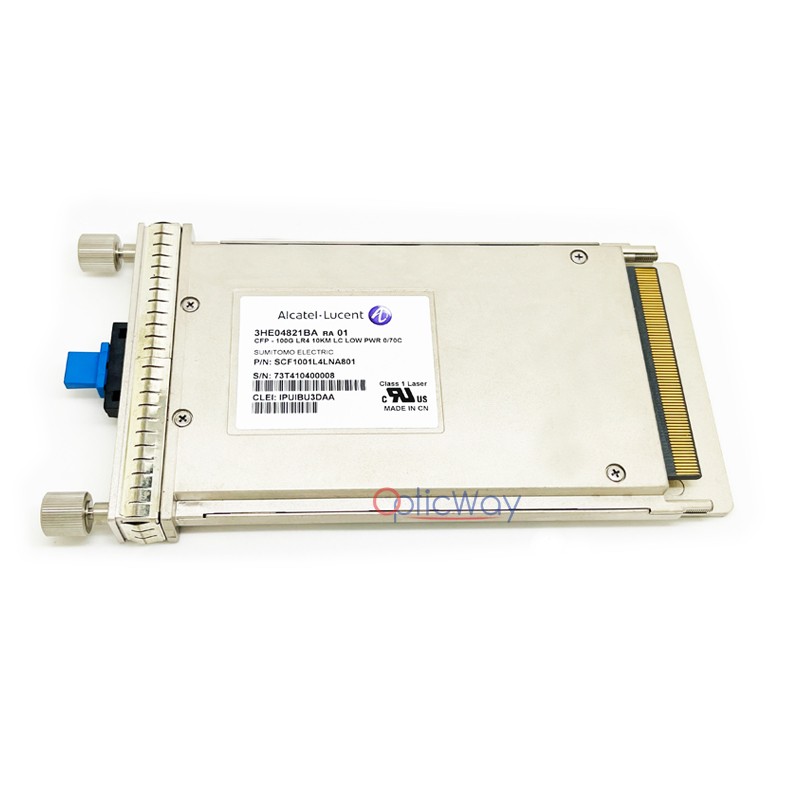

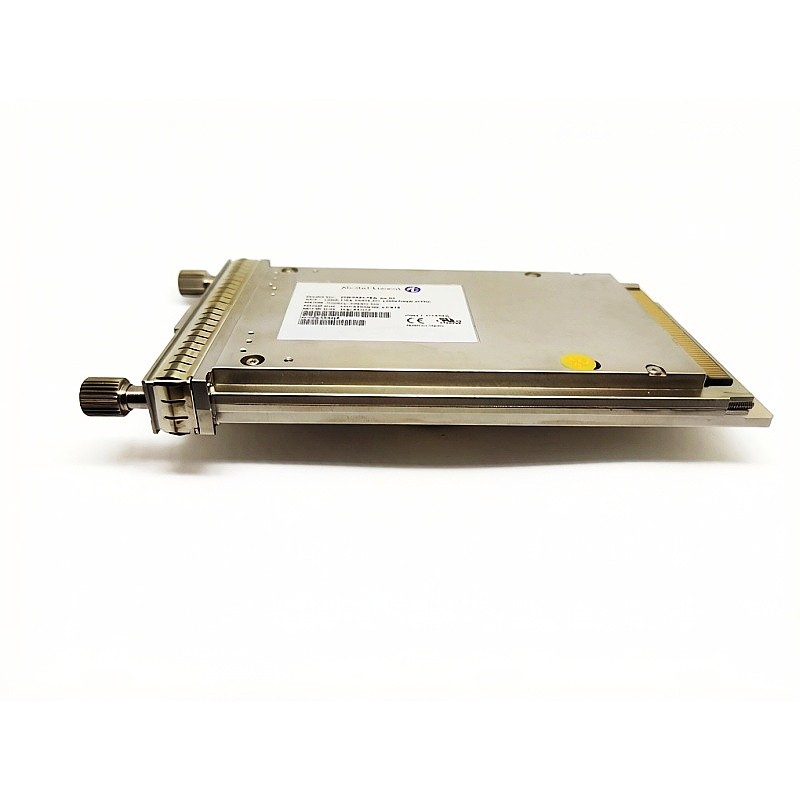

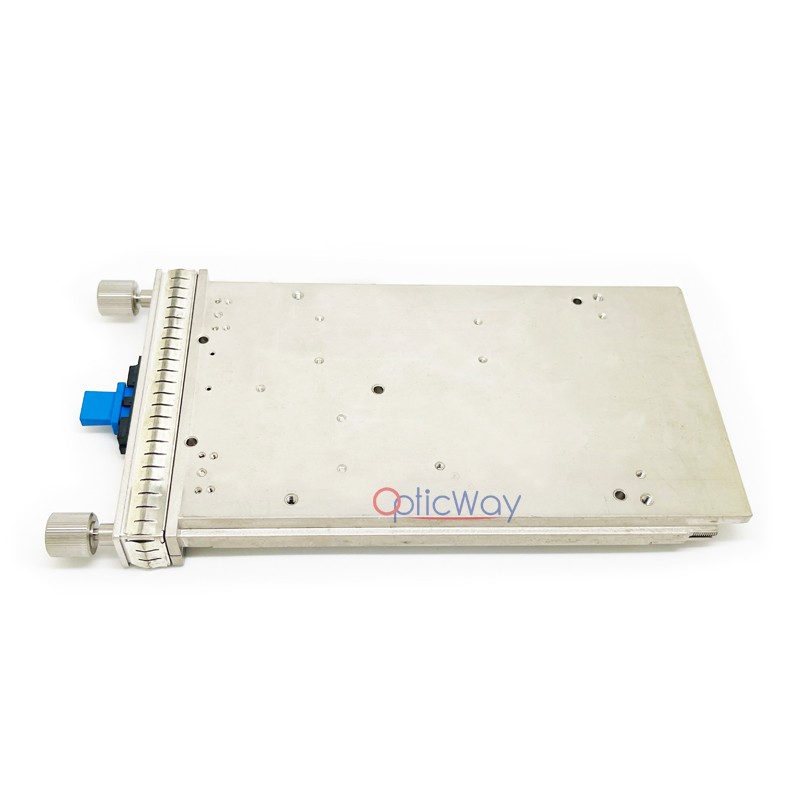

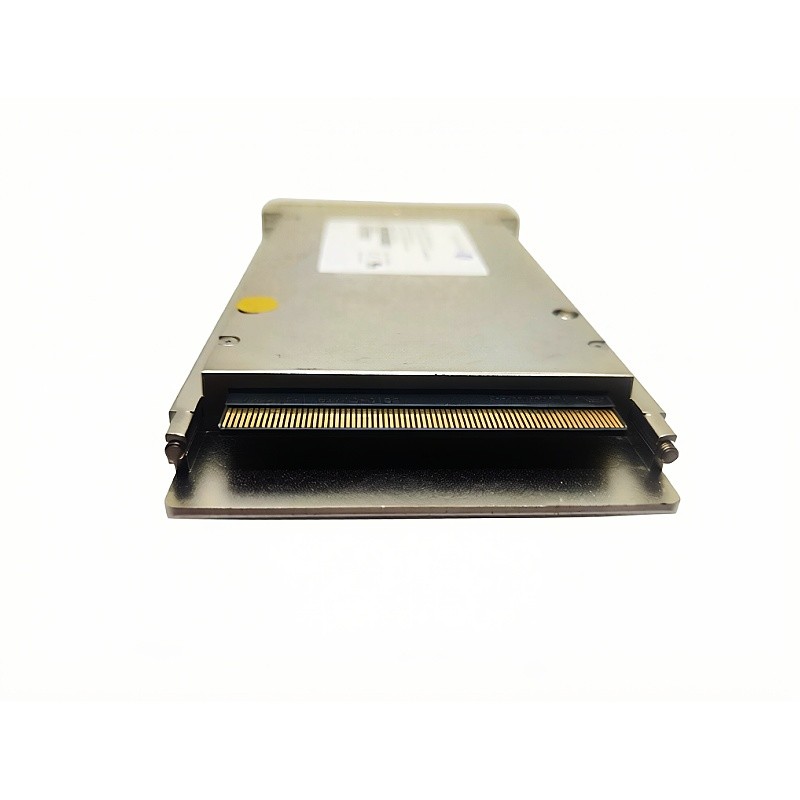

Alcatel Lucent CFP Optical Transceiver 3HE04821BA 100GBase-LR4 1310nm 10km

The Alcatel-Lucent 3HE04821BA RA 01 CFP 100G LR4 Low Power optical transceiver (Oclaro TRC5E21ENF-LF510) is a high-performance solution for 100G Ethernet long-distance transmission. This module complies with IEEE 802.3ba 100GBase-LR4 standards, supporting up to 10 km transmission over single-mode fiber at 1310 nm. Featuring a hot-pluggable CFP form factor and low power consumption, it is perfectly suited for telecom backbone networks, data center interconnections, and enterprise core routing environments.

Alcatel Lucent Part Number

3HE04821BARA01

Compatibility Note

Nokia(3HE04821BARA01)

CLEI Code

IPUIBU3DAA

Form Factor

CFP (Centum Form Factor Pluggable)

Data Rate

100Gb/s (103.1Gb/s aggregate)

Standard

100GBase-LR4 (IEEE 802.3ba)

Fiber Type

Single-Mode Fiber (SMF)

Transmission Distance

Up to 10 km

Wavelength

1310 nm LAN-WDM (4×25Gb/s DFB lasers)

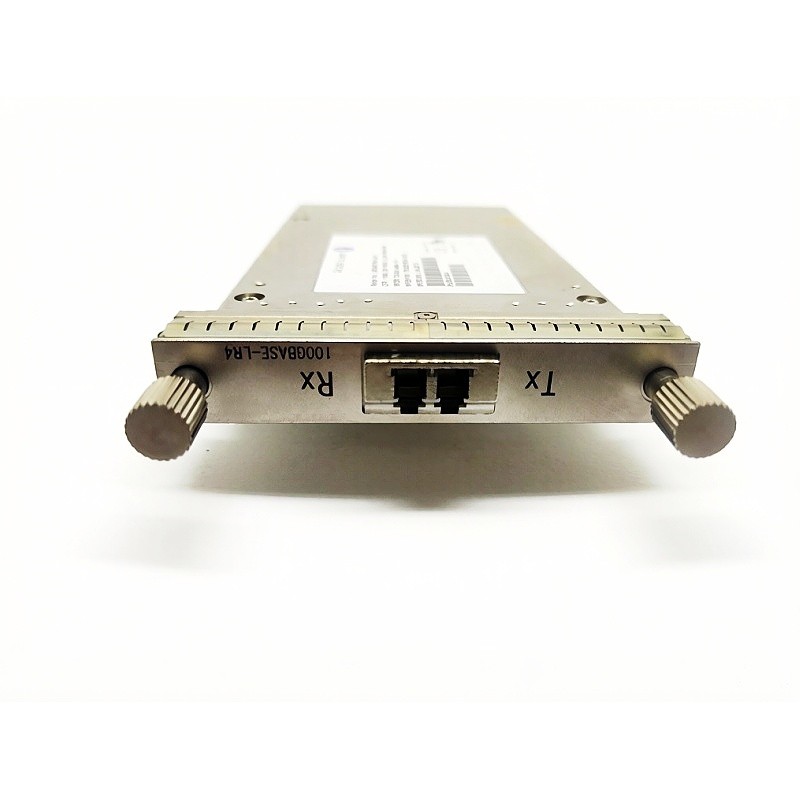

Connector Type

Duplex LC

Power Supply

3.3V single supply

Power Consumption

< 16 W

Operating Temperature

0°C ~ 70°C

Diagnostics

DDM/DOM (Digital Diagnostic Monitoring)

Safety & Compliance

Class 1 Laser Safety, RoHS-6, CE, FCC

Country of Origin

Malaysia

Key Features

Hot-Pluggable CFP Form Factor: Supports hot-swap for in-service maintenance.

Low Power Design: Optimized for low power consumption, ideal for high-density deployments.

10 km Long-Haul Transmission: 1310 nm LAN-WDM technology delivers stable 10 km reach over single-mode fiber.

4-Channel Multiplexing: Uses 4×25Gb/s LAN-WDM to carry 100G traffic over a single fiber pair.

Compliance: Meets IEEE 802.3ba 100GBase-LR4 standards and global safety certifications (CE, cULus).
