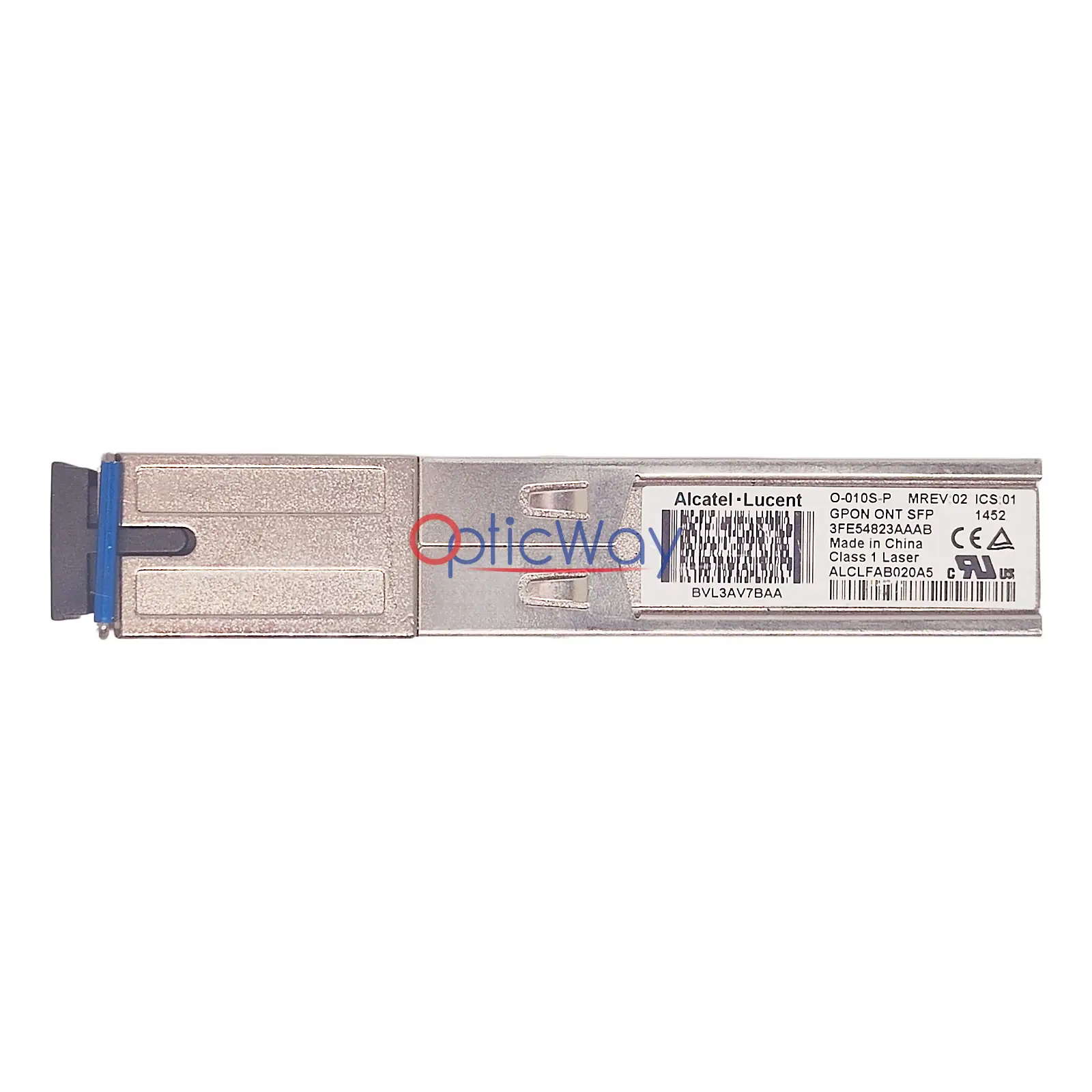

Genuine Alcatel-Lucent O-010S-P I-Temp GPON ONT SFP 3FE54823AAAB Full Front Label & SC Port View

Alcatel-Lucent O-010S-P GPON ONT SFP I-Temp 3FE54823AAAB Gigabit Transceiver ONU Stick

$35.00
Alcatel

Product Features

Condition : Used , fully functional and working perfectly,in stock.
Ultra-Compact SFP : Drastically smaller than standalone modems, freeing up critical space in crowded cabinets and enclosures.
Telco-Grade Reliability : Genuine Alcatel-Lucent/Nokia hardware built to strict industrial standards for 24/7 network stability.
Zero-Touch Provisioning : Supports auto-discovery and OMCI management for seamless integration with mainstream OLTs and minimal setup.
Low Power Consumption : Highly energy-efficient design reduces operational costs compared to traditional CPE devices.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications
Alcatel-Lucent O-010S-P GPON ONT SFP I-Temp 3FE54823AAAB Gigabit Transceiver ONU Stick
The Alcatel-Lucent O-010S-P is a highly integrated GPON ONT (Optical Network Terminal) in an SFP form factor, universally known as a "GPON ONU Stick". Compliant with the SFP Multi-Source Agreement (MSA), this transceiver embeds a bidirectional optical configuration with a complete GPON MAC layer. It allows users to bring high-speed fiber internet directly into any networking appliance equipped with a standard SFP slot, bypassing the need for a separate desktop ONT.

Part Number
3FE54823AA
Band
  Alcatel-Lucent
Model / Product Code
O-010S-P
Form Factor
  SFP
Wavelength
1490nm Rx / 1310nm Tx
Data Rate
2.488 Gbps / Upstream 1.244 Gbps
Connector
SC
Fiber Type
 SMF
Max Transmission Distance
20km
Product Type
GPON ONT SFP Module (ONU Stick)
Standard
IEEE 802.3ae 10GBASE-ZR
Power Consumption
  Low power layout (< 2W)
Origin
  China
Operating Temperature
-40°C to +80°C

Typical Applications

1.FTTH & Home Lab Subscriber Access

2.Enterprise Campus & Building Network Streamlining (FTTB/FTTO)
  • Installed into campus access switches with standard SFP ports to allow local network segments to connect directly to the carrier's GPON point-to-multipoint infrastructure. This eliminates the need for dedicated hardware CPEs, significantly saving on rack space and deployment costs.
3.VoIP Gateway PON Uplink Integration
  • Plugged directly into SFP-equipped VoIP gateways to provision native PON uplinks for enterprise-grade voice and data services. It enables a clean, single-device telecom solution without requiring separate optical-to-Ethernet media converters.
4.GPON Lab Testing & OLT Interoperability
  • Serves as a reliable reference ONU device in R&D laboratory environments for GPON network function verification, OMCI protocol compliance testing, and automated device provisioning trials alongside flagship Alcatel-Lucent 7302/7360 ISAM OLTs.

Product Highlights

1.Standard Compatibility

  • Fully compliant with ITU-T G.984.x GPON standards and Full Service Access Network (FSAN) Class B+ optical link budget.

2.Asymmetric High Speed

  • Supports standard GPON transmission rates of 2.488 Gbps downlink and 1.244 Gbps uplink.

3.Centralized Remote Management

  • Supports the standard OMCI (ONT Management and Control Interface) protocol, compatible with ITU-T G.988 specifications, facilitating unified configuration, deployment, and status monitoring at the operator's (OLT) end.

4.Hardware-Level High Reliability

  • Features Dying Gasp (power failure alarm) functionality, sending fault notifications to the central office instantly upon power failure. Supports Logical Identifier (LOID) and PLOAM authentication.

5.Rugged Outdoor I-Temp Rating (-40°C to 85°C)

  • Utilizes premium, high-temperature resistant components engineered to thrive in harsh, unconditioned enclosures and extreme outdoor environments with zero thermal throttling.
