Arista QSFP-100G-SR4 XVR-10067-20 100GBASE-SR4 QSFP28 MPO 850nm 100m MMF Transceiver Module

Arista QSFP-100G-SR4 XVR-10067-20 100GBASE-SR4 QSFP28 MPO 850nm 100m MMF Transceiver Module

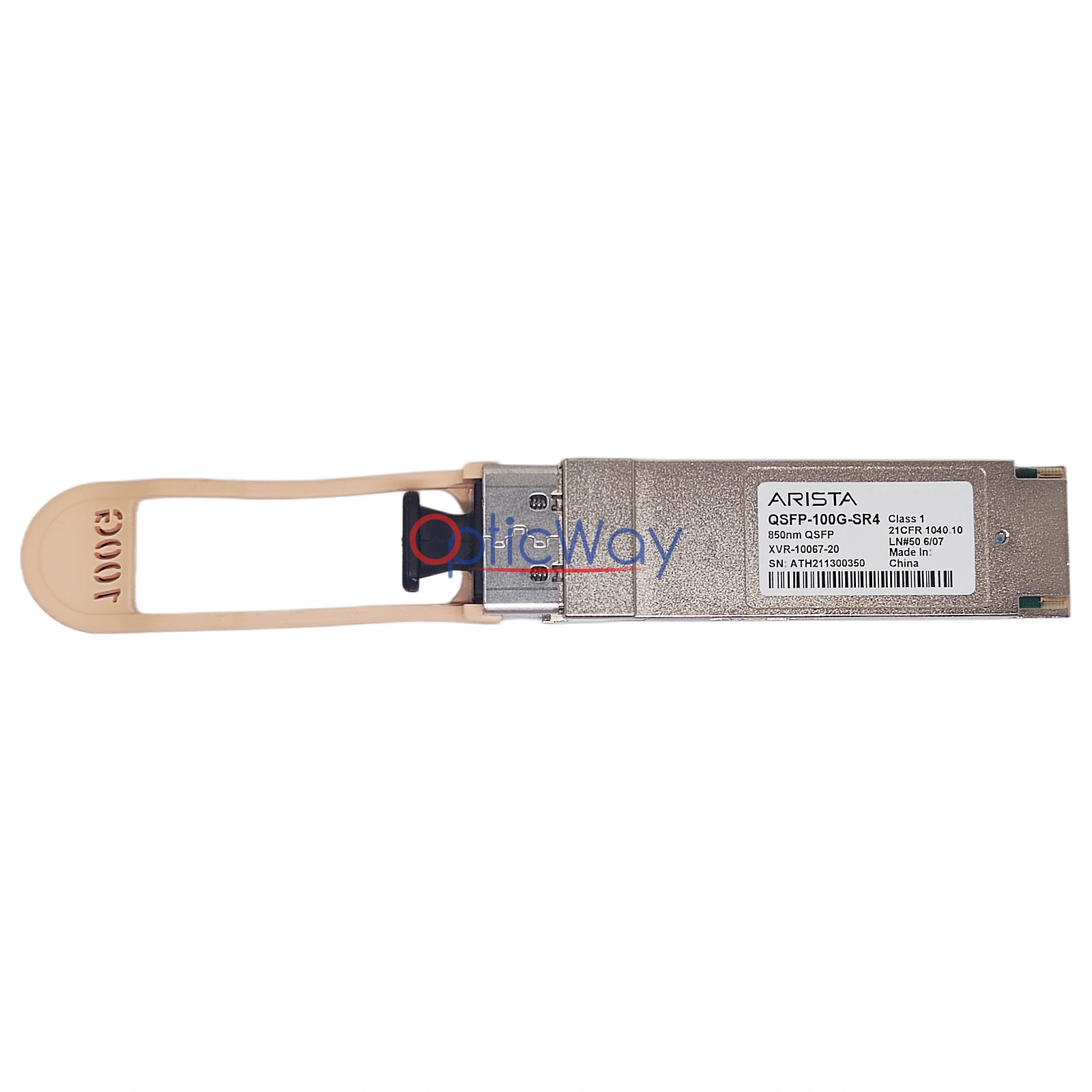

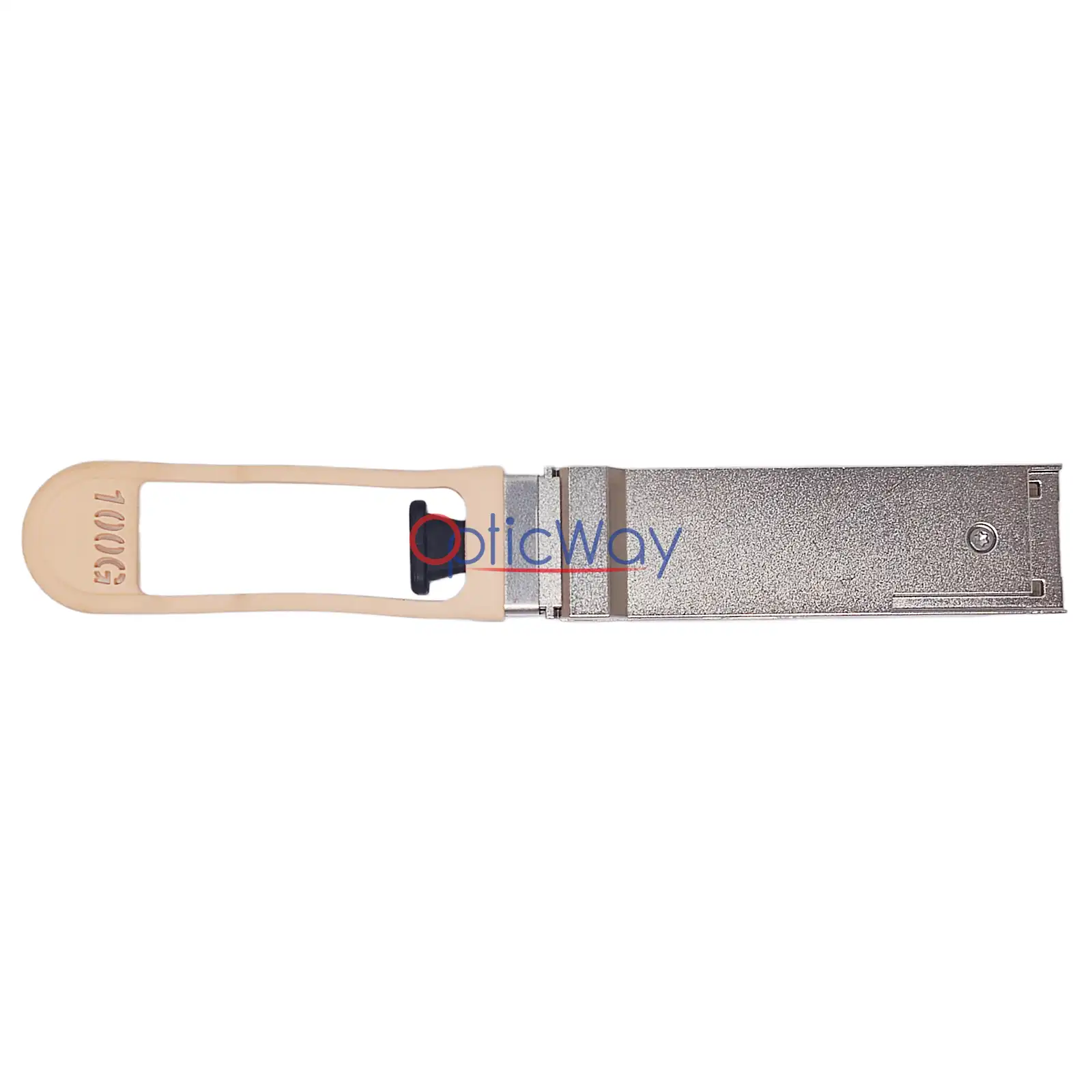

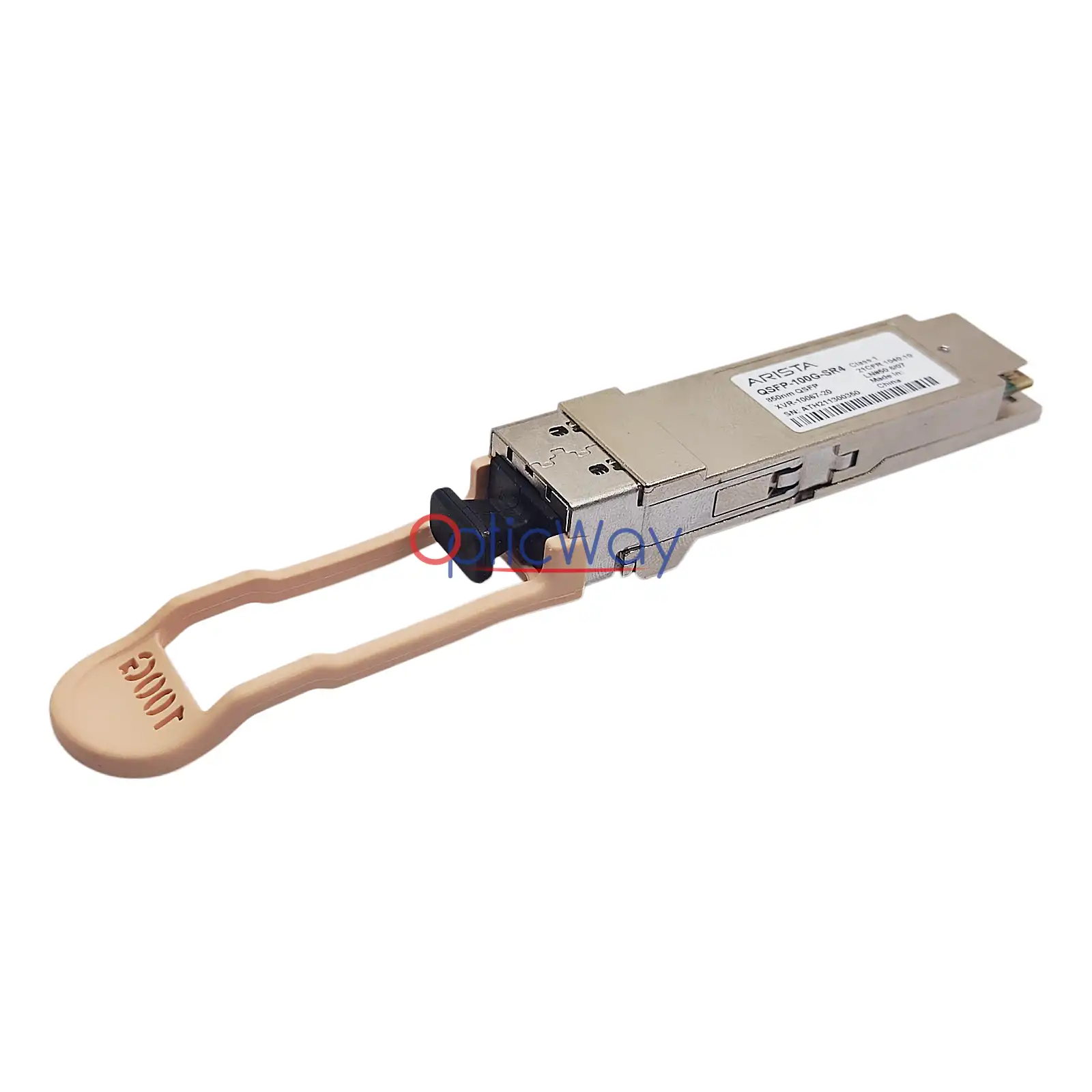

The Arista QSFP‑100G‑SR4 (XVR‑10067‑20) is a hot‑pluggable QSFP28 optical transceiver for 100GBASE‑SR4 100‑Gigabit Ethernet. It uses 4‑lane 850 nm VCSEL array over multimode fiber with MPO‑12 parallel optical connector. Max reach 100 m over OM4 MMF, 70 m over OM3 MMF. Factory‑programmed EEPROM for native recognition on Arista platforms. Supports DDM digital diagnostic monitoring. It is widely used for high-density data center switch-to-switch fabric links and 4x25G server breakout topologies.

Part Number

XVR‑10067‑20

Band

  Arista

Model / Product Code

  QSFP-100G-SR4

Form Factor

  QSFP28

Wavelength

850nm

Data Rate

100Gbps

Connector

  MPO

Fiber Type

  MMF

Max Transmission Distance

100m

Supported Platform

Arista 7000 / 7100 / 7280 / 7500 series

DDM/DOM

Supported

Supply Voltage

  3.3V

Origin

  China

Operating Temperature

0°C to 70°C

Typical Applications

✨Data‑Center Leaf‑Spine Fabric: Short‑reach 100G inter‑switch links for Arista data‑center switches

✨100G Server Rack Uplinks: 100G uplink connections for high‑density rack‑mount servers inside data‑center

✨High‑Speed Storage Interconnect: Parallel‑fiber short‑range 100G links for storage arrays

✨Enterprise High‑Density Core Uplinks: 100G short‑haul backbone uplinks in enterprise campus

✨Arista Switching Architecture: Compatible with Arista 7050X, 7060X, 7260X, and 7500R series platforms
