Brocade 57-1000481-01 200G-SR4 QSFP28-DD 100M 850nm MPO XBR-000420 Gen7

Brocade 57-1000481-01 200G-SR4 QSFP28-DD 100M 850nm MPO XBR-000420 Gen7

Brocade 57-1000481-01 is a genuine 200GBASE-SR4 QSFP28-DD multimode optical transceiver.Working wavelength 850nm, MPO-12 interface, supports 200Gbps transmission, reaches 100m over OM4 multimode fiber.Compliant with IEEE 802.3 standard, built for high-density data center ToR interconnection, support full DDM/DOM real-time monitoring, plug and play for mainstream 200G switches.

Model Number

200GBASE-SR4 QSFP28-DD

Band

Brocade

Brocade Part Number

57-1000481-01

Form Factor

QSFP28-DD

Data Rate

200Gbps

Transmission Distance

Up to100m

Fiber Type

  MMF

Standards

  IEEE 802.3cu, QSFP-DD MSA, Class 1 Laser

Wavelength

850nm

Connector Type

MPO

Operating Temperature

0°C ~ 70°C

Country of Origin

  Thailand

Transmit Power

-7.6 ~ +2.4 dBm

Receiver Sensitivity

 -11.1 dBm

Typical Applications

• 200G Data Center ToR / EoR Short-reach Interconnection
• High-density 200G Switch Port Uplink
• Server Rack High-speed Parallel Optical Link
• Enterprise & Carrier-class Data Center Fabric Network

---

Product Highlights

1. High-Speed 200G Short-Reach Multi-Mode Transmission

• This transceiver is designed for Gen7 Fibre Channel (FC) storage networks, delivering 200Gbps line-rate transmission over multi-mode fiber (MMF).
• It operates at a wavelength of 850nm and uses a 4×50G parallel optical architecture, supporting up to 100m reach over OM4 multi-mode fiber.

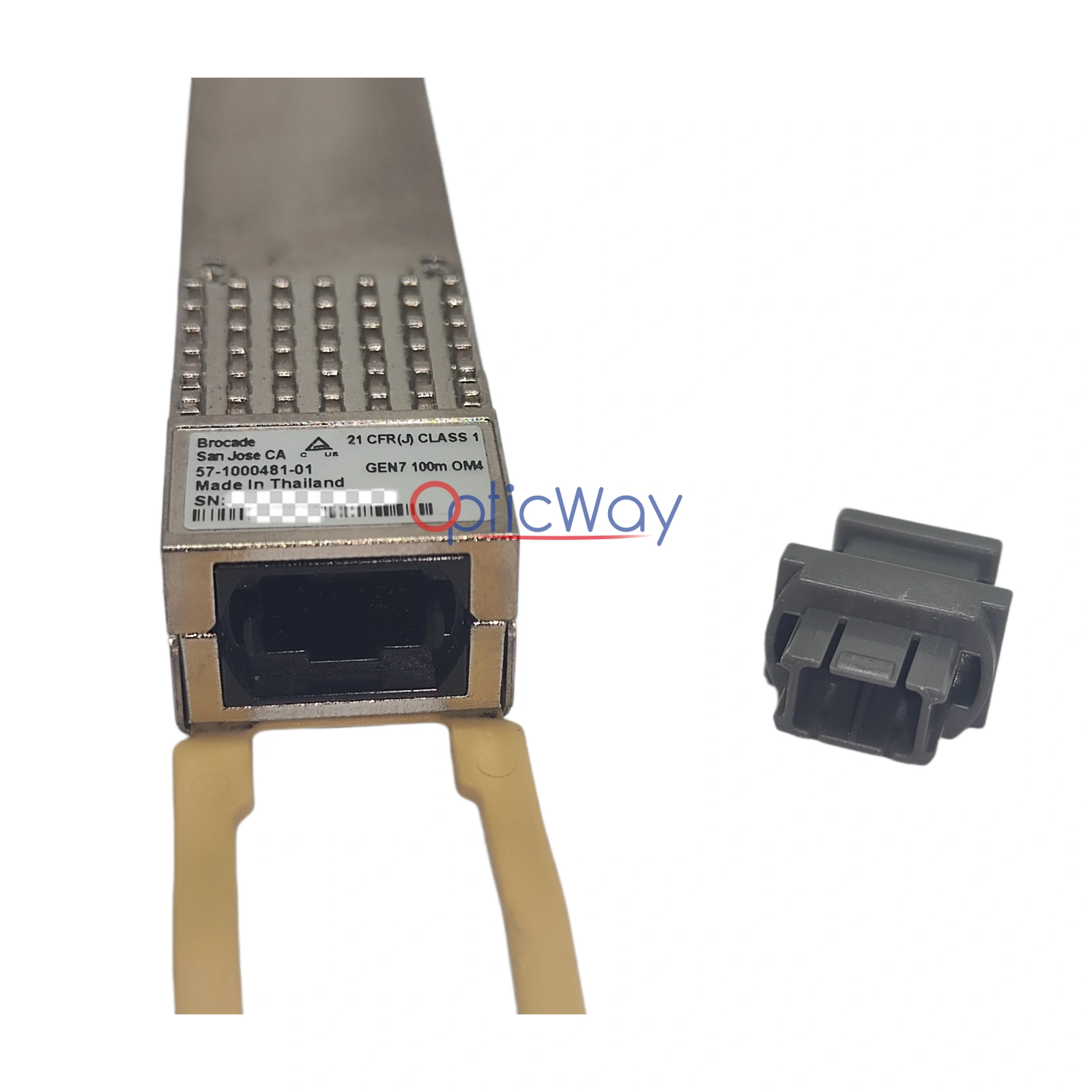

• The parallel optical interface is designed for high-density Gen7 SAN leaf-spine connections, using an MPO-12 connector to simplify multi-fiber ribbon cabling.

2. Standard QSFP28-DD Package & Brocade Ecosystem Compatibility

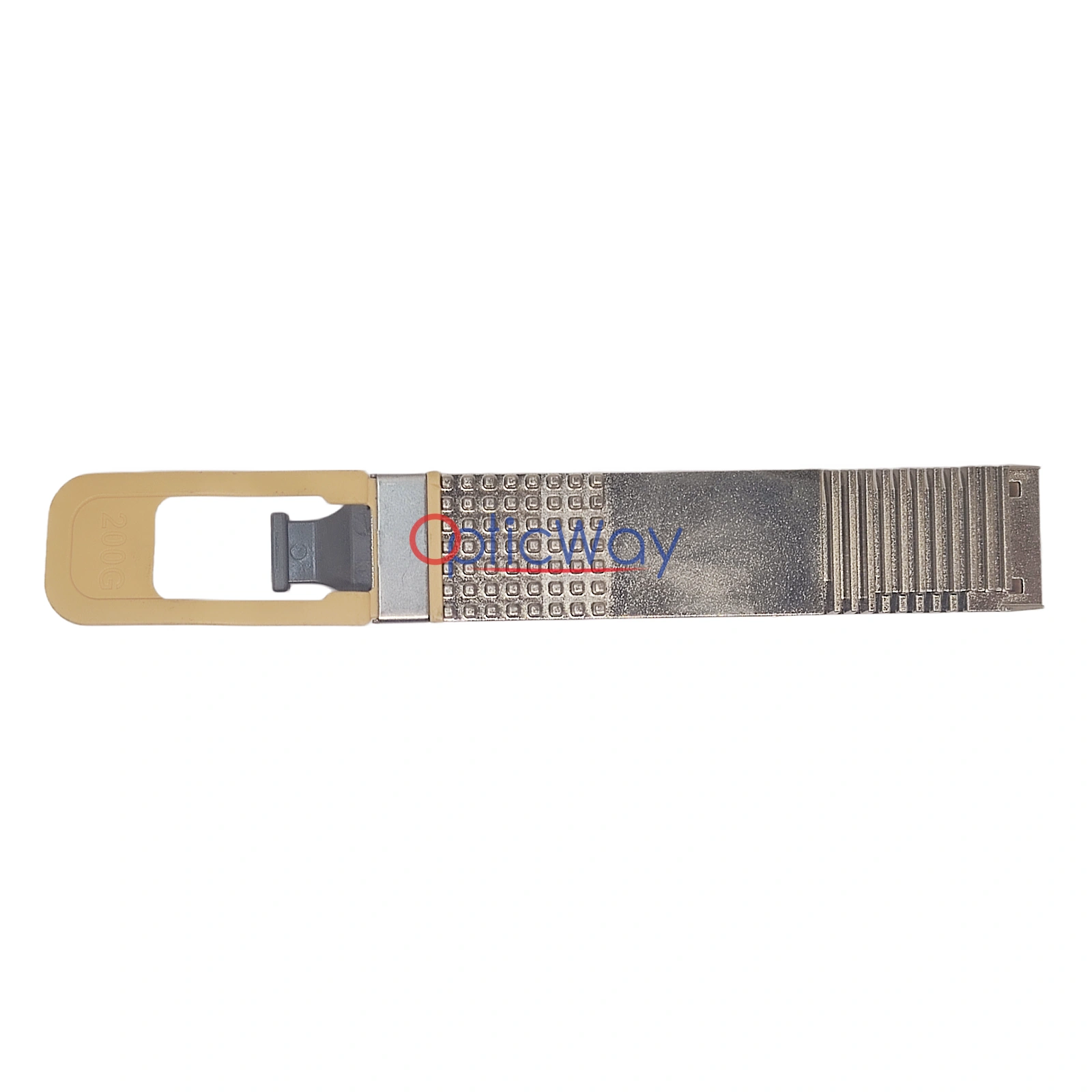

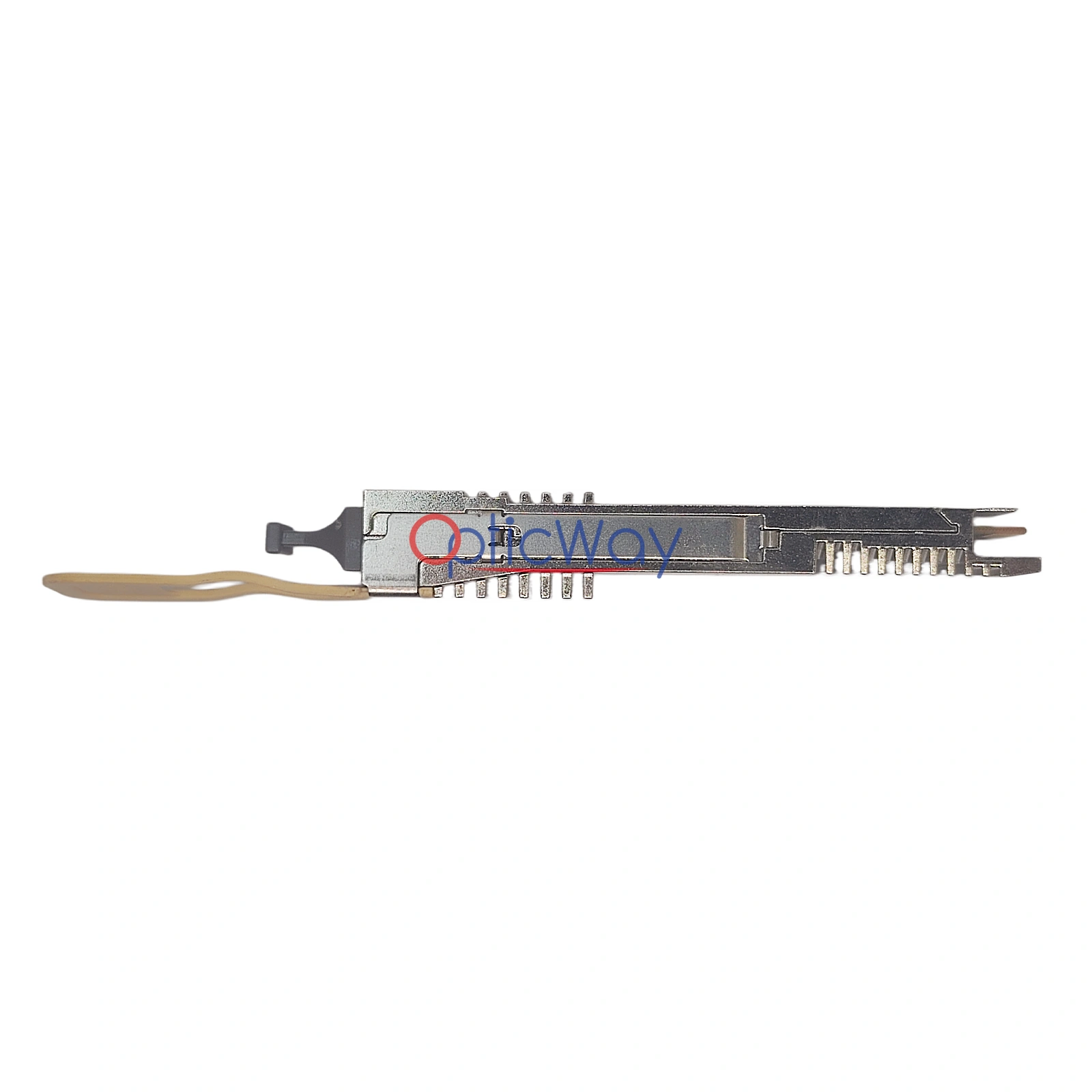

• It uses the industry-standard QSFP28-DD (Dual-Density QSFP28) package, which is compact, hot-swappable, and optimized for high-density Gen7 SAN switches and adapters.
• This is a Brocade-branded Gen7 transceiver, natively validated for use with Brocade Gen7 SAN switches (e.g., X7, G720) and compatible adapters.
• It is interoperable with most third-party 200G devices that support standard QSFP28-DD transceivers.

3. Reliable Performance & Compliance Certification

• Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX optical power, RX optical power, module temperature, supply voltage, and laser bias current.

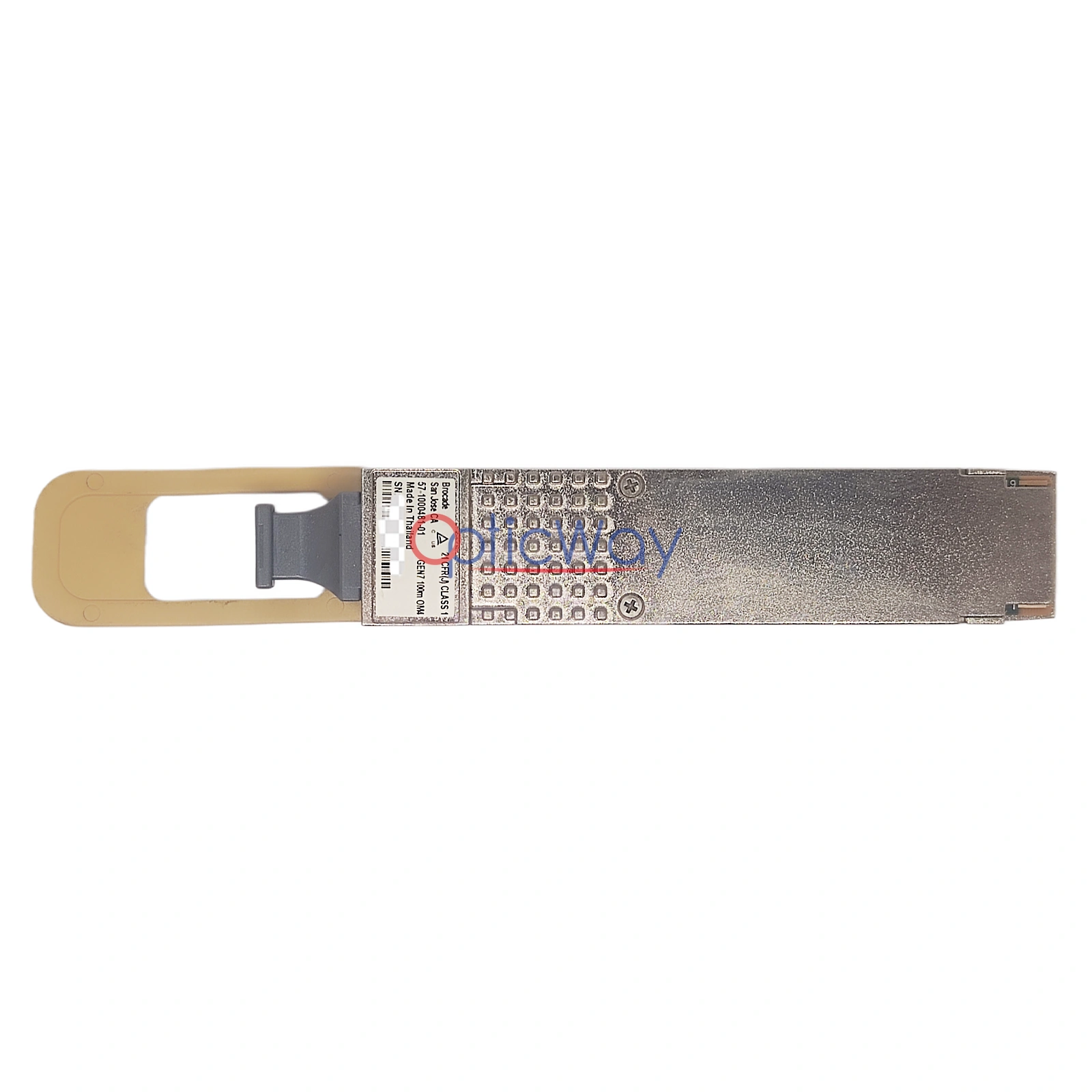

• Certified as a Class 1 Laser product under 21CFR(J) standards, meeting global enterprise deployment requirements.
• Manufactured in Thailand, it undergoes rigorous factory testing, including temperature cycling and burn-in, to ensure stable performance in the commercial temperature range.
