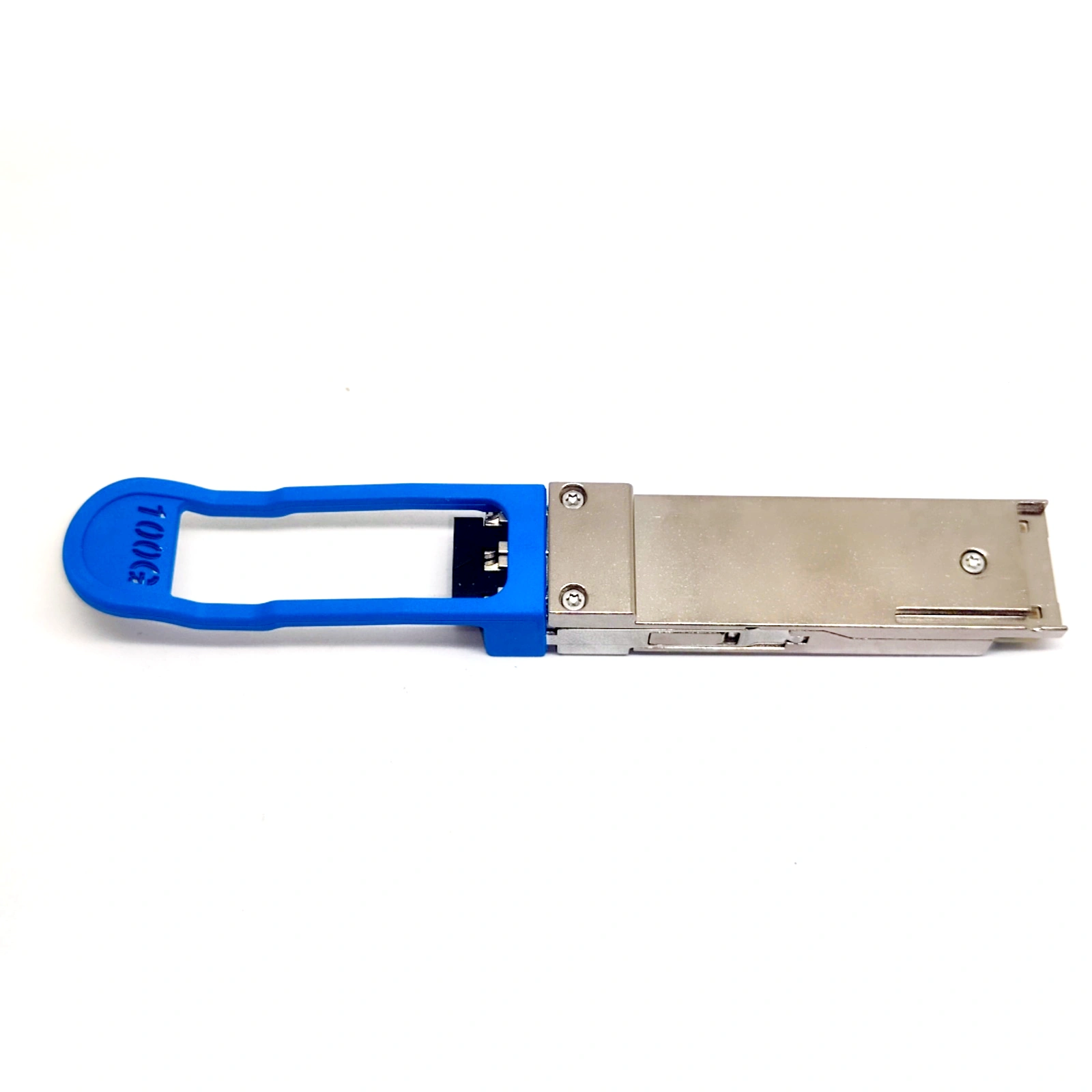

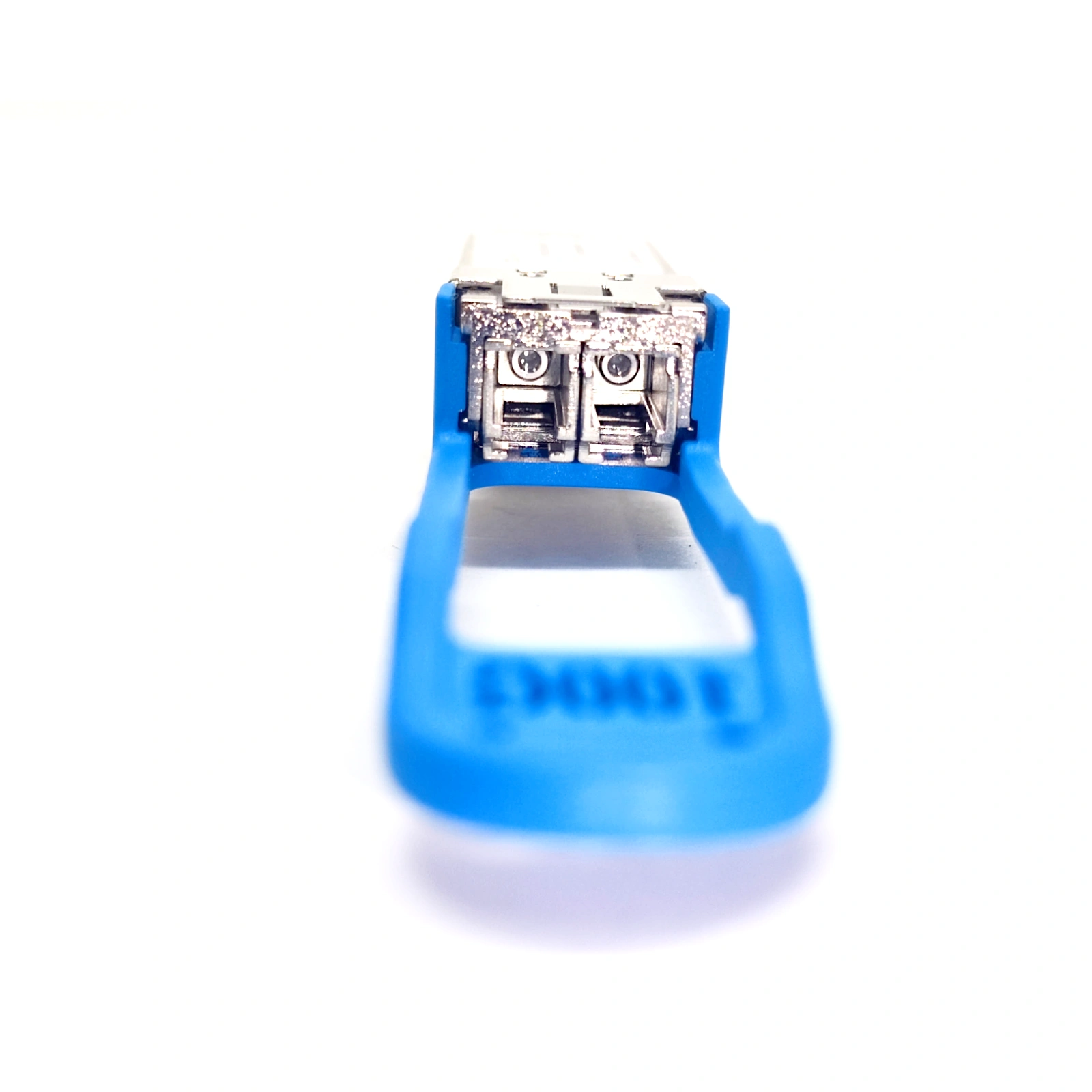

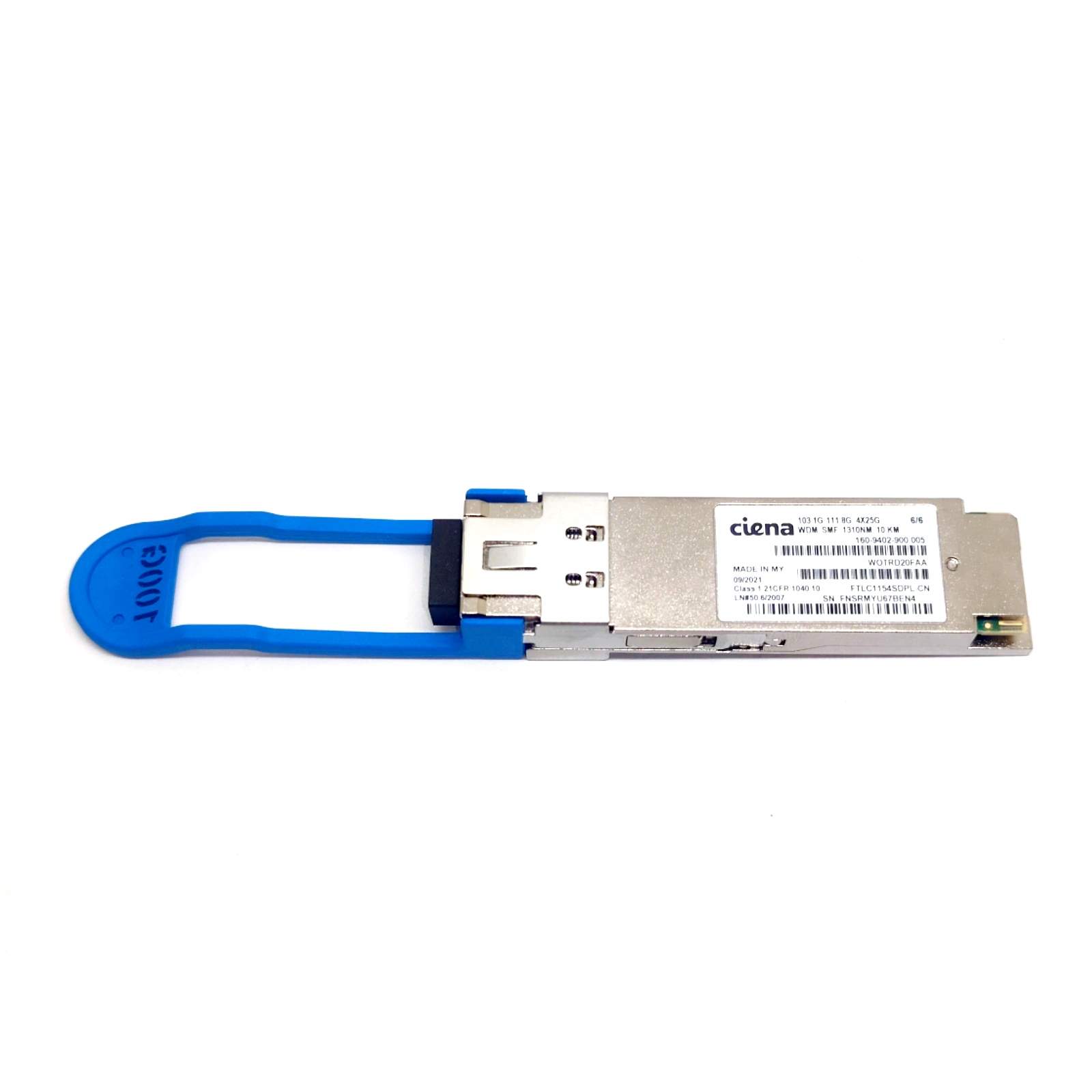

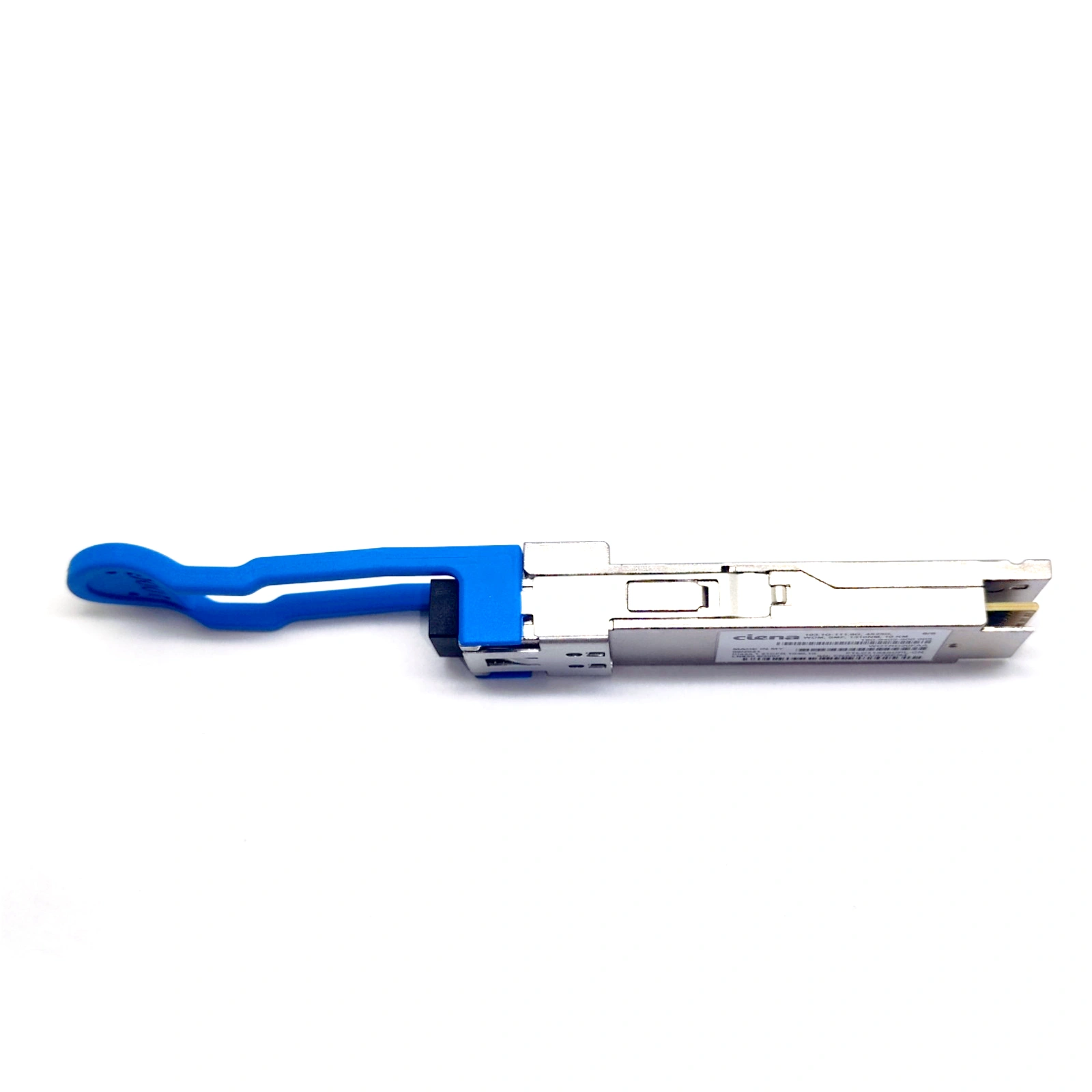

Ciena 100G QSFP28 LR4 160-9402-900 4X25G WDM SMF LC 1310nm 10km FTLC1154SDPL-CN Transceiver
The Ciena 160-9402-900 is a high-performance 100GBASE-LR4 QSFP28 optical transceiver designed for 10km long-reach transmission over single-mode fiber. Delivering 100Gbps bandwidth via 4×25G LAN-WDM lanes, this module is fully compliant with IEEE 802.3ba standard. Featuring a compact QSFP28 form factor, low power consumption, and full DDM/DOM diagnostics, it is ideal for data center interconnections, metro core networks, and high-density 100G port expansion in Ciena-enabled environments.
Model Number
103.1G-111.8G, 4X25G, WDM, SMF, 1310nm, 10km QSFP28
Ciena Part Number
160-4902-900
Data Rate
100Gbps (4×25Gbps LAN-WDM)
Standard
100GBASE-LR4 (IEEE 802.3ba), QSFP28 MSA
Fiber Type
Multi-Mode Fiber (SMF)
Transmission Distance
Up to 10km
Operating Temperature
0°C ~ 70°C
Diagnostics
Full Digital Diagnostic Monitoring (DDM/DOM)
Safety & Compliance
Class 1 Laser Product (21CFR 1040.10), CE
Country of Origin
Malaysia
Product Highlights
1. High-Speed & Multi-Rate Performance
- Supports aggregate data rates up to 103.1Gbps / 111.8Gbps (4x25G lanes), compatible with 100GBASE-LR4 Ethernet and OTU4 OTN standards.
- Multi-rate design for flexible deployment in 100G data center and telecom backbone networks.
2. Long-Reach Single-Mode Fiber Transmission
- LAN-WDM technology with 1310nm central wavelength, enabling 10km transmission over standard single-mode fiber (SMF).
- Ideal for long-haul inter-data center, metro network, and core router interconnection.
3. Compact & Hot-Pluggable Form Factor
- Industry-standard QSFP28 (Quad Small Form-factor Pluggable 28G) package, hot-swappable for zero-downtime installation/upgrade.
- High-density design, perfect for space-constrained network equipment and data center racks.
4. Reliable & Low-Power Operation
- Wide operating temperature range (0°C to 70°C) for stable performance in harsh environments.
- Low power consumption (≤3.5W), reducing overall system energy cost and heat dissipation.
- Compliant with RoHS 6/6 environmental standards.
5. Advanced Digital Diagnostic Monitoring (DDM/DOM)
- Built-in I²C interface for real-time monitoring of key parameters: transmit power, receive power, temperature, voltage, and laser bias current.
- Supports fault detection, early warning, and remote maintenance, improving network reliability.
6. Industry-Standard Compliance
- Fully compliant with QSFP28 MSA, IEEE 802.3ba/bm, ITU-T G.959.1/G.709, and Class 1 Laser safety standards.
- Ciena-certified for seamless compatibility with Ciena 6500, Waveserver, and other core network platforms.
