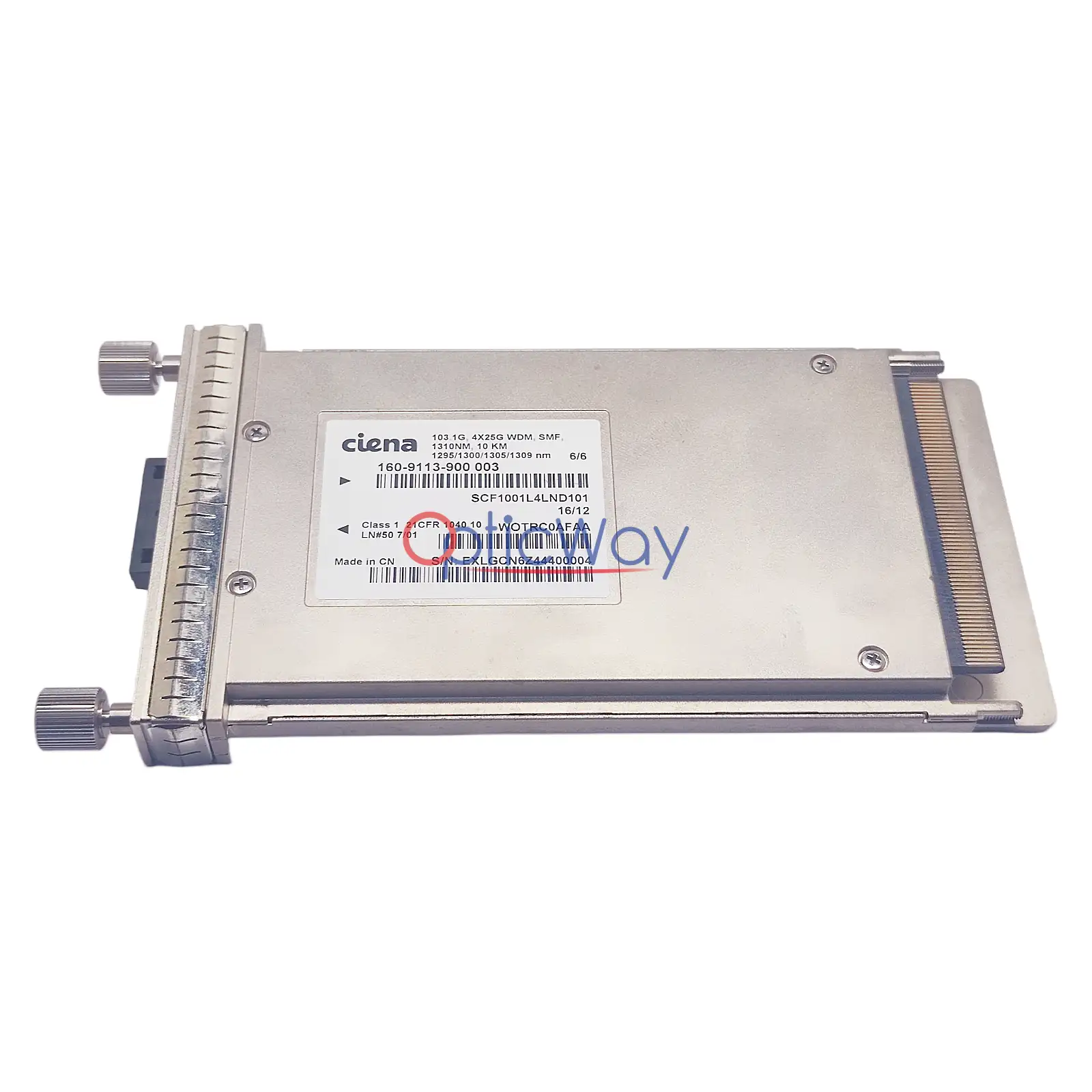

Genuine Ciena 160-9113-900 SCF1001L4LND101 WOTRC0AFAA 100GBASE-LR4 CFP 103.1G 4x25G WDM 1310nm 10km SMF Front Label

Ciena 160-9113-900 003 100GBASE-LR4 CFP 103.1G 4x25G WDM SMF 1310NM 10KM

US$620.00
Ciena

Product Features

Condition : Used , Genuine and Good condition,in stock.
100G LR4 Long Reach : 10km over G.652 SMF using 4-lane LAN-WDM 1310nm band.
Multi-Rate Support : 100GBASE-LR4 and OTU4 (111.8Gbps) operation.
Zero-Alarm Native Ciena Compatibility : Plug-and-play with all Ciena 5400/6500 OTN transport chassis without extra port configuration
Unified Multi-Service Suppor : Simultaneously carries 100G Ethernet and OTU4 OTN services, one hardware for both data and optical transport scenarios
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Ciena 160-9113-900 SCF1001L4LND101 WOTRC0AFAA 100GBASE-LR4 CFP 103.1G 4x25G WDM 1310nm 10km SMF

The Ciena 160-9113-900 is a high-performance 100GBASE-LR4 CFP optical transceiver designed for long-reach 100 Gigabit Ethernet and OTU4 transport. Based on the Sumitomo Electric SCF1001L4 platform, it aggregates 10×10.3Gbps electrical lanes into 4×25.78Gbps LAN-WDM optical lanes (1295/ 1300 / 1304 / 1309nm) to deliver 103.1 Gbps over duplex single-mode fiber up to 10 km. Compliant with IEEE 802.3ba Clause 88 100GBASE-LR4, ITU-T G.709 OTU4, and CFP MSA, it features Digital Diagnostic Monitoring (DOM/DDM) via MDIO and supports hot-pluggable 148-pin operation. Ideal for Ciena 6500, 5400, and carrier-class 100G backbone platforms.

Model Number
SCF1001L4LND101
Band
Ciena
Ciena Part Number
160-9113-900
Form Factor
  CFP
Data Rate
100Gbps
Standard
IEEE 802.3ba Clause 88 100GBASE-LR4, ITU-T G.709
Fiber Type
Multi-Mode Fiber (SMF)
Transmission Distance
Up to 10km
Wavelength
1295/ 1300 / 1304 / 1309nm

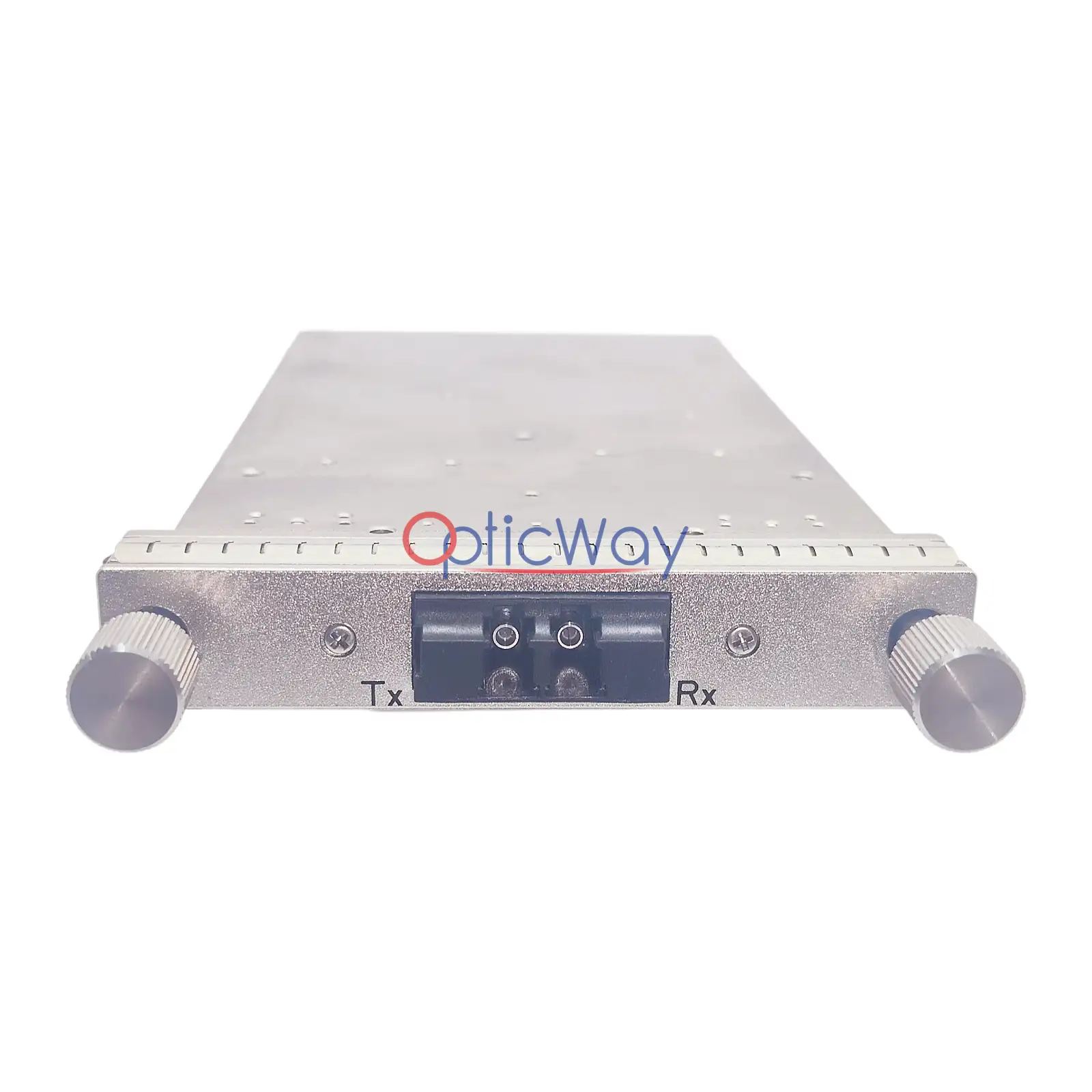

Connector Type
Duplex LC
Power Supply
3.3V DC
Power Consumption
< 16 W
Operating Temperature
0°C ~ 70°C
CLEI Code
WOTRC0AFAA
DOM/DDM
Yes
Country of Origin
  China
Typical Applications

✅100GE long-haul backbone links in metro and regional carrier networks

✅OTU4 client interfaces on Ciena 6500 / 5400 Packet-Optical platforms

✅Data Center Interconnect (DCI) up to 10km

✅100G enterprise core switching and aggregation

✅Service provider edge and leased-line 100G services

Product Highlights

✨Universal Standard 100G LR4 LAN-WDM Solution: IEEE standardized tight-spacing optical design with cross-brand interoperability, compatible with other LR4 transceivers, not interoperable with CWDM4 MUX/DEMUX

✨10km Single-Mode Long-Reach Transmission: No optical repeater amplifier required, ideal for metropolitan data center and metro site backbone networking

✨4 Independent Lane DOM Monitoring: NMS separately reads optical power & temperature of each lane to accurately isolate single-channel fiber and laser faults

✨Universal Standard CFP Form Factor: Compatible with all transport chassis complying with CFP MSA, flexible hardware replacement

✨Dual-Service Bearer Design: Simultaneously carries 100GE Ethernet and OTU4 OTN services to fit multi-scenario carrier bearer networks
