Ciena 160-9114-900 003 100GBASE-LR4 OTU-4 CFP Transceiver 4x25G WDM 10km SMF WOTRC0BFAA
The Ciena 160-9114-900 (WOTRC0BFAA) is a high-performance 100GBASE-LR4 CFP optical transceiver, factory-calibrated for Ciena OTN and core network platforms. It supports 100Gbps transmission via 4x25G WDM (Wavelength Division Multiplexing) technology over single-mode fiber, with a reach of up to 10 km. Operating in the 1310nm band using four LAN-WDM wavelengths (1295/1300/1305/1309 nm), it features an SC connector, full DDM/DOM monitoring, and meets IEEE 802.3ba and CFP MSA standards.

Ciena Part Number

160-9114-900

Band

Ciena

Product Model

103.1G / 100GBASE-LR4 4x25G WDM

Form Factor

CFP

Wavelength

1295/1300/1305/1309 nm (1310nm band)

Transmission Distance

10km

Connector

Duplex LC

Fiber Type

SMF

Data Rate

100Gbps

Standards

IEEE 802.3ba, CFP MSA, Class 1 Laser

CLEI Code

WOTRC0BFAA

Hot Swappable

Support

Origin

Japan

Operating Temperature

0°C ~ 70°C

Typical Applications

Ciena OTN and Core Router 100G Uplink Interfaces
Metro Core and Aggregation Network 100G Links
Telecom Service Provider 100G Ethernet and OTN Transport Deployments
High-Speed Data Center Core Interconnections
100GBASE-LR4 Standard Compliant Network Upgrades

Product Highlights

1. 103.1G 4x25G WDM Long-Reach Transmission

This is a 103.1G (100GBASE-LR4) CFP transceiver designed for carrier-grade optical transport networks.
It uses a 4×25G WDM architecture with wavelengths at 1295/1300/1305/1309 nm, operating over standard single-mode fiber (SMF) at 1310nm band.
The module supports high-speed transmission for metro and core links, optimized for Ciena’s optical transport platforms.

2. Standard CFP Form Factor & Ciena Ecosystem Compatibility

It uses the industry-standard CFP (100G Form-factor Pluggable) package, widely adopted in Ciena and third-party high-speed optical transport equipment.
As a Ciena-branded module, it is natively validated for use with Ciena OTN/transport platforms (e.g., Ciena 6500 series), ensuring seamless integration and optimal performance.

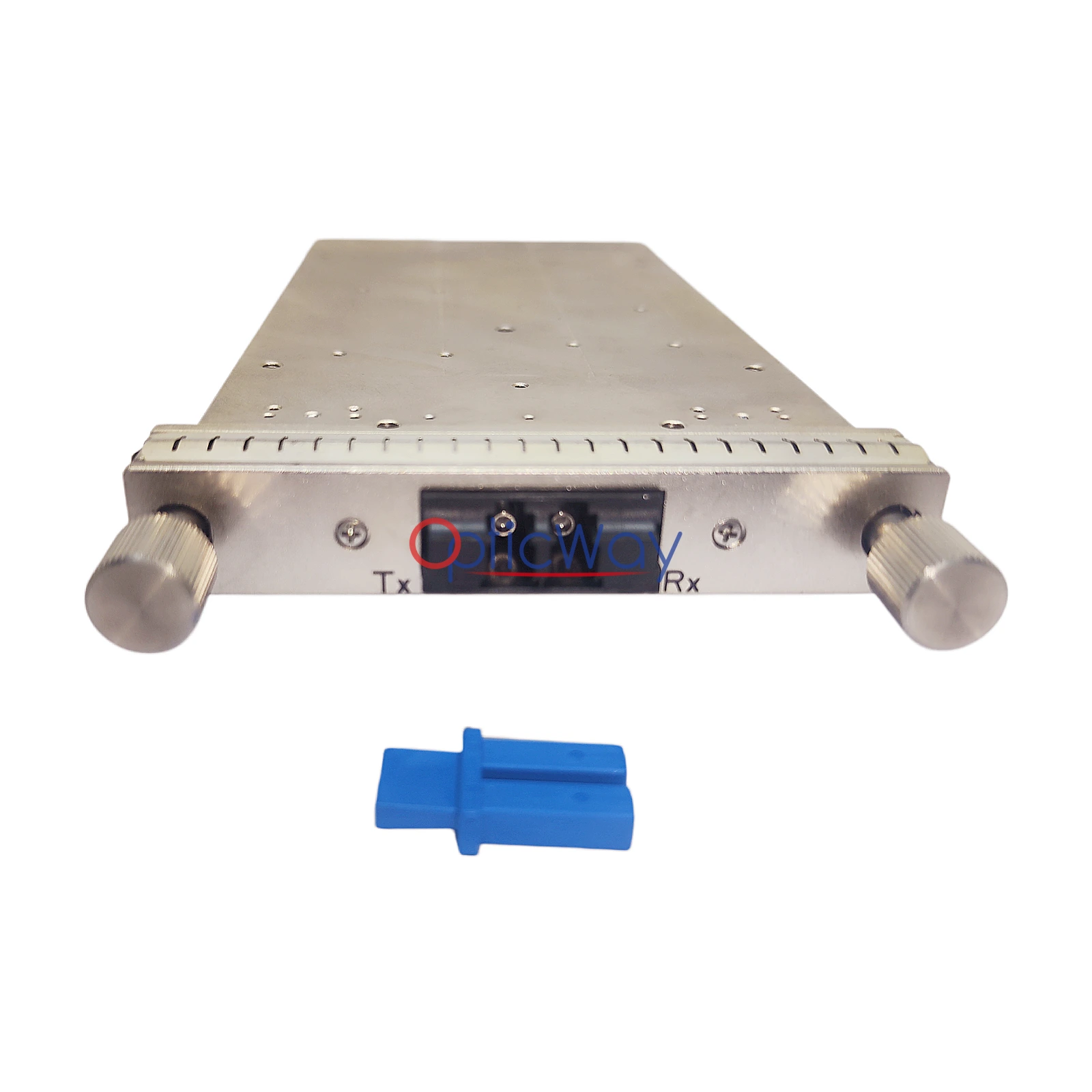

The module features a SC/LC optical interface, optimized for long-haul WDM deployments.

3. Reliable Performance & Compliance Certification

Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.

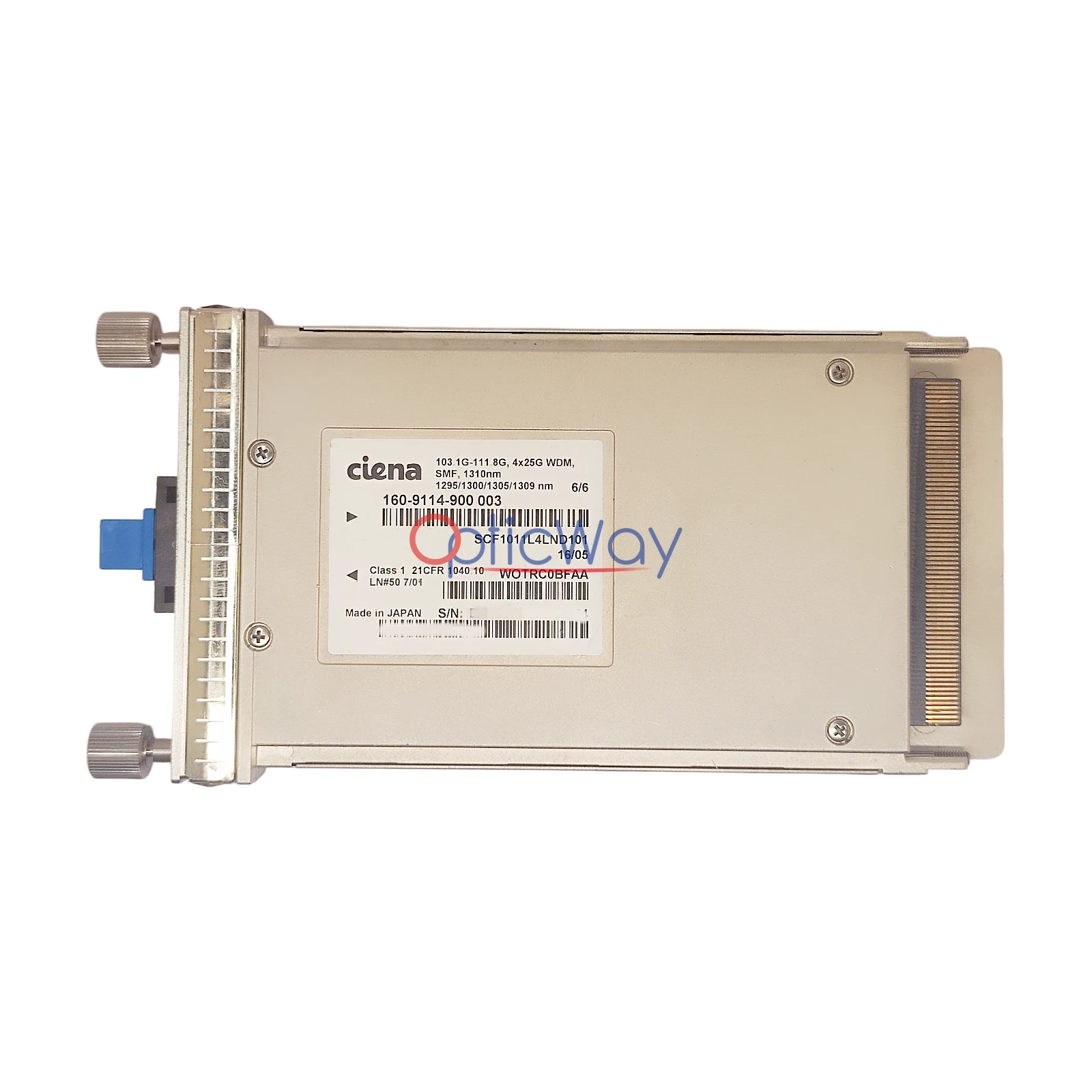

Certified as a Class 1 Laser product under 21CFR 1040.10 standards, meeting strict carrier-grade safety and performance requirements.
Manufactured in Japan, it undergoes rigorous factory testing to ensure stable performance in the commercial temperature range.
