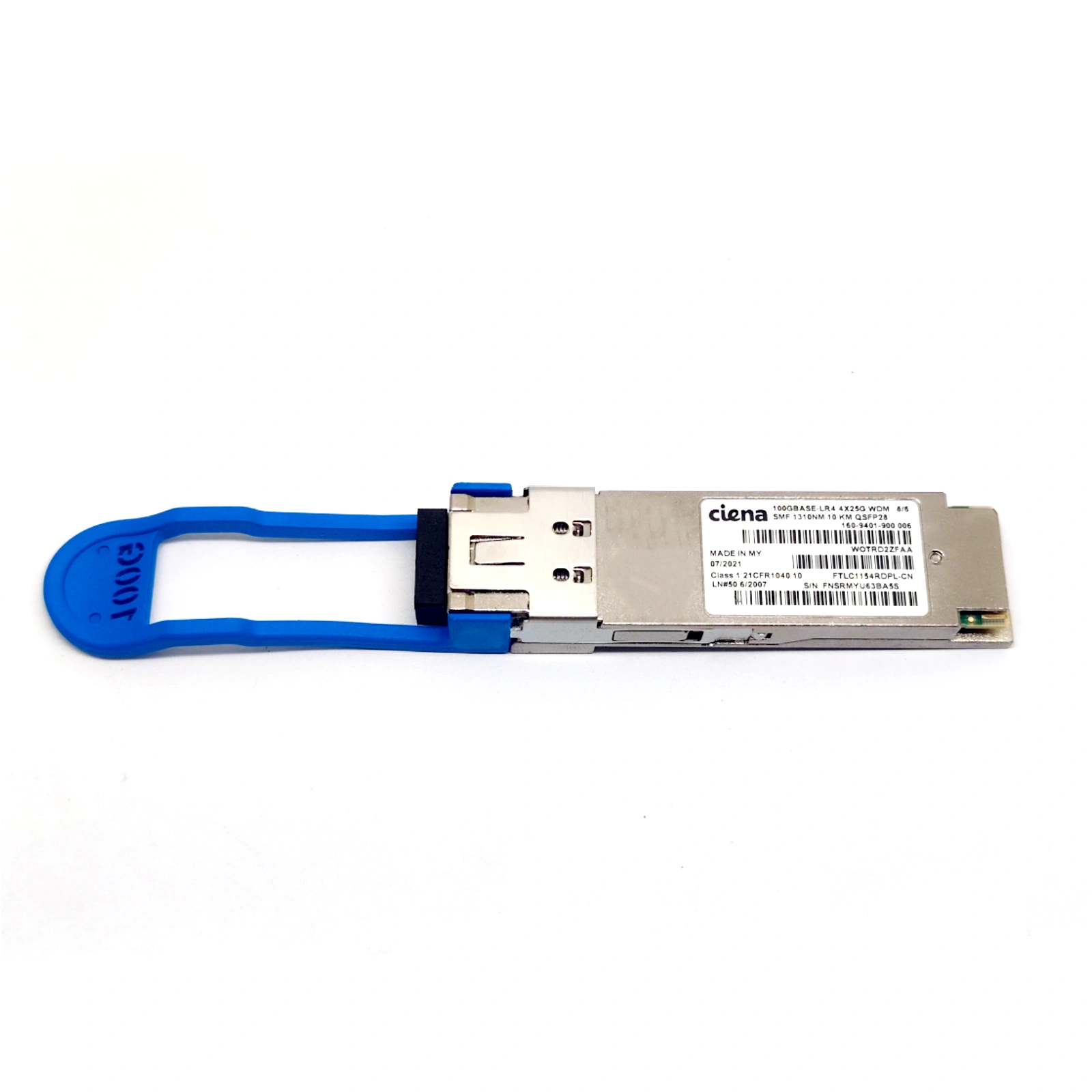

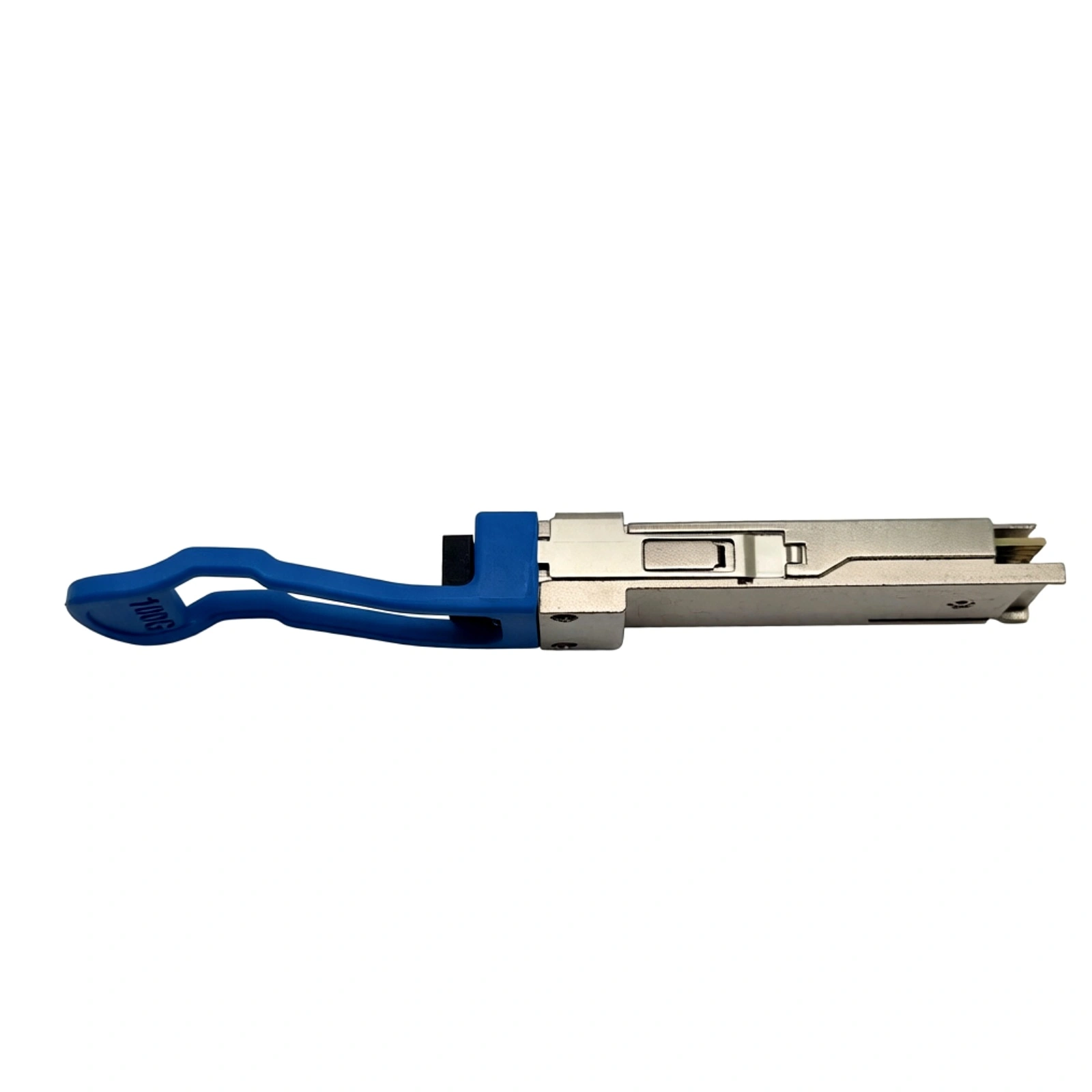

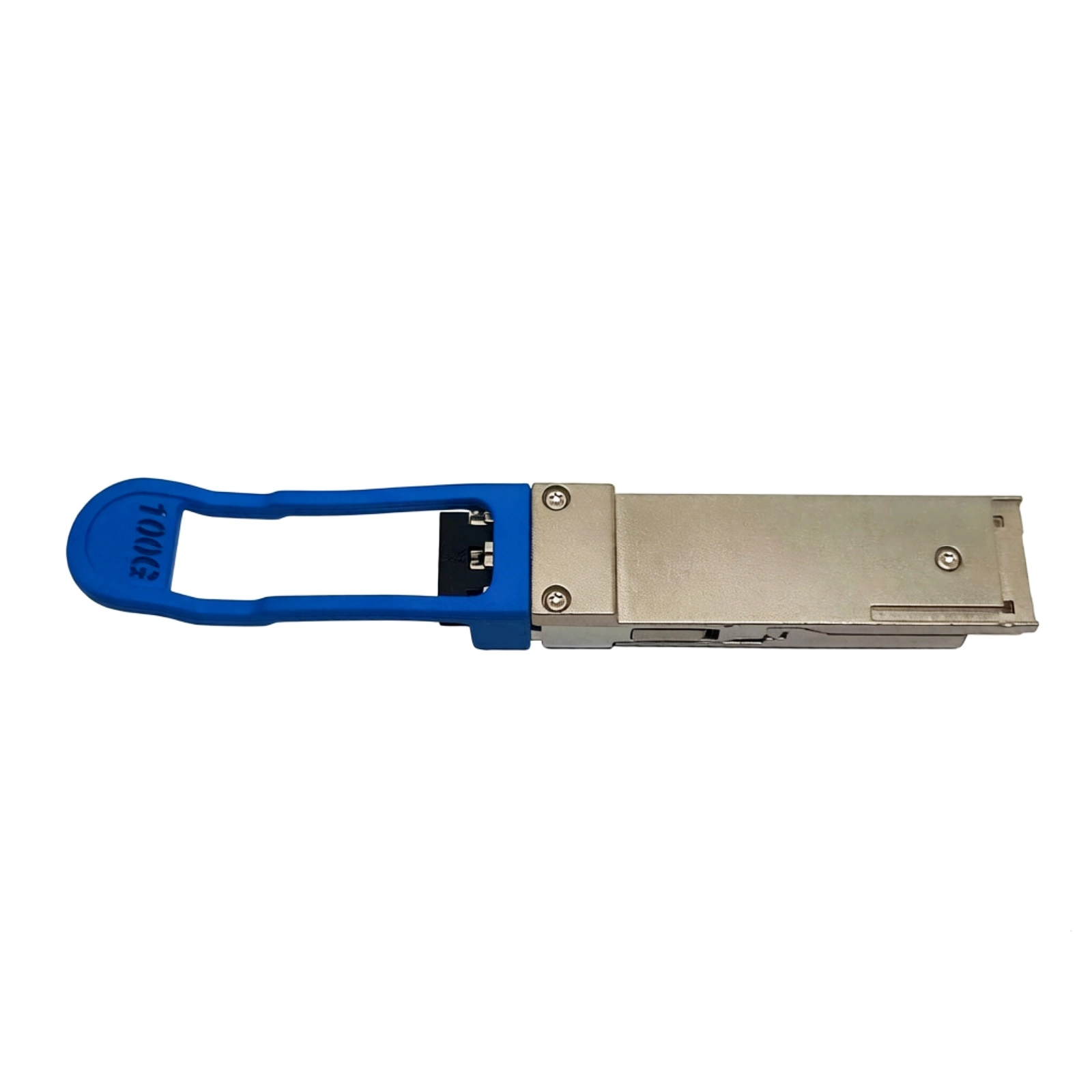

Ciena 160-9401-900 100GBASE-LR4 QSFP28 1310nm 10km LC SMFTransceiver
Ciena 160-9401-900 003 is a high-performance 100G QSFP28 LR4 optical module designed specifically for single-mode fiber transmission over a distance of 10 kilometers. This module provides 100Gbps bandwidth through 4 25Gbps LAN-WDM channels, fully compliant with the 100GBASE-LR4 standard. Adopting hot swappable QSFP28 packaging, it has low power consumption characteristics and provides comprehensive DDM/DOM diagnostic functions, which is very suitable for data center interconnection, metropolitan core network, and high-density 100G router/switch port expansion applications.
Model Number
100GBASE-LR4 4x25G WDM, SMF,1310NM,10KM QSFP28
Ciena Part Number
160-4901-900
Data Rate
100Gbps (4×25Gbps LAN-WDM)
Standard
100GBASE-LR4 (IEEE 802.3ba), QSFP28 MSA
Fiber Type
Multi-Mode Fiber (SMF)
Transmission Distance
Up to 10km
Power Consumption
< 3.5 W
Operating Temperature
0°C ~ 70°C
Diagnostics
Digital Diagnostic Monitoring, DDM
Safety & Compliance
Class 1 Laser Product (21CFR 1040.10)
Country of Origin
Malaysia
Product Highlights
1. High-Performance 100G Long-Reach Connectivity
- Fully compliant with 100GBASE-LR4 IEEE 802.3ba standard, delivering 100Gbps aggregate bandwidth via 4 independent 25Gbps full-duplex wavelength channels (1295nm/1300nm/1304nm/1309nm, centered at 1310nm)
- Optimized for single-mode fiber (SMF, G.652), supporting up to 10km transmission reach for data center interconnection, campus backbone and metro network links
- Breakout capability to 4x25G, enabling flexible network architecture deployment and smooth migration from 10G/40G infrastructure
2. Industry-Standard QSFP28 Form Factor & Interface
- Hot-pluggable, compact MSA-compliant QSFP28 package for maximum port density in high-density switches, routers and transport platforms
- Duplex LC optical interface, fully compatible with standard single-mode fiber cabling infrastructure, no need for MPO ribbon cables
- Low-power design, reducing overall system power consumption and heat generation in data center racks, lowering total cost of ownership (TCO)
3. Proactive Network Management & Enterprise-Grade Reliability
- Integrated Digital Optical Monitoring (DOM/DMI) for real-time monitoring of transmit power, receive power, temperature, voltage, and laser bias current, enabling proactive fault detection and maintenance
- Ciena-certified and rigorously tested for seamless interoperability with Ciena’s Waveserver, 6500, 8100 and other core networking hardware, plug-and-play deployment
- Class 1 laser safety compliant (IEC 60825-1), meeting global safety standards, and RoHS 2/REACH environmental regulations for worldwide deployment
4. Versatile Application & Scalability
- Ideal for high-demand scenarios: data center interconnection (DCI), campus backbone, 5G fronthaul/backhaul, enterprise core network and cloud service provider access networks
- Industrial-grade component design, supporting wide operating temperature range for stable performance in harsh data center environments
- Future-proof 100G solution, supporting smooth network expansion and bandwidth upgrade without hardware replacement
