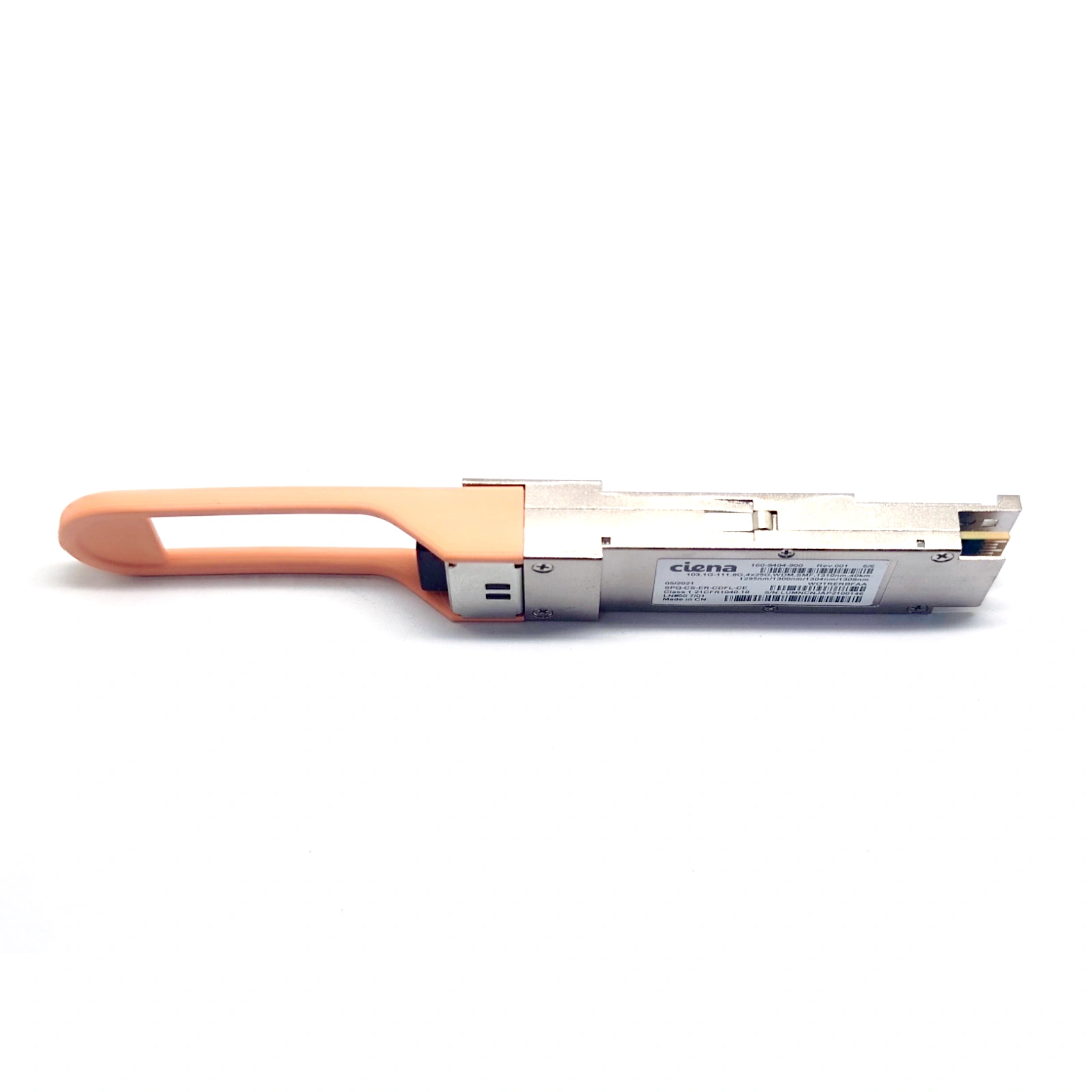

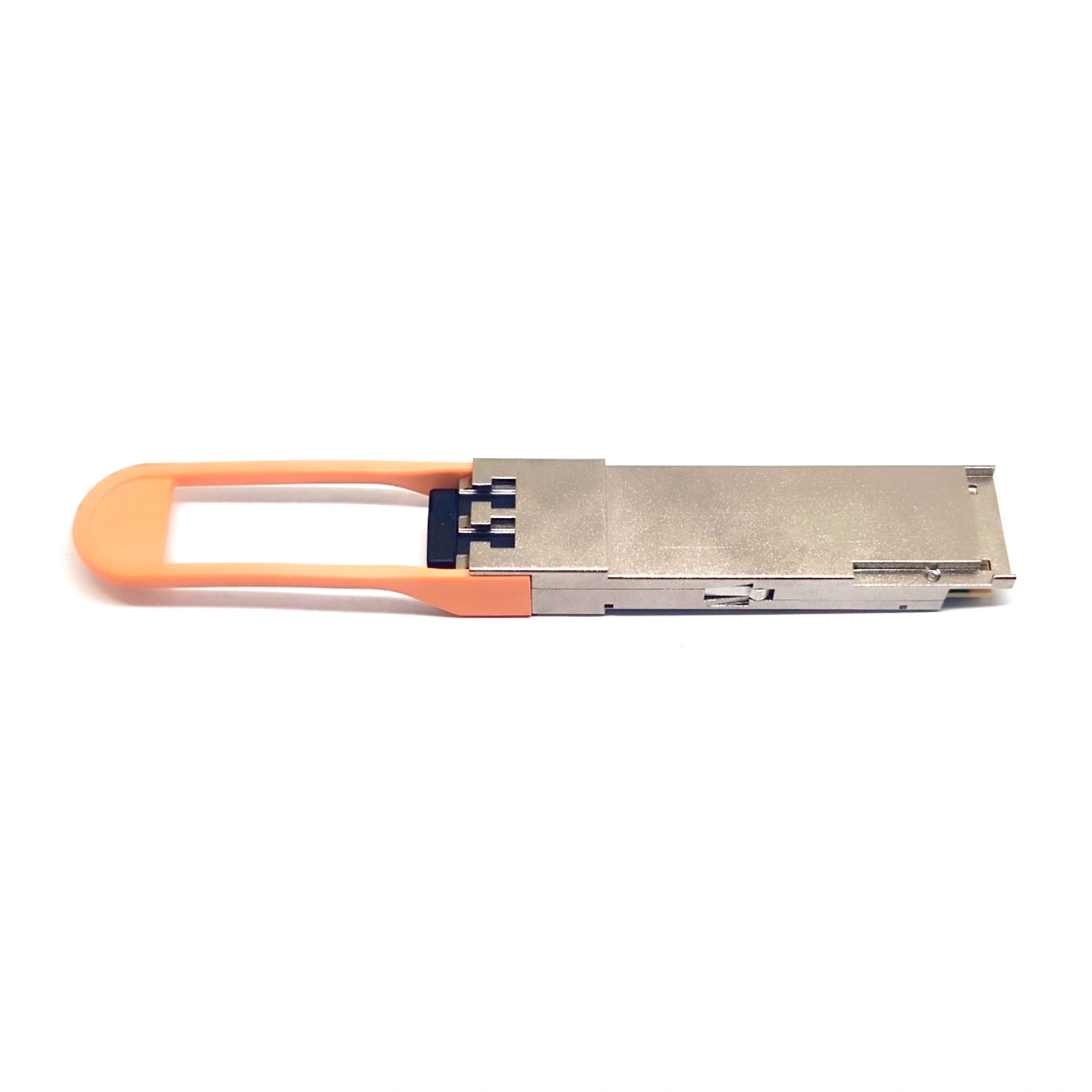

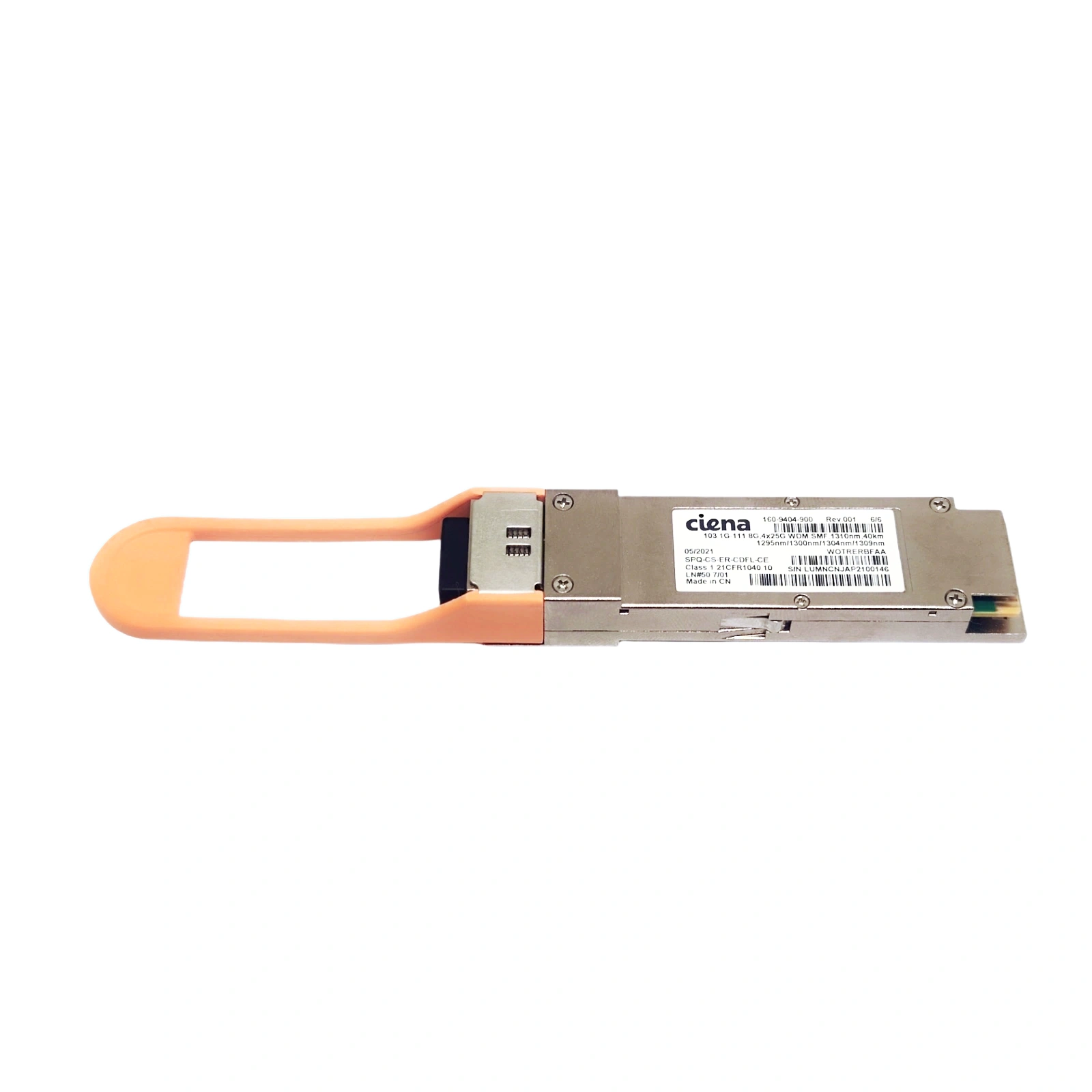

Ciena 160-9404-900 QSFP28 100GBase-ER4 WDM SMF 1310nm 40km LC Transceiver

The Ciena 160-9404-900 is a high-performance 100G/103.1G QSFP28 ER4 optical transceiver, specifically designed for long-distance transmission over single-mode fiber up to 40 kilometers. This module provides 100Gbps/103.1Gbps bandwidth through 4×25G LAN-WDM channels, fully complying with the 100GBASE-ER4 and OTU4 standards. With a hot-pluggable QSFP28 form factor, low power consumption, and complete DDM/DOM diagnostic capabilities, it is ideal for metropolitan area core networks, 40-kilometer data center interconnects, and high-density 100G router/switch port expansion.

Model Number

103.1G-111.8G, 4x25G WDM, SMF, 1310nm, 40km QSFP28

Band

Ciena

Ciena Part Number

160-4904-900

Form Factor

QSFP28

Data Rate

103.1 Gbps/111.8 Gbps (4 × 25.5G/4 × 27.95G parallel, compatible with 100GBASE-ER4/OTU4)

Standard

100GBASE-ER4 (IEEE 802.3ba), OTU4, QSFP28 MSA

Fiber Type

Multi-Mode Fiber (SMF)

Transmission Distance

Up to 40km

Wavelength

1295nm / 1300nm / 1305nm / 1310nm (LAN-WDM )

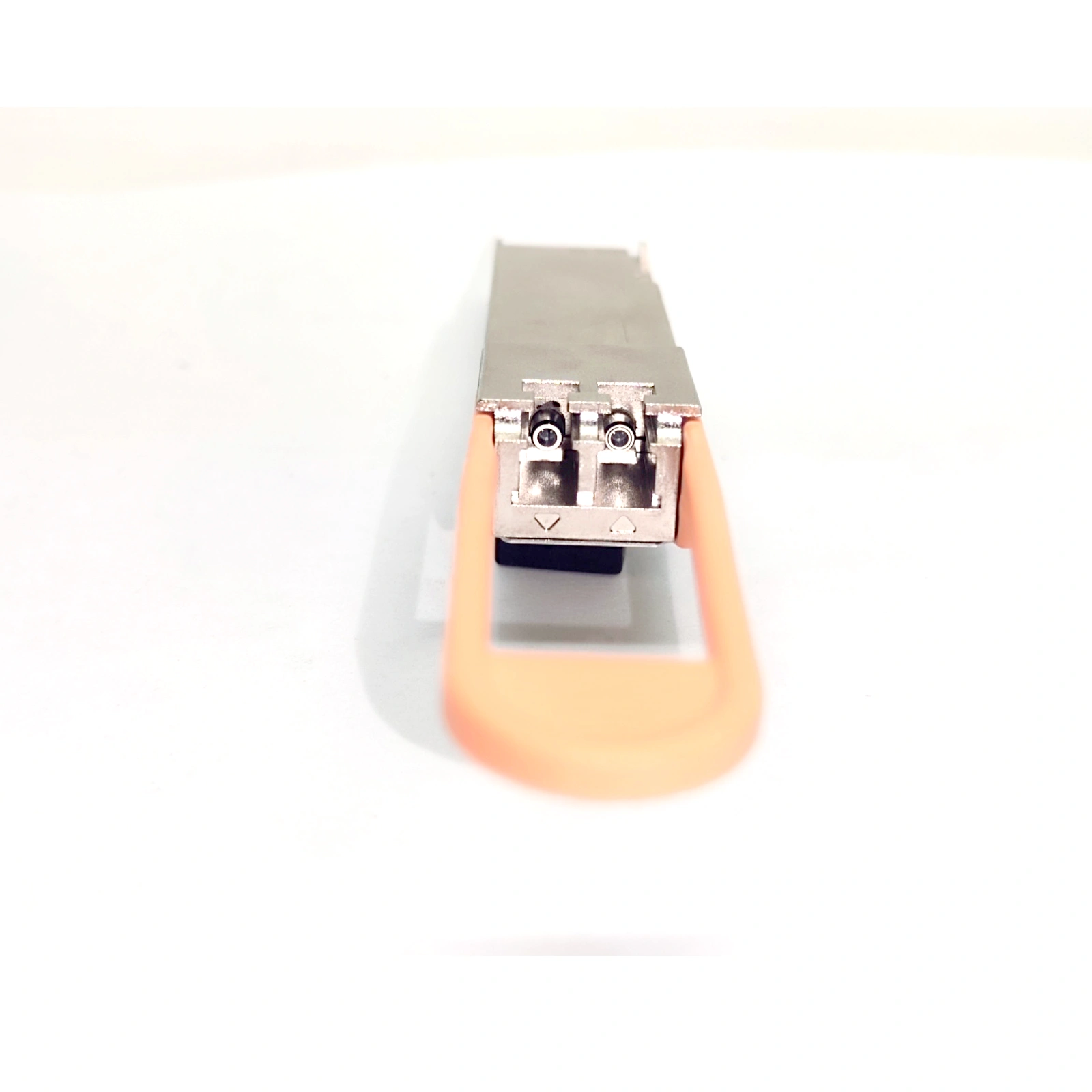

Connector Type

Duplex LC

Power Supply

3.3V DC

Power Consumption

< 8 W

Operating Temperature

0°C ~ 70°C

Diagnostics

Full Digital Diagnostic Monitoring (DDM/DOM) per SFF-8636

Safety & Compliance

Class 1 Laser Product (21CFR 1040.10), CE

Country of Origin

CHINA

Product Highlights

1. High-Speed & Multi-Rate Performance

Supports aggregate data rates up to 103.1Gbps / 111.8Gbps (4x25G lanes), compatible with 100GBASE-ER4 Ethernet and OTU4 OTN standards.
Multi-rate design for flexible deployment in 100G data center, metro, and long-haul telecom backbone networks.

2. Ultra Long-Reach Single-Mode Fiber Transmission

LAN-WDM technology with 1295nm~1309nm wavelengths, enabling 40km transmission over standard single-mode fiber (SMF).
Ideal for long-haul inter-data center, metro aggregation, regional network, and core router interconnection.

3. Compact & Hot-Pluggable Form Factor

Industry-standard QSFP28 (Quad Small Form-factor Pluggable 28G) package, hot-swappable for zero-downtime installation/upgrade.
High-density design, perfect for space-constrained network equipment and data center racks.

4. Reliable & Low-Power Operation

Wide operating temperature range (0°C to 70°C) for stable performance in harsh environments.
Low power consumption (≤3.5W), reducing overall system energy cost and heat dissipation.
Compliant with RoHS 6/6 environmental standards.

5. Advanced Digital Diagnostic Monitoring (DDM/DOM)

Built-in I²C interface for real-time monitoring of key parameters: transmit power, receive power, temperature, voltage, and laser bias current.
Supports fault detection, early warning, and remote maintenance, improving network reliability.

6. Industry-Standard Compliance

Fully compliant with QSFP28 MSA, IEEE 802.3ba/bm, ITU-T G.959.1/G.709, and Class 1 Laser safety standards.
Ciena-certified for seamless compatibility with Ciena 6500, Waveserver, and other core network platforms.
