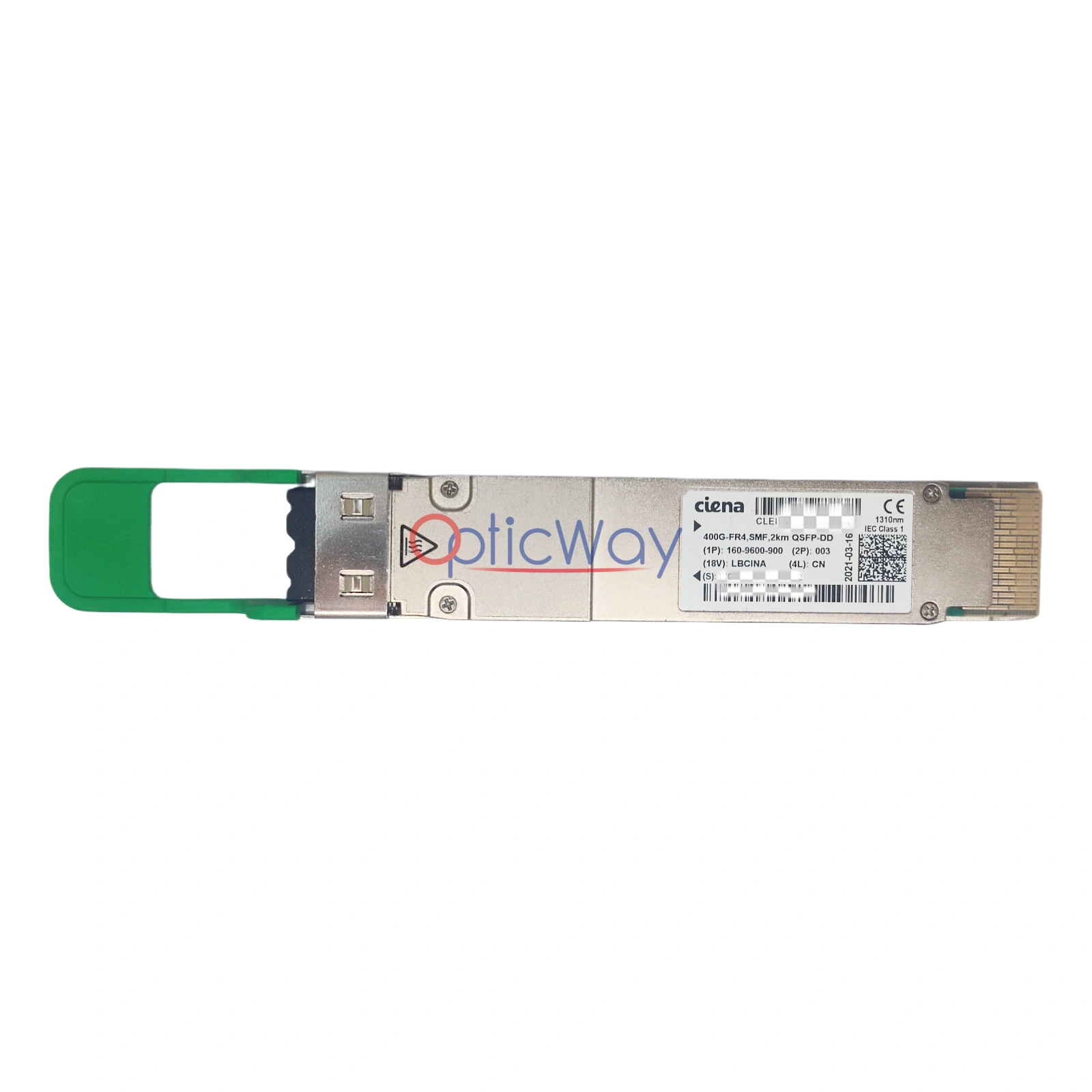

Ciena 160-9600-900 400GBASE-FR4 2km SMF LC QSFP-DD Transceiver Module

Ciena 160-9600-900 is a high-performance 400GBASE-FR4 QSFP-DD optical transceiver, designed for 2km transmission over single-mode fiber. Operating at 1310nm, it supports 400Gbps (4×100Gbps) signaling for medium-reach data center and metro network applications. This module features an LC duplex connector, full DDM/DOM monitoring, and is optimized for use with Ciena’s 800G/400G optical transport platforms. It meets IEEE 802.3ck and QSFP-DD MSA standards, ensuring interoperability with compatible equipment.

• 400G Medium-Reach Data Center Interconnections (DCI)
• Metro Core/Access Network 400G Transport
• Ciena 800G/400G Optical Transport Platforms
• High-Speed 400G Ethernet Switch/Router Expansion
• 400GBASE-FR4 Standard Compliant Deployments

1. High-Speed 400G Mid-Reach Single-Mode Transmission

• Fully compliant with IEEE 802.3bs 400GBASE-FR4 industry standard, delivering stable 400Gbps wire-speed transmission over standard G.652 single-mode fiber.Adopts 4-lane 100G CWDM parallel optical architecture with 1310nm band wavelength division design, balancing excellent signal integrity and low signal attenuation.
• Supports a maximum transmission distance of 2km over single-mode fiber, perfectly covering data center interconnection, campus core links and short metro optical transport scenarios.

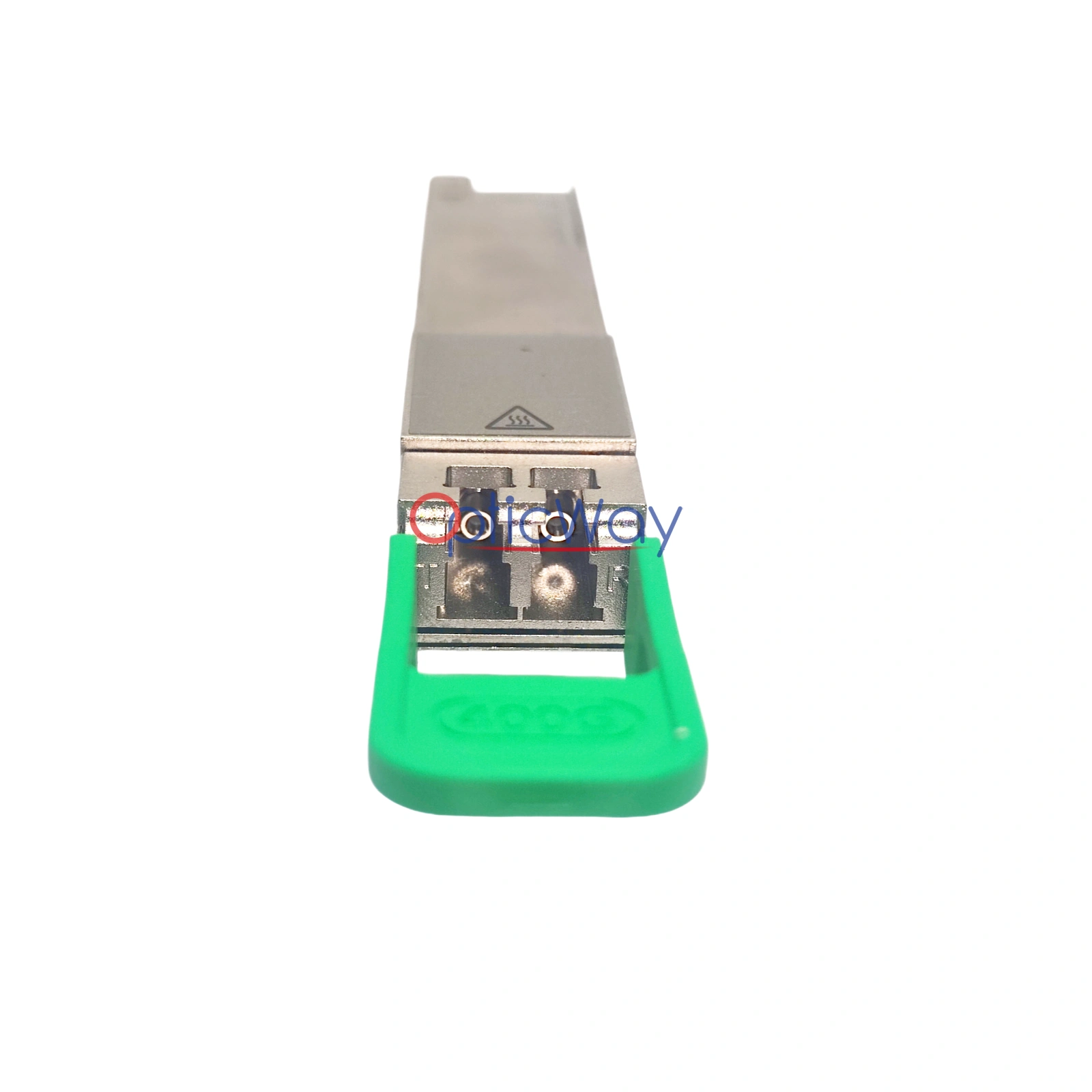

• Duplex LC dual-fiber interface design replaces complicated parallel ribbon cabling, greatly simplifying on-site wiring layout and later operation and maintenance.

2. Standard QSFP-DD High-Density Package & Strong Compatibility

• Adopts industry universal QSFP-DD (Double Density) hot-swappable package specification, featuring compact size, high port density and outstanding heat dissipation performance.
• Backward compatible with mainstream 400G switching and routing platforms, natively adapted to Ciena 8100, 8300 series optical transmission and routing equipment.
• Supports hot plug-and-play, realizing non-stop module replacement and capacity expansion, effectively reducing network maintenance risks and business interruption time.
• Optimized power consumption design adapts to high-density cabinet deployment, lowering overall rack heat load and long-term OPEX.

3. Complete Monitoring Function & Global Compliance Certification

• Built-in comprehensive DOM digital optical monitoring function, real-time collecting and uploading key operating data including TX optical power, RX optical power, operating temperature, supply voltage and laser bias current.
• Supports remote fault diagnosis, link quality evaluation and early risk warning, helping operators achieve refined intelligent O&M management.
• Certified with IEC 60825-1 Class 1 laser safety, 21CFR 1040.10, RoHS and CE standards, meeting global commercial data center and carrier network deployment specifications.
• Undergoes strict aging, temperature cycle and vibration tests at the factory to ensure long-term stable operation in 0℃～70℃ commercial temperature environment.
