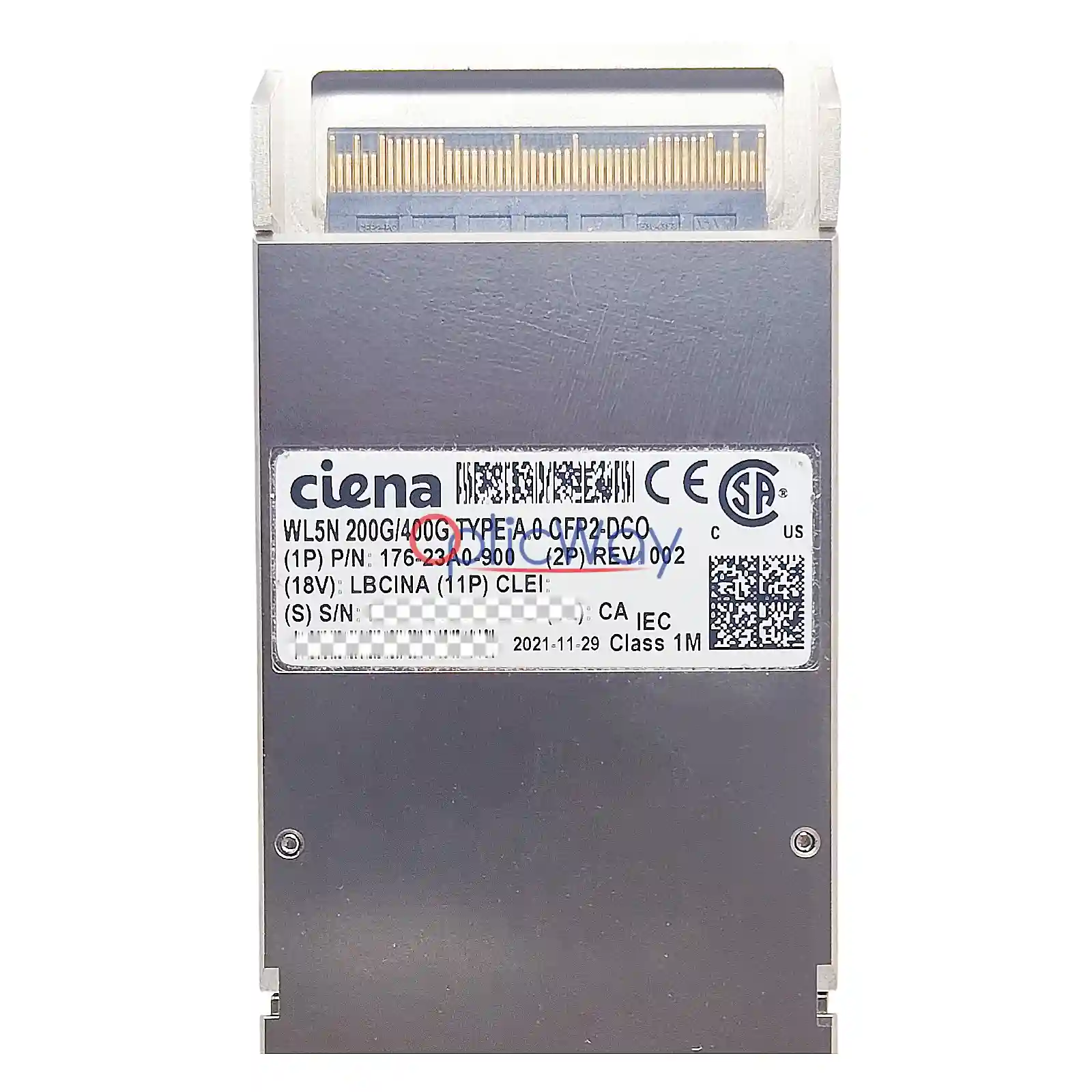

Ciena 176-23A0-900 WL5N CFP2-DCO Product Label Text Close-Up Detail View

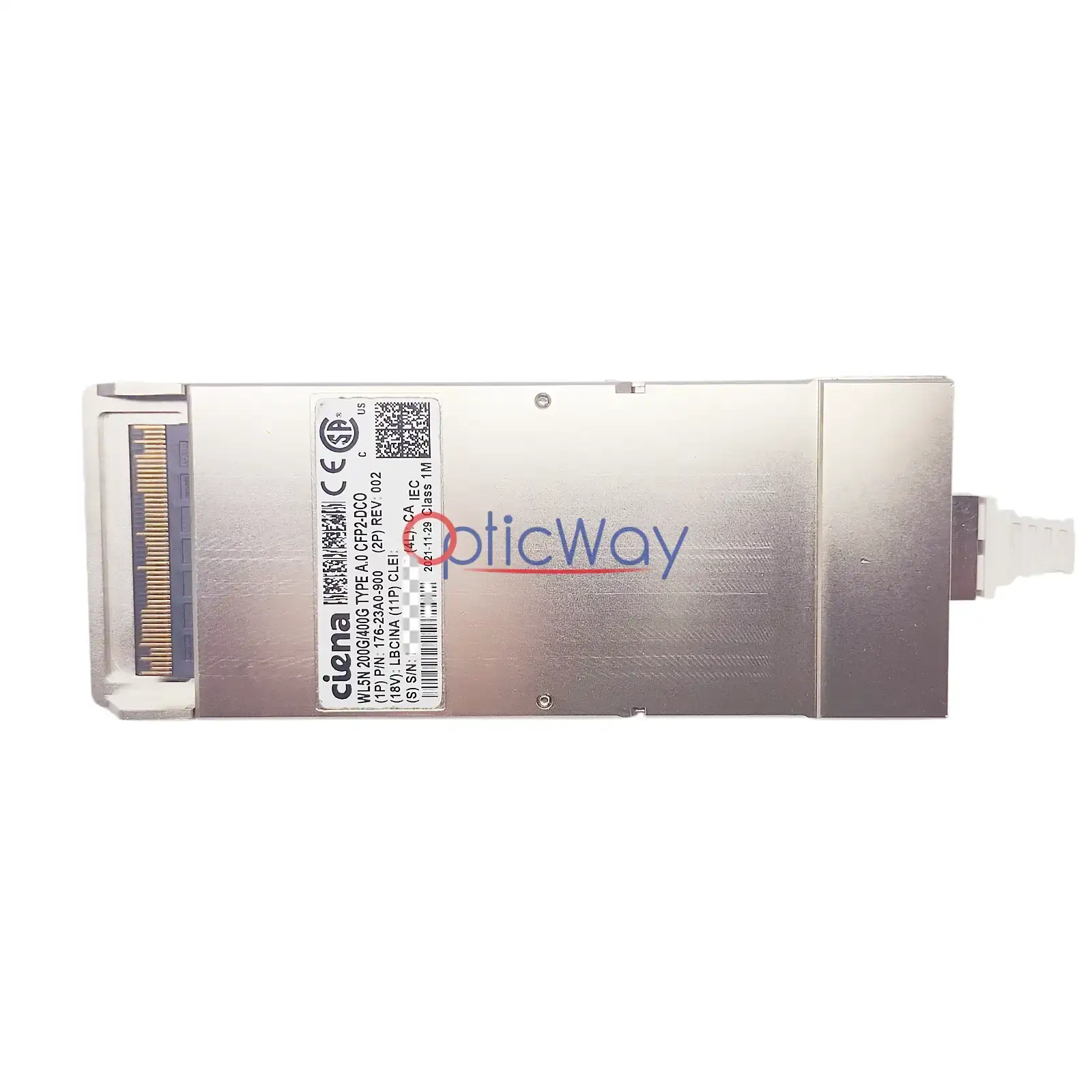

Ciena 176-23A0-900 WL5N 200G/400G TYPE A.0 CFP2-DCO Coherent Optical Transceiver

US$14450.00
Ciena

Product Features

Condition : Used ,Good Condition, Good Work，in stock.
True Coherent DCO : DSP-on-board, digital coherent optics — not IM-DD. Requires coherent-capable host port.
Tri-Rate Flexibility : 100G (QPSK), 200G (8QAM/16QAM), and 400G (16QAM/PCS) on the same hardware.
Ciena WL5n Silicon : Second-gen WaveLogic 5 Nano DSP with Probabilistic Constellation Shaping (PCS) for max fiber capacity.
Tunable C-Band : Full ITU C-band coverage (1528~1567nm), 50GHz and flexible grid spacing per OpenROADM.
Multi-Standard Compliance : OIF 400ZR, OpenZR+, OpenROADM MSA, and CMIS management interface.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Ciena 176-23A0-900 WL5N 200G/400G TYPE A.0 CFP2-DCO Coherent Optical Transceiver

The Ciena 176-23A0-900 is a WaveLogic 5 Nano (WL5n) Type A.0 CFP2-DCO coherent pluggable transceiver — Ciena's second-generation "Standard" DCO designed for multi-vendor interoperable metro and regional DWDM networks. Unlike direct-detect IM-DD modules, this coherent optic uses dual-polarization QPSK/8QAM/16QAM modulation with embedded DSP to transmit up to 400Gb/s on a single wavelength over standard C-band ITU grids. It supports 100G, 200G, and 400G line rates with programmable baud rates and Probabilistic Constellation Shaping (PCS), delivering carrier-grade reach from tens of km (DCI) up to 1000km+ with external EDFA amplification. Compliant with OpenROADM, OIF 400ZR/OpenZR+, and CMIS standards, it interoperates with Ciena 6500/5400/8192 platforms and qualified third-party router/line-system hosts. This is a coherent DCO module — it is NOT a direct-detect 100GBASE-LR4/ZR4 module and must be paired with a coherent-capable port on the far end.

Ciena Part Number
176-23A0-900
Band
  Ciena
Product Model
CFP2-DCO Coherent
Form Factor
  CFP2
Wavelength
Full C-Band (Tunable)
DSP
Ciena WaveLogic 5 Nano

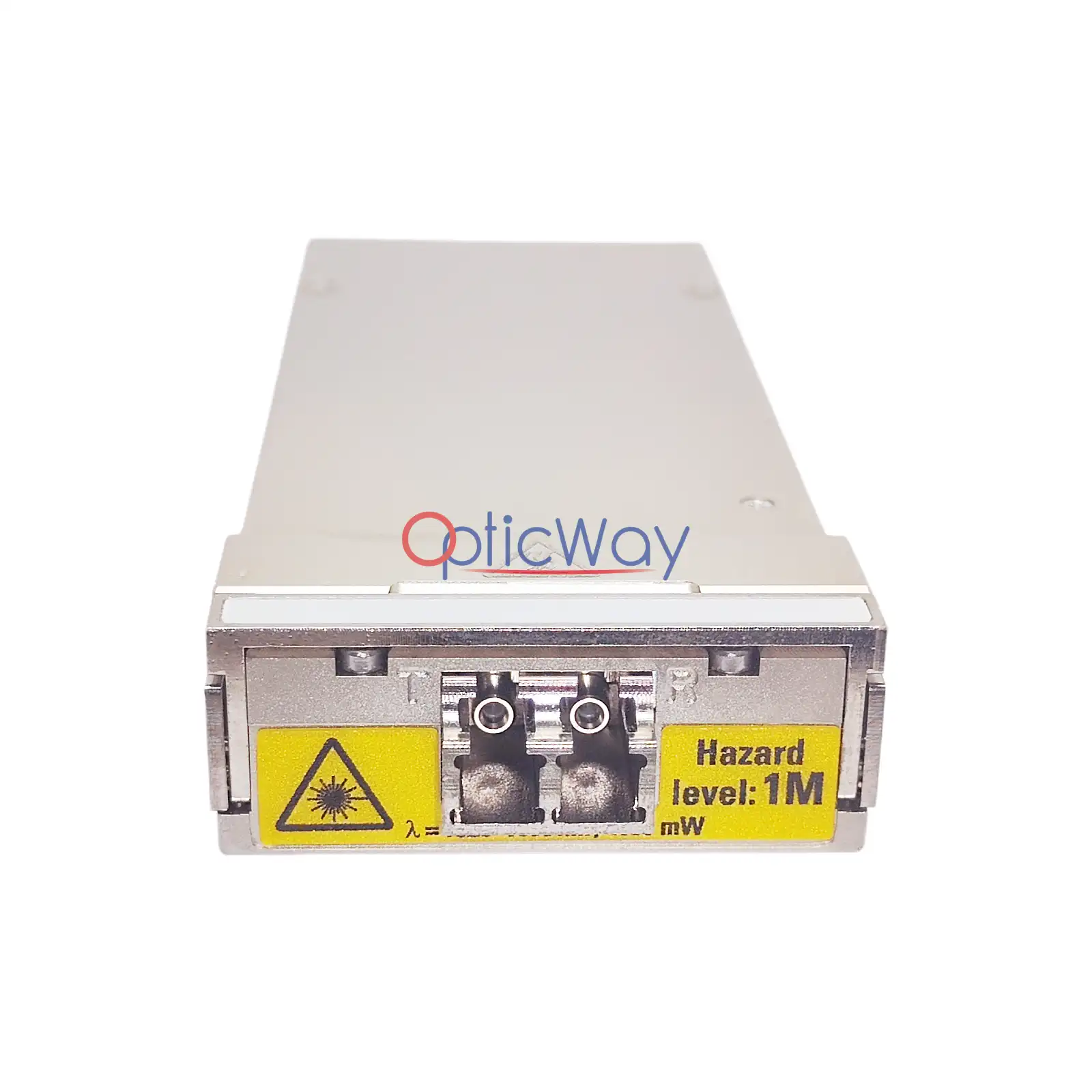

Connector
Duplex LC
Fiber Type
  SMF
Data Rate
100G , 200G , 400G
Standards
OIF 400ZR, OpenZR+, OpenROADM MSA, CMIS, ITU-T G.709
Modulation
DP-QPSK / DP-8QAM / DP-16QAM
Hot Swappable
  Support
DOM/DDM
  Yes
Operating Temperature
0°C ~ 70°C

Typical Applications

✅Metro & Regional ROADM Networks: Multi-span DWDM with flexible 50GHz grid and OpenROADM interoperability.

✅Data Center Interconnect (DCI): Point-to-point 400G ZR/OpenZR+ links up to ~40–80km unamplified, or extended reach (120km+) with EDFA line systems.

✅Converged IP-over-DWDM (IPoDWDM): Plugs directly into 400G coherent router ports (such as Ciena 8192 and qualified third-party host routers) for direct photonic-layer integration.

✅Legacy Network Modernization: Flexible 100G/200G/300G modes for seamlessly upgrading legacy DWDM systems to high-capacity coherent transport.

✅Carrier Multi-Service Aggregation: Simultaneous transport of 100GE, 400GE, OTU4, and FlexO client services over a single programmable wavelength.
