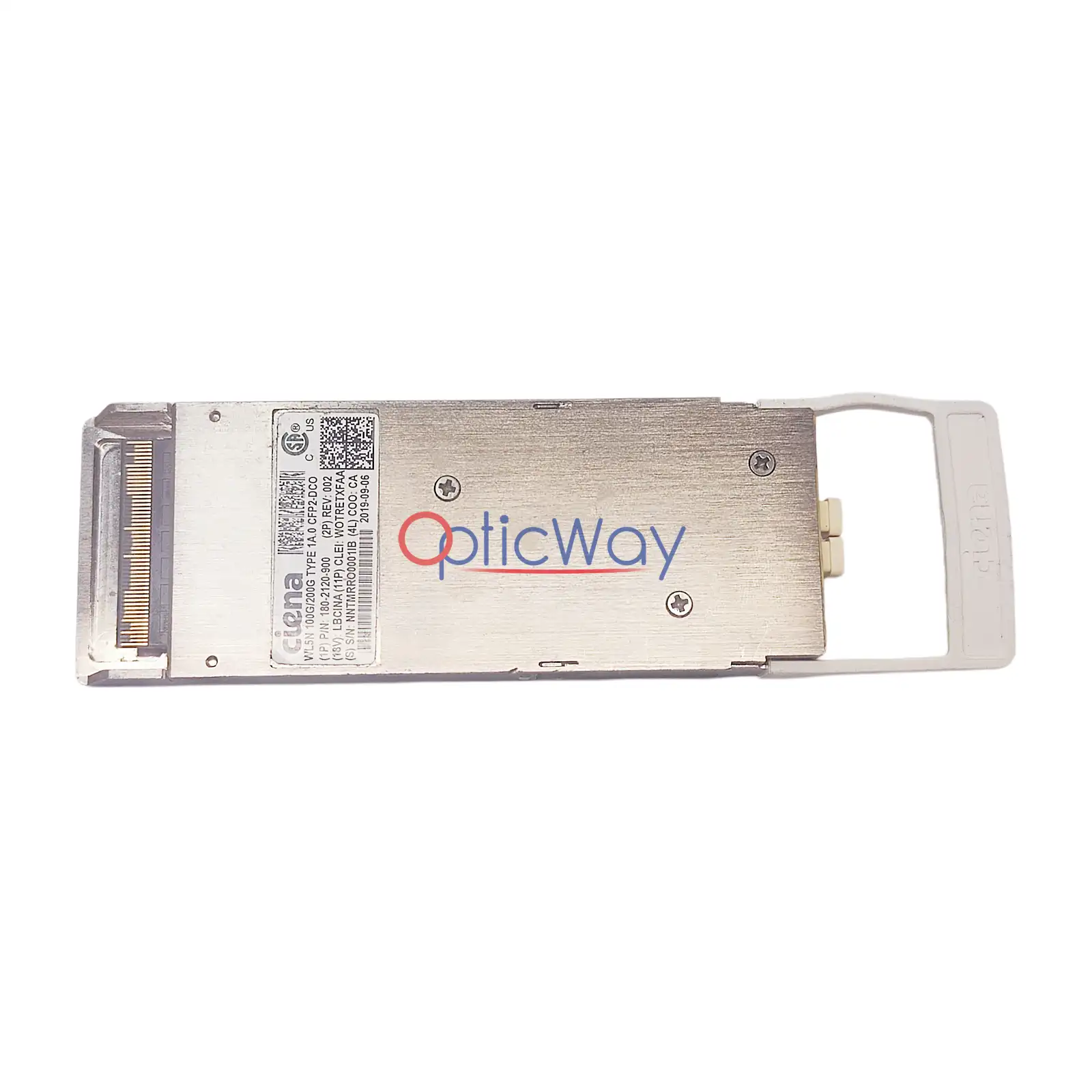

Ciena 180-2120-900 WL5N 100G/200G TYPE 1A.0 CFP2-DCO Coherent Optical Transceiver Front Label & Gold Finger Full View

Ciena 180-2120-900 WL5N 100G/200G TYPE 1A.0 CFP2-DCO Coherent Optical Transceiver

US$18000.00
Ciena

Product Features

Condition : Good work and The surface shows obvious signs of use.in stock.
WL5N Coherent CFP2-DCO : Powered by Ciena WaveLogic™ 5 Nano coherent DSP, supporting a software-selectable 100G / 200G dual-rate architecture.
Flexible Modulation Scheme : Supports DP-QPSK, DP-8QAM, and DP-16QAM modulation schemes. 100G operates with DP-QPSK; 200G supports DP-8QAM or DP-16QAM (available schemes subject to host firmware).
Tunable C-Band DWDM : Full ITU-T C-band spectrum coverage with 50GHz fixed grid and flexible grid support (exact available wavelengths configured by host platform).
CFP2-DCO MSA Form Factor : Standard CFP2 MSA-compliant hot-pluggable enclosure; supports CAUI-4 / OTL4.4 / FlexO client mapping and MDIO management (CMIS capability depends on host system firmware).
Standard Output Power Class : Standard TX launch power (-10 to 0dBm typical); requires external optical line system (EDFA) for long-span amplification.
Flexible Link Performance : Unamplified transmission reach varies with fiber link conditions; 100G DP-QPSK offers maximum span loss tolerance. Reach extends to hundreds of kilometers over EDFA-amplified optical line systems.
Multi-Service Client Bearer : Supports 100GE, 200GE, OTU4, and FlexO services (service enablement subject to host platform license and firmware).
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Ciena 180-2120-900 WL5N 100G/200G TYPE 1A.0 CFP2-DCO Coherent Optical Transceiver

The Ciena 180-2120-900 (WL5N TYPE 1A.0, CLEI: WOTRETXFAA) is a CFP2-DCO digital coherent optical transceiver powered by Ciena's WaveLogic™ 5 Nano coherent DSP. Featuring an integrated software-programmable architecture, it supports online rate switching between 100G (DP-QPSK) and 200G (DP-8QAM/16QAM) operation modes. Equipped with a full C-band tunable DWDM laser and native coherent receiver, it enables high-capacity 100GE, 200GE, OTU4, and FlexO service transport over Ciena 5400 and 6500 Series Packet-Optical platforms. It features real-time digital optical monitoring (DOM), a duplex LC optical interface, and IEC Class 1M laser safety certification, making it ideal for carrier metro, regional, and data center interconnect (DCI) DWDM networks

Ciena Part Number
180-2120-900
Band
  Ciena
Product Model
CFP2-DCO Coherent
Form Factor
  CFP2
Wavelength
Full C-Band (Tunable)
CLEI
WOTRETXFAA
Connector
Duplex LC
Fiber Type
  SMF
Data Rate
100G , 200G
Client Interfaces
OIF 400ZR, OpenZR+, OpenROADM MSA, CMIS, ITU-T G.709
Modulation
DP-QPSK / DP-8QAM / DP-16QAM
Hot Swappable
  Support
DOM/DDM
  Yes
Operating Temperature
0°C ~ 70°C

Typical Applications

✅Metro & Regional DWDM Networks: High-density 100G/200G multi-span transport links.

✅Data Center Interconnect (DCI): Cost-effective 100G/200G coherent links for enterprise and carrier DCI.

✅P-over-DWDM (IPoDWDM): Direct pluggability into coherent router ports and optical line systems.

✅Legacy Network Upgrades: Upgrade legacy 10G/40G networks to 100G/200G coherent infrastructure without changing fiber.
