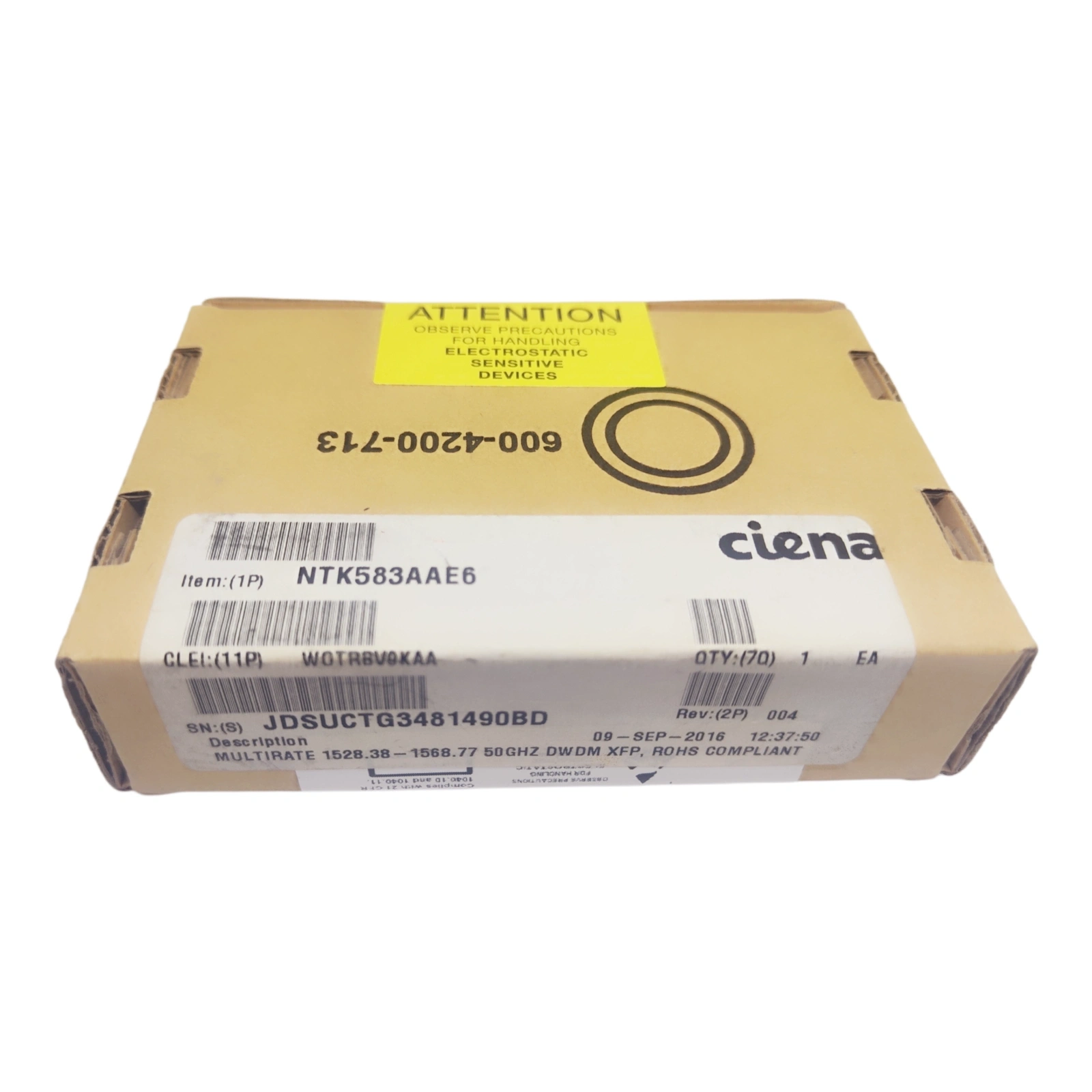

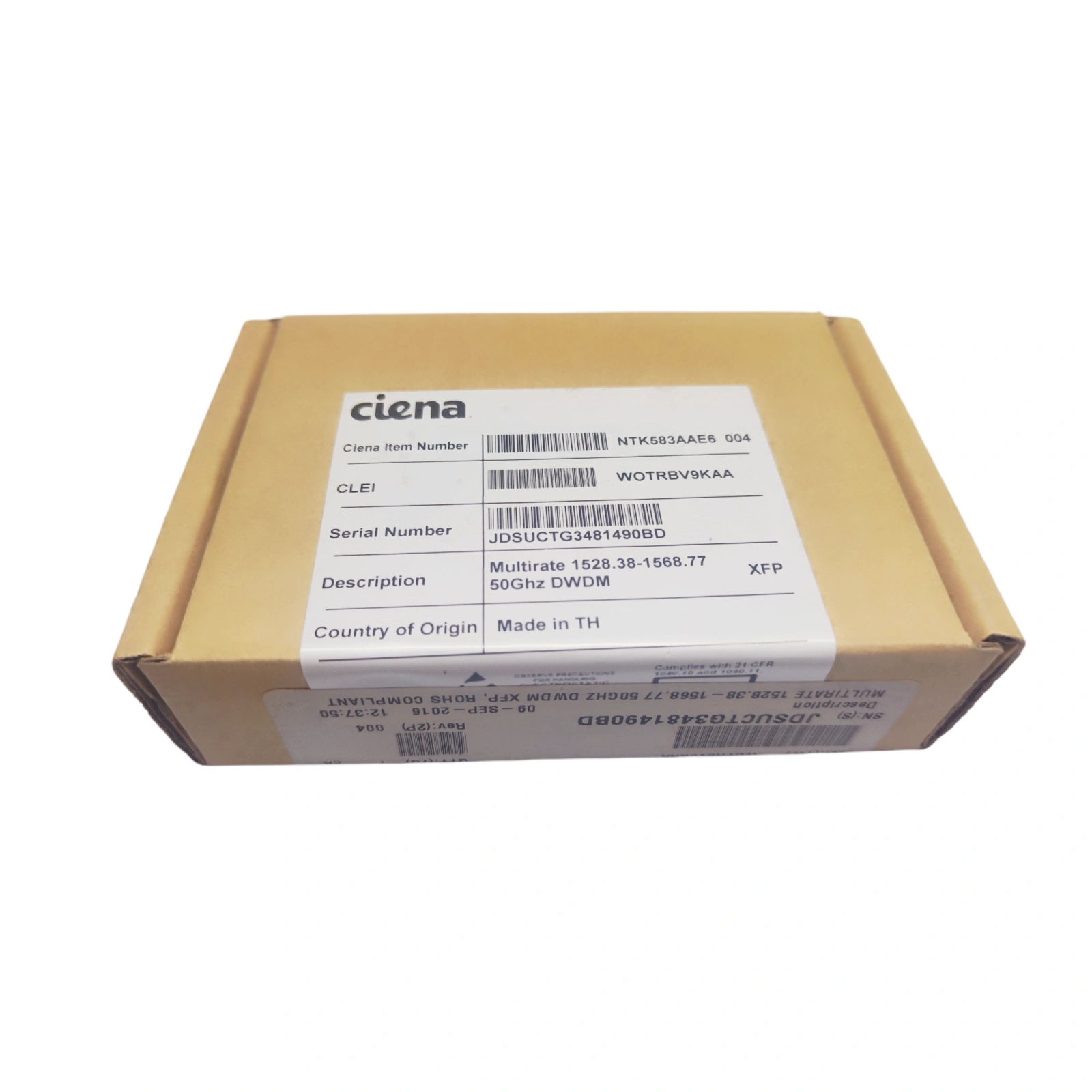

Ciena NTK583AAE6 XFP DWDM Tunable C-Band Multirate 50GHz 10G 80km WOTRBV9KAA
The Ciena NTK583AAE6 is a multirate 10G DWDM XFP optical transceiver, designed for Ciena OTN transport platforms. It supports multi-rate operation (up to 11.1Gbps) across the C-band, with a 50GHz DWDM grid covering wavelengths from 1528.38 nm to 1568.77 nm. Optimized for long-haul and metro DWDM applications, it features a duplex LC connector, full DDM/DOM monitoring, and meets ITU-T G.694.1 and XFP MSA standards.

Ciena Part Number

NTK583AAE6

Band

Ciena

Product Model

Multirate 50GHz DWDM XFP

Form Factor

XFP

Wavelength

1528.38–1568.77 nm (C-band)

Transmission Distance

80km

Connector

Duplex LC

Fiber Type

SMF

Data Rate

10Gbps

Standards

ITU-T G.694.1, XFP MSA, Class 1 Laser

Transmit Power

0 ~ -4.0 dBm

Receiver Sensitivity

-24.0 dBm

Origin

Thailand

DWDM Grid

50GHz ITU-T

Typical Applications

Ciena OTN and Core Router DWDM Interfaces
Long-Haul and Metro DWDM Transport Networks
10G/11.1G SONET/SDH, OTN, and Ethernet Applications
High-Capacity ITU-T 50GHz DWDM Channel Planning
Carrier-Grade Optical Transport Network Deployments

Product Highlights

1. Multirate DWDM Long-Haul Transmission

This is a multirate DWDM XFP transceiver designed for carrier-grade optical transport networks (OTN).
It supports a continuous wavelength range from 1528.38 nm to 1568.77 nm on the 50GHz ITU-T grid, making it suitable for dense wavelength division multiplexing (DWDM) systems.
The module is optimized for long-haul and metro core links, supporting multiple data rates (typically up to 10Gbps) over standard single-mode fiber.

2. Standard XFP Form Factor & Ciena Ecosystem Compatibility

It uses the industry-standard XFP (10 Gigabit Small Form-factor Pluggable) package, widely adopted in Ciena and third-party optical transport equipment.
As a Ciena-branded module, it is natively validated for use with Ciena OTN platforms (e.g., Ciena 6500, 5100 series), ensuring seamless integration and optimal performance.
The hot-pluggable design allows for easy installation, replacement, and capacity expansion without disrupting network operations.

3. Reliable Performance & Compliance Certification

Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.
Manufactured in Thailand (Made in TH), it undergoes rigorous factory testing to meet strict carrier-grade reliability standards.
The module complies with industry safety and performance standards for use in continuous operation in central office environments.
