Genuine Ciena NTTA01BJE6 FTLC1181RDNL-NT 100GBASE-LR4 CFP 1310nm 10km SMF Front Label & Full Gold Finger Overall View

Ciena NTTA01BJE6 100GBASE-LR4 CFP 1310nm 10km SMF LC FTLC1181RDNL-NT WOTRCDZFAA

US$620.00
Ciena

Product Features

Condition : Used ,Good Condition, Good Work，in stock.
100G LR4 Long Reach : 10km over G.652 SMF using 4-lane LAN-WDM in the 1310nm band.
Finisar OEM Engineered : FTLC1181RDNL platform — field-proven Tier-1 carrier reliability.
Dual-Rate Support : 100GBASE-LR4 (103.1Gbps) and OTU4 (111.8Gbps) operation.
CFP MSA 1.4 Compliant : 148-pin hot-pluggable with CAUI-10 electrical interface.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Ciena NTTA01BJE6 FTLC1181RDNL-NT WOTRCDZFAA 100GBASE-LR4 CFP 1310nm 10km SMF

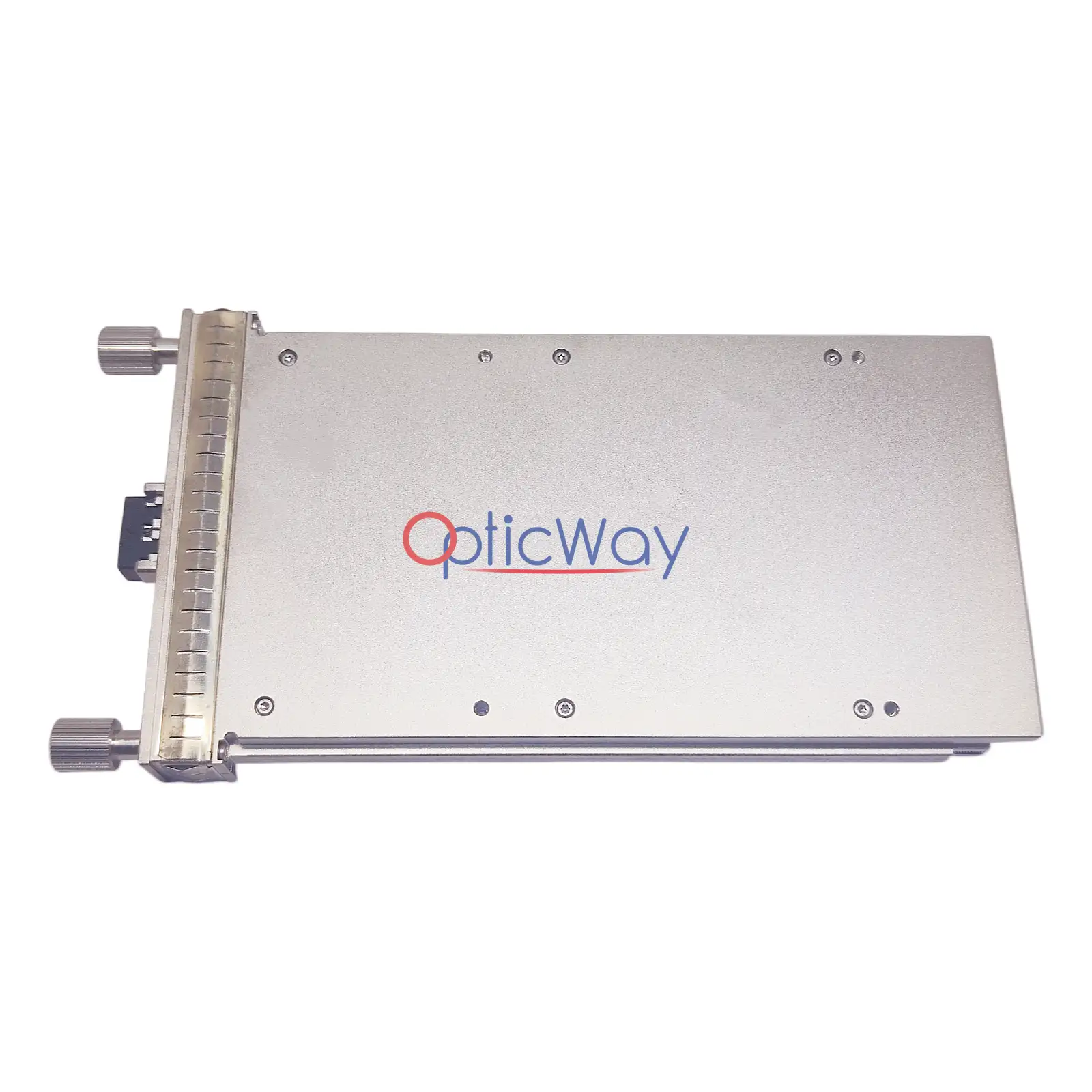

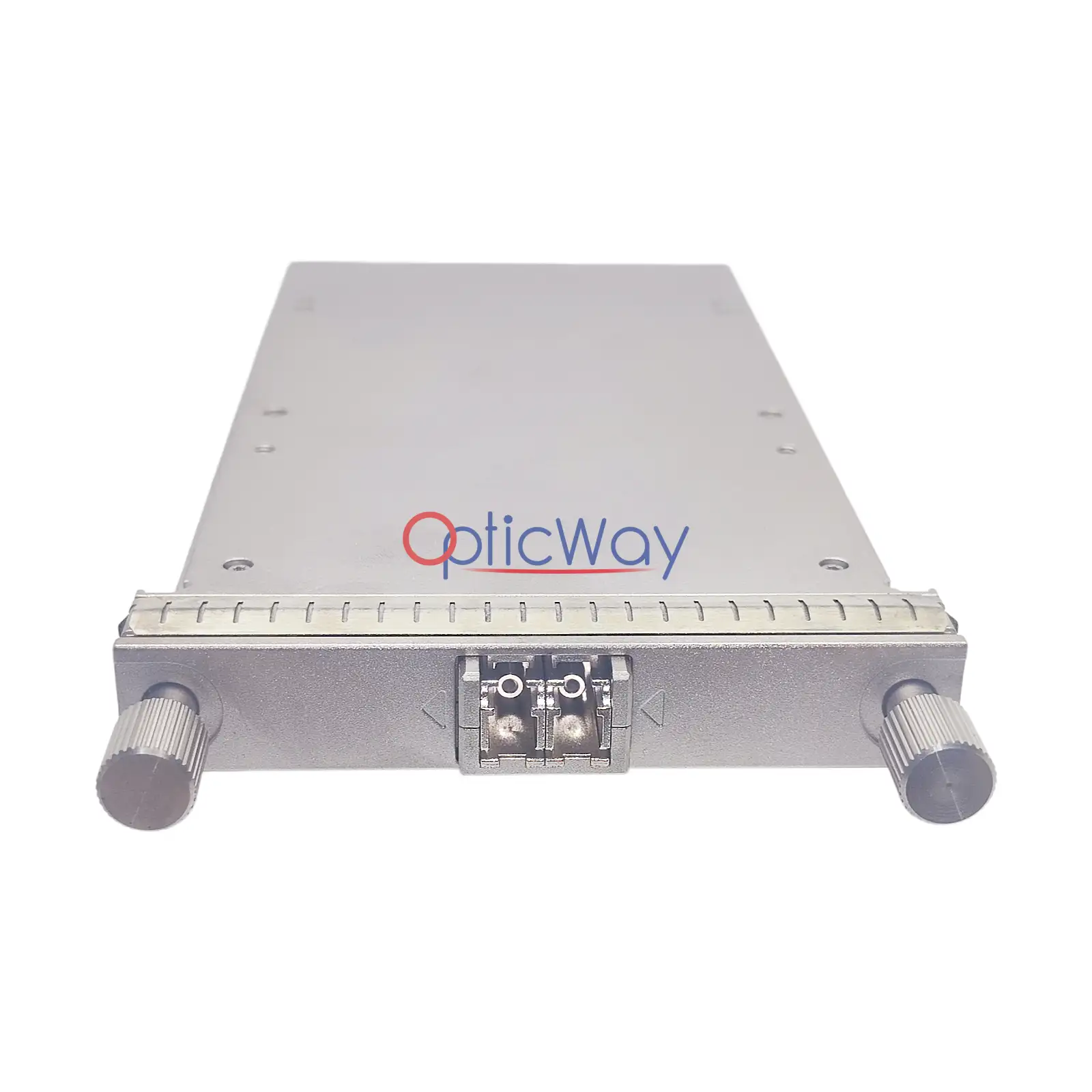

The Ciena NTTA01BJE6 is a high-performance 100GBASE-LR4 CFP optical transceiver engineered for long-reach 100 Gigabit Ethernet and OTU4 transport. Manufactured by Finisar under OEM part number FTLC1181RDNL-NT, this module aggregates 10×10.3Gbps electrical lanes into 4×25.78Gbps LAN-WDM optical lanes (1295 / 1300 / 1304 / 1309 nm) to deliver 103 Gbps over duplex single-mode fiber up to 10 km. Compliant with IEEE 802.3ba Clause 88, ITU-T G.959.1, and CFP MSA 1.4, it features Digital Optical Monitoring (DOM/DDM) via MDIO and supports hot-pluggable 148-pin operation. Assembled in the USA, this module is validated for Ciena 6500, 5400, and Waveserver platforms.

Ciena Part Number
NTTA01BJE6
Band
  Ciena
Product Model
FTLC1181RDNL-NT
Form Factor
  CFP
Wavelength
1295/1300/1305/1309 nm
Transmission Distance
10km
Connector
Duplex LC
Fiber Type
  SMF
Data Rate
100Gbps
Standards
IEEE 802.3ba Clause 88 100GBASE-LR4, ITU-T G.959.1
CLEI Code
WOTRC0BFAA
Hot Swappable
  Support
Origin
  USA
Operating Temperature
0°C ~ 70°C

Typical Applications

✅100GE long-haul backbone links in metro and regional carrier networks

✅OTU4 client interfaces on Ciena 6500 / 5400 Packet-Optical platforms

✅Data Center Interconnect (DCI) up to 10km

✅100G enterprise core switching and aggregation

✅Service provider edge and leased-line 100G services

✅Multi-vendor interoperability (Cisco CFP-100G-LR4, Huawei CFP-100G-LR4, Nokia 3HE04821AA)

Product Highlights

✨【Genuine Ciena Transceiver Manufactured by Finisar 】fully validated factory optical & environmental tests, zero-alarm operation on Ciena OTN transport equipment

✨【Universal Standard 100G LR4 LAN-WDM Solution 】 IEEE standardized tight-spacing optical design with cross-brand interoperability, compatible with other LR4 transceivers, not interoperable with CWDM4 MUX/DEMUX

✨【Stable 10km Single-Mode Long-Reach Transmission 】No optical repeater amplifier required to cut hardware costs for metropolitan data center and metro site backbone networking

✨【4 Independent Lane DOM Remote O&M 】NMS separately reads optical power & temperature of each lane to accurately isolate single-channel fiber attenuation and laser aging faults
