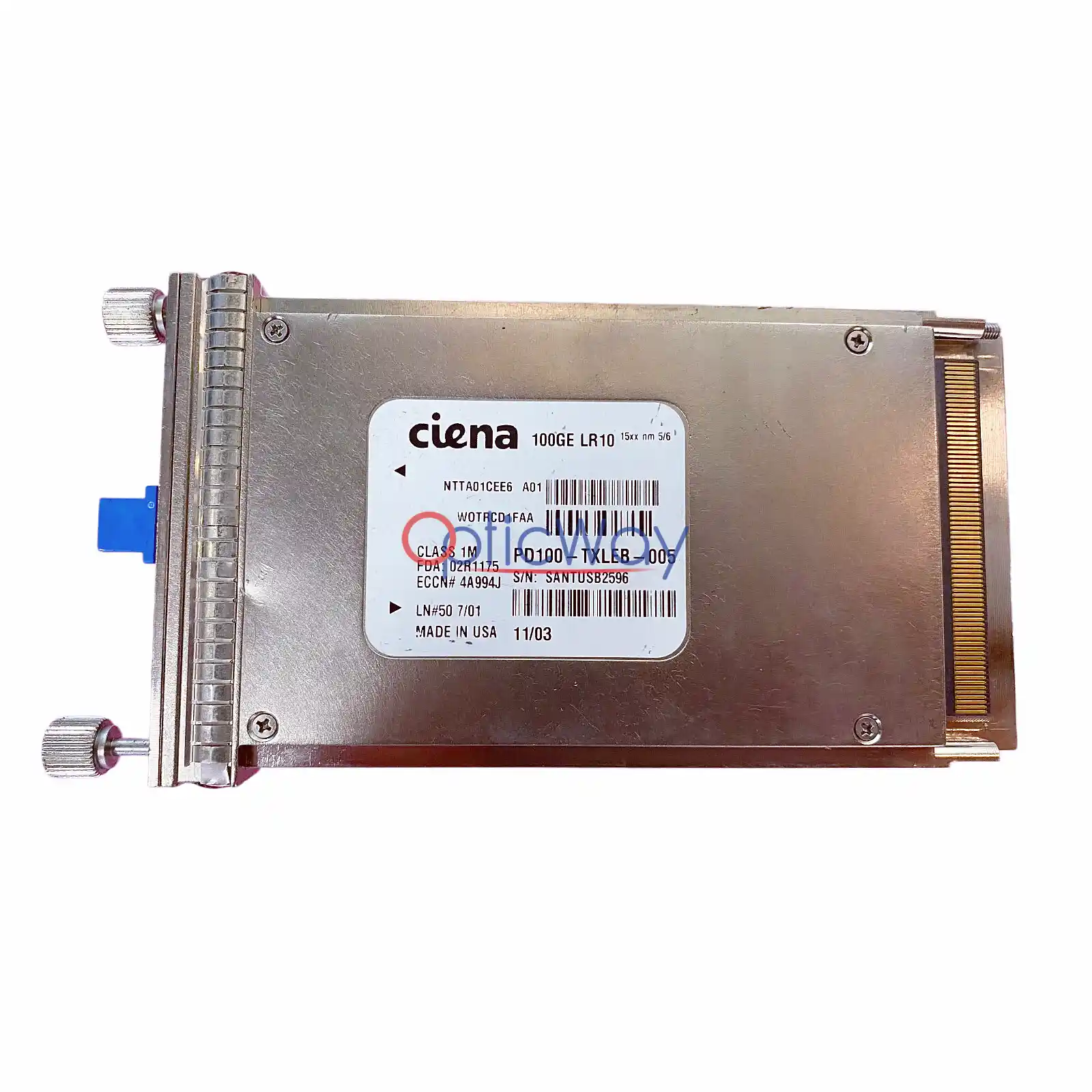

Genuine Ciena NTTA01CEE6 PD100-TXLEB-005 WOTRCD1FAA 100GBASE-LR10 CFP 10km SMF Front Label & Gold Finger Full View

Ciena NTTA01CEE6 100GBASE-LR10 CFP 10km SMF PD100-TXLEB-005 WOTRCD1FAA

US$1650.00
Ciena

Product Features

Condition : Used , Genuine and Good work,in stock.
100Gbps Ultra-High Bandwidth : Supports full 100 Gbps line rates to handle massive traffic loads.
10-Lane LR10 Architecture : Implements a 10×10G parallel optical configuration optimized for the 15xx nm band.
10km Long-Reach Capability : Ensures highly reliable data routing over standard Single-Mode Fiber (SMF) for up to 10km.
Rugged CFP Form Factor : : Hot-pluggable CFP interface featuring built-in alignment rails and heavy-duty thumbscrews for vibration-resistant locking.
Certified Standards : Proudly Made in the USA, fully compliant with Class 1M Laser safety standards, FDA regulations, and ECCN 4A994J.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Ciena NTTA01CEE6 PD100-TXLEB-005 WOTRCD1FAA 100GBASE-LR10 CFP 10km SMF

The Ciena NTTA01CEE6 is a high-performance 100 Gigabit CFP (C Form-factor Pluggable) optical transceiver designed for long-reach 100G Ethernet and OTN applications. Compliant with the IEEE 802.3ba 100GBASE-LR10 standard, this module utilizes 10 x 10G lanes over single-mode fiber (SMF) to deliver stable transmission up to 10 km. It features a duplex LC connector interface and supports Digital Diagnostic Monitoring (DDM/DOM) via the MDIO interface per CFP MSA specifications. Identified by HECI code WOTRCD1FAA, this module is validated for deployment in Ciena’s 6500 Packet-Optical Platforms and other carrier-grade transport systems requiring reliable 100G metro or regional interconnects.

Ciena Part Number
NTTA01CEE6
Band
  Ciena
Product Model
PD100-TXLEB-005
Form Factor
  CFP
Wavelength
15xxnm
Transmission Distance
10km
Connector
Duplex LC
Fiber Type
  SMF
Data Rate
100Gbps
Supply Voltage
3.3V DC
CLEI Code
WOTRCD1FAA
Hot Swappable
  Support
Origin
USA
Operating Temperature
0°C ~ 70°C

Typical Applications

✅100G OTU4 / 100GE service port expansion on Ciena 5400 / 6500 OTN transport platforms
✅100G backbone fiber interconnection between core switches in large cloud data centers
✅100G long-reach fiber backbone networking for metro transport core layers
✅Inter-city 100G optical trunk links for carrier provincial backbone networks

Product Highlights

✨Authentic Ciena OEM: Original part number NTTA01CEE6 with verified HECI WOTRCD1FAA for guaranteed compatibility with Ciena chassis.

✨100G Long-Reach LR10: Delivers full 100Gbps over 10km SMF using industry-standard 10-lane CWDM technology.

✨Hot-Pluggable CFP: 148-pin MSA-compliant form factor enables seamless insertion/removal without system reboot.

✨Advanced Diagnostics: Integrated DDM/DOM via MDIO for real-time monitoring of temperature, voltage, bias, and optical power.

✨Interoperable Standards: Fully compliant with IEEE 802.3ba and ITU-T G.709, ensuring multi-vendor interoperability.

✨Secure Deployment: Class 1 laser safety certification for safe handling in live production environments.
