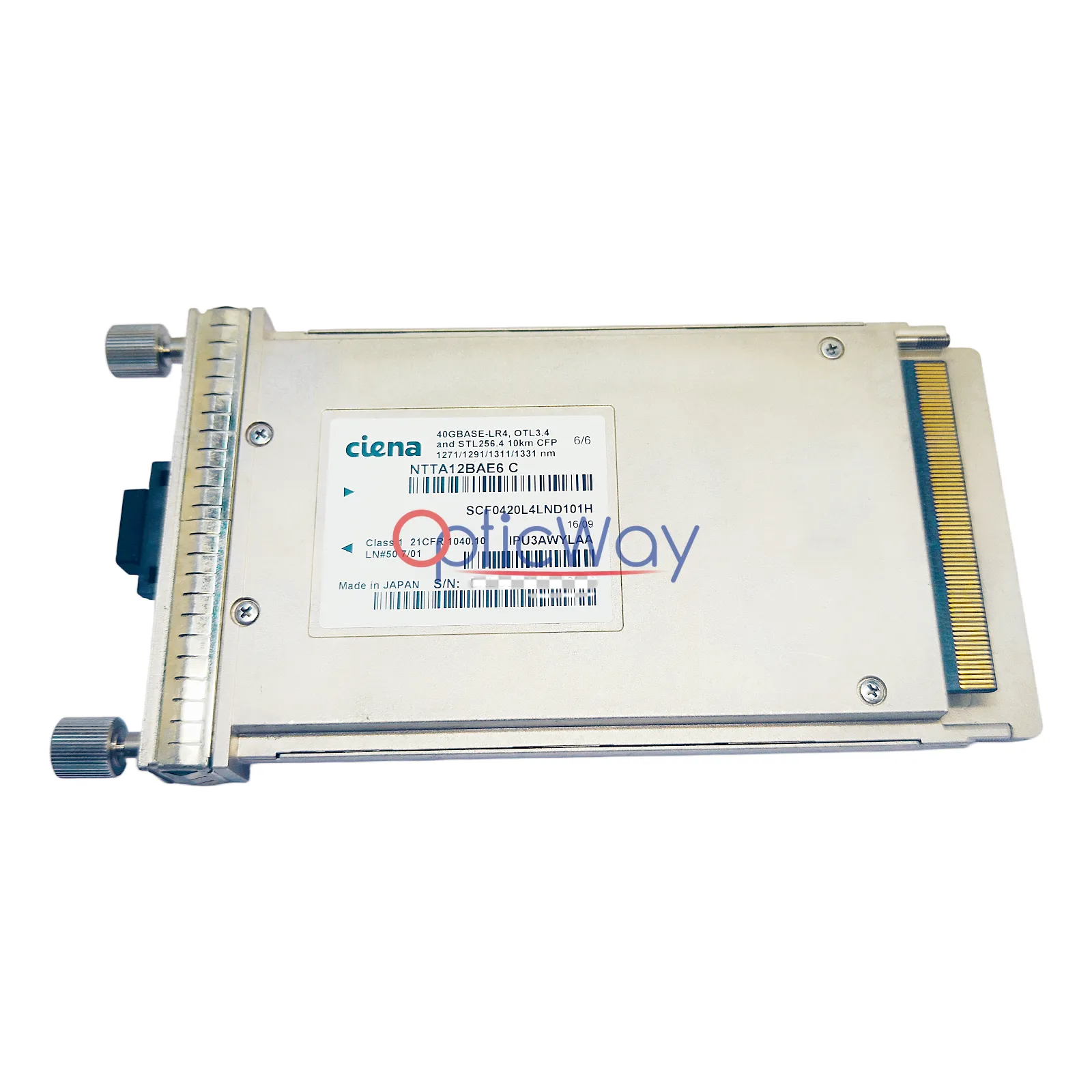

Genuine Ciena NTTA12BAE6 40GBASE-LR4 OTL3.4 STL256.4 CFP 10km SMF Front Label & Gold Finger Full View

Ciena NTTA12BAE6 40GBASE-LR4 OTL3.4 STL256.4 10km SMF CFP Optical Transceiver Module

US$120.00
Ciena

Product Features

Condition : Used , Genuine and Good condition,in stock.
Multi-Protocol Compliance : Fully compatible with 40GBASE-LR4, OTL3.4, and STL256.4 transmission standards.
4-Lane Wavelength Grid : Delivers high-speed 40Gbps line rates over Single-Mode Fiber (SMF) for up to 10km.
Robust CFP Form Factor : Standard hot-pluggable CFP package with dual thumbscrews for secure, high-vibration resistance connectivity.
10km Long-Reach : Delivers high-speed 40Gbps line rates over Single-Mode Fiber (SMF) for up to 10km.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Ciena NTTA12BAE6 40GBASE-LR4 OTL3.4 STL256.4 CFP 10km SMF

Ciena CFP 40G optical transceiver, part number NTTA12BAE6 (SCF0420L4LND101H), compliant with 40GBASE-LR4 and OTL3.4 standards. It uses 4-channel CWDM wavelengths (1271/1291/1311/1331nm) with duplex LC connector, delivering stable 10km transmission over G.652 single-mode fiber. Supported with DOM digital optical monitoring for real-time parameter tracking of all four lanes. Operating temperature ranges from 0℃ to 70℃. Natively compatible with Ciena 5400/6500 transport platforms, supporting 40GE and OTU3 services, ideal for data center backbone interconnection and metro OTN networking

Ciena Part Number
NTTA12BAE6
Band
  Ciena
Product Model
SCF0420L4LND101H
Form Factor
  CFP
Wavelength
1271/1291/1311/1331nm CWDM
Transmission Distance
10km
Connector
Duplex LC
Fiber Type
  SMF
Data Rate
40Gbps
Standards
40GBASE-LR4, OTL3.4, STL256.4
CLEI Code
IPU3AWYLAA
Hot Swappable
  Support
Origin
Japan
Operating Temperature
0°C ~ 70°C

Typical Applications

✅40G service port expansion on Ciena 5400 / 6500 OTN transport platforms

✅40G backbone fiber links in metro transport core networks

✅Interconnection of 40G core switches in large-scale data centers

✅OTU3 signal transmission for carrier OTN networks

✅Long-distance 40G fiber interconnection for enterprise campus backbones

Product Highlights

✨【Standard 40GBASE-LR4 Architecture】4-channel CWDM parallel optical design, industry standard for interoperability with other brand CFP-LR4 transceivers

✨【Unified Multi-Service Support】Single module supports both 40GE Ethernet and OTN/SDH transport to reduce hardware investment

✨【Per-Lane DOM Monitoring】Independent power monitoring on 4 optical lanes to quickly isolate single-channel laser or fiber faults

✨【Carrier-Grade Infrastructure Hardware】Designed specifically for Ciena’s optical routing platforms, ensuring high throughput, minimal packet loss, and robust telecom network performance.
