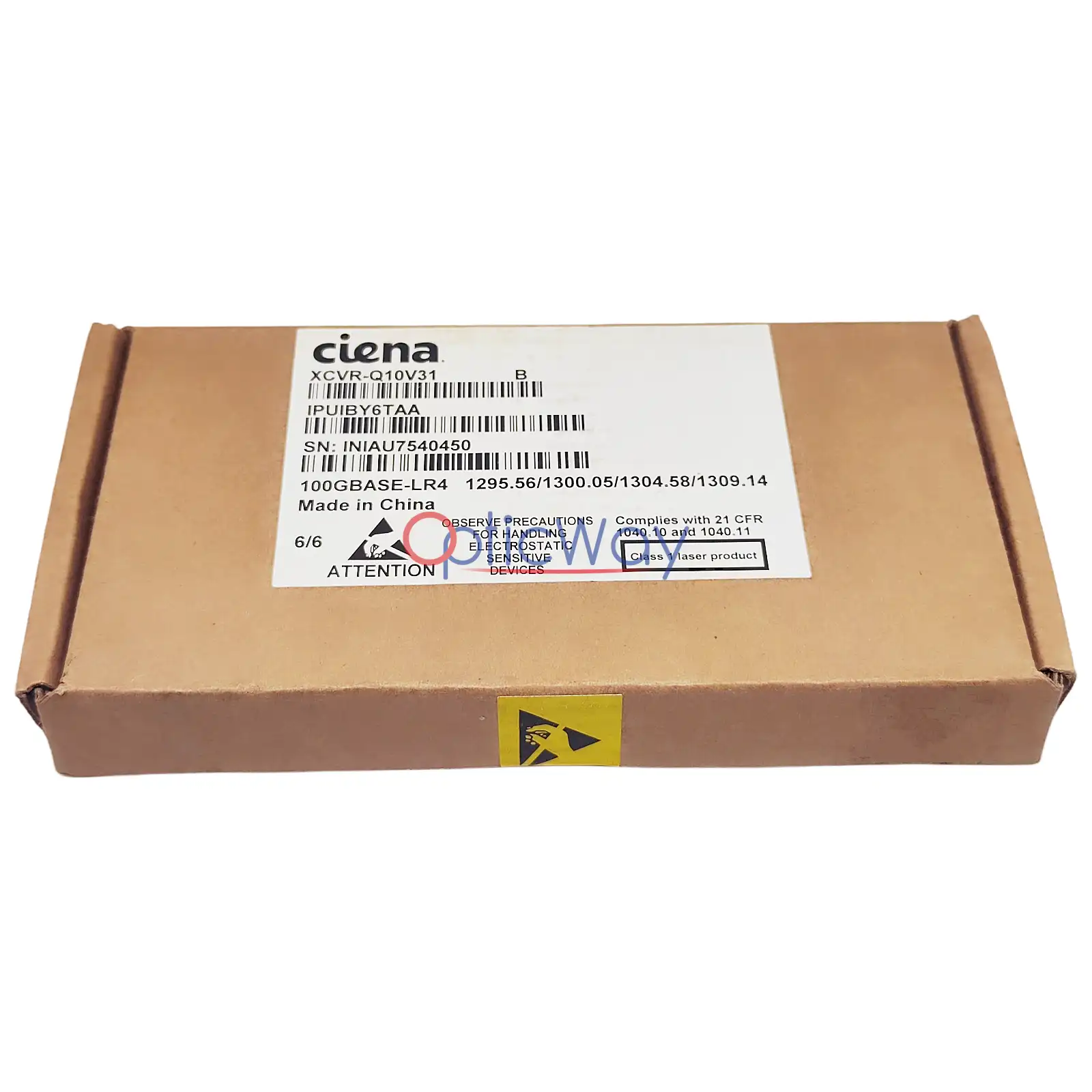

Ciena XCVR-Q10V31 QSFP28 Transceiver Original Packaging Box Front Label Close-Up View

Ciena Origina XCVR-Q10V31 100GBASE-LR4 QSFP28 100G 10km LC SMF IPUIBY6TAA

US$720.00
Ciena

Product Features

Condition : Brand new original sealed module, in stock.
High-Density 100G Link Rate : Employs the ultra-compact QSFP28 footprint to provide massive 100Gbps total throughput.
LAN-WDM 4-Lane Configuration : Utilizes an integrated optical MUX/DEMUX operating precisely on 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm wavelengths.
10km Long-Reach Reach : Engineered for reliable transmission through common Single-Mode Fiber (SMF) setups without inline amplification.
Full DDM/DOM Integration : Offers real-time monitoring capabilities for laser bias, voltage, module temperature, and RX/TX power levels.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

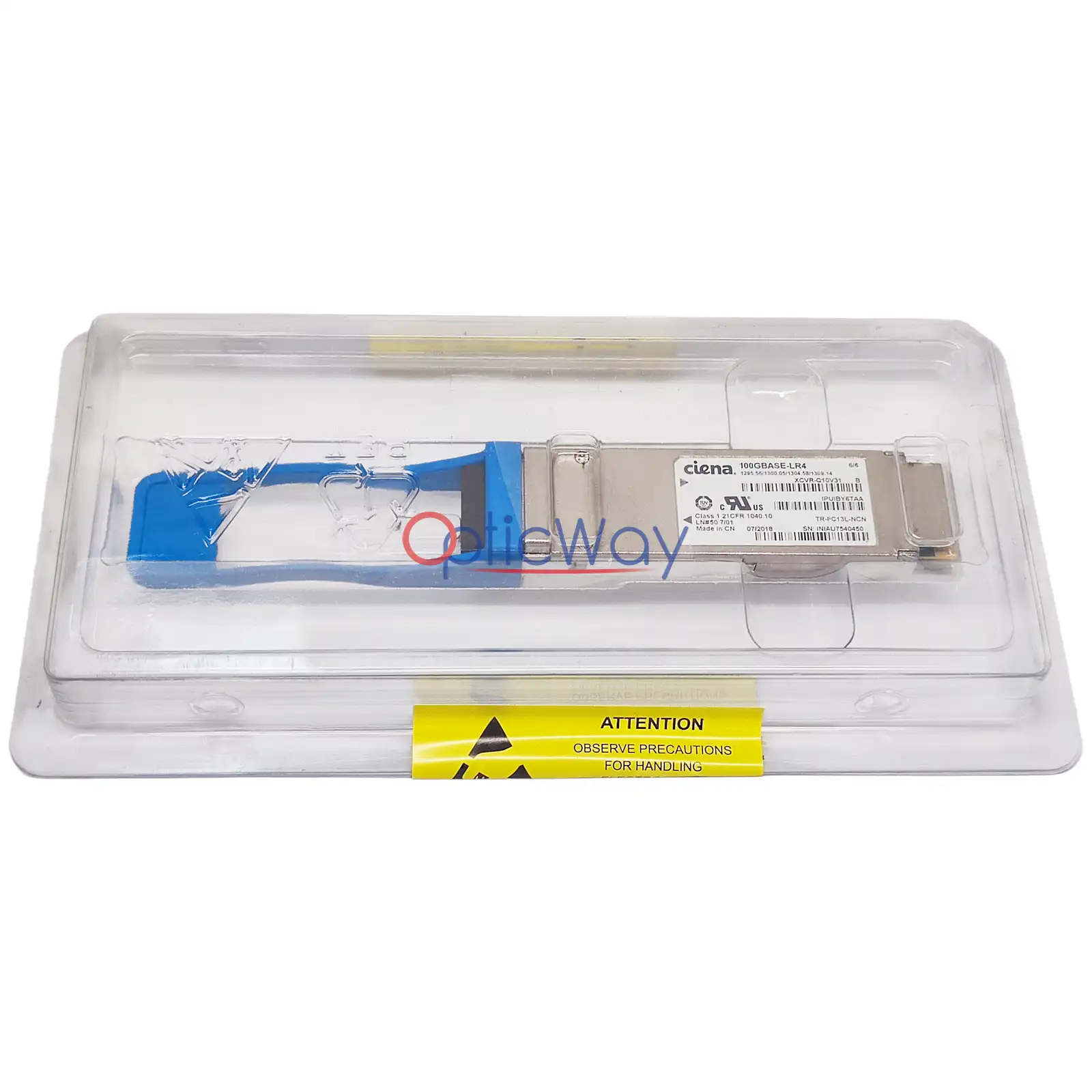

Genuine Original Ciena XCVR-Q10V31 IPUIBY6TAA 100GBASE-LR4 QSFP28 100G 10km SMF

The Ciena XCVR-Q10V31 is a 100GBASE-LR4 QSFP28 optical transceiver module designed for high-speed, long-reach data transmission over single-mode fiber (SMF). Compliant with IEEE 802.3ba and QSFP28 MSA standards, it delivers 100Gbps over 10km using four LAN-WDM wavelengths (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm) via dual LC connectors. Equipped with Digital Optical Monitoring (DOM), it enables real-time diagnostics for temperature, voltage, bias, and optical power — ideal for carrier-class and enterprise networks. This module is validated for Ciena 6500, 5400, and compatible platforms.

  Model Number
100GBASE-LR4 QSFP28
Band
Ciena
Ciena Part Number
XCVR-Q10V31
Form Factor
  QSFP28
Data Rate
100Gbps
Standard
IEEE 802.3ba 100GBASE-LR4, ITU-T G.709 OTU4
Fiber Type
Multi-Mode Fiber (SMF)
Transmission Distance
Up to 10km
Wavelength
1295.56 / 1300.05 / 1304.58 / 1309.14 nm
Connector Type
Duplex LC
Power Supply
3.3V DC
Power Consumption
< 3.5 W
Operating Temperature
0°C ~ 70°C
CLEI Code
IPUIBY6TAA
Vendor Model
TR-FC13L-NCN
Country of Origin
  China
Typical Applications

✅100G OTU4 / 100GE service port expansion on Ciena 5400 / 6500 OTN transport platforms

✅100G backbone fiber interconnection between TOR and core switches in large cloud data centers

✅100G cross-site fiber backbone networking for metro transport core layers

✅100G optical trunk links for carrier provincial backbone and metropolitan disaster recovery data centers

Product Highlights

✨Genuine Original Ciena Hardware: fully validated by factory optical and environmental tests, zero alarm operation on Ciena transport equipment

✨Universal Standard 100G LR4 LAN-WDM Solution: IEEE standardized LWDM tight-spacing optical design with cross-brand interoperability, compatible with other vendors’ same-spec QSFP28 LR4 transceivers

✨10km Single-Mode Long-Reach Transmission: No optical repeater amplifier required, ideal for metropolitan data center and metro site backbone networking

✨4 Independent Lane DOM Monitoring: NMS separately reads optical power & temperature of each lane to accurately isolate single-channel fiber and laser faults

✨Universal Standard QSFP28 Form Factor: Compatible with all switches and OTN transport chassis complying with QSFP28 MSA, flexible hardware replacement

✨Dual-Service Bearer Design: Simultaneously carries 100GE Ethernet and OTU4 OTN services to fit multi-scenario carrier bearer networks
