Specifications

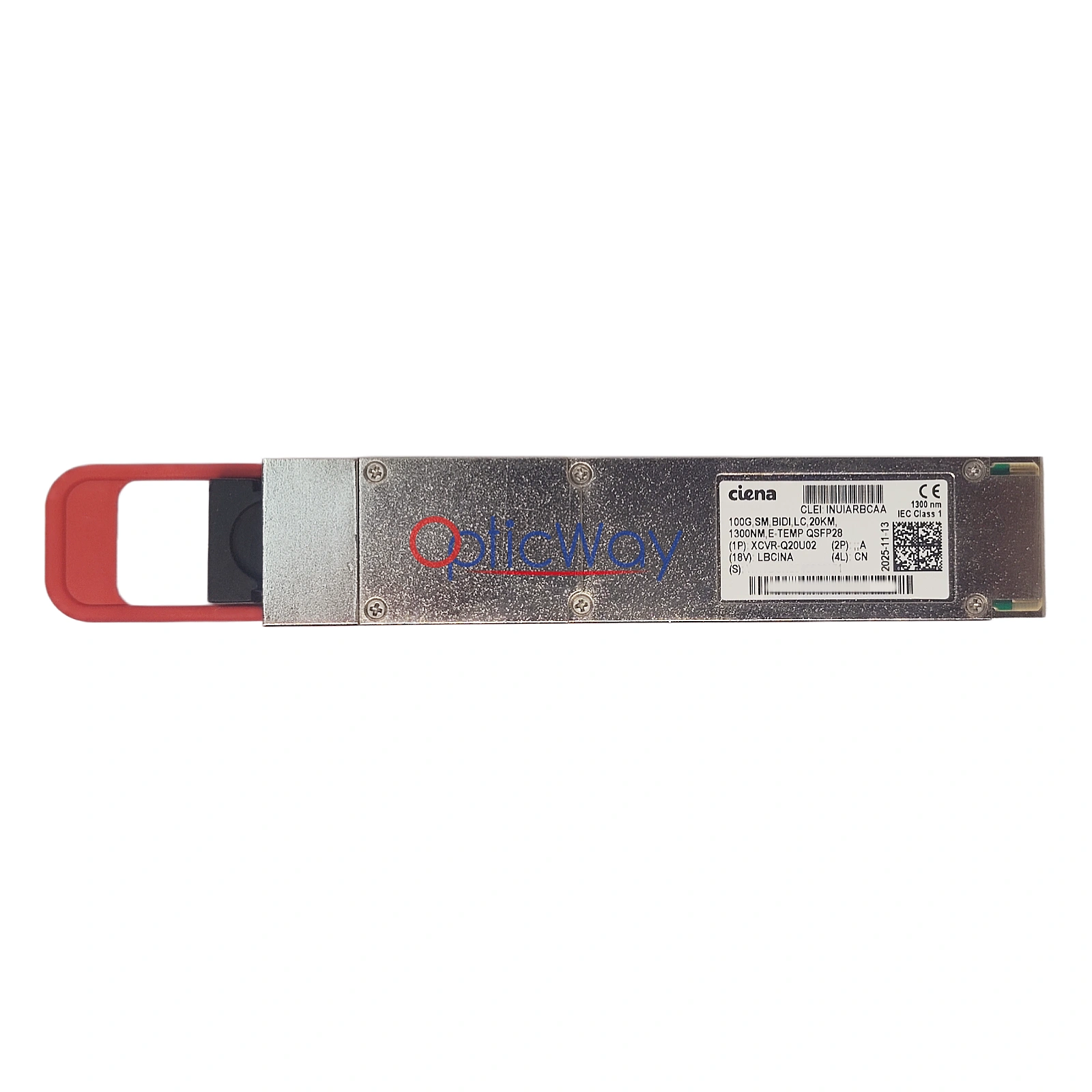

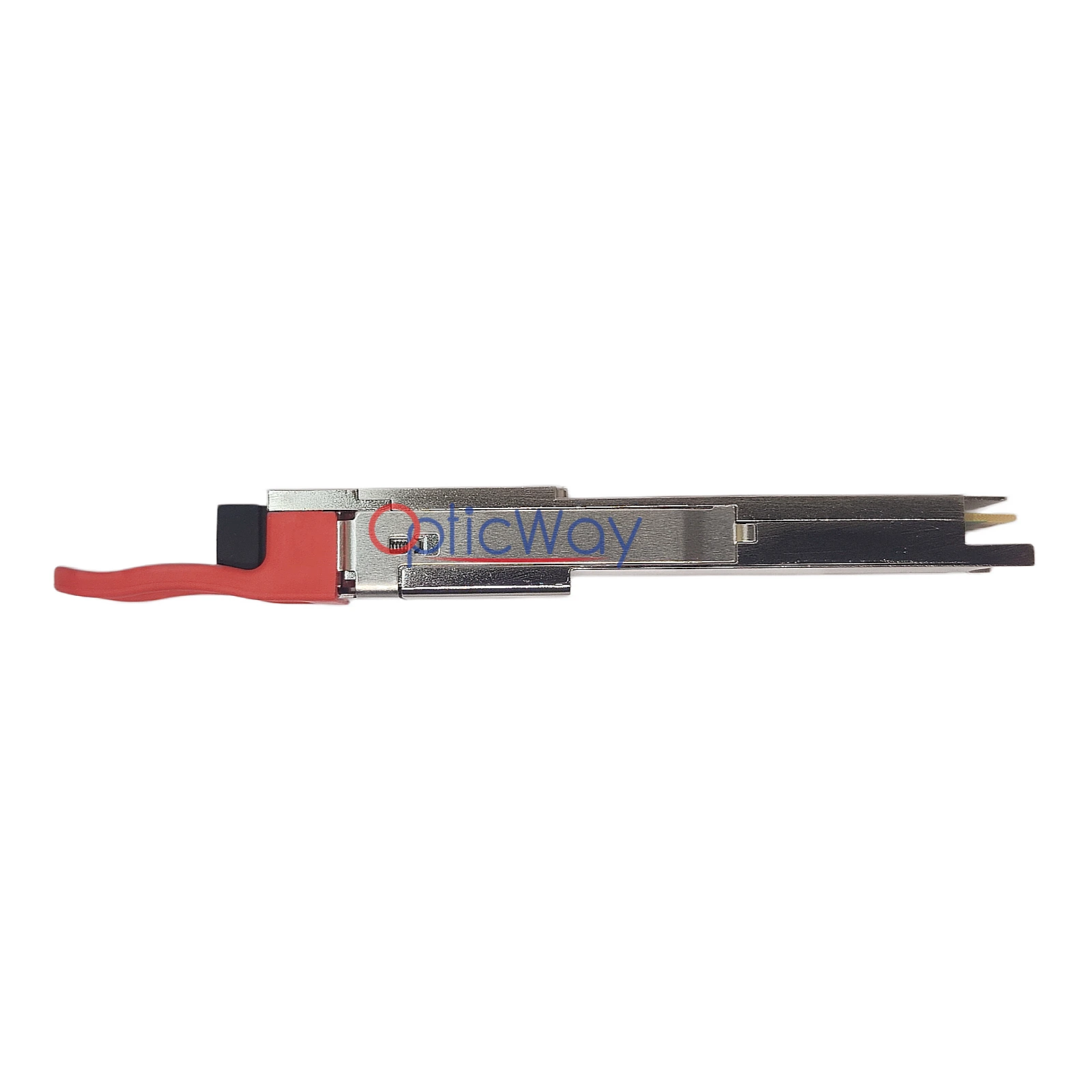

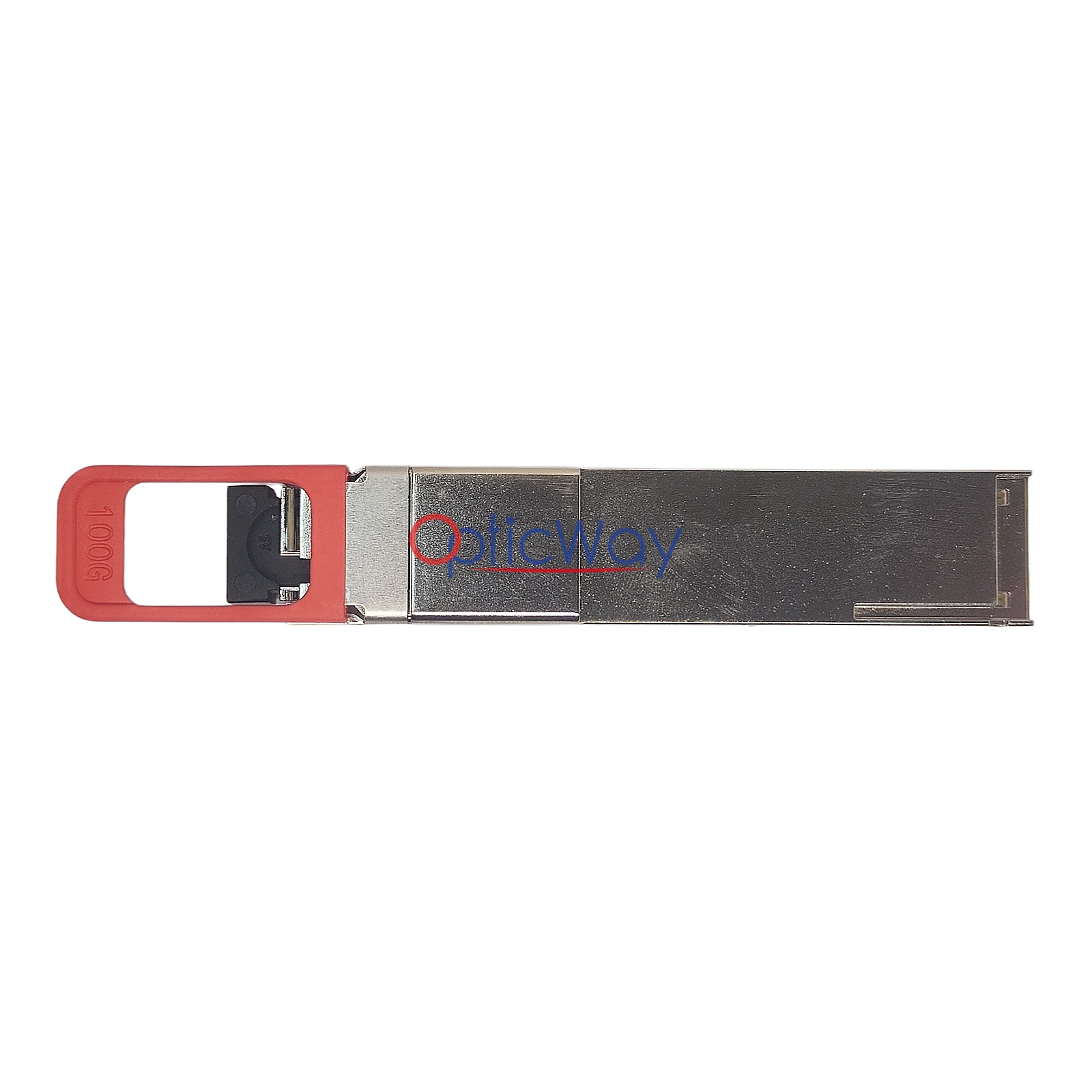

Ciena XCVR-Q20U02 100G QSFP28 BiDi 20km 1300nm SMF LC E-Temp INUIARBCAA Optical Transceiver Module
The Ciena XCVR-Q20U02 (CLEI: INUIARBCAA) is a high-performance 100GBASE-BiDi QSFP28 optical transceiver, factory-calibrated for Ciena network platforms. Operating at 1300 nm, it supports 100Gbps full-duplex transmission over a single pair of single-mode fibers (BiDi) with a reach of up to 20 km. Designed for extended temperature (E-Temp) operation, it features an LC duplex connector, full DDM/DOM monitoring, and meets QSFP28 MSA and 100GBASE-BiDi standards.

Ciena Part Number

XCVR-Q20U02

Band

Ciena

Product Model

100GBASE-BiDi 20km

Form Factor

QSFP28

Wavelength

1300nm

Transmission Distance

20km

Connector

Simplex LC

Fiber Type

SMF

Data Rate

100Gbps

Standards

IEEE 802.3bm, QSFP28 MSA, OTN OTU4

CLEI Code

INUIARACAA

Hot Swappable

Support

Origin

China

Operating Temperature

-5°C to 85°C

Typical Applications

Ciena Metro and Core Network 100G BiDi Links (Single-Core Fiber)
100G Network Upgrades Using Existing Single-Core Fiber Infrastructure
Telecom Service Provider Access and Aggregation Network Deployments
High-Density 100G QSFP28 Switch and Router Interfaces
Extended Temperature (E-Temp) Outdoor and Remote Site Deployments

Product Highlights

1. 100G Single-Fiber BiDi Transmission

This is a 100GBASE-BiDi QSFP28 transceiver designed for carrier-grade and data center applications.
It delivers 100Gbps full-duplex transmission over one single strand of standard G.652 single-mode fiber (SMF) using bidirectional (BiDi) technology.
Operating at Tx 1300nm / Rx 1280nm wavelengths, it supports a maximum reach of 20km, eliminating the need for a paired receive fiber.

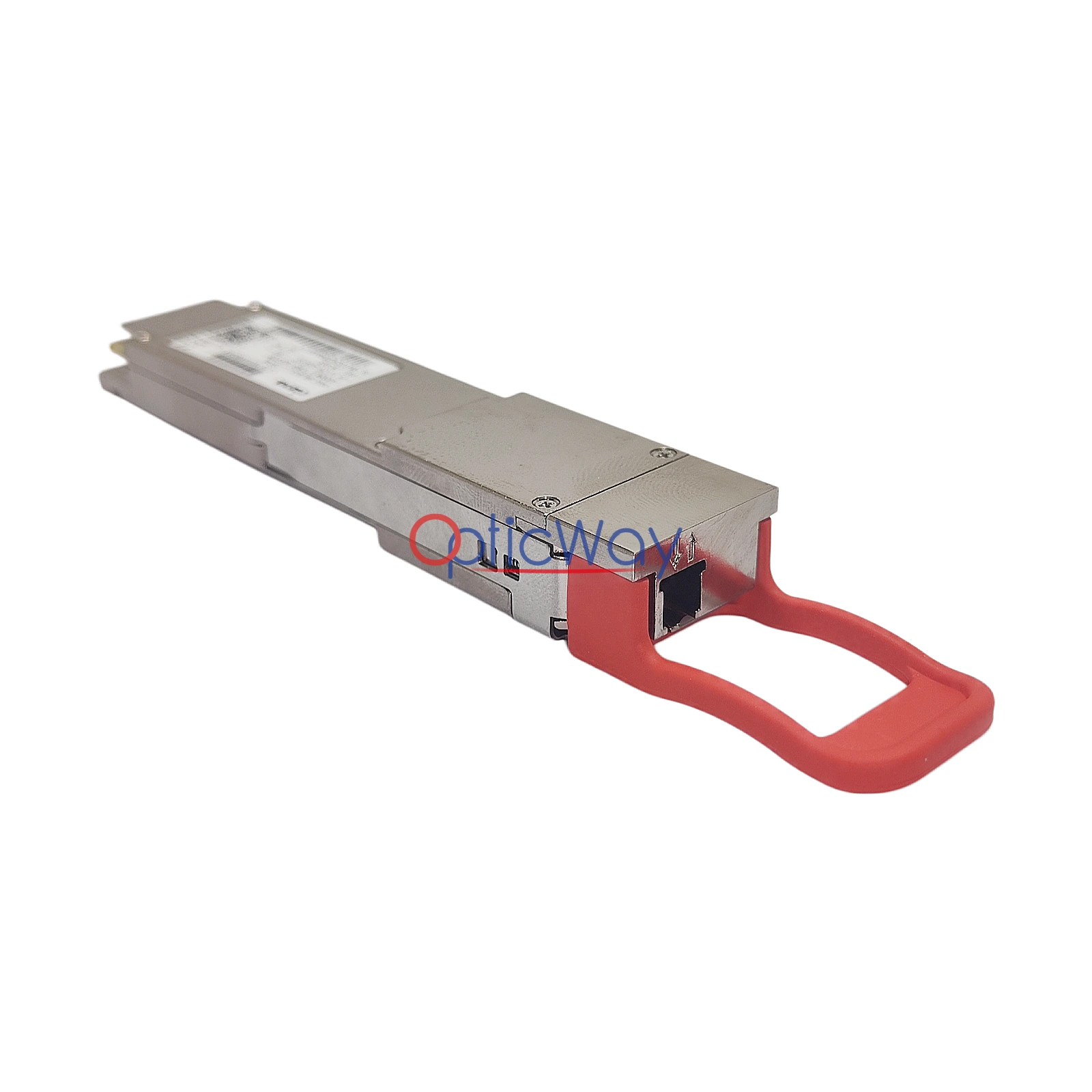

2. Single LC Connector Form Factor & Ciena Ecosystem Compatibility

It uses the industry-standard QSFP28 (25G×4 Quad Small Form-factor Pluggable) package with a single LC connector interface, optimized for high-density 100G switches and routers.
As a Ciena-branded module, it is natively validated for use with Ciena’s optical transport and data center switching platforms.
The module features an extended temperature (E-Temp) design, supporting reliable operation in challenging environmental conditions.

3. Reliable Performance & Compliance Certification

Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.
Certified as an IEC Class 1 Laser product and CE compliant, meeting global carrier-grade safety and performance requirements.
Manufactured in China, it undergoes rigorous factory testing to ensure stable performance in the extended temperature range.
