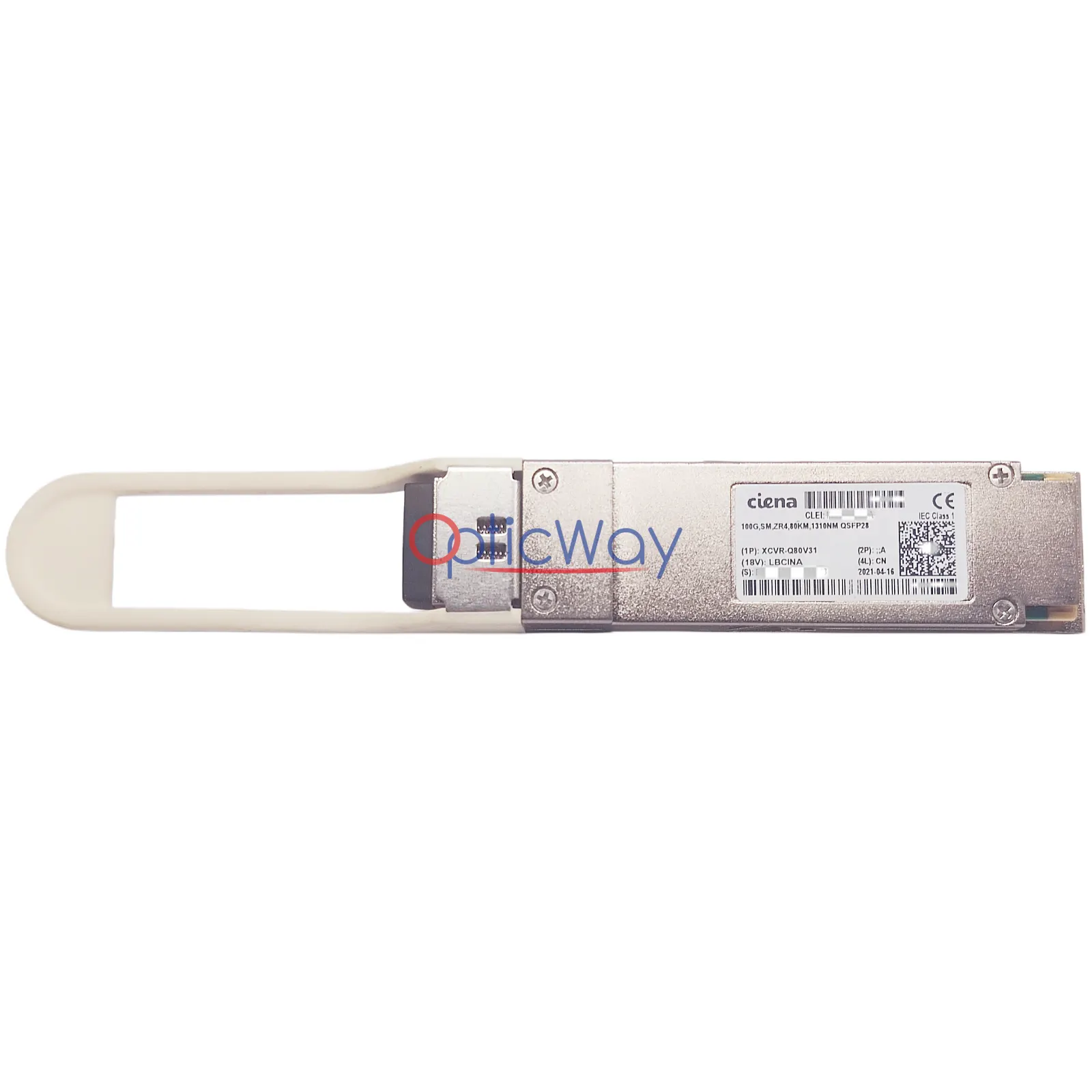

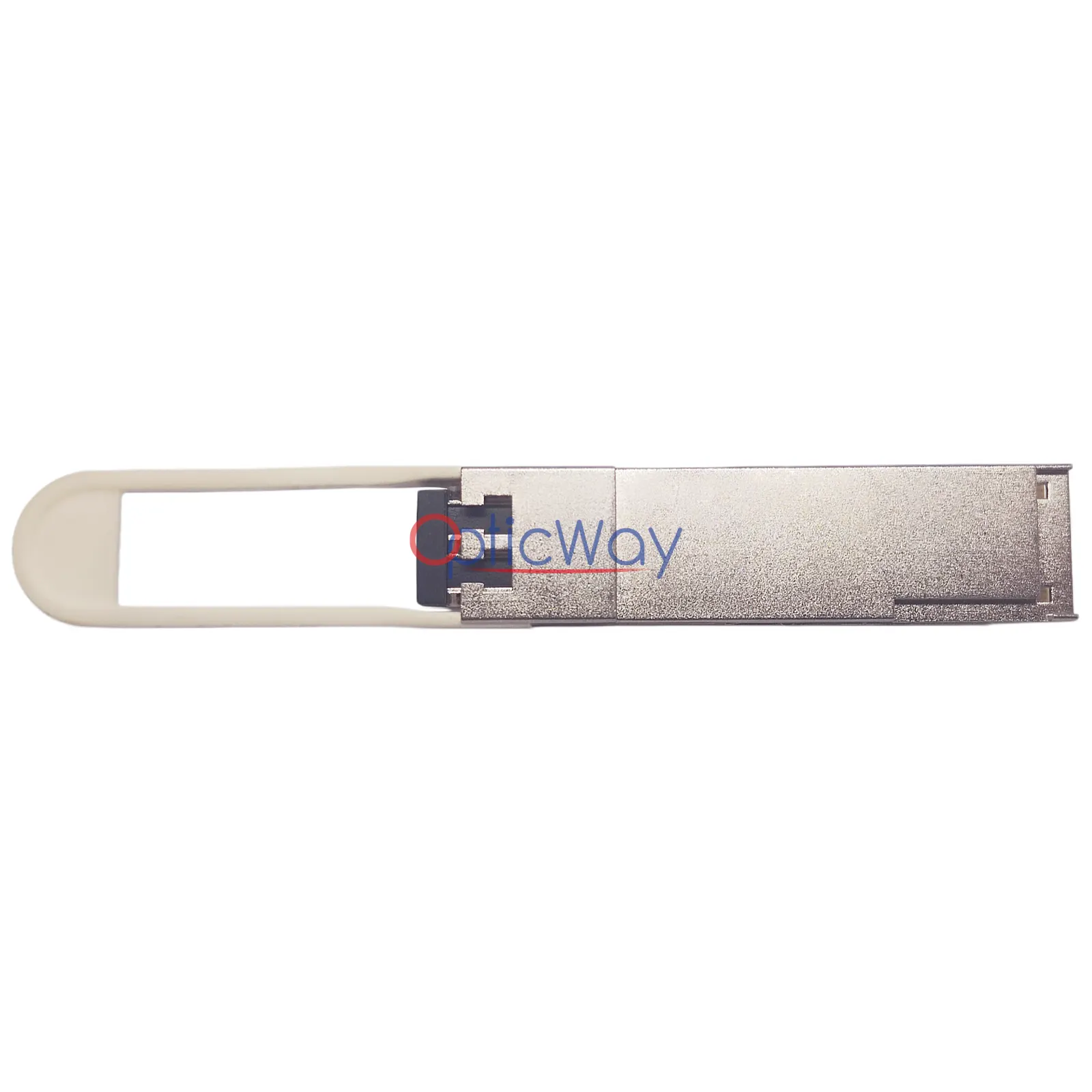

Genuine Ciena XCVR-Q80V31 QSFP28 100GBASE-ZR4 LAN-WDM 1310nm 80km SMF

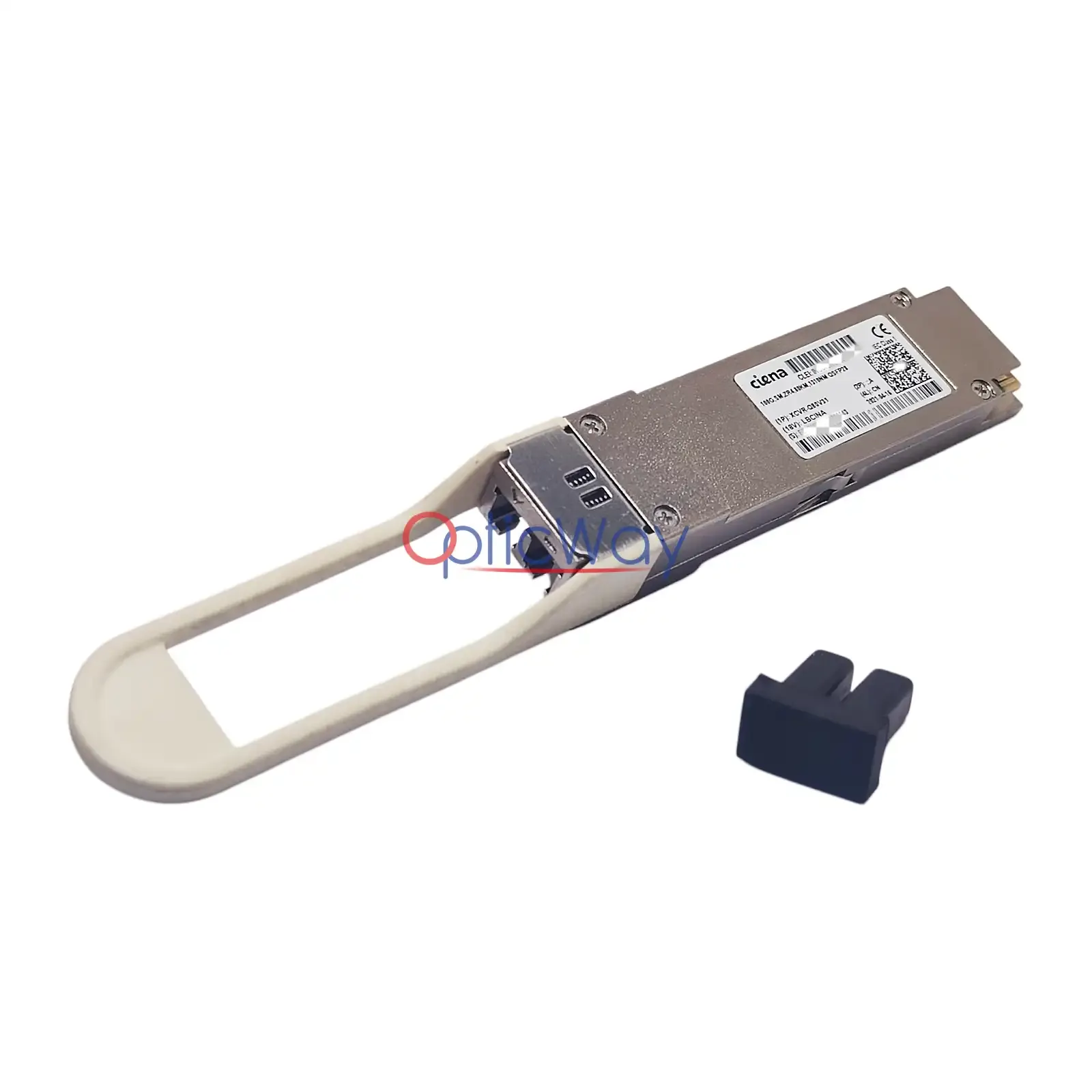

Ciena long-reach 100G ZR4 optical transceiver with QSFP28 form factor, part number XCVR-Q80V31, CLEI code INUIASKCAA. It complies with QSFP28 MSA and 100GBASE-ZR4 industry standards, adopting 4-channel LAN-WDM (LWDM) dedicated 1310nm wavelength scheme with approximately 4.5nm channel spacing. It delivers stable repeater-free ultra-long 80km transmission over G.652 single-mode fiber with duplex LC connector, total line rate up to 103.125Gbps.Equipped with SFF-8472 DOM digital optical monitoring, the module independently monitors TX power, RX power, module temperature, supply voltage and laser bias current of all 4 lanes. IEC Class 1 eye-safe laser. Natively compatible with Ciena 5400, 6500 OTN transport platforms, supporting multi-service transport of 100GE and OTU4, widely deployed for carrier provincial trunk lines, inter-city backbone and long-distance metropolitan data center interconnection.
Model Number
100GBASE-ZR4 QSFP28
Ciena Part Number
XCVR-Q80V31
Standard
IEEE 802.3ba 100GBASE-ZR4
Fiber Type
Multi-Mode Fiber (SMF)
Transmission Distance
Up to 80km
Wavelength
1310 nm band (4x LAN-WDM lanes)
Power Consumption
< 6.5 W
Operating Temperature
0°C ~ 70°C
Per-Lane TX Optical Power
-1 ~ +4 dBm
Per-Lane Receiver Sensitivity
≤ -14 dBm
Typical Applications
✅Data Center Interconnect (DCI): Long-haul connections between metropolitan data centers.
✅Metropolitan Area Networks (MAN): 100Gbps backbone links in city-wide infrastructure.
✅Telecom Transport: OTN/SDH migration and 100GE service delivery over fiber.
✅Cloud & Hyperscale Networks: Scalable 100G connectivity for cloud service providers.
✅Enterprise Core Routing: High-bandwidth uplinks for core switches and routers.
Product Highlights
✨Genuine Ciena Hardware：Full factory optical, thermal cycling and burn-in reliability testing, zero-alarm operation on Ciena OTN transport equipment
✨100G ZR4 LAN-WDM Ultra-Long-Reach Solution: 80km repeater-free transmission eliminates line optical amplifiers to greatly reduce long-haul trunk construction costs
✨High-Power EML Laser Design: Excellent dispersion tolerance, compatible with legacy long-distance single-mode fiber for wider line adaptability
✨4 Independent Lane DOM Remote O&M: NMS separately reads operating data of each lane to rapidly isolate single-channel fiber attenuation and laser aging faults
✨Universal Standard QSFP28 Form Factor: Compatible with all switches and OTN transport chassis complying with QSFP28 MSA for flexible hardware replacement
✨Dual-service bearer optimized:Simultaneously supporting 100GE Ethernet and OTU4 transport to cover both data center and carrier long-haul bearer scenarios
