Product Description
CISCO CPAK-100G-LR4 V06 100GB 10km LR4 1310nm SMF 800-43011-03 Optical Transceiver
Cisco CPAK 100GBASE-LR4 and -LR4-2K Module
The primary application of the Cisco CPAK-100G-LR4, CPAK-100G-LR4-2K and CPAK-100GE-LR4 modules is to support 100Gbps optical links over standard Single-Mode Fiber (SMF, G.652) terminated with SC connectors or LC connectors (Figures 2a and 2b). The LC-SC adapter (Figure 1) on CPAK-100G-LR4 (ver 09 or higher) is removable if LC connectors are desired rather than the standard SC connectors; however, SC is the officially supported connector type.

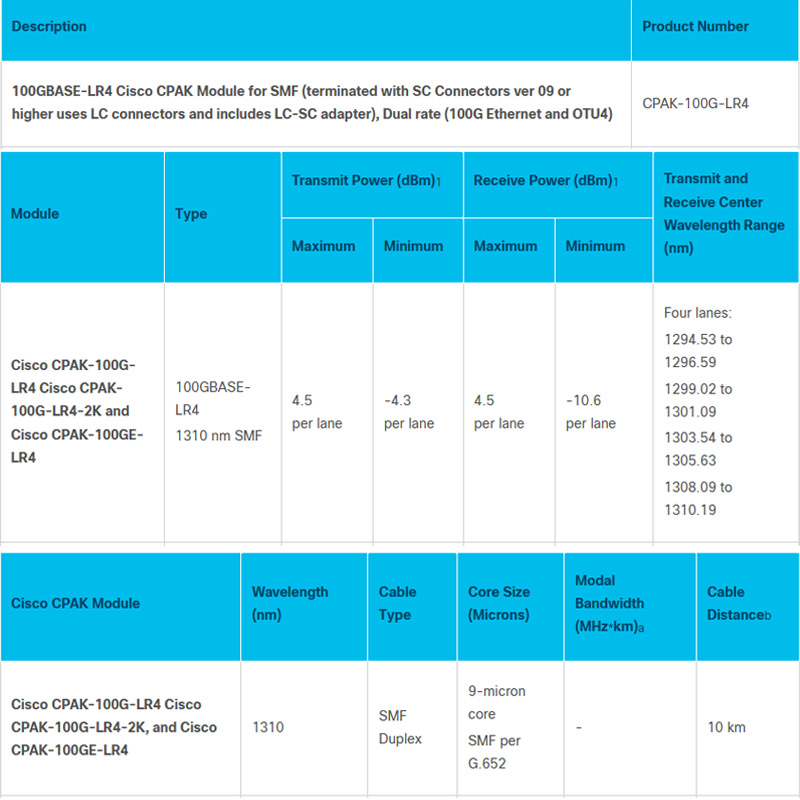

The LR4 module is IEEE 802.3ba-compliant and supports link lengths of up to 10 km over standard SMF, G.652. It delivers an aggregate data signal of 100 Gbps, carried over four LAN Wavelength-Division Multiplexing (WDM) wavelengths operating at a nominal 25 Gbps per lane. Optical multiplexing and demultiplexing of the four wavelengths are managed within the module.
Figure 1.
Cisco CPAK-100G-LR4 Module (ver 09 or higher) with LC-SC Adapter
Note: SC is the officially supported connector type.
Figure 2a
Cisco CPAK-100GE-LR4 and CPAK-100G-LR4 Module (Ver 09 or higher) with LC Connectors

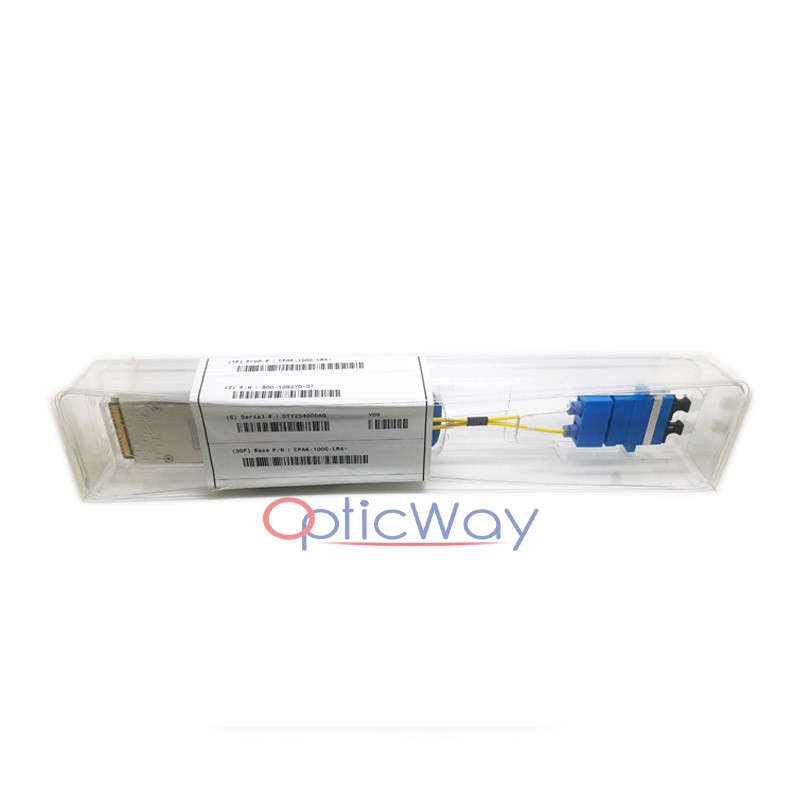

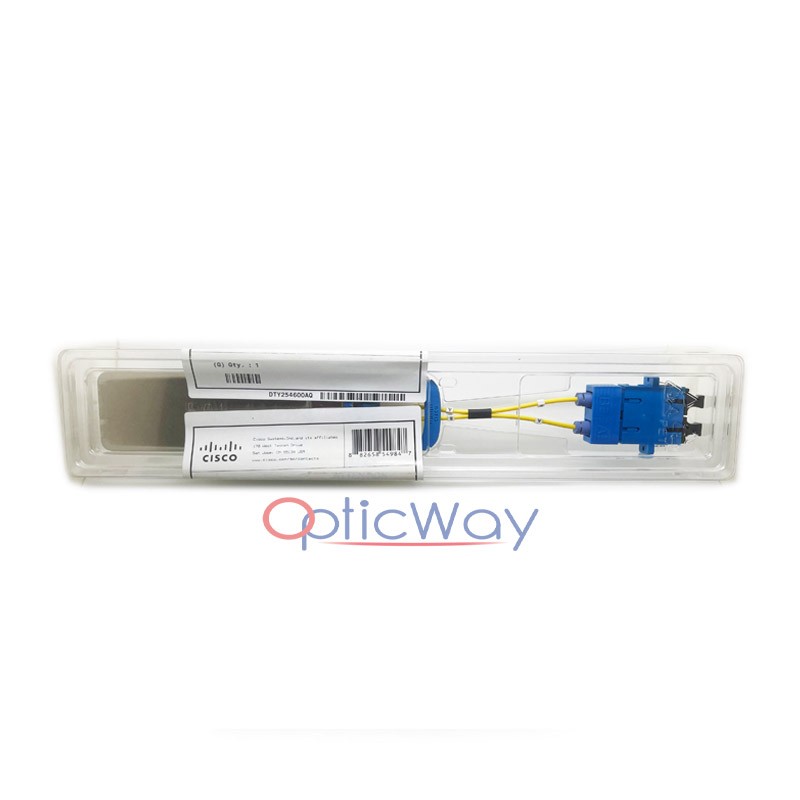

Figure 2b
Cisco CPAK-100G-LR4 (Ver 08 or earlier)/CPAK-100G-LR4-2K Module with SC Connectors
