Product Features
Brand: Cisco

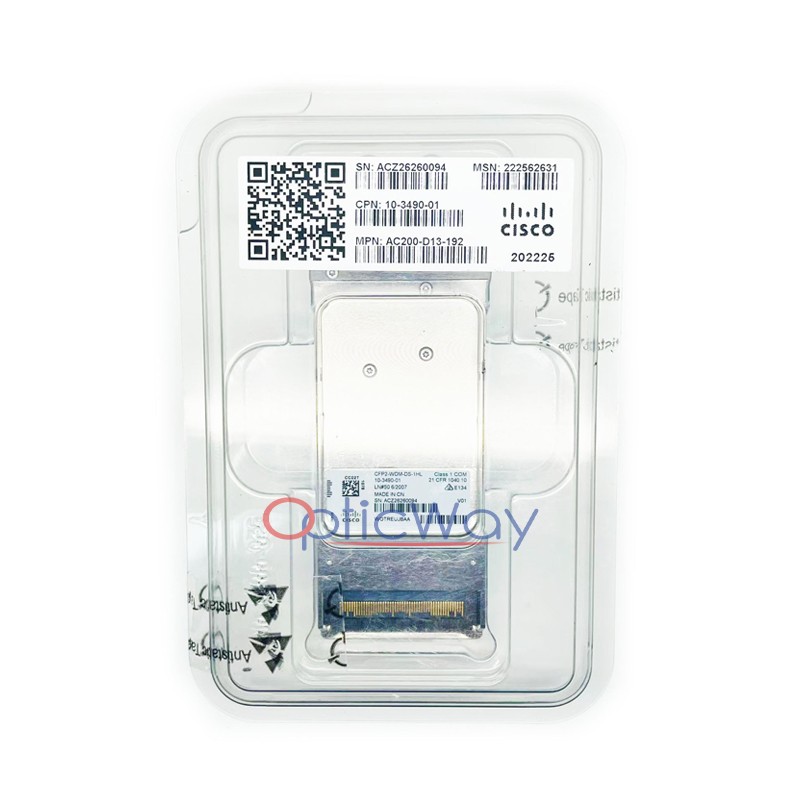

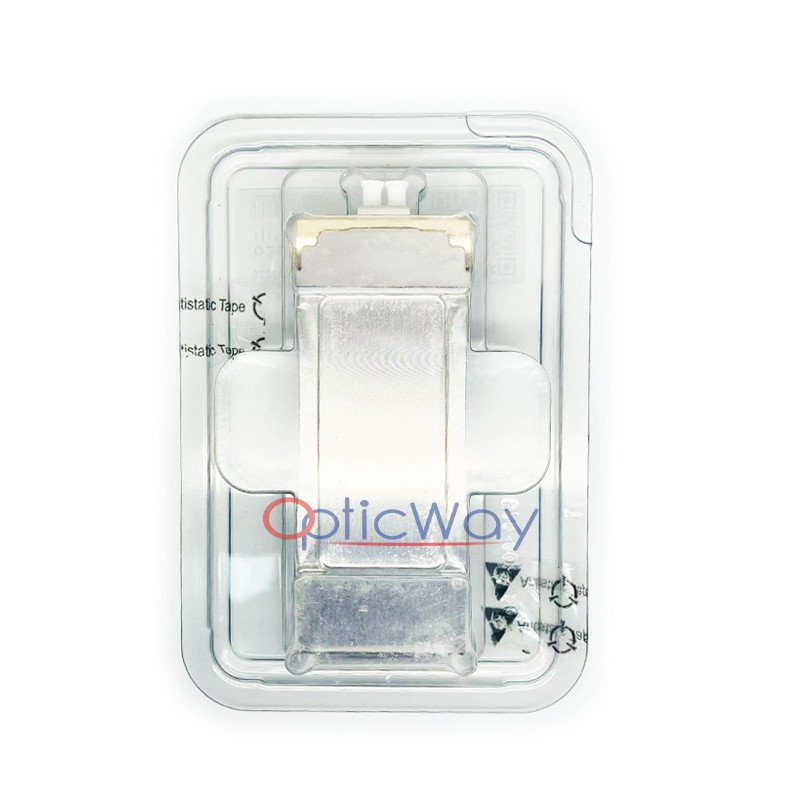

Model: CFP2-WDM-DS-1HL
Encapsulation mode: CFP2
Description: 200G, 100G, WDM digital CFP2 pluggable only licensed 100G - non-TOF version
Product Category: Pluggable optical module
Data rate: 200 gigabytes
Distance: 80 km
Optical fiber type: SMF
Wavelength: 1528.77 nm-1568.36 nm
Connector: LC
WDM: WDM
Application: 200G Ethernet
Operating temperature: 0 ℃ to 70 ℃
Cisco offers different versions of digital CFP2. Table 1 lists the Pids of products containing so-called "tunable optical filters (TOF)". The Pids listed in Table 2 are exactly the same as the previous module in Table 1, except that this version does not have TOF. The presence of TOF in a module is associated with the application that will be used. TOF allows pluggable DWDM systems for long range amplification. Removing the TOF module from the pluggable module can reduce costs, while applications should be limited to dark fiber systems. Although the customer network may or may not need to support DWDM
