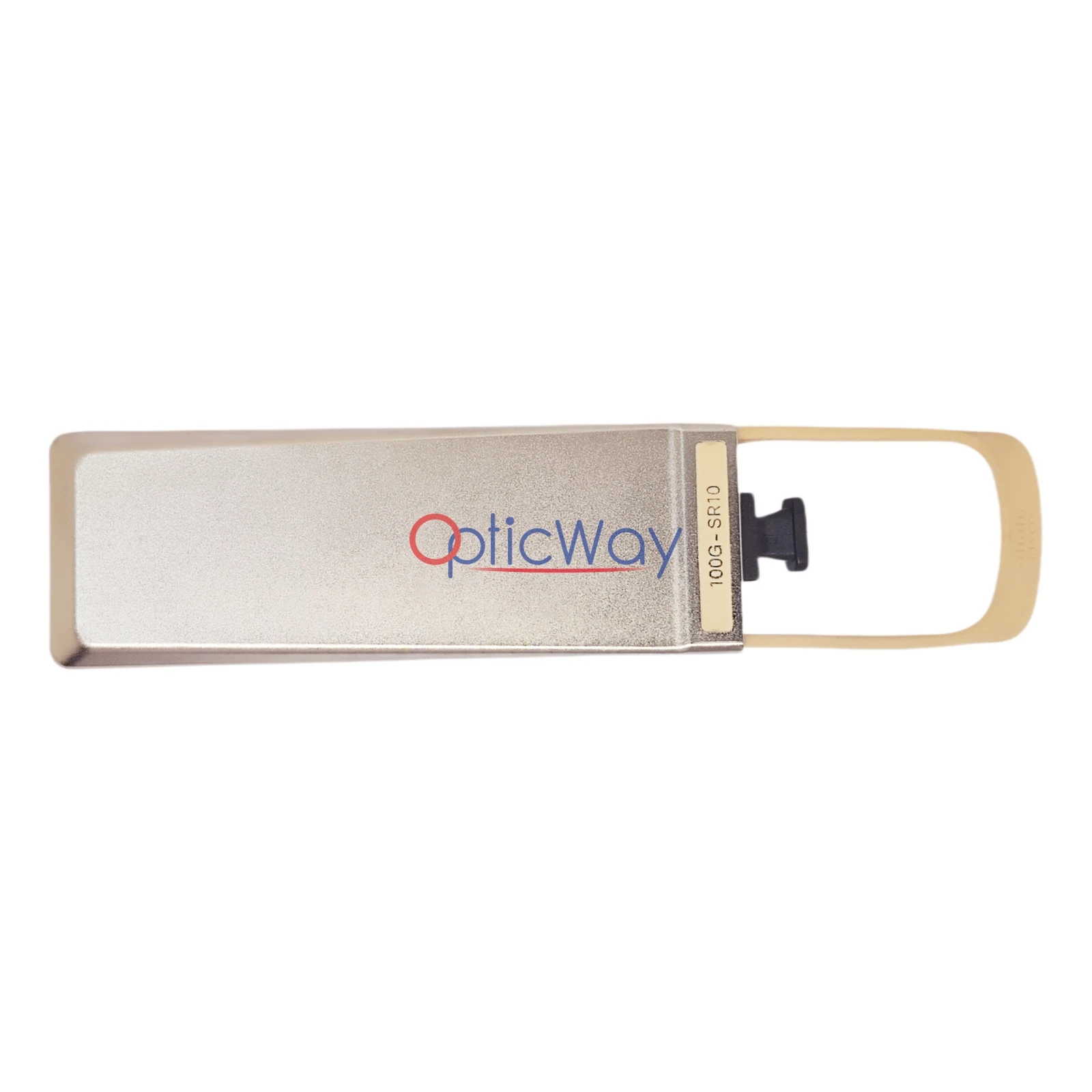

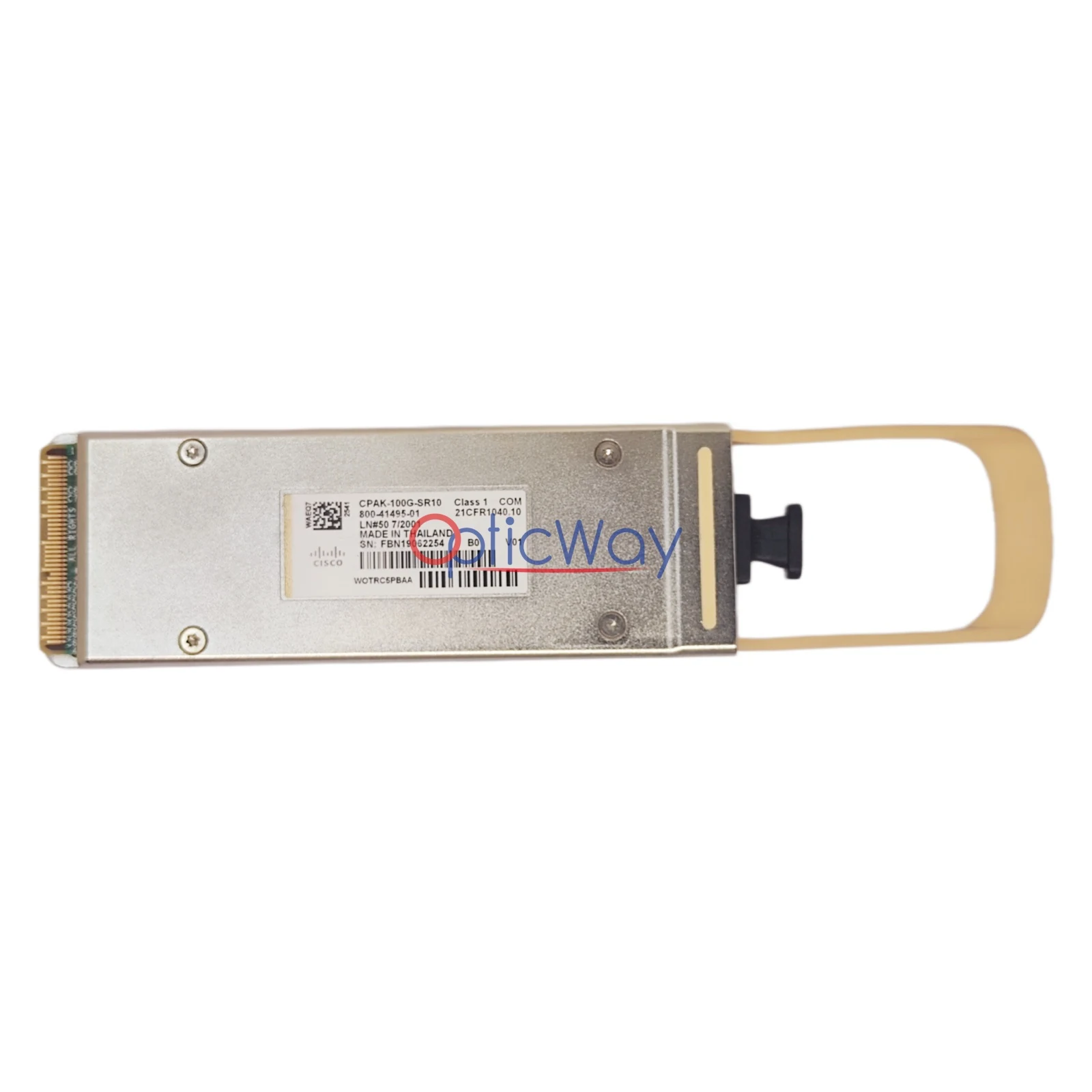

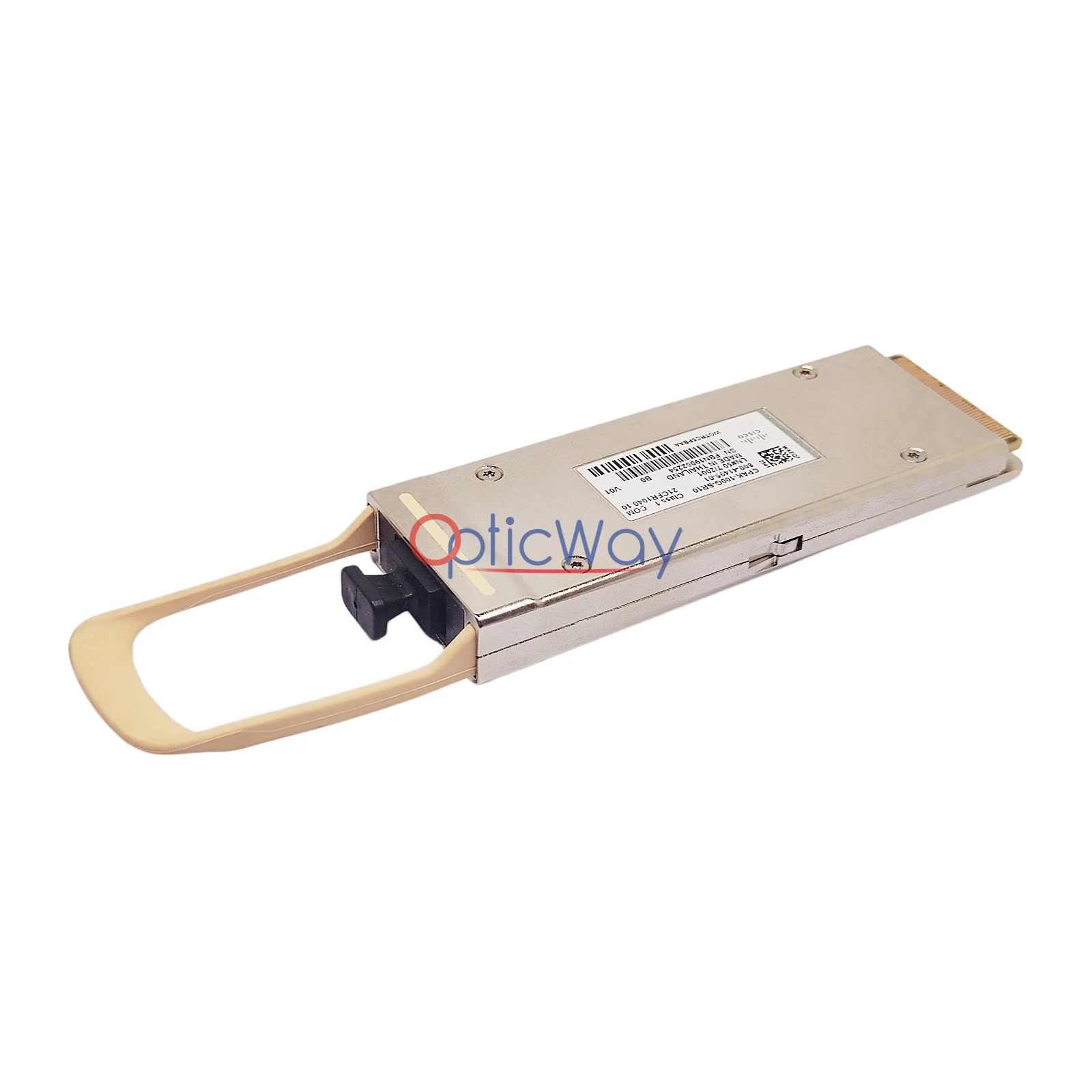

Cisco CPAK-100G-SR10 100GBASE-SR10 CPAK 850nm, 150m, MPO-24, MMF, DOM 800-41495-01 Transceiver Module
The Cisco CPAK-100G-SR10 (Part No. 800-41495-01) is a high-performance 100GBASE-SR10 CPAK optical transceiver designed for Cisco high-density data center switches and routers. It adopts 10×10G parallel optical technology, delivering 100Gbps ultra-short-reach transmission over OM3/OM4 multi-mode fiber. Equipped with a standard MPO-24 connector, it fully complies with IEEE 802.3ba standard. Factory calibrated and Cisco certified, it provides stable and reliable 100G high-density interconnection for data center ToR uplinks and server cluster networking scenarios.

Part Number

800-41495-01

Band

Cisco

Model / Product Code

CPAK-100G-SR10

Form Factor

CPAK

Wavelength

850 nm

Data Rate

100 Gbps (10 x 10G lanes)

Connector

MPO-24 / MTP-24

Fiber Type

MMF

Max Cable Distance

100m over OM3 / 150m over OM4

Power Consumption

< 4.5 W maximum at 70°C

TX Power (per lane)

Max: +1.0 dBm | Min: -7.6 dBm

RX Power (per lane)

Max: +2.4 dBm | Min: -9.5 dBm

Origin

Thailand

Operating Temperature

0°C ~ 70°C

Typical Applications

Data Center ToR Switch 100G High-Density Uplink Connections
Blade Server Cluster and Cabinet High-Speed Interconnection
Enterprise Large-Scale Campus Network 100G Backbone Links
Cisco CPAK-port Device 100G Network Expansion and Upgrade
Short-reach High-Bandwidth Data Center Internal Networking

Product Highlights

1. Dedicated MPO-24 Interface for Standard SR10 Architecture

Different from SR4’s MPO-12 interface, 100GBASE-SR10 requires 20 full-duplex cores (10 transmit + 10 receive). The MPO-24 connector perfectly matches the core quantity demand, avoiding bandwidth bottlenecks and adaptation failures caused by insufficient cores of MPO-12. It is the only standard physical interface for 100G SR10 parallel optical transmission.

2. Mature 10×10G Parallel Optical Solution

Based on mature 850nm multi-mode parallel optical technology, it realizes stable 100Gbps transmission, fully utilizes existing OM3/OM4 fiber resources, and provides a low-cost and efficient short-distance 100G networking solution for data centers.

3. Cisco Original Certified Compatibility

All modules are factory tested and calibrated by Cisco, with zero compatibility errors for CPAK-port switches and routers. It supports plug-and-play, effectively simplifying network deployment and later operation and maintenance.

4. High-Density & Space-Saving Deployment

Compact CPAK ultra-small form factor supports ultra-high port density of data center devices, greatly saving cabinet space and meeting the large-scale 100G uplink expansion demand of modern data centers.
