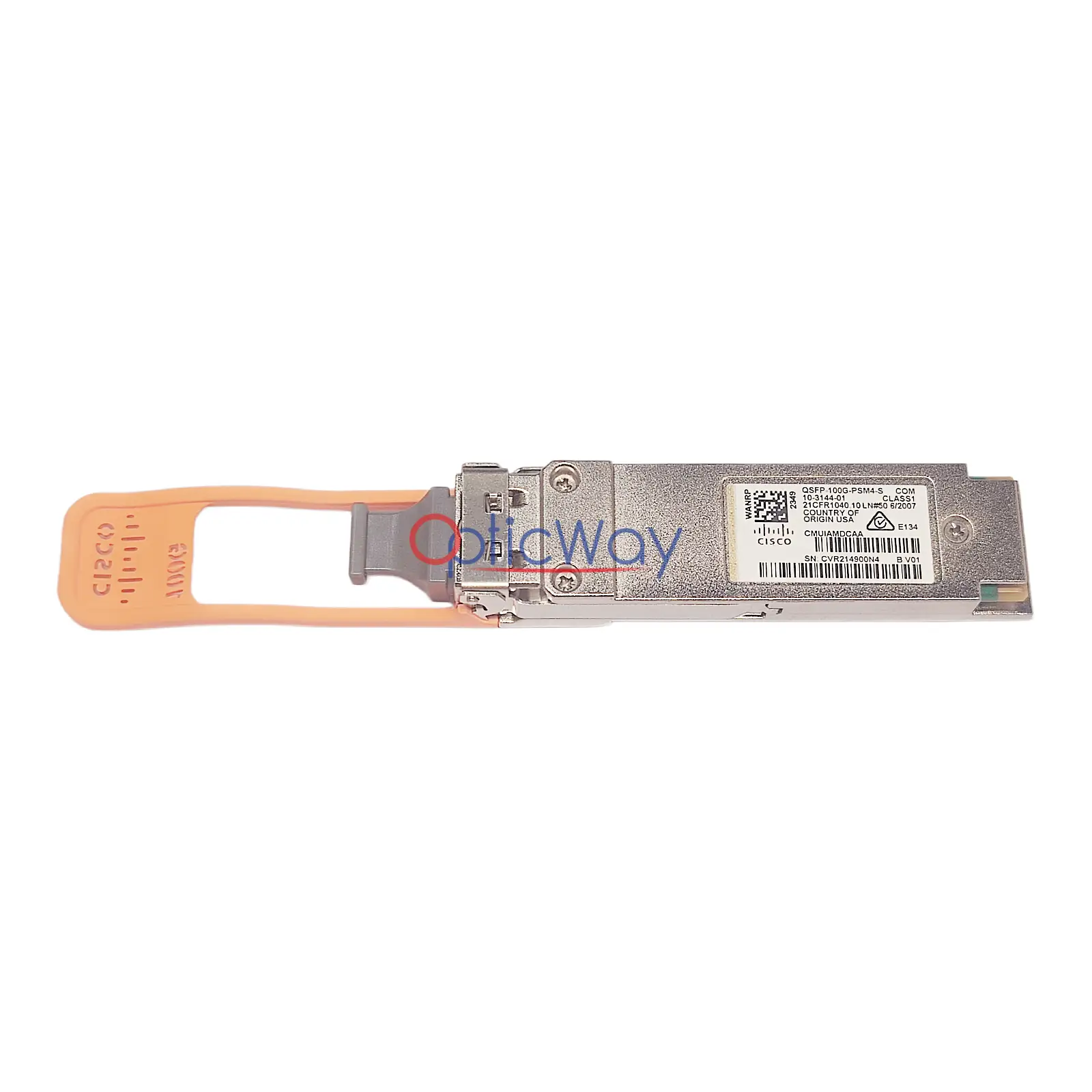

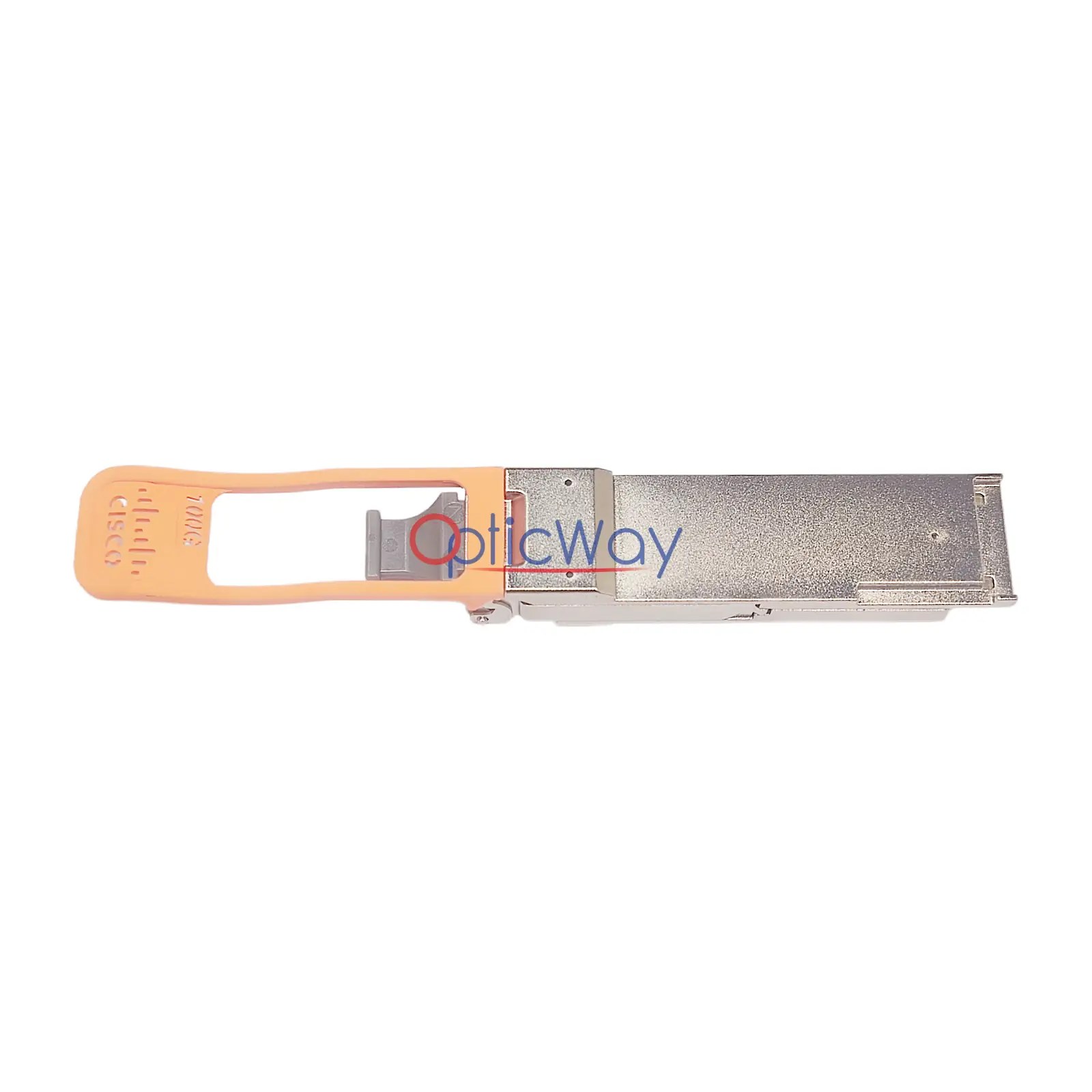

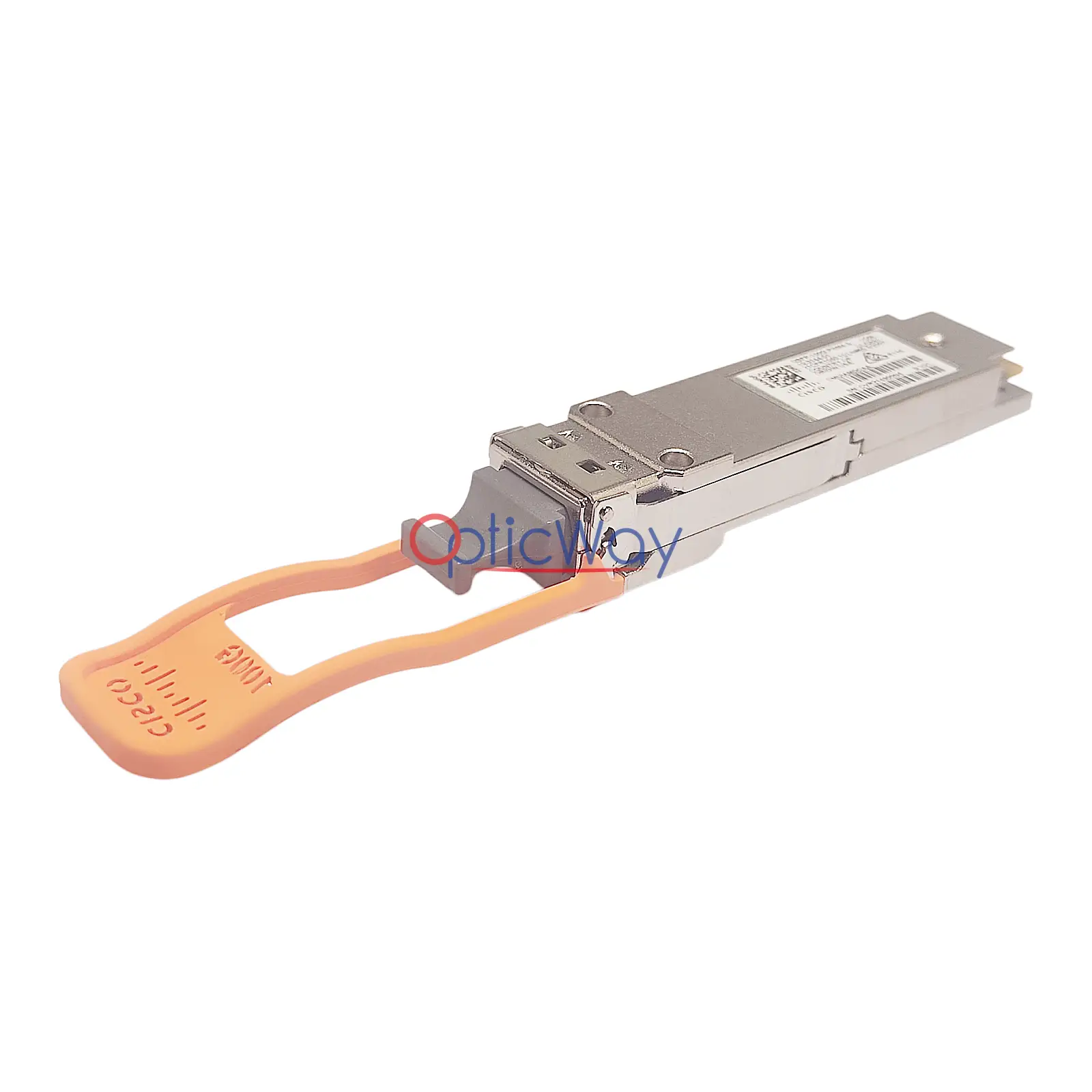

Cisco Genuine QSFP-100G-PSM4-S 100G QSFP28 PSM4 10-3144-01 SMF 500m MPO Optical Transceiver Module The Cisco QSFP-100G-PSM4-S (Part No. 10-3144-01) is a high-performance 100GBASE-PSM4 QSFP28 optical transceiver, designed for medium-reach data center and enterprise networks. It adopts parallel single-mode fiber (SMF) technology with four independent 25Gbps lanes at 1310 nm wavelength, supporting 100Gbps transmission via PAM4 modulation. Equipped with an MPO-12 connector, it supports transmission distances of up to 500 m over standard single-mode fiber. Factory-calibrated by Cisco, it provides reliable 100G medium-reach connectivity for data center spine-leaf fabrics and regional aggregation networks.
Model / Product Code
QSFP-100G-PSM4-S
Connector
MPO-12 / MTP-12
DOM (Digital Monitoring)
Supported
Tx Power
-6.0 to +2.0 dBm
Rx Power
-12.66 to +2.0 dBm
Operating Temperature
0°C ~ 70°C
Typical Applications
- Data Center Spine-Leaf 100G Medium-Reach Links
- Regional Data Center Aggregation and Core Network Uplinks
- Enterprise Campus Network 100G Long-Range Connections
- Cisco QSFP28 Port Switch/Router 100G Uplink Ports
- 100G Network Expansion and Medium-Reach Backbone Links
Product Highlights
1.Medium-Reach 100G Parallel Single-Mode Solution
- Offers a 500m reach over standard single-mode fiber (SMF), perfectly bridging the market gap between short-reach multi-mode (SR4) and long-reach single-mode (LR4) solutions. It represents the sweet spot for medium-range data center connections.
2.Parallel PSM4 Architecture for Maximum Efficiency
- Utilizes four parallel 25Gbps lanes over separate fibers. By eliminating the need for complex and expensive Wave Division Multiplexing (WDM) optics, it drastically simplifies the internal transceiver design while improving cost-efficiency.
3.Standard MPO-12 Interface for Simplified Deployment
- Adopts the universal MPO-12 connector, matching mainstream parallel fiber cable architectures. This design vastly simplifies cable management in high-density data center environments, speeding up on-site installation and future scaling.
4.Compact QSFP28 Form Factor for High Port Density
- The hot-pluggable QSFP28 form factor enables ultra-high port density on modern network switches, allowing data centers to efficiently scale their 100G uplinks without consuming excessive, valuable rack space.
5.Full IEEE 802.3bm Standard Compliance
- Fully compliant with 100GBASE-PSM4 specifications, guaranteeing solid, standards-based interoperability and reliable communications across diverse multi-vendor networking equipment.
6.Cisco Factory Certification, Calibration & Plug-and-Play - Each transceiver is strictly pre-tested and calibrated by Cisco. Pre-loaded with genuine vendor codes, these modules ensure 100% flawless, plug-and-play interoperability with Cisco platforms, eliminating port compatibility errors and minimizing deployment risks.
