Specifications

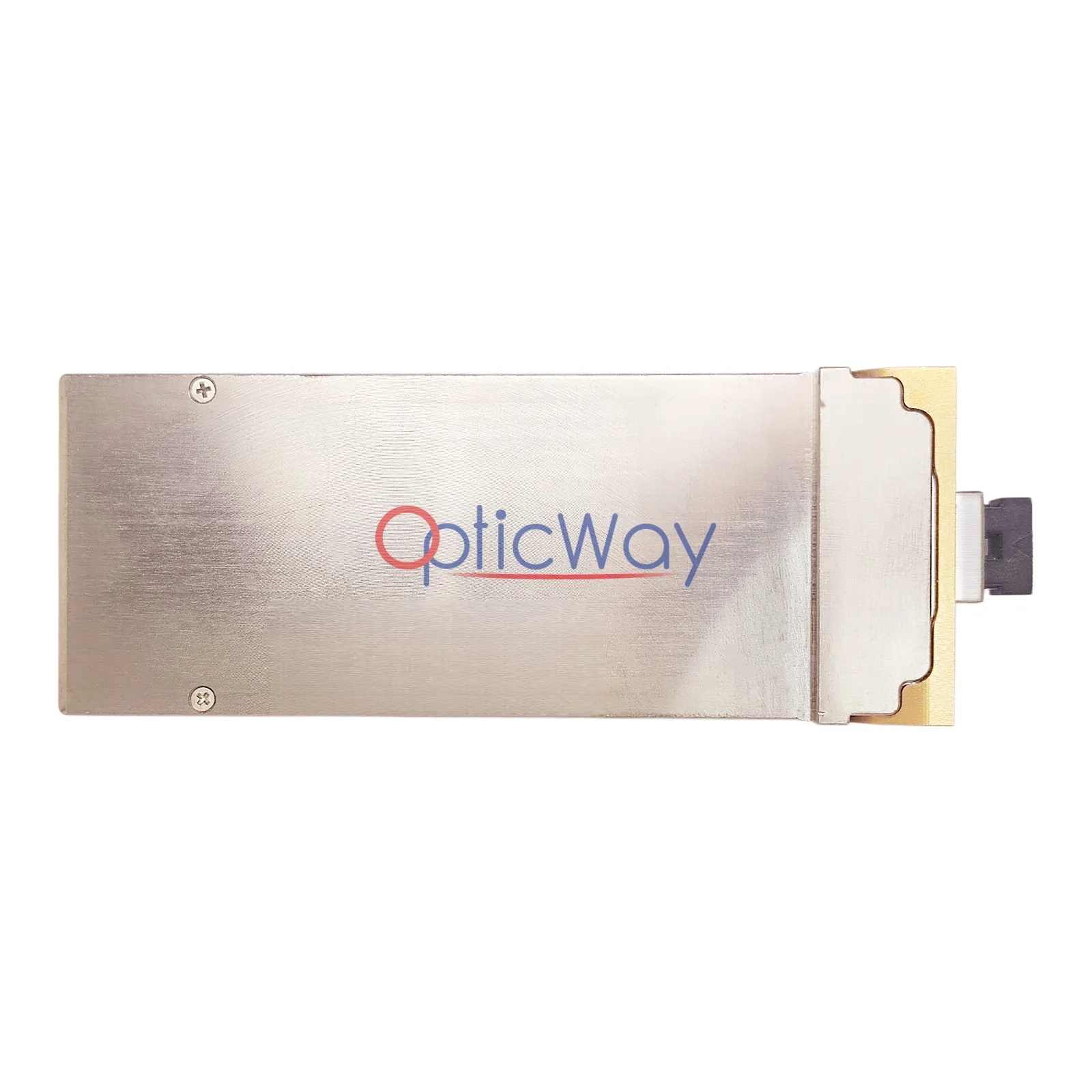

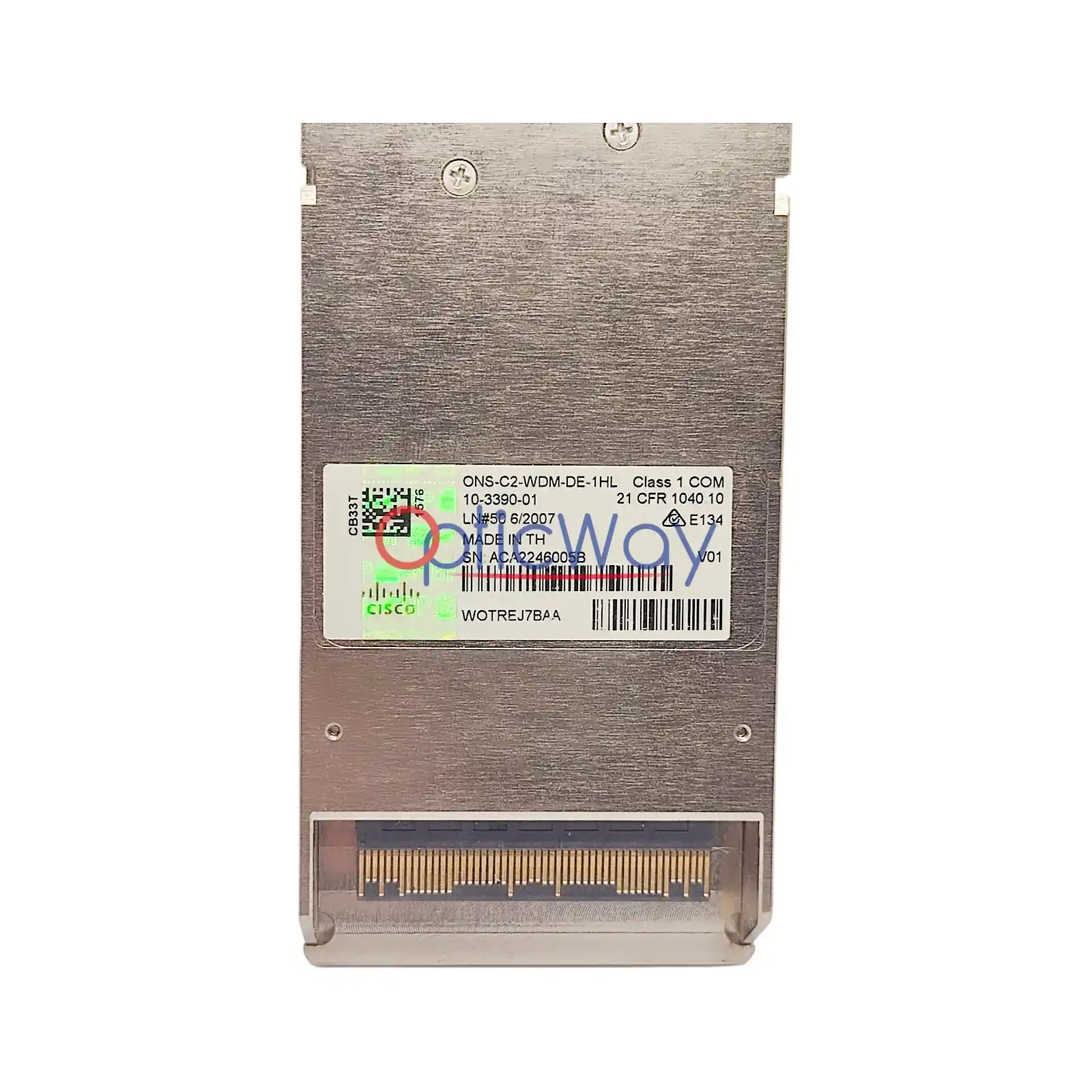

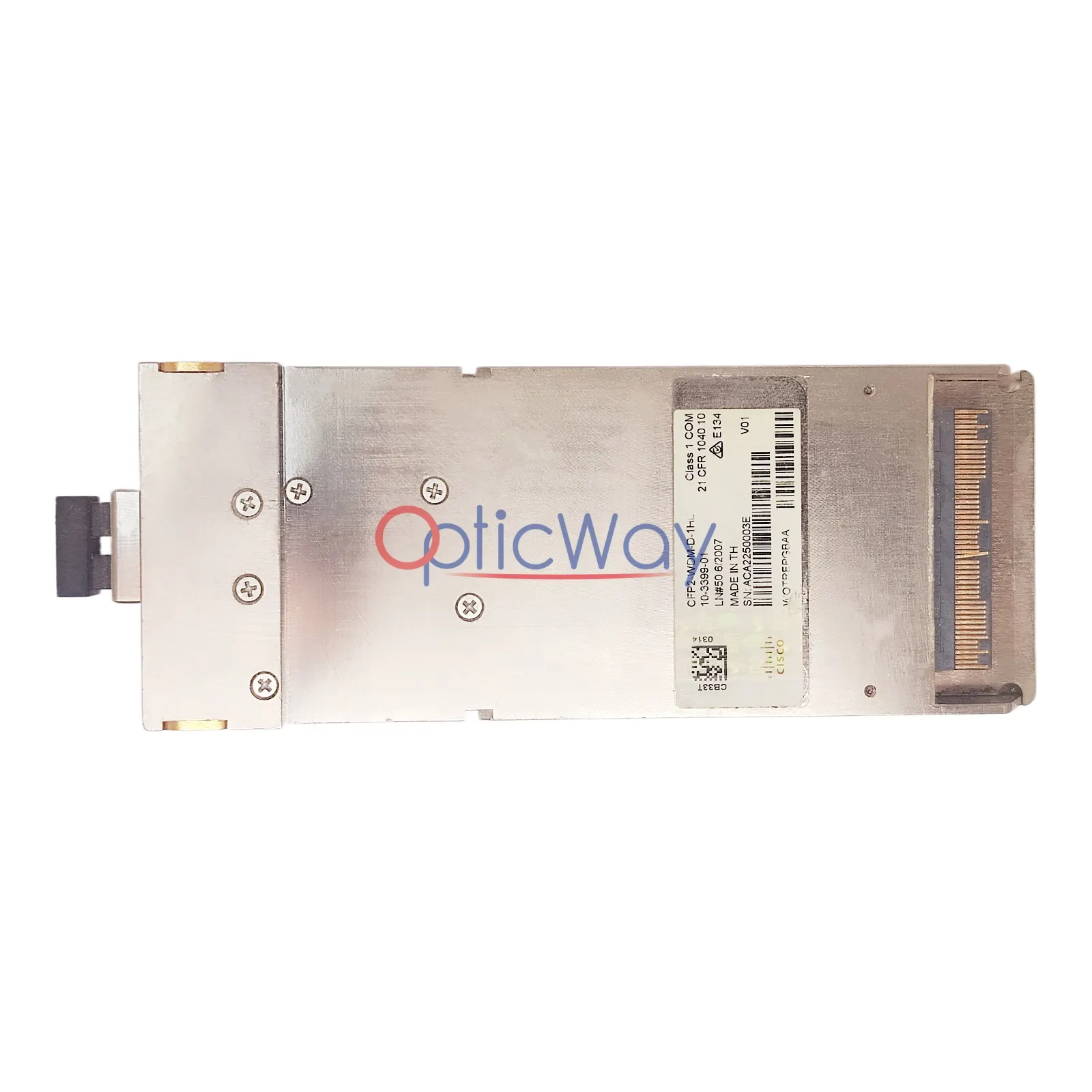

Cisco ONS-C2-WDM-DE-1HL 100G/200G WDM CFP2 Coherent Optical Transceiver 10-3399-01 Hologrammed
The Cisco ONS-C2-WDM-DE-1HL (Part No. 10-3390-01) is a high-performance CFP2-form factor DWDM optical transceiver, designed for Cisco ONS optical transport and DWDM network platforms. It supports high-speed 100G/200G transmission over single-mode fiber using dense wavelength division multiplexing (DWDM) technology, with advanced signal processing for long-haul and metro network applications. Factory-calibrated for seamless interoperability with Cisco systems, it meets strict carrier-grade reliability requirements.100% Authentic with Hologrammed Security Label.

CISCO Part Number

10-3399-01

Band

Cisco

Model Number

ONS-C2-WDM-DE-1HL

Form Factor

CFP2

Wavelength range

1528.77 nm - 1568.36 nm

Tx Power

-1.0 dBm to +4.0 dBm

Connector

Duplex LC

Fiber Type

SMF

Supported Rates

100G/200G (DWDM)

Standards

Class 1 Laser Product, 21 CFR 1040.10

Technology

DWDM (Dense Wavelength Division Multiplexing)

Hot Swappable

Support

Origin

Thailand

Operating Temperature

0°C ~ 70°C

Typical Applications

Cisco ONS DWDM/OTN Optical Transport Networks
Telecom Operator Core and Metro Network High-Capacity Links
Long-Haul DWDM Transmission Systems
Service Provider 100G/200G Optical Backbone Deployments
Carrier-Grade Network Expansion and Upgrades

Product Highlights

1.Optimized Lower-Power Architecture

As an optimized hardware revision, the 10-3399-01 features an upgraded DSP architecture that significantly reduces operational power consumption and heat dissipation while maintaining high-performance 100G/200G transmission, improving thermal efficiency in high-density environments.

2.Software-Programmable Dual-Rate & Flexible Modulation

Supports seamless software switching between 100G (PM-QPSK) and 200G (PM-16QAM) modulation formats. The 100G mode is engineered for ultra-long-haul backbone networks, while the 200G mode instantly doubles bandwidth for metro transport.

3.Ultra-High Digital Dispersion Compensation (No Physical DCF Required)

The internal DSP offers an exceptional Chromatic Dispersion (CD) tolerance of $\pm50,000 \text{ ps/nm}$, mathematically compensating for fiber impairments over thousands of kilometers. This eliminates the need for costly external Dispersion Compensation Fibers (DCF) and drastically reduces overall link latency.

4.Full C-Band Precision Tuning & Flex-Grid Support

Supports high-precision frequency tuning across the entire C-band, with native compatibility for standard 50-GHz grids (96 channels) and advanced Flex-Grid technology. A single part number covers all optical channels, drastically simplifying telecom-grade spare parts inventory.

5.High-Gain Soft-Decision FEC for Error-Free Transport

Equipped with advanced Soft-Decision Forward Error Correction (SD-FEC) algorithms, delivering a Net Coding Gain (NCG) of over 11.5 dB. This ensures error-free, high-quality data transport even over long-haul or noisy fiber spans with highly degraded OSNR levels.
