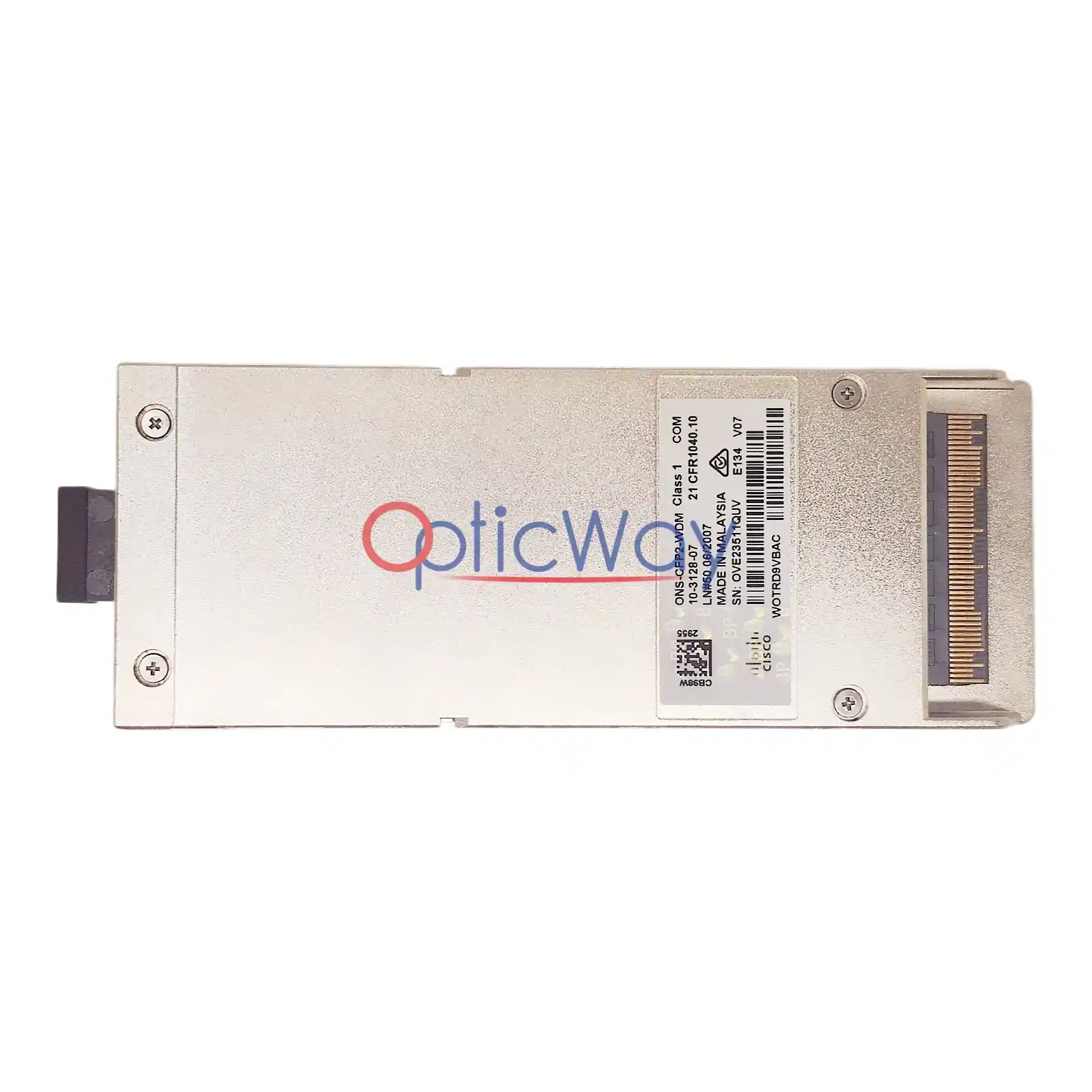

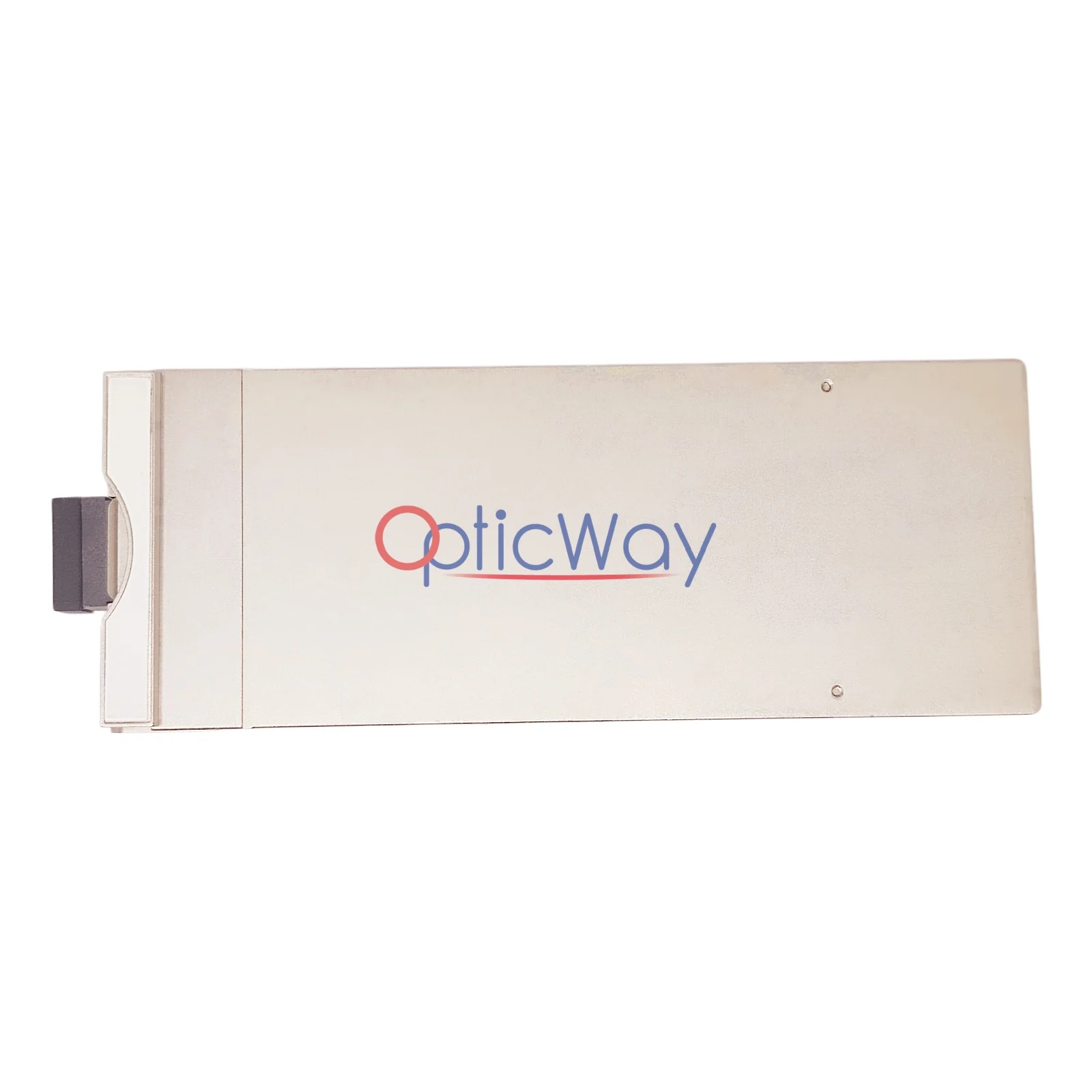

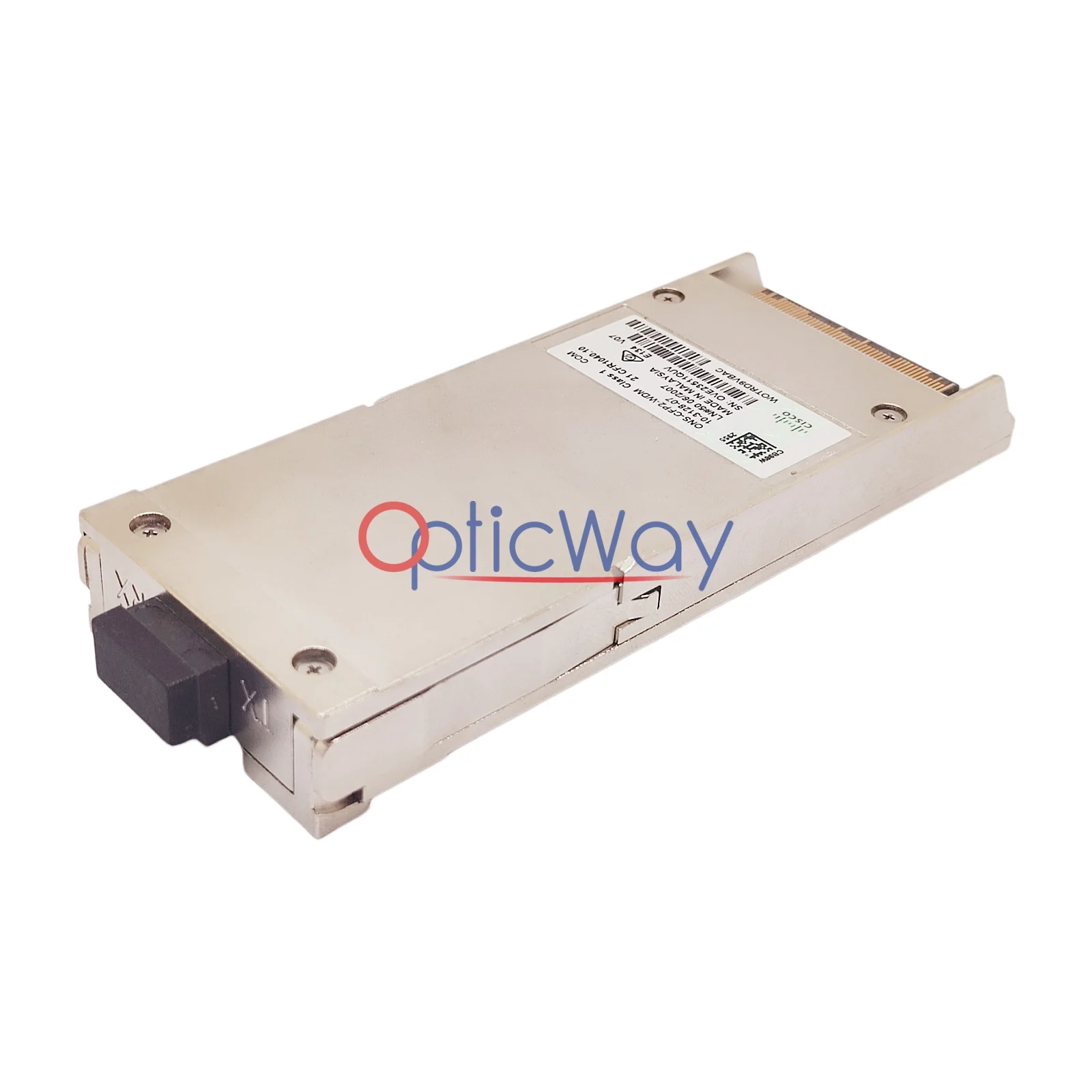

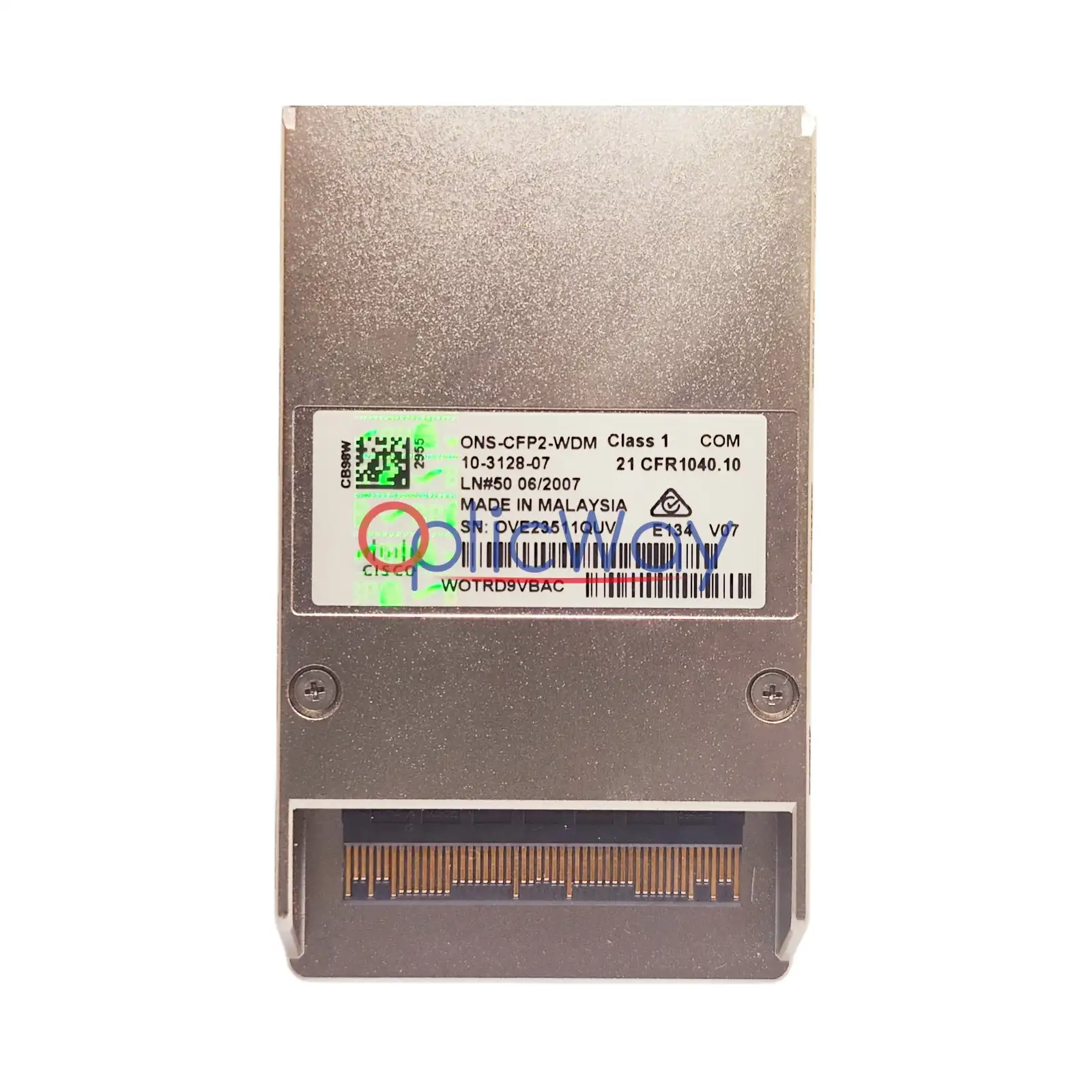

Cisco ONS-CFP2-WDM 100G/200G CFP2 Coherent Optical Transceiver 10-3128-07 Hologrammed
Scale your network infrastructure with the Cisco ONS-CFP2-WDM (Cisco Part Number: 10-3128-07, Hardware Revision: V07). This original, enterprise-grade CFP2 coherent optical transceiver is purpose-built for high-density, high-bandwidth DWDM networks, providing exceptional performance on Cisco ONS and NCS platforms (such as the NCS 2000 Series).100% Authentic with Hologrammed Security Label.

CISCO Part Number

10-3128-07

Band

Cisco

Model Number

ONS-CFP2-WDM

Form Factor

CFP2

Wavelength range

1528.77 nm - 1568.36 nm(Full C-Band Tunable)

Power Consumption

18W to 24W (Depending on 100G/200G mode)

Connector

Duplex LC

Fiber Type

SMF

Supported Rates

100G (PM-QPSK) / 200G (PM-16QAM)

Standards

Class 1 Laser Product, 21 CFR 1040.10

Technology

DWDM Coherent (Software-Programmable)

Hot Swappable

Support

Origin

Malaysia

Operating Temperature

0°C ~ 70°C

Typical Applications

Cisco ONS DWDM/OTN Optical Transport Networks
Telecom Operator Core and Metro Network High-Capacity Links
Long-Haul DWDM Transmission Systems
Service Provider 100G/200G Optical Backbone Deployments
Carrier-Grade Network Expansion and Upgrades

Product Highlights

1.Software-Programmable Dual-Rate Modulation: Offers ultimate operational flexibility by allowing dynamic software switching between 100G (PM-QPSK) for ultra-long-haul backbone links and 200G (PM-16QAM) to instantly double bandwidth on metro networks.
2.Massive Digital Dispersion Compensation: Features an advanced coherent DSP supporting an exceptional Chromatic Dispersion (CD) tolerance of $\pm50,000\text{ ps/nm}$. This mathematically eliminates the need for expensive physical Dispersion Compensation Fibers (DCF), decreasing overall link latency.
3.Full C-Band Precision Tunability: Supports seamless frequency tuning across the entire C-band spectrum. Fully compatible with standard 50-GHz grids (96 channels) and Flex-Grid architectures, reducing network spare-parts inventory to a single SKU.
4.High-Gain SD-FEC for Error-Free Links: Integrated with advanced Soft-Decision Forward Error Correction (SD-FEC), achieving a net coding gain (NCG) $> 11.5\text{ dB}$ to ensure high-quality, error-free data transport even on aging or highly degraded fiber networks.
