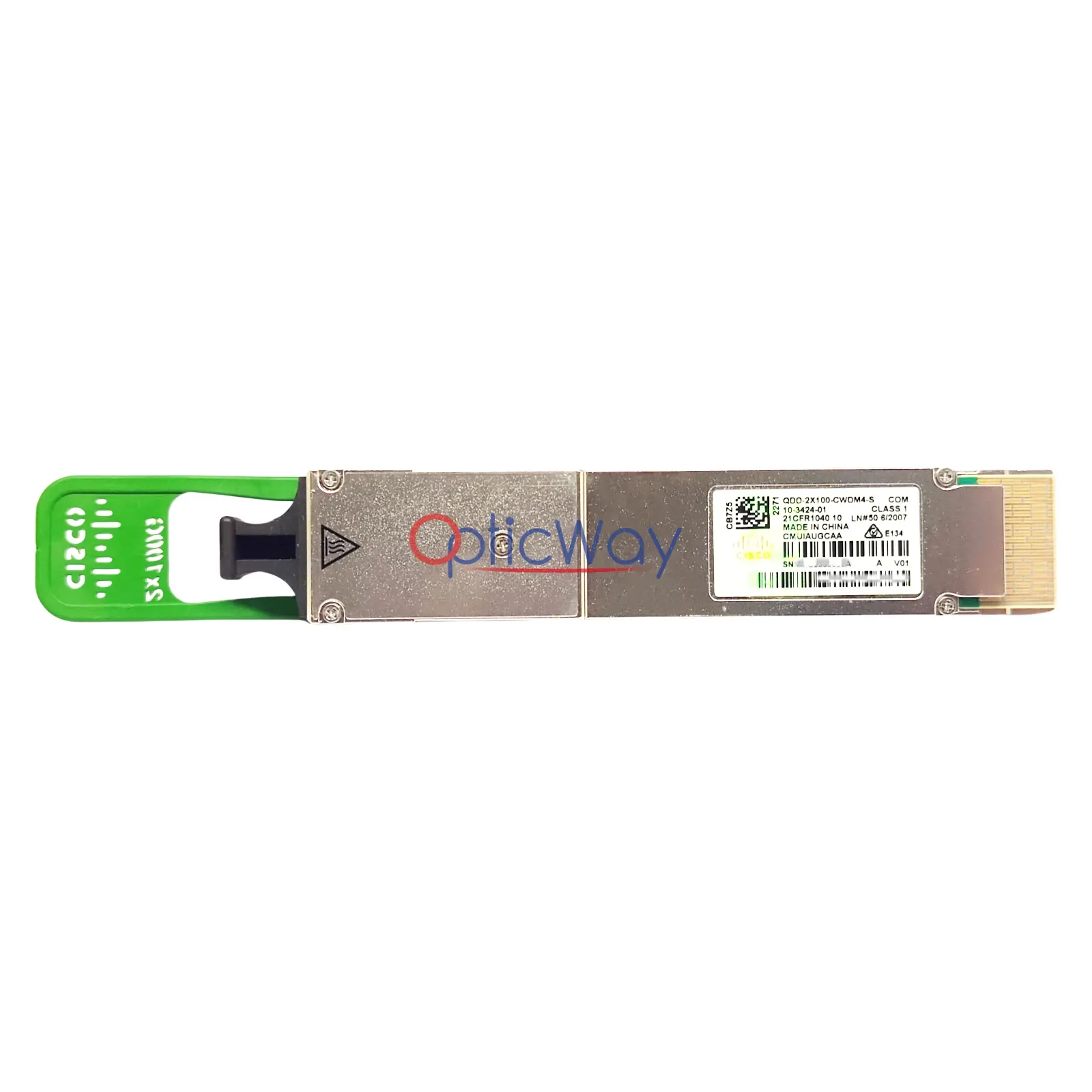

Cisco QDD-2X100-CWDM4-S 2x100GBASE-CWDM4 QSFP-DD Transceiver Full Label View

Cisco QDD-2X100-CWDM4-S 2x100GBASE-CWDM4 QSFP-DD 1271-1331nm 2km SMF Dual CS Connector 10-3424-01

$1500.00
Cisco

Product Features

QSFP-DD (QDD) Form Factor : Industry-standard double-density QSFP package, optimized for high-port-density 200G/400G network platforms.
200GBASE-CWDM4 Technology : 4x50Gbps CWDM lanes multiplexed into a single fiber pair, supporting 2x100G or aggregated 200Gbps transmission.
Duplex CS Connector : Smaller footprint than LC, enabling higher port density on switches, ideal for next-gen data center front panel designs.
Short-Reach 2km Transmission : Optimized for up to 2km transmission over standard single-mode fiber, ideal for data center and campus interconnects.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications
Cisco QDD-2X100-CWDM4-S 2x100GBASE-CWDM4 QSFP-DD Transceiver Module 1271-1331nm 2km SMF Dual CS Connector 10-3424-01
The Cisco QDD-2X100-CWDM4-S is a high-density, hot-swappable dual-channel 100G (200G aggregate bandwidth) QSFP-DD optical transceiver. It is purpose-built for next-generation hyperscale data centers, cloud networking, and enterprise core infrastructures. By packing two independent 100GBASE-CWDM4 interfaces into a single QSFP-DD form factor, it allows network operators to double their 100G port density without expanding physical rack space. Utilizing dual Duplex CS connectors, this module supports links of up to 2 km over standard Single-Mode Fiber (SMF) using coarse wavelength-division multiplexing (CWDM) technology.

Part Number
10-3424-01
Band
  Cisco
Model / Product Code
QDD-2X100-CWDM4-S
Form Factor
  QSFP-DD
Wavelength
1271, 1291, 1311, 1331 nm
Data Rate
200 Gbps
Connector
Dual Duplex CS
Fiber Type
  SMF
Max Cable Distance
2km
Optical Interface
2x100GBASE-CWDM4
Standard
IEEE 802.3 / OIF 200GBASE-CWDM4-S
DOM (Digital Monitoring)
  Supported
Origin
  China
Operating Temperature
0°C ~ 70°C

Typical Applications
  • High-Density Data Center Spine-Leaf 200G Links
  • Enterprise Campus Network 200G Backbone Connections
  • High-Speed Campus and Metro Aggregation Networks
  • Cisco QSFP-DD Port Switch/Router 200G Uplink Ports
  • 200G/400G Network Expansion and Upgrade Projects

Product Highlights

1.Dual-Rate Flexibility for 100G/200G Networks
  • Supports both 2x 100G independent channels and aggregated 200Gbps operation. This exceptional dual-rate versatility makes it highly adaptable for mixed-rate network deployments and ensures seamless future bandwidth upgrades.

2.Compact Duplex CS Connector for Ultra-High Density

  • Features a Duplex CS interface with a significantly smaller footprint than traditional LC connectors. This enables higher port counts on switch front panels, perfectly supporting the strict high-density requirements of modern data centers.

3.Cost-Effective CWDM4 Technology Without Coherent Complexity

  • By utilizing four CWDM wavelengths (1271nm-1331nm) on a single fiber pair, it delivers full 200G performance without the operational complexity and high cost of coherent optics. It leverages existing single-mode fiber (SMF) infrastructure for highly cost-effective short-to-medium reach connectivity up to 2 km.

4.Compact QSFP-DD Form Factor with Optimized Power Efficiency

  • The QSFP-DD form factor supports massive port density in modern data center switches, enabling efficient scaling of 200G uplinks without consuming excessive rack space. Engineered with low-power semiconductor technology, it helps lower cooling costs and total cost of ownership (TCO).

5.Genuine Cisco Quality & Comprehensive Digital Optical Monitoring (DOM)

  • Featuring Cisco Part Number 10-3424-01, this module ensures seamless plug-and-play integration and native platform recognition. The integrated DOM capability allows network administrators to monitor real-time Tx/Rx optical power, temperature, and supply voltage for proactive maintenance.
