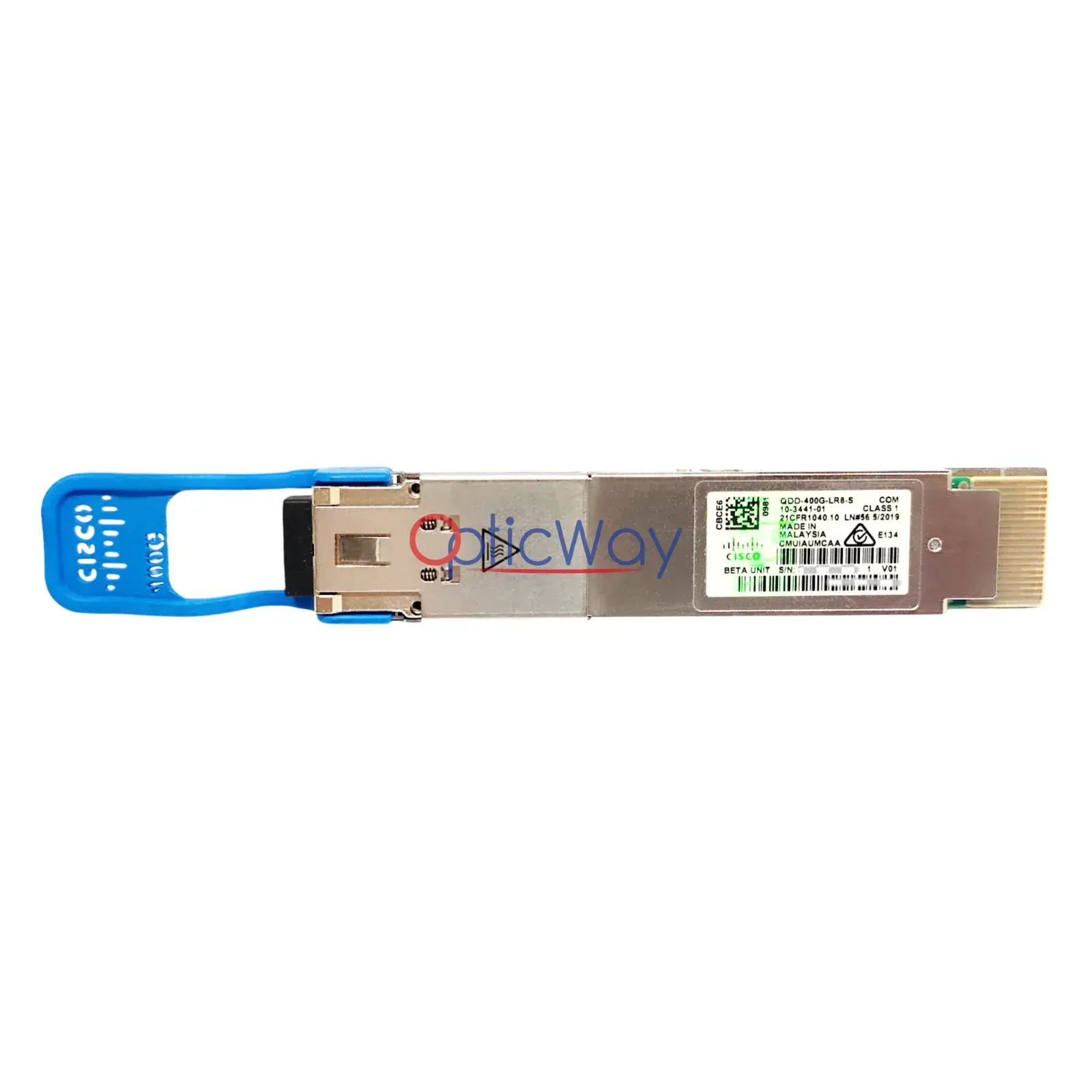

Cisco QDD-400G-LR8-S 400GBASE-LR8 QSFP-DD Transceiver Full Label View

Cisco QDD-400G-LR8-S 400GBASE-LR8 QSFP-DD Transceiver Module 10km SMF Duplex LC 10-3441-01

$4200.00
Cisco

Product Features

QSFP-DD Form Factor : Industry-standard double-density QSFP package, optimized for high-port-density 400G network platforms.
400GBASE-LR8 Technology : 8x 50Gbps PAM4 lanes multiplexed via LAN-WDM wavelengths into a single fiber pair, delivering 400Gbps transmission up to 10km over single-mode fiber.
LC Duplex Connector : Standard LC duplex interface, compatible with common single-mode fiber infrastructure, enabling easy deployment and maintenance.
10km Long-Reach Capability : Optimized for up to 10km transmission over standard single-mode fiber, ideal for data center interconnections (DCI) and enterprise backbone links.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Cisco QDD-400G-LR8-S 400GBASE-LR8 QSFP-DD Transceiver Module 10km SMF Duplex LC

The Cisco QDD-400G-LR8-S (Part No. 10-3441-01) is a high-performance 400GBASE-LR8 QSFP-DD optical transceiver, designed for Cisco next-generation high-density switches and routers. It adopts 8×50Gbps PAM4 technology based on LAN-WDM wavelength scheme, multiplexed onto a single pair of single-mode fibers to achieve 400Gbps transmission up to 10km. Equipped with a standard LC duplex connector, it complies with IEEE 802.3cu and OIF standards. Factory-calibrated by Cisco, it provides reliable 400G long-reach transmission for data center spine-leaf fabrics, enterprise backbones, and metro aggregation networks.

Part Number
10-3441-01
Band
  Cisco
Model / Product Code
QDD-400G-LR8-S
Form Factor
  QSFP-DD
Wavelength
8 LAN-WDM Grid Lanes (spanning 1273.54nm to 1310.19nm)
Data Rate
400 Gbps
Connector
Duplex LC
Fiber Type
  SMF
Max Cable Distance
10km
Optical Interface
400GBASE-LR8
Standard
IEEE 802.3cu / OIF 400GBASE-LR8
DOM (Digital Monitoring)
  Supported
Origin
  Malaysia
Operating Temperature
0°C ~ 70°C

Typical Applications

Product Highlights

    1.Massive 400G Throughput for Next-Gen Bandwidth Capacity
  • Leverages an advanced 8x 50G PAM4 modulation architecture to deliver up to 400Gbps of aggregate throughput on a single interface. It effectively quadruples the bandwidth capacity of standard 100G links to tackle heavy data traffic seamlessly.

    2.10km Long-Reach Capability for Metro and Core Backbones

  • Driven by high-performance LAN-WDM lasers, this transceiver is optimized for reliable data transport up to 10 km over standard Single-Mode Fiber (SMF). It serves as the ideal solution for Data Center Interconnects (DCI) and enterprise backbone rings.

    3.Backward-Compatible QSFP-DD Footprint for Seamless Aggregation

  • The industry-standard QSFP-DD form factor maximizes front-panel port density while offering excellent backward compatibility with existing QSFP packages (e.g., QSFP28). This allows operators to scale their networks efficiently without sacrificing legacy investments.

    4.Precision LAN-WDM Optical Design & Native DOM Support

  • Multiplexes 8 precision-spaced LAN-WDM wavelengths on a single fiber pair to minimize optical dispersion over 10km long hauls. Backed by full Cisco Part Number (10-3441-01) integration, it features complete Digital Optical Monitoring (DOM) for real-time proactive tracking of Tx/Rx power and temperature.
