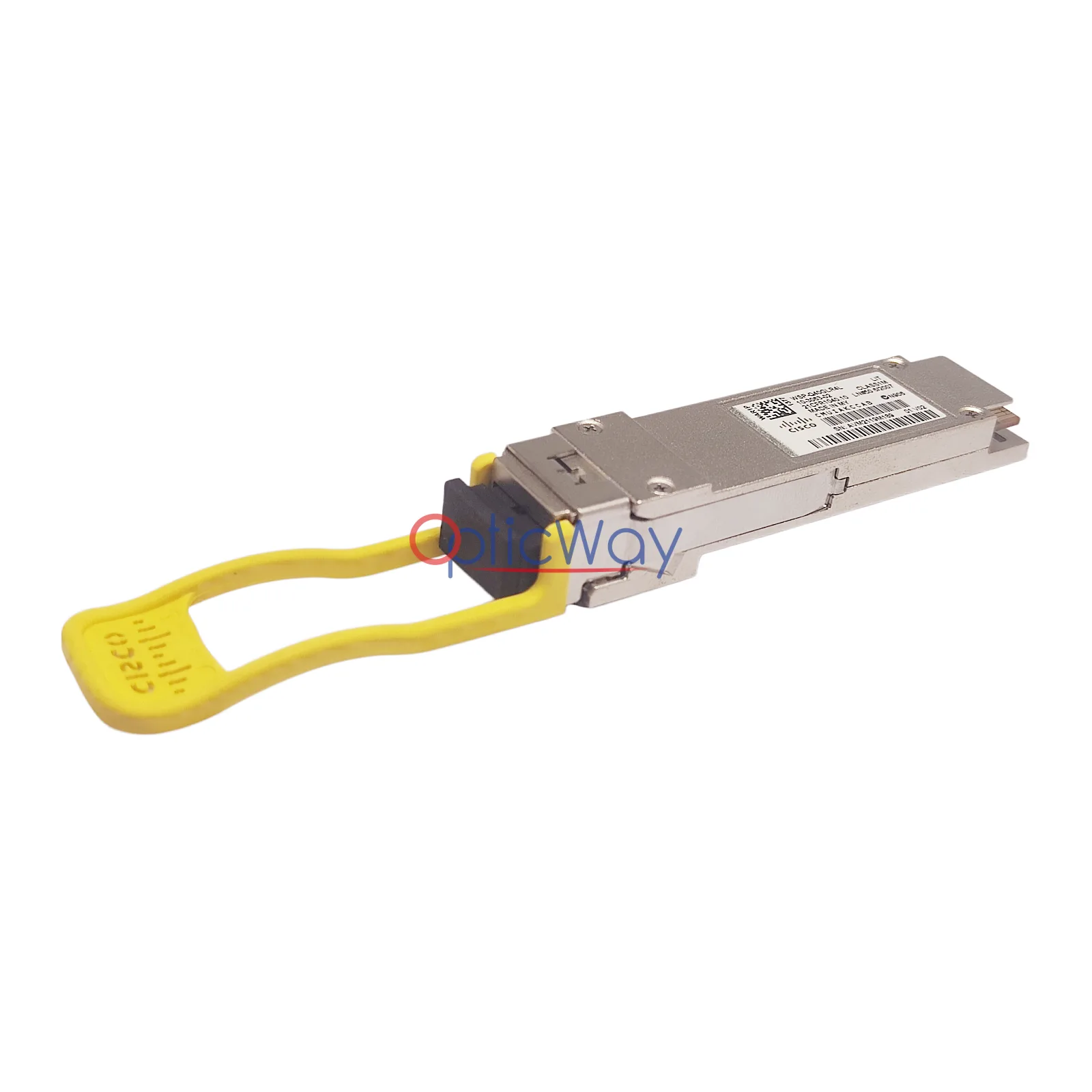

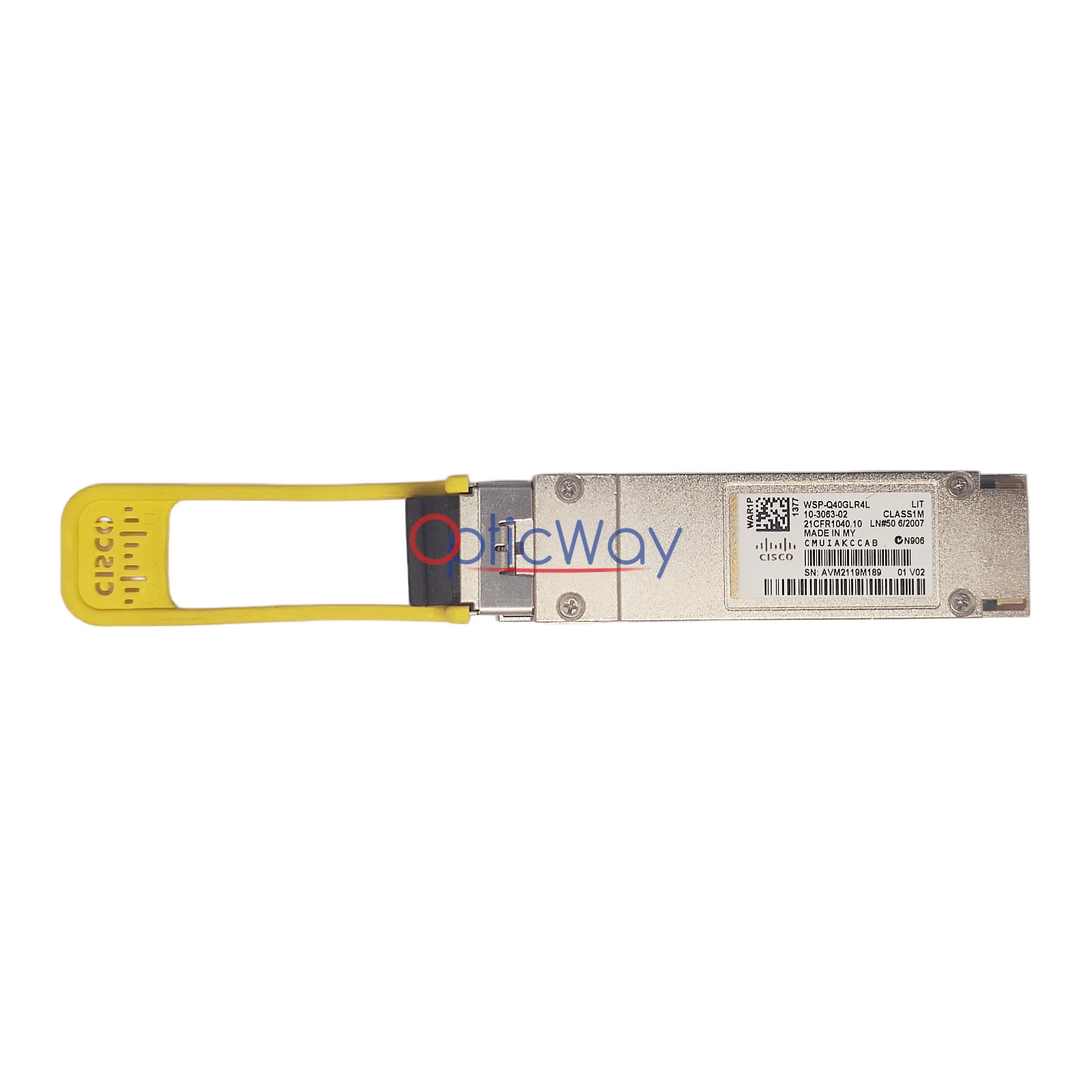

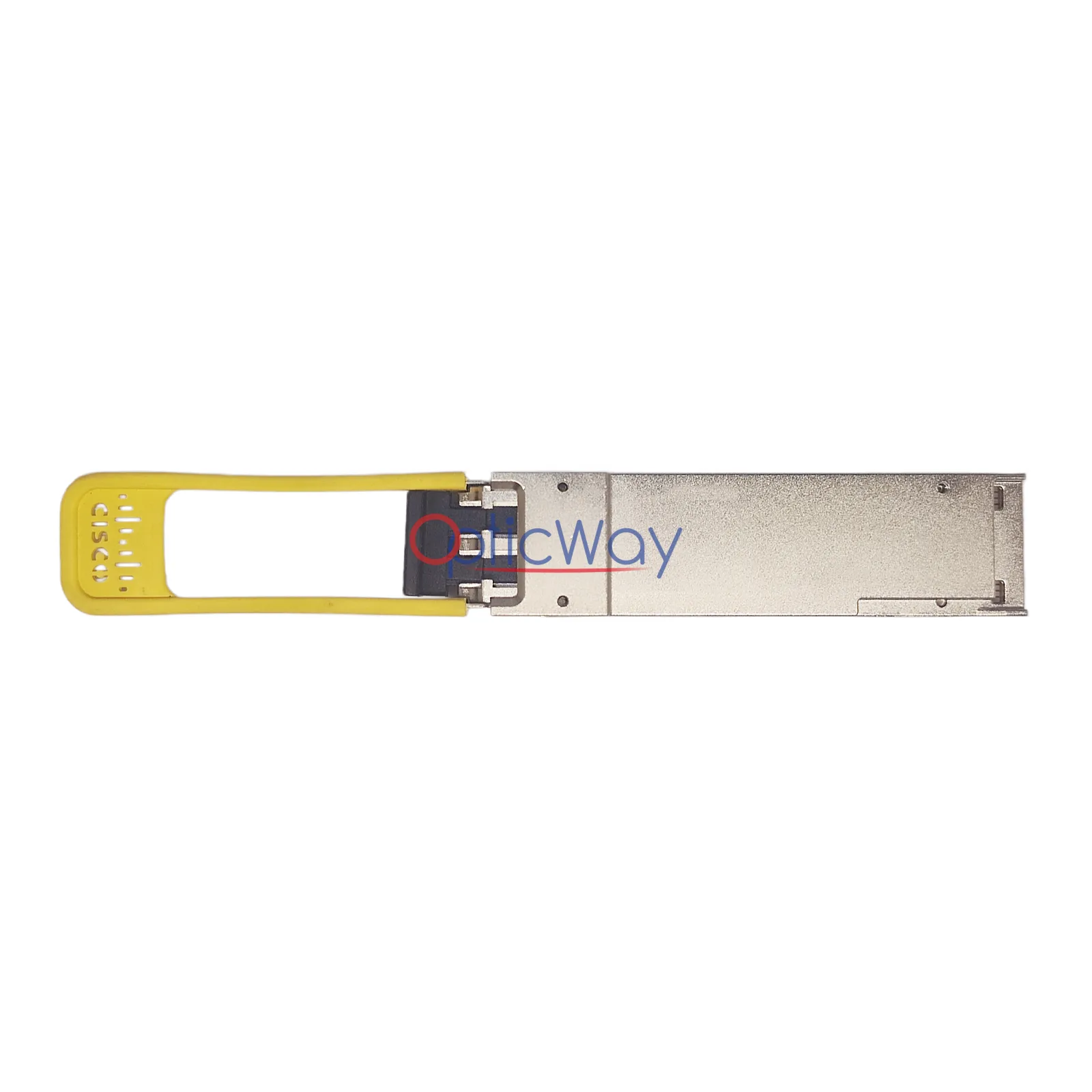

Genuine Cisco WSP-Q40GLR4L 40GBASE-LR4 Lite QSFP+ Transceiver Module 1310nm 2km LC SMF The Cisco WSP-Q40GLR4L (Part No. 10-3063-02) is a high-performance 40GBASE-LR4 QSFP+ optical transceiver, designed for enterprise and service provider networks. It adopts CWDM4 technology with four independent 10Gbps lanes at 1271/1291/1311/1331 nm wavelengths, multiplexed onto a single pair of single-mode fibers. Equipped with a standard LC duplex connector, it supports 40Gbps transmission up to 2 km over standard single-mode fiber (SMF). Factory-calibrated by Cisco, it provides reliable 40G long-reach connectivity for data center interconnections and enterprise backbone links.
Model / Product Code
WSP-Q40GLR4L
Wavelength
CWDM: 1271nm, 1291nm, 1311nm, 1331nm
DOM (Digital Monitoring)
Supported
Tx Power
-7.0 to +2.3 dBm
Rx Power
-11.5 to +2.3 dBm
Operating Temperature
0°C ~ 70°C
Typical Applications
Data Center Interconnections (DCI)
- Tailormade for high-speed data center bridging up to 2 km over standard single-mode fiber (SMF).
Enterprise Campus & Backbone Networks
- Ideal for establishing 40G long-reach core backbones across campus buildings.
Service Provider Networks
- Perfectly suited for service provider 40G aggregation and high-capacity transport infrastructure.
Switch-to-Switch Uplinks
- Optimizes 40G uplink connections on original Cisco QSFP+ port switches and core routers.
Network Infrastructure Expansion
- A cost-effective solution for high-capacity regional network scalability and bandwidth upgrades.
Product Highlights
2 km Long-Reach 40G Solution
- Specifically engineered for extended intermediate distances. It delivers robust 40Gbps connectivity at lengths up to 2 kilometers (2 km) over standard single-mode fiber (SMF), making it the ideal choice for regional data center interconnections, corporate campus backbones, and inter-building networks.
CWDM Technology for Maximum Fiber Efficiency
- Utilizes 4-channel Coarse Wavelength Division Multiplexing (CWDM) technology to multiplex four distinct wavelengths onto a single fiber pair. This architecture maximizes existing fiber infrastructure utilization, eliminating the need to lay new optical cables and drastically cutting cabling costs for long-reach applications.
Standard LC Duplex Interface for Simplified Deployment
- Equipped with a universal LC Duplex connector that is seamlessly compatible with mainstream single-mode fiber networks. It removes the requirement for complex parallel or proprietary cabling, allowing the use of conventional 2-strand single-mode patch cords to streamline structured cabling management.
Compact QSFP+ Form Factor for Ultra-High Density
- The standardized QSFP+ form factor supports high port density on modern enterprise switches and routers. This allows network administrators to efficiently scale 40G uplinks, boosting aggregate data bandwidth without consuming premium rack space or complicating thermal management.
Enterprise-Grade Cisco Interoperability & Proactive DOM
- 100% authentic Cisco quality (P/N: 10-3063-02) featuring an ergonomic yellow pull-tab for error-free identification and effortless hot-swapping. Integrated with Digital Optical Monitoring (DOM), it gives operators real-time visibility into telemetry data like Tx/Rx power and temperature to ensure mission-critical network uptime.
