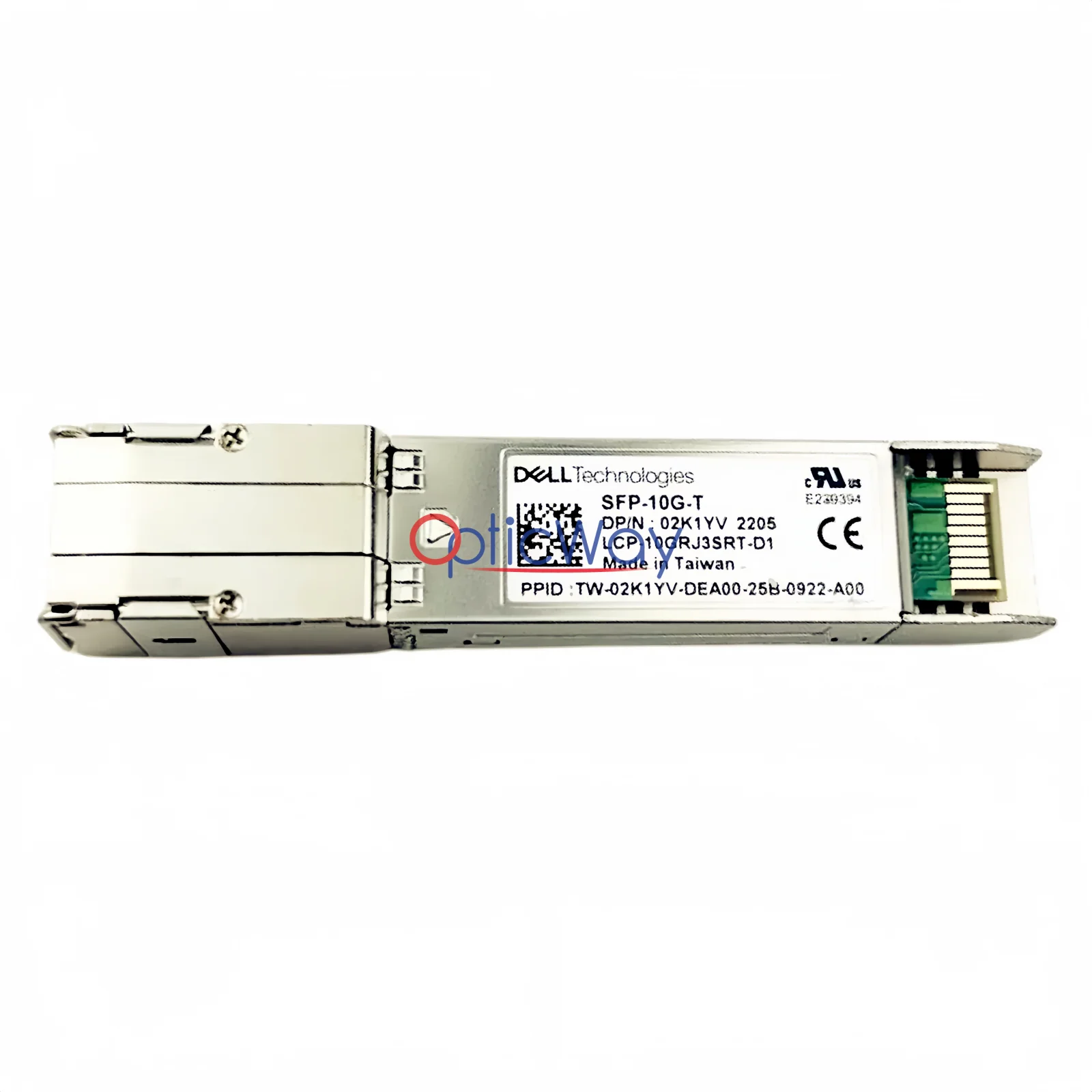

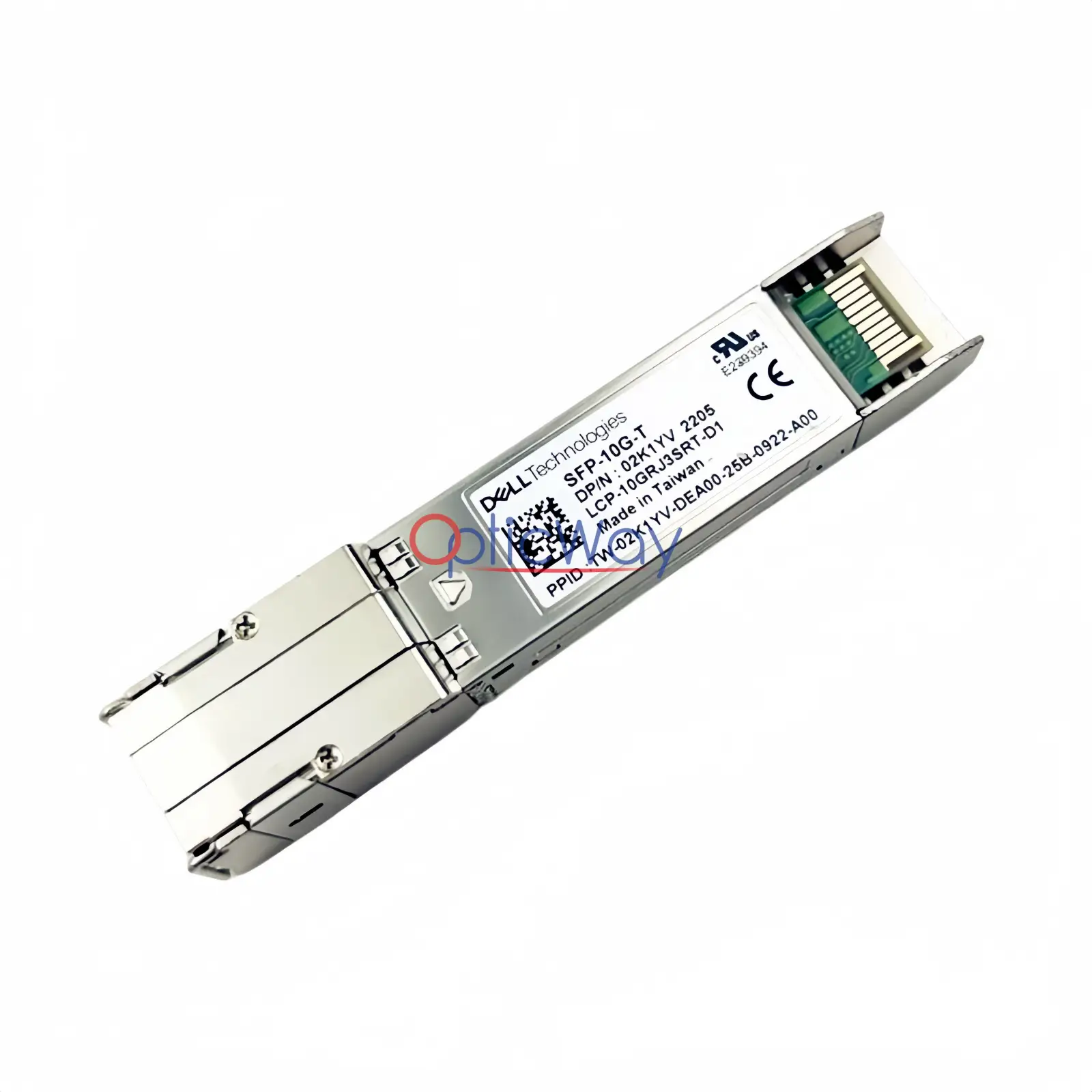

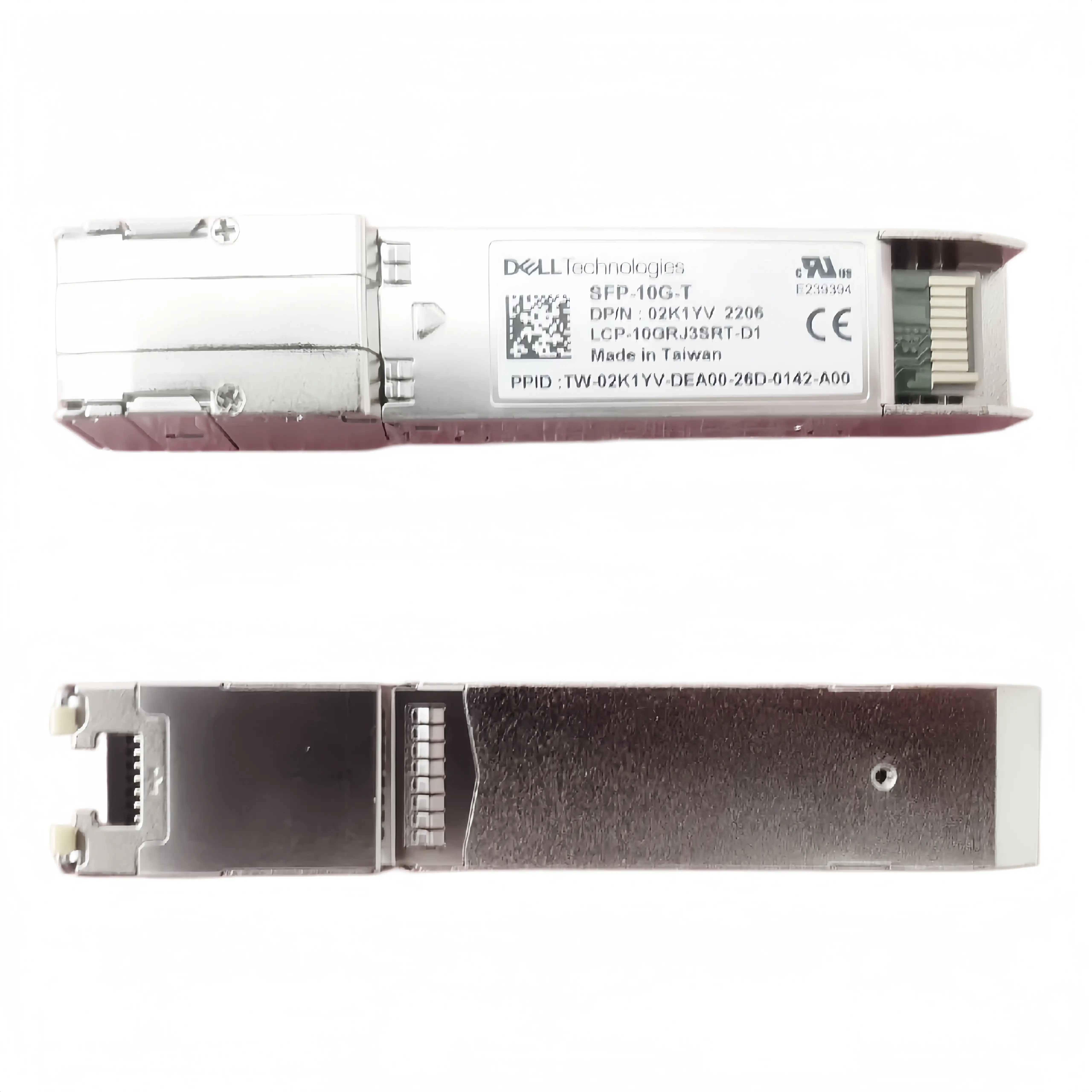

Dell 02K1YV 407‑BCWZ SFP‑10G‑T SFP+ transceiver front label view, 10GBASE‑T RJ45 copper optical transceiver module

Dell 02K1YV 407-BCWZ SFP‑10G‑T SFP+ 10GBASE‑T RJ45 Copper Transceiver Module

US$118.00
Dell

Product Features

Condition : Good Condition, Good Work，in stock.
High-Performance 10G Copper Link : Compliant with 10GBASE-T standards, delivering up to 30m reach over Cat6a/Cat7 cables.
Multi-Rate Auto-Negotiation : Backwards compatible with 1000BASE-T, 2.5GBASE-T, and 5GBASE-T networks.
Hot-Pluggable SFP+ Design : SFP+ MSA compliant for convenient hot-swapping without interrupting system operations.
AutoMDI / MDIX Support : Automatic cable crossover detection, works with both straightthrough and crossover Ethernet cables.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Dell 02K1YV 407-BCWZ SFP‑10G‑T SFP+  10GBASE‑T RJ45 Copper Transceiver Module

The Dell Technologies 02K1YV (Model: SFP-10G-T) is an authentic 10GBASE-T SFP+ to RJ45 copper transceiver module designed for high-speed 10-Gigabit Ethernet connections over Category 6a/7 twisted-pair copper cabling. It provides link distances of up to 30 meters at 10Gbps and supports multi-rate auto-negotiation (10G/5G/2.5G/1G, subject to host port PHY capability). Rated for standard commercial operating conditions, this module is idea

Part Number
02K1YV
Band
  Dell
Model / Product Code
  SFP-10G-T
Form Factor
  SFP+
Vendor Part Number
LCP-10GRJ3SRT-D1 (Luxshare-ICT)
Data Rate
10Gbps
Connector
  RJ45
Media Type
  Category 6a / Category 7 UTP/STP
Max Transmission Distance
30m
Supported Platform
Arista 7000 / 7100 / 7280 / 7500 series
Power Consumption
~2.5W - 3.0W
Supply Voltage
  3.3V
Origin
  China
Operating Temperature
0°C to 70°C

Typical Applications

✨Rack Intra‑connection: 10G RJ45 short‑range intra‑rack connections for Dell PowerSwitch switches (max 30 m at 10G speed)

✨Migration Legacy Copper Infrastructure: Re‑use existing Cat6a/Cat7 cabling for short‑reach 10G upgrade without re‑deploying fiber

✨Top‑of‑Rack Server Access: Connect rack‑mount servers with RJ45 10G network cards to top‑of‑rack switches within rack scope

✨Lab & Enterprise Network: 10G copper short‑range links for enterprise lab and equipment interconnection
