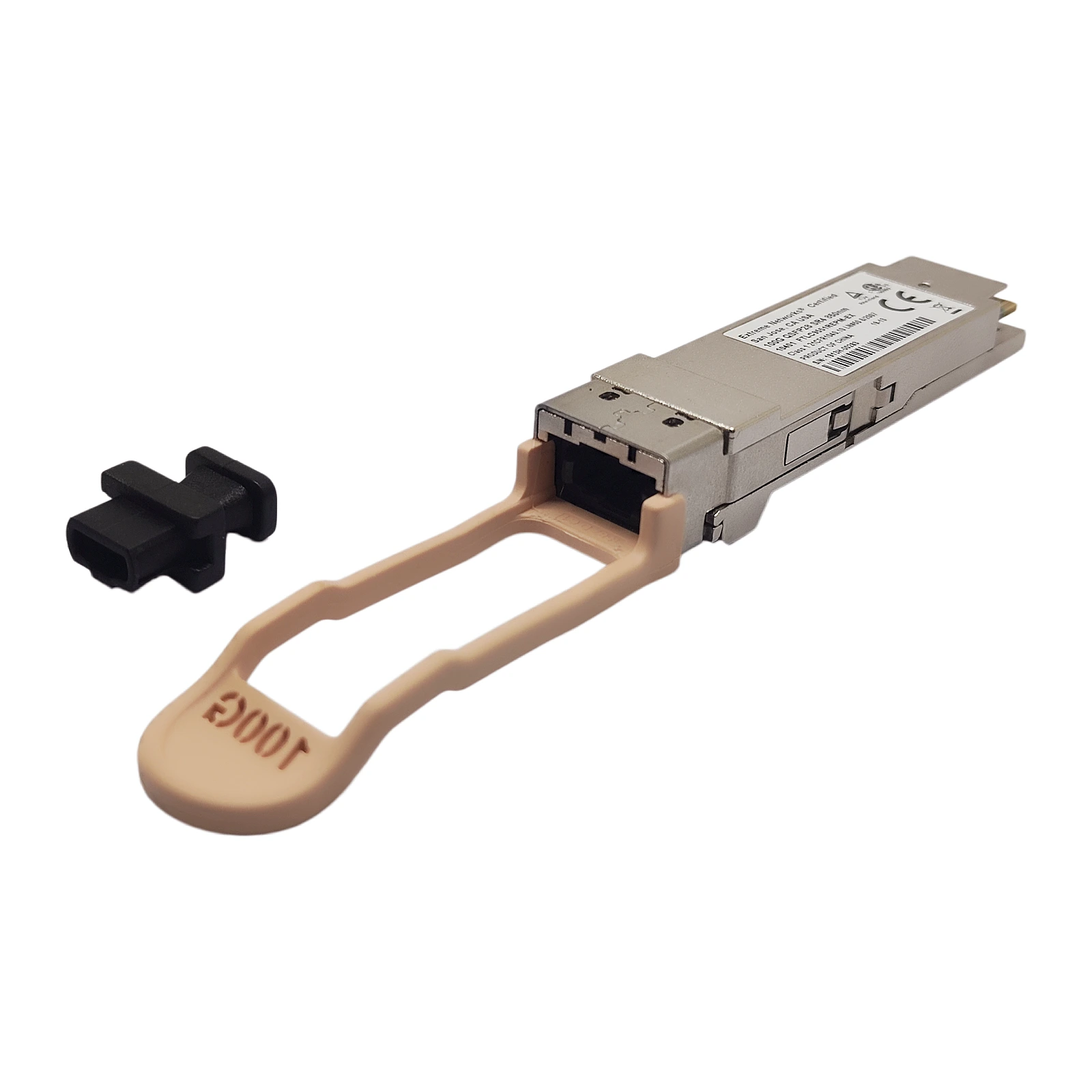

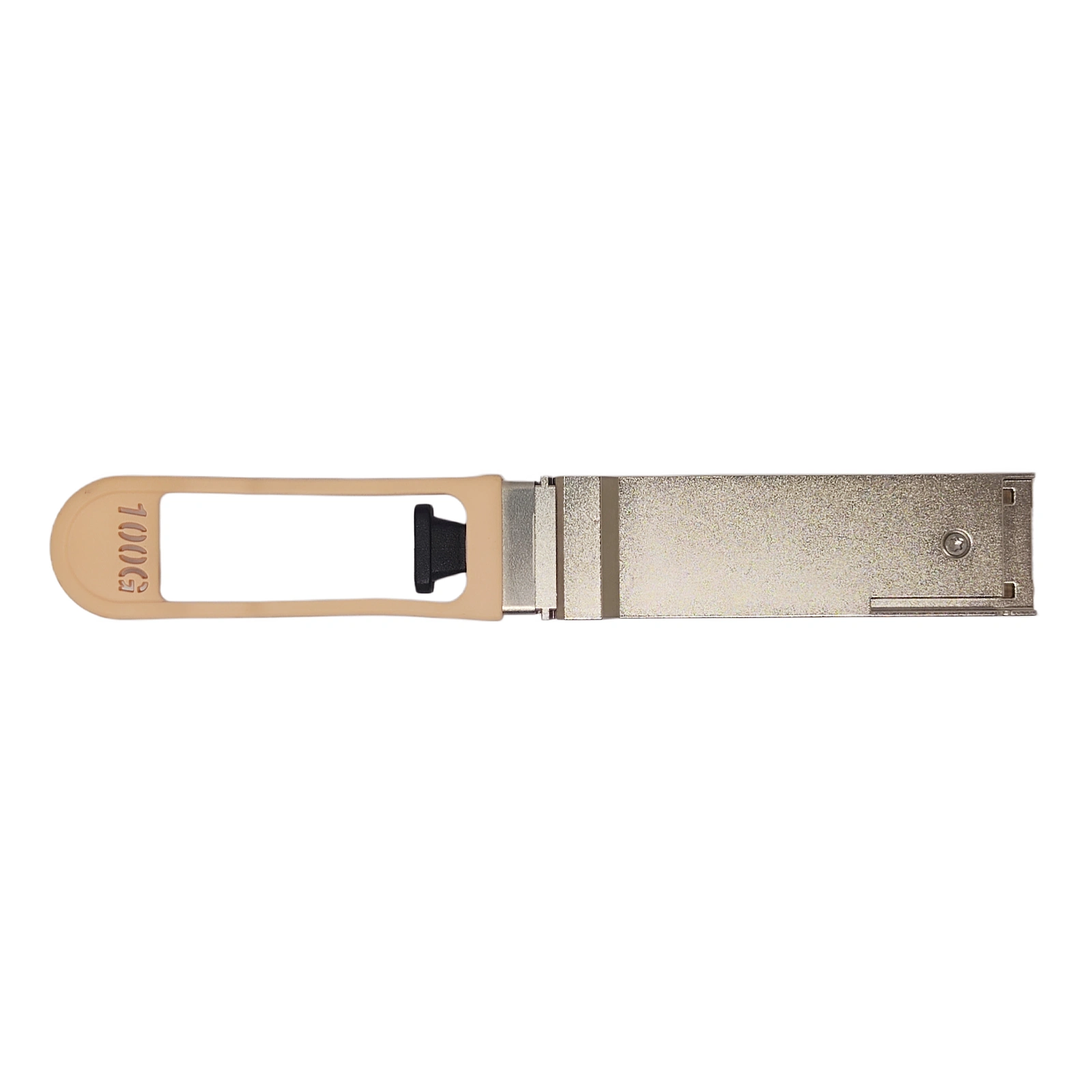

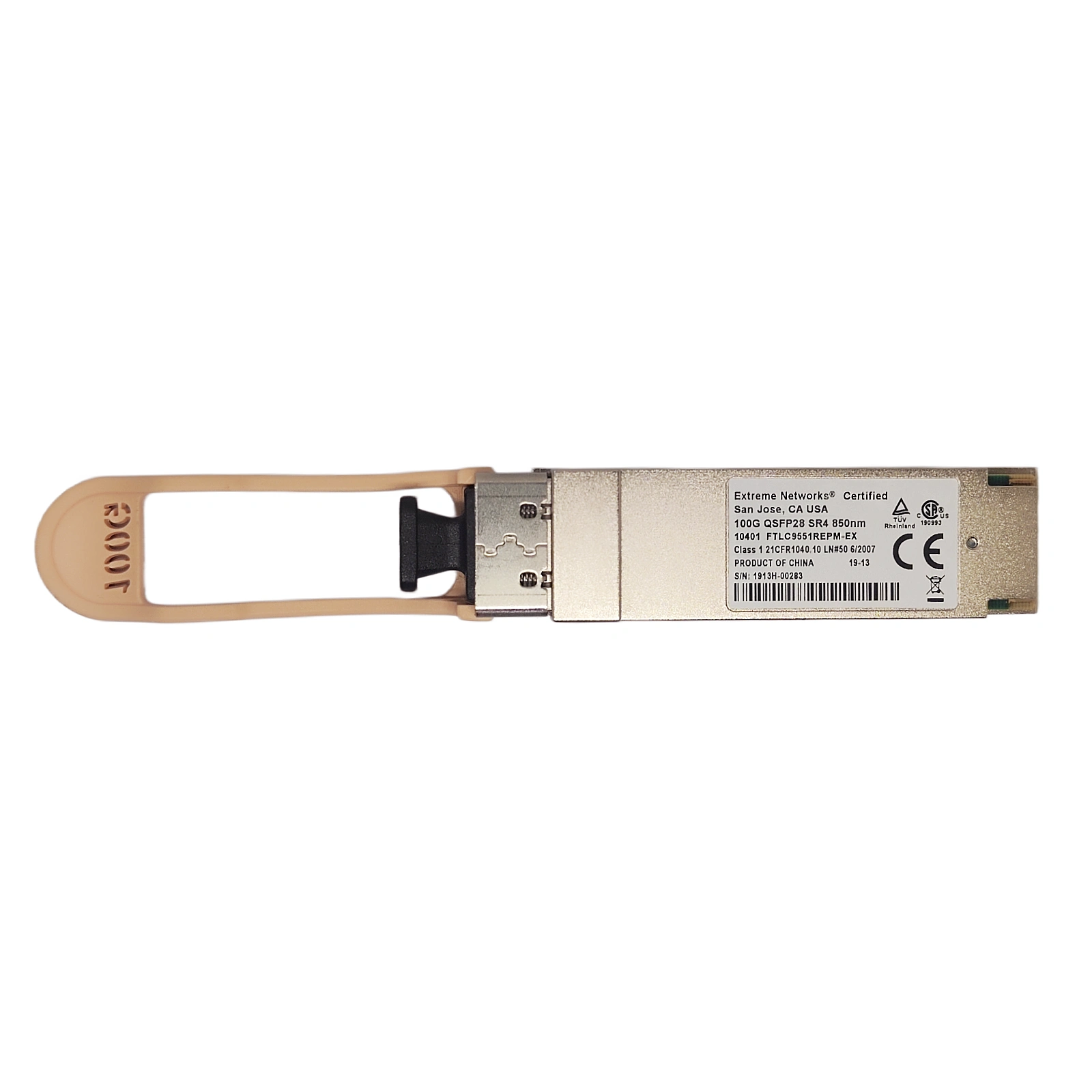

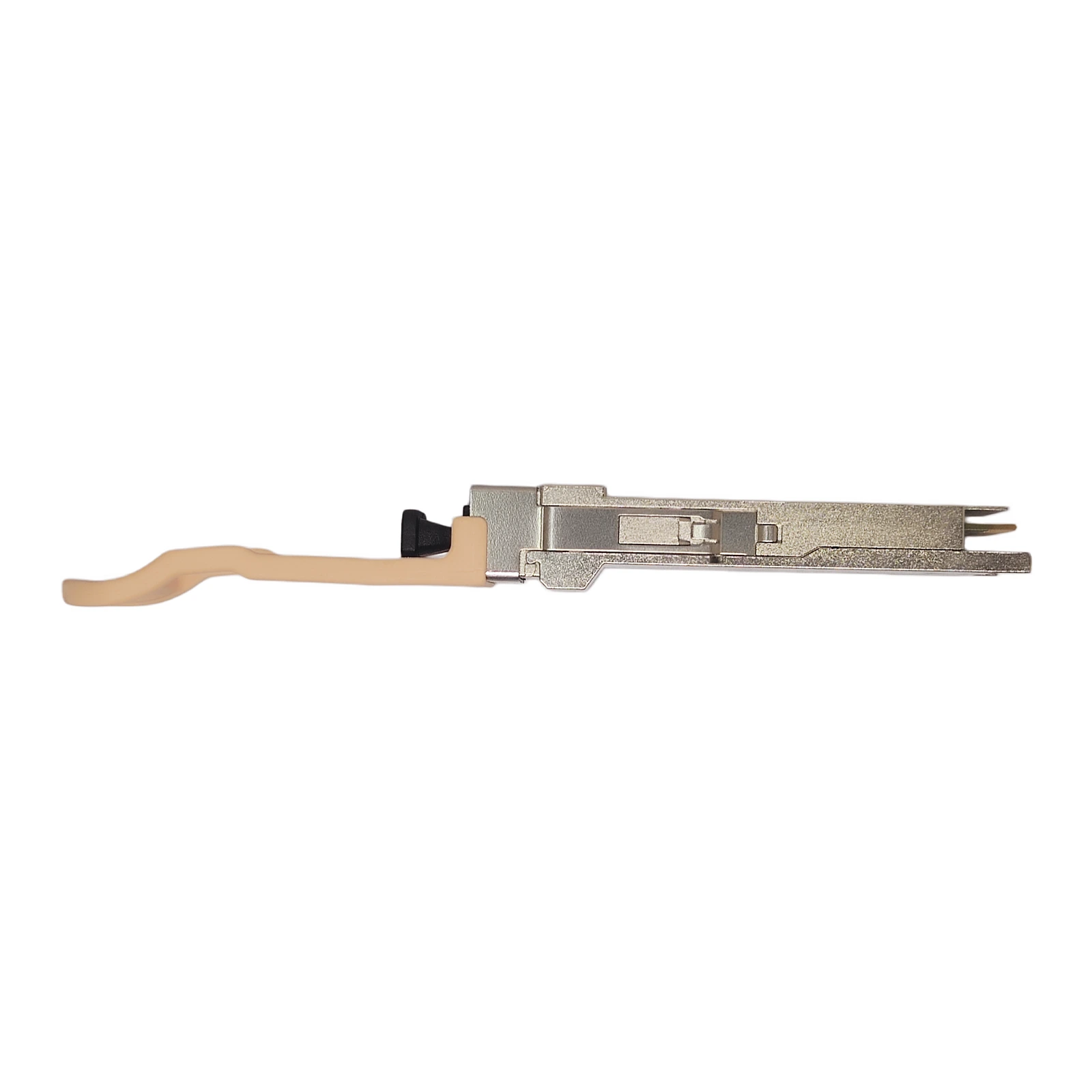

Extreme Networks 10401 FTLC9551REPM-EX 100G QSFP28 SR4 100m 850nm MMF Transceiver
The Extreme Networks Certified 10401 (manufactured by Finisar as FTLC9551REPM-EX) is a high-performance 100GBASE-SR4 QSFP28 optical transceiver designed for high-density, short-range data center applications. Operating over Multi-Mode Fiber (MMF) at a nominal wavelength of 850nm, it supports 100Gbps aggregate bandwidth up to 100 meters. This module is specifically programmed and tested for seamless compatibility with Extreme Networks platforms, ensuring carrier-grade reliability in enterprise and cloud environments.

Extreme Part Number

FTLC9551REPM-EX

Band

Extreme Networks

Product Model

10401

Form Factor

QSFP28

Wavelength

850nm

Transmission Distance

100 m (OM3), 150 m (OM4)

Connector

MPO-12

Fiber Type

MMF

Data Rate

100Gbps

Standards

IEEE 802.3bm, QSFP28 MSA,

Power Class

Class 3 (< 3.5W)

Safety

Class 1 Laser, CE, TUV Certified

Origin

China

Operating Temperature

0°C ~ 70°C

Typical Applications

Extreme Networks Data Center 100G Leaf-Spine and ToR Switch Interfaces
High-Speed 100G Ethernet and InfiniBand Short-Reach Links
Enterprise and Cloud Provider 100G Multi-Mode Fiber Deployments
100GBASE-SR4 Standard Compliant Network Upgrades
Extreme Networks Switch and Router 100G Transceiver Upgrades

Product Highlights

1 Extreme Networks Certified for Seamless Compatibility

Officially certified by Extreme Networks with professional compatibility verification. Fully interoperable with Extreme switches and routers, supporting true plug-and-play without extra configuration. It eliminates compatibility errors and significantly reduces deployment and debugging costs.

2 Stable 100Gbps Short-Reach Multi-Mode Transmission

Compliant with the 100GBASE-SR4 standard, utilizing four parallel 850nm optical lanes. It reaches 100m on OM3 fiber and 150m on OM4 fiber, providing sufficient bandwidth and stable links for data center high-speed interconnection.

3 MPO-12 Interface for High-Density Data Center Cabling

Comes with an MPO-12 parallel fiber interface, optimized for high-density cabinet cabling structures. It reduces cable quantity, simplifies cable management, saves cabinet space, and lowers daily maintenance difficulty.

4 Finisar Original Optical Engine with Industrial Grade Stability

Adopts authentic Finisar optical engine and core components. Passed high-low temperature cycling, voltage fluctuation, and long-term aging tests. It maintains zero packet loss and stable operation under harsh data center environments with industrial-grade reliability.

5 Comprehensive DDM/DOM Monitoring for Intelligent O&M

Integrated complete DDM/DOM digital diagnostic function to monitor Tx/Rx optical power, temperature, voltage, and laser bias current in real time. It enables early fault prediction and realizes efficient proactive intelligent maintenance.

6 Low Power Consumption, Energy-Saving and Eco-Friendly Design

Equipped with low-power optical chips and optimized circuit structure. It generates low heat under long-term full-load operation, ensuring stable performance while reducing data center power consumption for energy-saving green deployment.
