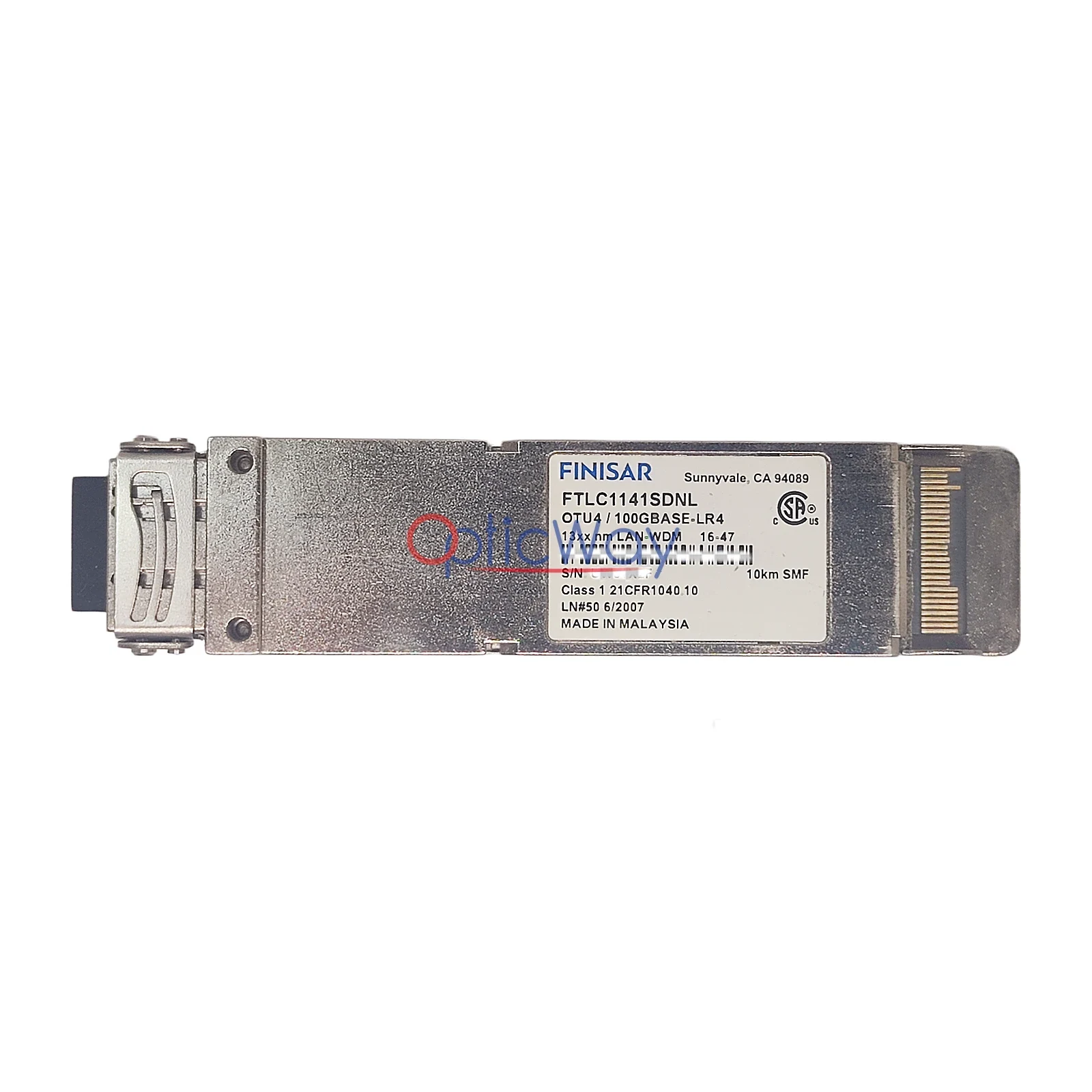

Finisar FTLC1141SDNL 100G-LR4 CF4 10km-1310-100G OTU4 LAN-WDM SMF Transceiver

Finisar FTLC1141SDNL 100G-LR4 CF4 10km-1310-100G OTU4 LAN-WDM SMF Transceiver

The Finisar FTLC1141SDNL is a high-performance 100GBASE-LR4 / OTU4 CFP optical transceiver, designed for 10 km transmission over single-mode fiber. It supports both 100GBASE-LR4 Ethernet and OTU4 OTN rates, using LAN-WDM technology with four wavelengths in the 13xx nm range. The module features a CFP form factor, duplex LC connector, full DDM/DOM monitoring, and is compliant with IEEE 802.3ba and OTN OTU4 standards, making it ideal for core routers and high-speed transport platforms.

Finisar Part Number

  FTLC1141SDNL

Band

  Finisar

Product Number

100GBASE-LR4 / OTU4 CF4

Form Factor

  CFP4

Wavelength

1310nm

Transmission Distance

10km

Connector

Duplex LC

Fiber Type

  SMF

Data Rate

100Gbps

Standards

IEEE 802.3ba 100GBASE-LR4, OTU4 OTN

Transmit Power

-6.0 ~ +3.0 dBm

Receiver Sensitivity

  -14 dBm

Origin

  Malaysia

Operating Temperature

  0°C ~ 70°C

• Core Router 100G Ethernet and OTN Uplinks
• Metro Core and Aggregation Network 100G Links
• Telecom Service Provider OTN OTU4 Transport Deployments
• High-Speed Data Center Core Interconnections
• 100GBASE-LR4 and OTU4 Standard Compliant Networks

Product Highlights

• This transceiver supports both 100GBASE-LR4 Ethernet and OTU4 OTN standards, delivering 100Gbps line-rate transmission over standard G.652 single-mode fiber (SMF).
• It uses a 4-lane LAN-WDM architecture operating in the 13xx nm wavelength band, supporting a maximum reach of 10km.

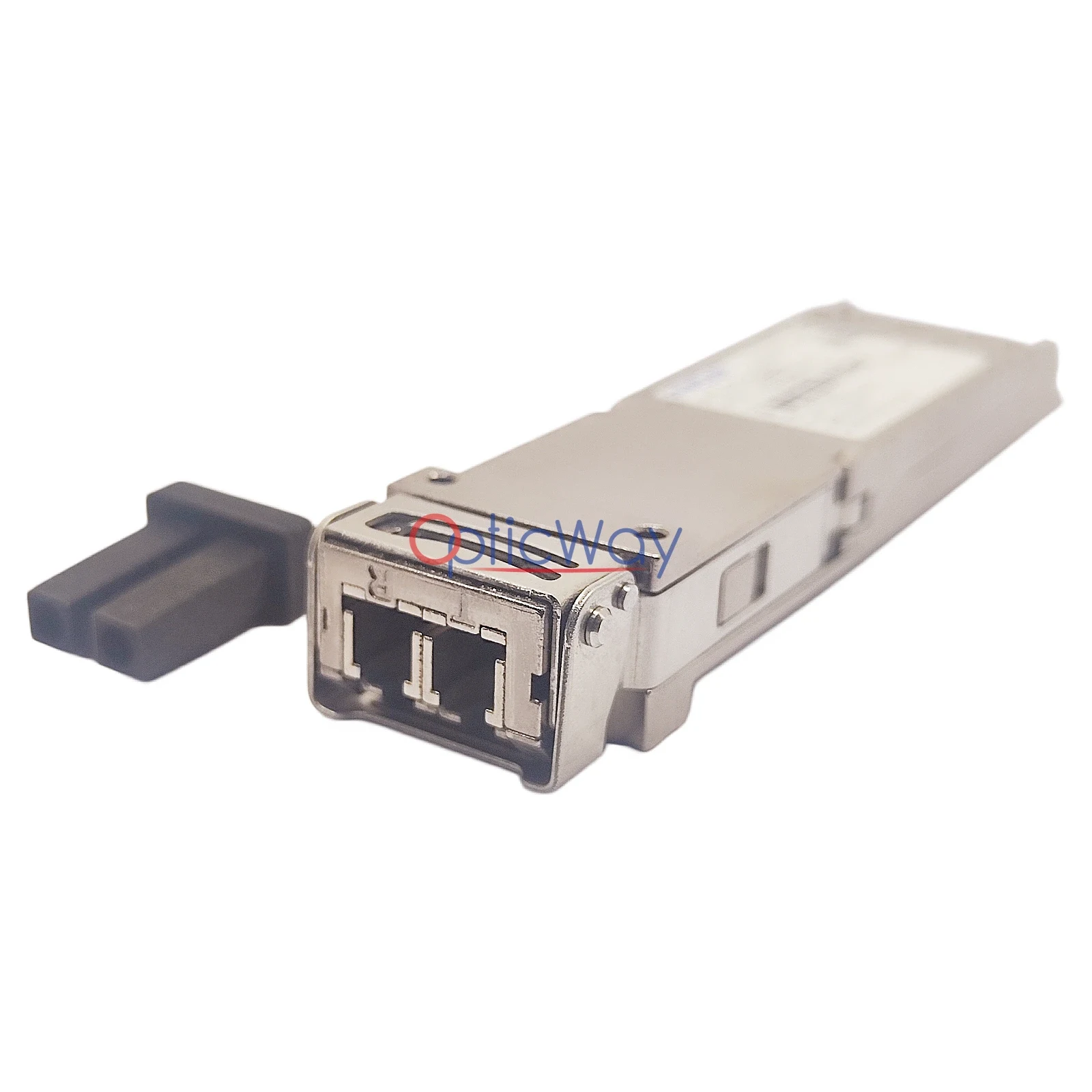

• The duplex LC interface is designed for use in core routers, OTN transport platforms, and high-speed data center interconnections.

• It uses the industry-standard CF4 (100G Form-factor 4) package, which is a compact, high-performance form factor for early-generation 100G core network equipment.
• It is interoperable with mainstream routers and OTN switches that support the CF4 form factor and 100GBASE-LR4/OTU4 standards.
• The hot-pluggable design allows for easy installation, replacement, and capacity expansion without disrupting network operations.

• Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.
• Certified as a Class 1 Laser product under 21CFR1040.10 standards, meeting strict carrier-grade safety and performance requirements.
• Manufactured in Malaysia, it undergoes rigorous factory testing to ensure stable performance in the commercial temperature range (0°C to 70°C).
