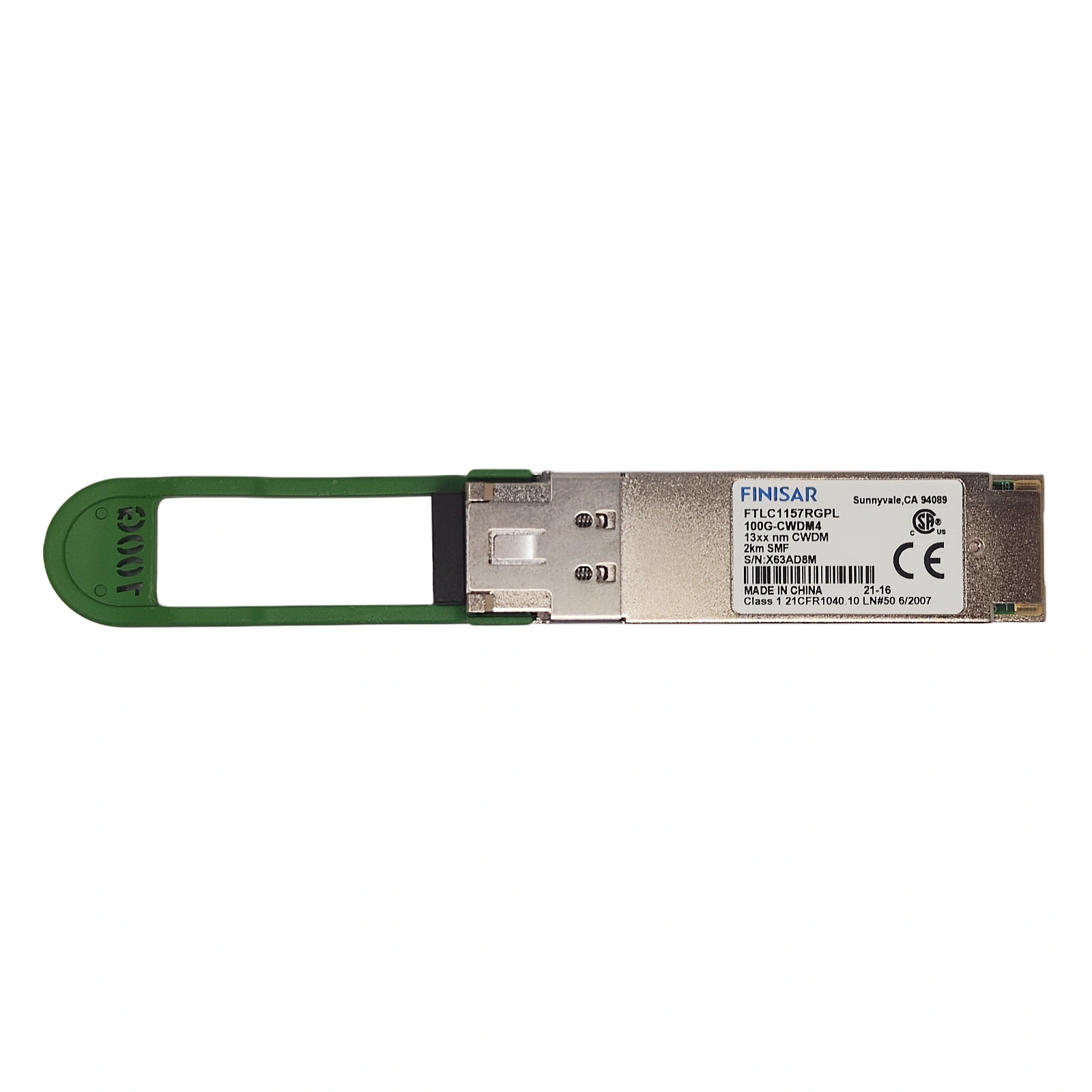

Finisar FTLC1157RGPL 100G QSFP28 CWDM4 Transceiver with Full Label and Gold Finger

Finisar FTLC1157RGPL 100G QSFP28 CWDM4 2km SMF Optical Transceiver Module

$80.00
Finisar

Product Features

100G CWDM4 Transmission : Delivers 100Gbps over single-mode fiber using four CWDM wavelengths in the （1271, 1291, 1311, 1331nm） band, with a reach of up to 2 km.
QSFP28 Standard Form Factor : ndustry-standard QSFP28 pluggable footprint, optimized for high-density switches and routers.
CWDM4 Technology : Combines four wavelengths into a single fiber pair, reducing fiber usage and simplifying cabling.
Full Real-Time DDM/DOM Monitoring : Continuously monitors optical power, temperature, voltage, and laser bias current for proactive maintenance.
Reliable Performance : Compliant with QSFP28 MSA and 100GBASE-CWDM4 standards, ensuring interoperability with major vendor equipment.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Finisar FTLC1157RGPL 100G QSFP28 CWDM4 2km SMF Optical Transceiver Module

The Finisar FTLC1157RGPL is an industry-leading 100GBASE-CWDM4 QSFP28 optical transceiver engineered for high-density 100 Gigabit Ethernet links. Leveraging advanced CWDM (Coarse Wavelength Division Multiplexing) technology, it delivers a robust 100Gbps aggregate bandwidth over standard Single-Mode Fiber (SMF) up to 2km. This module is the preferred choice for data center operators seeking a cost-effective, low-power alternative to LR4 optics for mid-reach leaf-spine architectures.

Finisar Part Number
FTLC1157RGPL
Band
  Finisar
Product Model
100GBASE-CWDM4
Form Factor
  QSFP28
Wavelength
CWDM
Transmission Distance
2km
Connector
Duplex LC
Fiber Type
  SMF
Data Rate
100Gbps
Standards
QSFP28 MSA, 100GBASE-CWDM4, Class 1 Laser
Architecture
4-channel CWDM
Hot Swappable
  Support
Origin
China
Operating Temperature
0°C ~ 70°C

Typical Applications

Product Highlights

     1. 100G CWDM4 Mid-Reach Transmission
This is a 100GBASE-CWDM4 QSFP28 transceiver designed for data center and enterprise applications.
It delivers 100Gbps full-duplex transmission over standard G.652 single-mode fiber (SMF) using a 4-channel CWDM architecture, with wavelengths in the 13xx nm band.
The module supports a maximum reach of 2km, making it ideal for leaf-spine architectures and short-range data center interconnects.
     2. Standard QSFP28 Form Factor & Features
It uses the industry-standard QSFP28 (Quad Small Form-factor Pluggable 28) package, widely adopted in high-density 100G switches and routers.
Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.
The hot-pluggable design allows for easy installation, replacement, and capacity expansion without disrupting network operations.
     3. Reliable Performance & Compliance
Certified as a Class 1 Laser product under 21CFR1040.10 standards, and compliant with CE safety regulations.
Manufactured in China, it undergoes rigorous factory testing to ensure stable performance in the commercial temperature range.
