Finisar FTLF8532P4BCV-IB IBM 78P5240 32G 100m 850nm MMF SFP28 Transceiver

The Finisar FTLF8532P4BCV-IB (IBM P/N 78P5240) is a high-performance 32Gbps Fibre Channel (FC) SFP28 optical transceiver, factory-calibrated for IBM enterprise storage systems. Operating at 850nm, it supports 32Gbps Fibre Channel signaling with a reach of up to 70 meters over OM3 multimode fiber (100m over OM4). This module is compliant with the Fibre Channel FC-PI-6 standard and features full digital diagnostic monitoring (DDM/DOM) for proactive network maintenance. It is ideal for use in IBM SAN switches, storage arrays, and blade servers.

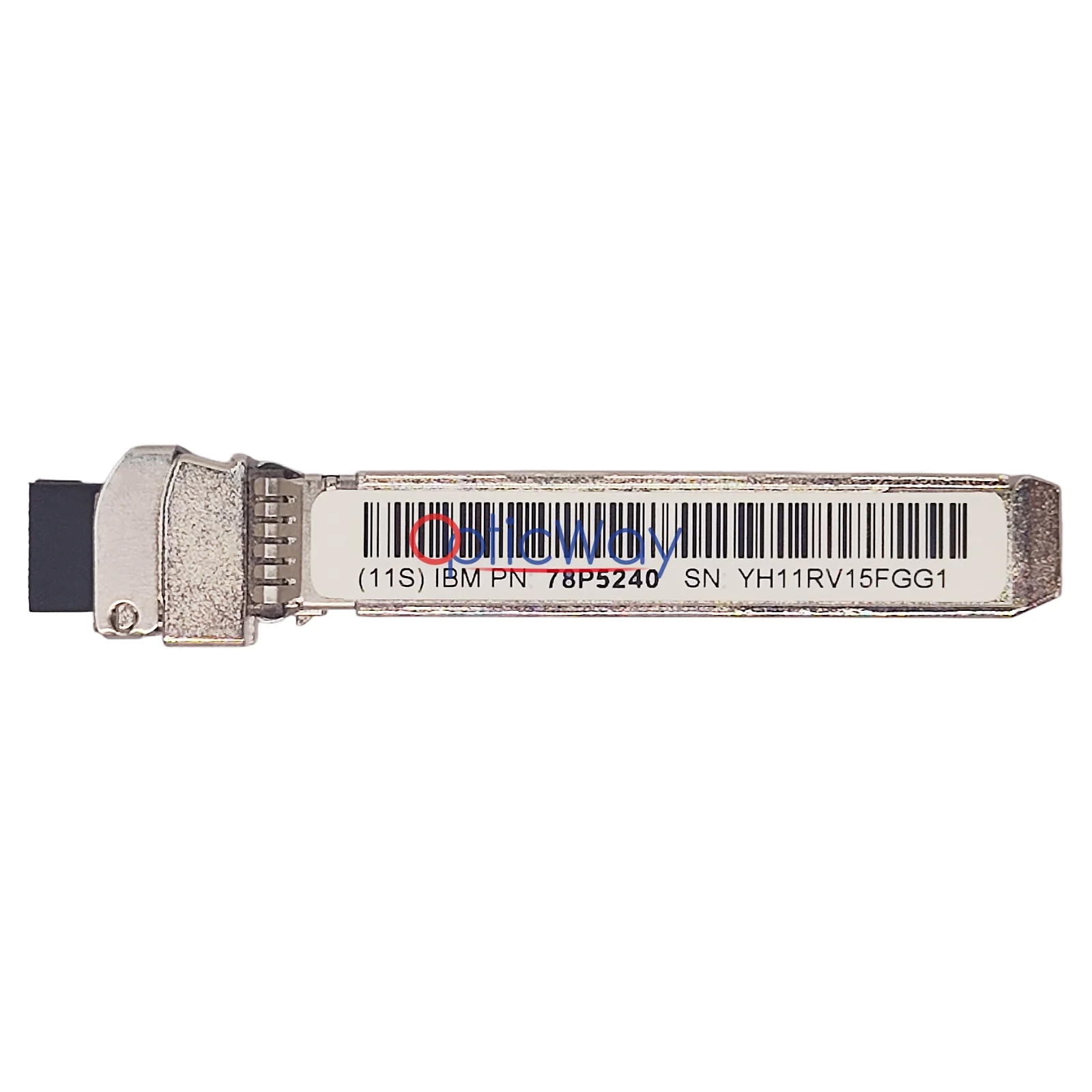

IBM Part Number

78P5240

Band

  Finisar

Finisar Part Number

FTLF8532P4BCV-IB

Form Factor

  SFP28

Wavelength

850nm

Transmission Distance

100m

Connector

Duplex LC

Fiber Type

  MMF

Data Rate

32Gbps

Standards

Fibre Channel FC-PI-6, SFP+ MSA, Class 1 Laser

Transmit Power

-7.6 dBm ~ +2.4 dBm

Receiver Sensitivity

  -11.1 dBm

Supply Voltage

3.3V DC

Power Consumption

  ≤ 1W

• 32Gbps Fibre Channel Storage Area Networks (SAN)
• IBM Storage Systems (e.g., DS8000, Storwize Series)
• BladeCenter and Server-to-SAN Switch Connections
• High-Density 32G SFP28 Switch Port Expansion
• Data Center Backbone and Disaster Recovery Links

Product Highlights

• This transceiver is designed for 32G Fibre Channel (FC) storage networks, delivering 32Gbps line-rate transmission over multi-mode fiber (MMF).
• It operates at a wavelength of 850nm, optimized for short-reach connections within data center storage area networks (SANs).
• It supports up to 100m reach over OM4 multi-mode fiber and up to 70m over OM3, making it ideal for links between servers, switches, and enterprise storage arrays.

2. Standard SFP28 Package & Broad Compatibility

• It uses the industry-standard SFP28 (25G Small Form-factor Pluggable 28) package, which is compact, hot-swappable, and optimized for high-density 32G FC SAN switches and adapters.
• As an IBM OEM part, it is natively validated for use with IBM storage systems, including the DS series storage arrays and SAN switches.
• It is also interoperable with most third-party 32G FC devices that support standard SFP28 transceivers.

3. Reliable Performance & Compliance Certification

• Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX optical power, RX optical power, module temperature, supply voltage, and laser bias current.

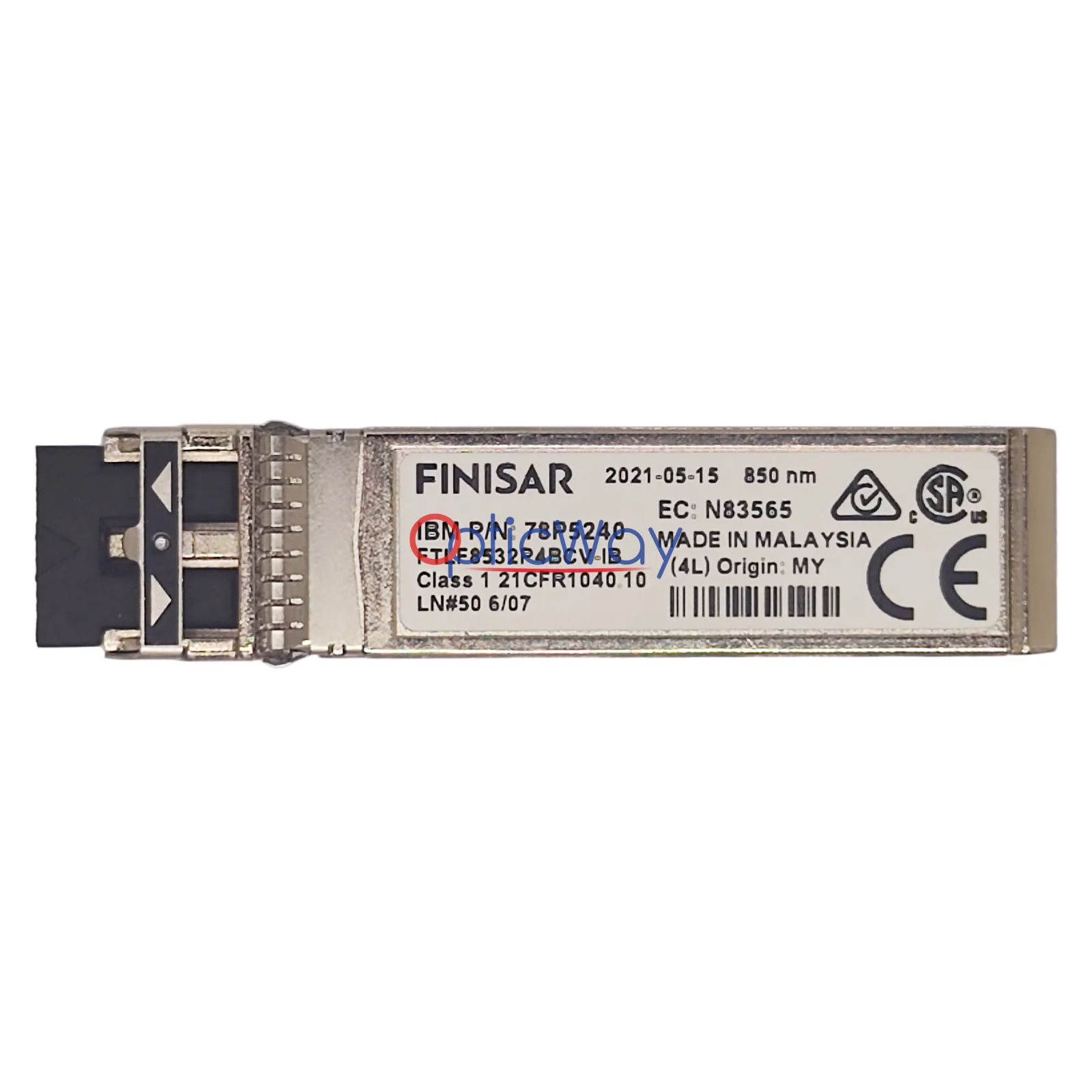

• Certified as a Class 1 Laser product under IEC 60825-1 and 21CFR 1040.10, and compliant with CE and CSA standards for global enterprise deployment.
• Manufactured in Malaysia, it undergoes rigorous factory testing, including temperature cycling and burn-in, to ensure stable performance in the commercial temperature range.
