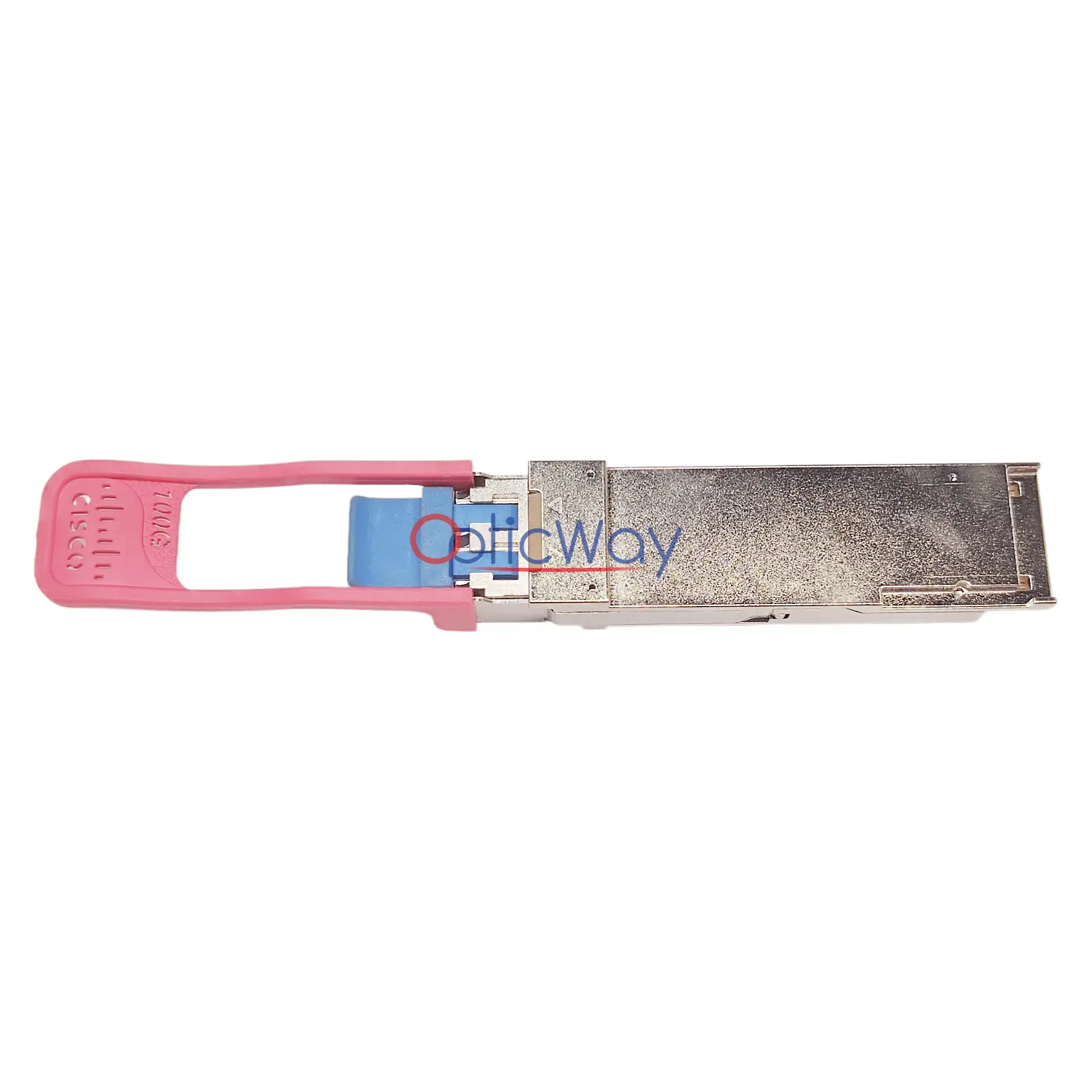

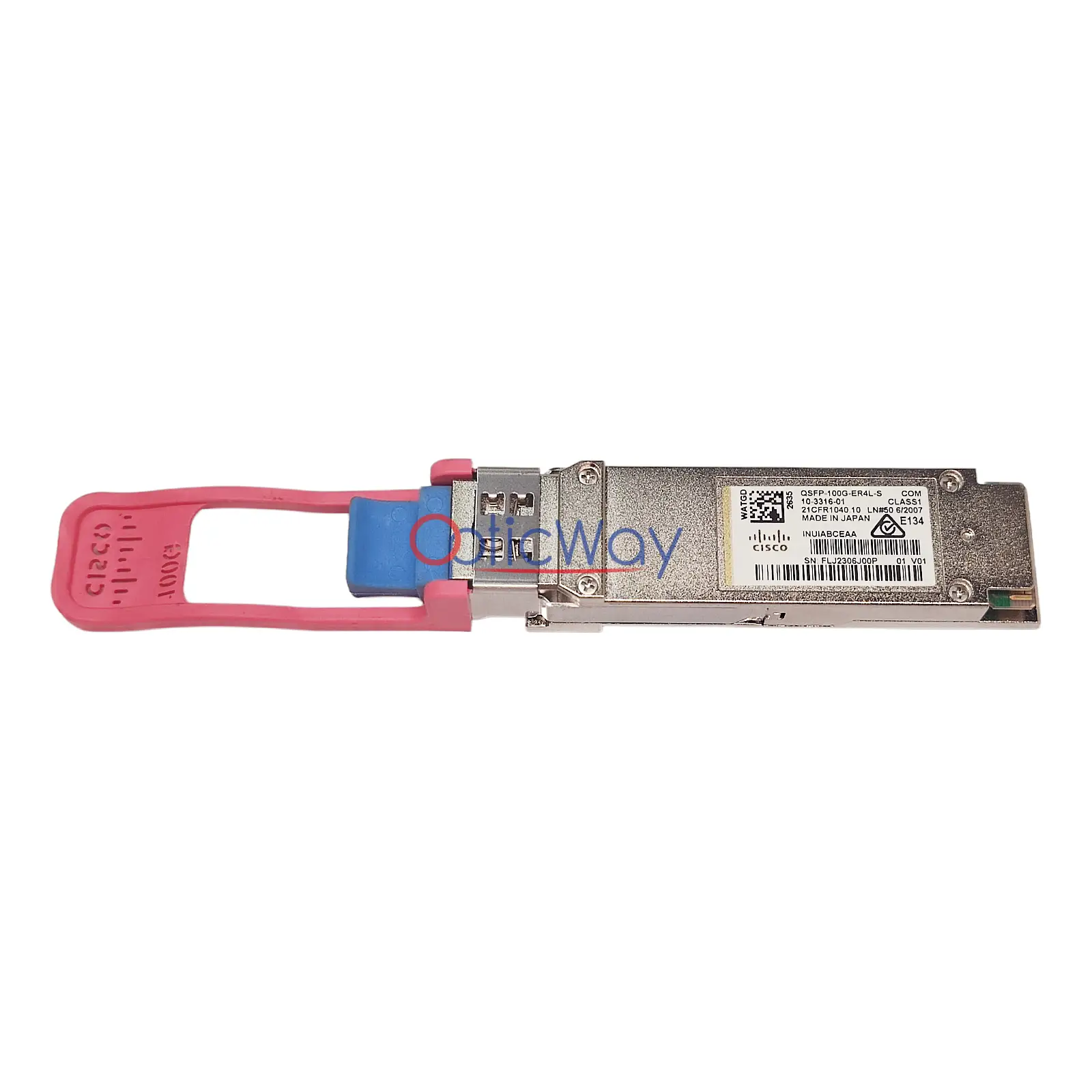

Genuine Cisco 100GBASE-ER4 Lite QSFP28 SMF 40km QSFP-100G-ER4L-S 10-3316-01 The Cisco QSFP-100G-ER4L-S is a hot-swappable QSFP28 optical module compliant with Cisco's official 100GBASE-ER4 Lite standard. It is designed for ultra-long-distance 100G high-speed data transmission over standard single-mode fiber (SMF) over distances up to 40 kilometers. Utilizing 4-channel LAN-WDM fine wavelength division multiplexing technology in the 1310nm band, this module offers a highly reliable and cost-effective enterprise-grade solution for metropolitan area network (MAN) construction, cross-regional campus network interconnection, and data center direct connection (DCI).
Model / Product Code
QSFP-100G-ER4L-S
Wavelength
4-channel LAN-WDM
DOM (Digital Monitoring)
Supported
Rx Power
≤ -18.5 ~ -15.0 dBm
Operating Temperature
0°C ~ 70°C
Typical Applications
Data Center Interconnect (DCI)
- High-capacity 100G links connecting geographically separated campuses or metro data centers up to 40km.
Metro Area Networks (MAN)
- Reliable 100G Ethernet transport for metropolitan core and aggregation layer infrastructures.
Enterprise Core Backbones
- Long-reach, high-speed 100G uplinks for enterprise core switches and routers.
Service Provider Networks
- Scalable 100G optical transport for service provider access and aggregation layers.
Product Highlights
1.40km Extended Long-Haul
- Delivers reliable 100Gbps data transmission up to 40km when Forward Error Correction (FEC) is enabled on the host, or up to 30km without FEC over standard G.652 single-mode fiber (SMF).
2.High-Efficiency LAN-WDM

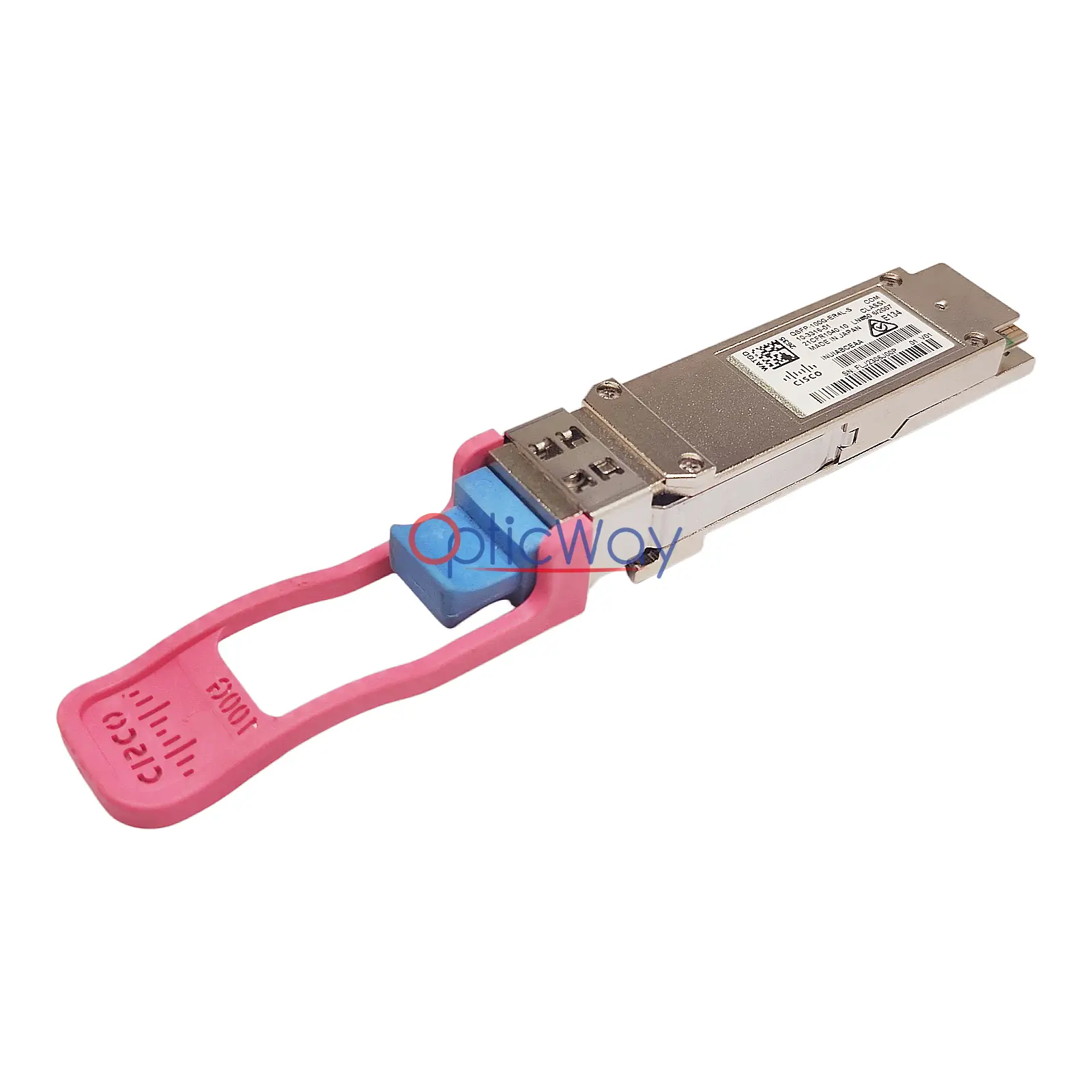

- Utilizes four tightly spaced LAN-WDM wavelengths (1295.56nm to 1309.14nm) multiplexed over a standard Duplex LC connector, maximizing existing fiber core infrastructure.
3. Real-Time Telemetry (DOM)
- Integrated Digital Optical Monitoring via $I^2C$ interface provides live telemetry—including temperature, supply voltage, laser bias current, and TX/RX optical power—for proactive network management.
4.Carrier-Grade Reliability
- Operates within commercial temperature ranges (0℃to+70℃） with optimized low power consumption (<4.5W), meeting Class 1 laser safety (IEC 60825-1) and RoHS standards.
5.100% Cisco Interoperability
- Engineered to fully comply with QSFP28 MSA and IEEE 802.3ba 100GBASE-ER4L standards, ensuring seamless plug-and-play operation with zero error codes on Cisco Nexus, Catalyst, and ASR platforms.
