Specifications

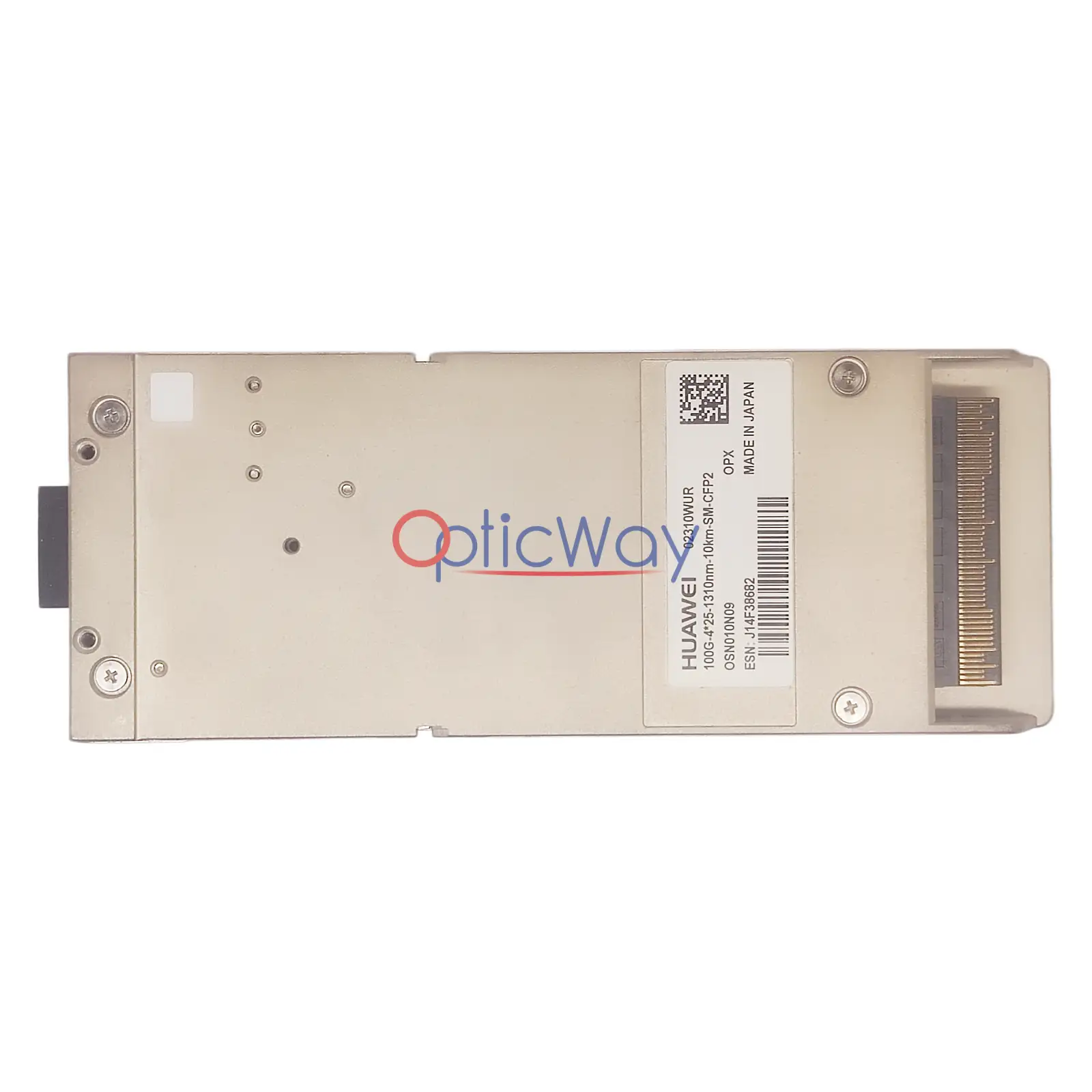

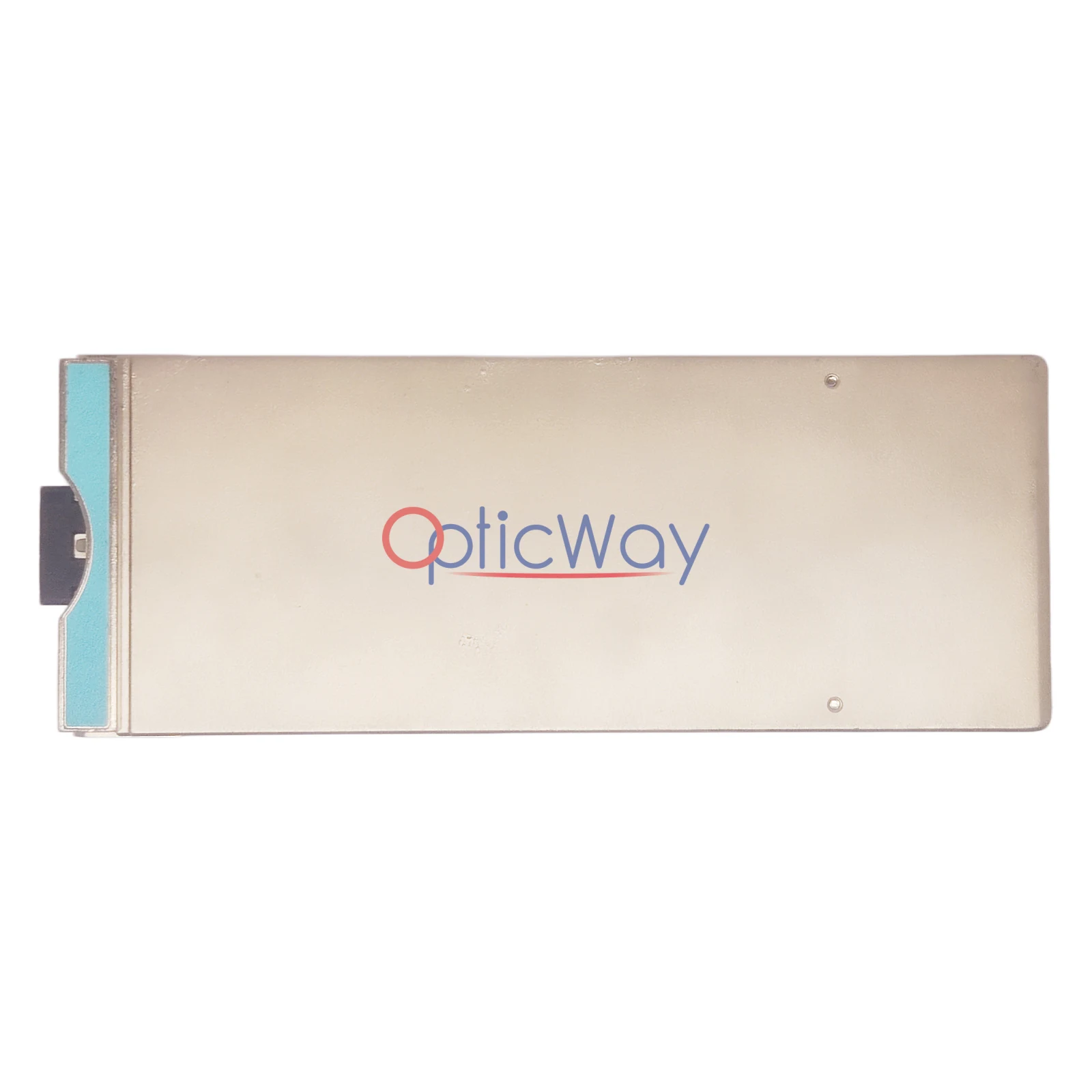

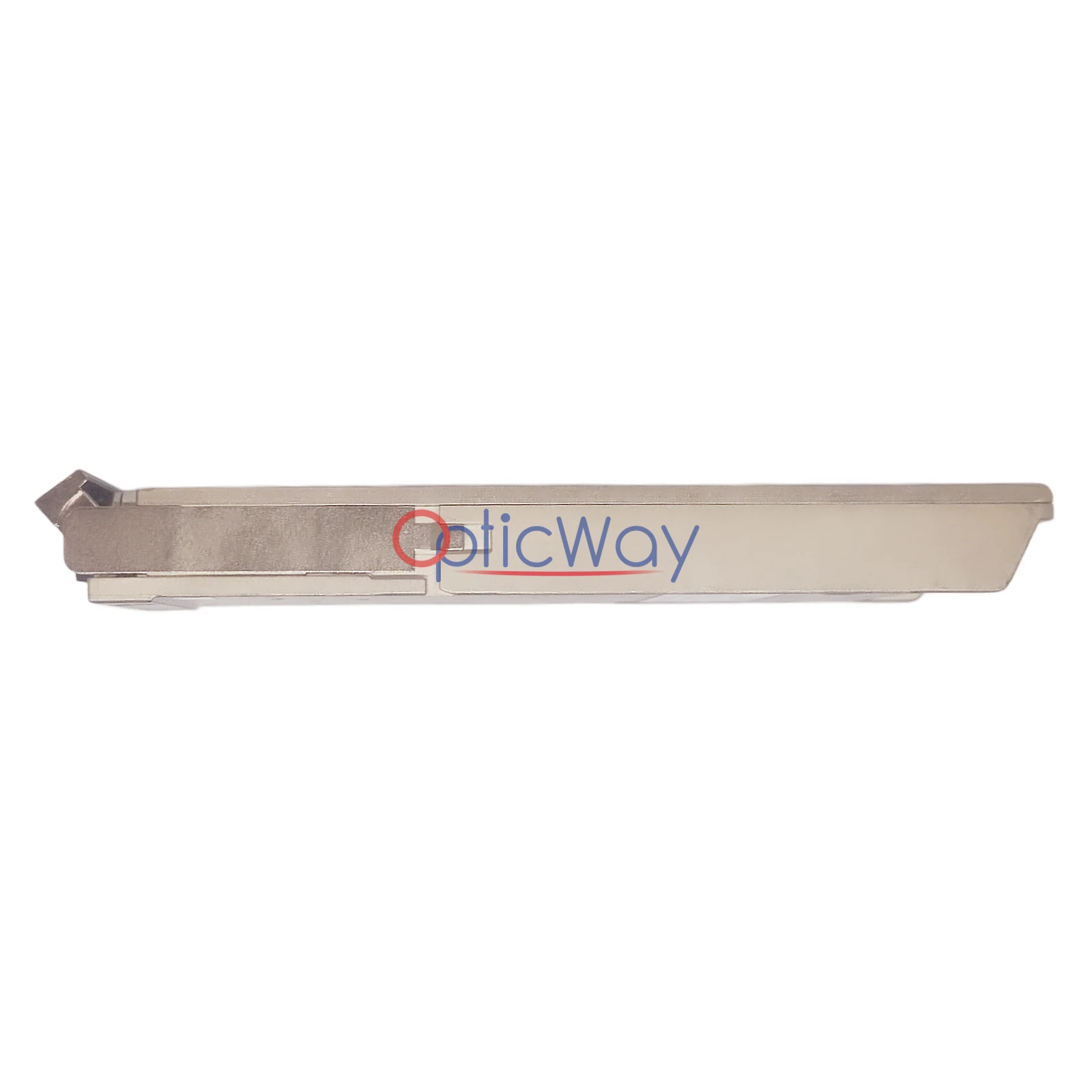

Genuine Huawei 02310WUR 100GBASE-LR4 CFP2 Optical Transceiver Module OSN010N09 SMF 4x25G 1310nm 10km LC
The Huawei 02310WUR (Model: OSN010N09) is a premium, hot-pluggable 100GBASE-LR4 CFP2 optical transceiver module engineered for high-capacity 100Gbps Ethernet and OTU4 network links. Utilizing 4 independent channels of 25Gb/s LAN-WDM optical signals over the 1310nm band, it delivers robust and reliable data transmission up to 10km over Single-Mode Fiber (SMF). Fully compliant with CFP2 MSA and IEEE 802.3ba standards, this carrier-grade module is optimized for Huawei high-end routers, Metropolitan Area Networks (MANs), and enterprise data centers.

Model Number

OSN010N09

Band

HuaWei

Part Number

02310WUR

Form Factor

CFP2

Data Rate

100 Gbps (4*25.7Gb/s)

Max Distance

10km

Fiber Type

Single-Mode Fiber (SMF)

Hot Pluggable

Yes

Wavelength

1310nm Band (1295.56nm ~ 1309.14nm)

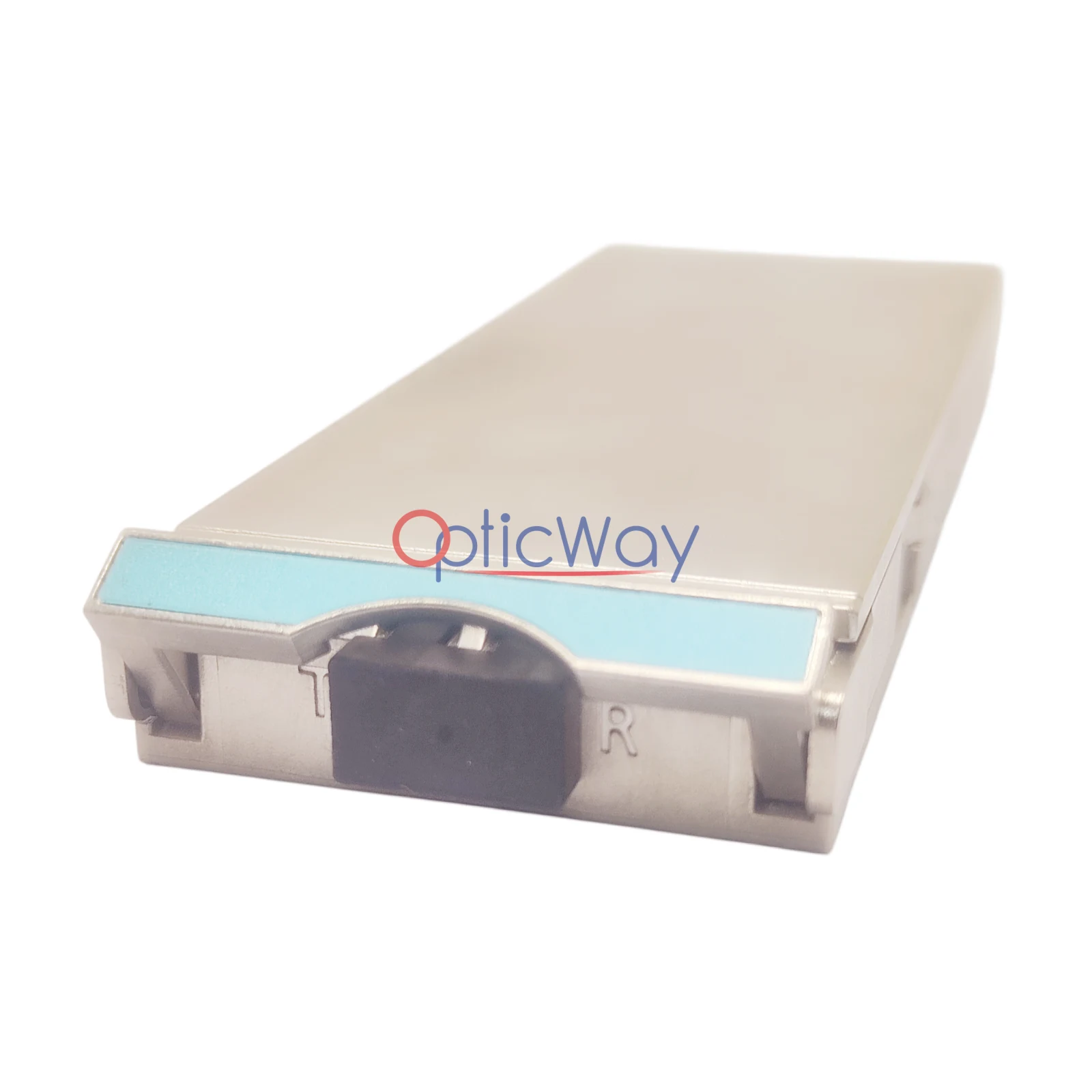

Connector Type

Duplex LC

Operating Temperature

0°C ~ 70°C

Country of Origin

Japan

Tx Power

-4.3 ~ +4.5 dBm

Rx Power

-10.6 ~ +4.5 dBm

Typical Applications

100GBASE-LR4 Enterprise Backbone Link
Data Center Interconnect (DCI) Networks
Metro Aggregation and Telecom Core Infrastructures
High-speed uplinks for Huawei NE40E Series and core switches

Product Highlights

1.Authentic Huawei Quality (Genuine & Precision-Engineered)

Original Huawei product (P/N: 02310WUR) . It offers 100% native hardware recognition, seamless system telemetry, and certified authenticity.

2.Carrier-Grade Reliability & Performance

Engineered with premium components to deliver low latency and zero bit-error-rate (BER) stability under high-traffic loads, ensuring carrier-grade reliability throughout its lifecycle.

3.High-Density & Energy-Efficient Design

The compact CFP2 form factor significantly increases equipment port density compared to traditional CFP. Combined with an enhanced thermal dissipation layout, it strictly limits power consumption within MSA specifications.

4.Full Lifecycle Visibility (Advanced DDM)

Features built-in advanced Digital Diagnostic Monitoring (DDM), allowing network administrators to track module health (power, temperature, voltage) in real-time to preview risks and minimize operational downtime.

5.Maximizing Infrastructure ROI (Seamless Hardware Lifecycle Extension)

Enables a cost-effective upgrade to 100G bandwidth without ripping and replacing existing legacy chassis, significantly extending the lifespan and ROI of your current network assets.
